WACOM ONE Creative Pen Display Pen Tablet
- Read our FAQs before ordering
- Need Help / Out of Stock? Chat with us.

SPECIFICATION
|
Product information
|
|
|
Product type |
Creative Pen Display |
|
Model Code |
DTC133 |
|
Product Dimensions (L x W x H)
|
225 x 357 x 14.6 mm 8.9 x 14.1 x 0.6 in |
|
Product Weight |
1.0 kg 2.2 lbs |
|
Stand Adjustability |

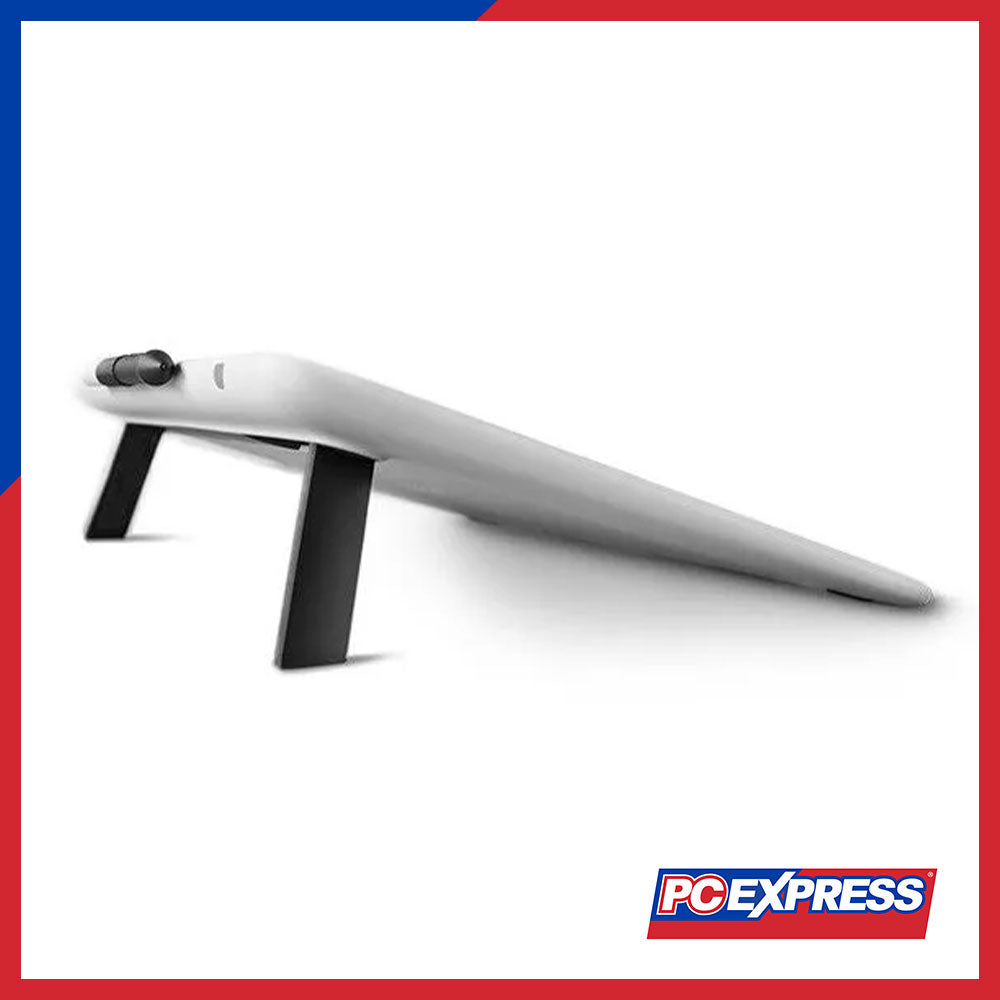

19 degrees using built-in, fold-out legs |
|
Power Consumption
|
Power ON mode (MAX): less than 10 W Power OFF mode: 0.5 W or lower Power sleep mode: 0.5 W or lower |
|
Power Supply Input |
100 to 240 VAC, 50/60Hz |
|
Power Supply Output |
5 VDC, 2A |
|
Storage Temperature and Humidity
|
Temperature: -10 to 60 deg. C Humidity: 30 to 90% RH (non-condensing) (Maximum storage humidity is 90% at a temperature of 45 deg. C, and maximum storage temperature is 60 deg. C at a humidity of 30%) |
|
Operating Temperature and Humidity
|
Temperature: 5 to 40 deg. C Humidity: 30 to 80% RH (non-condensing) |
|
Pen Display Technology
|
|
|
Screen Size (measured diagonally) |
13.3 inch |
|
Display Resolution |
1920 x 1080 pixels |
|
Display Technology |
AHVA |
|
Surface |
AG film |
|
Color Depth |
8bit |
|
Aspect Ratio |
16:9 |
|
Viewing Angle |
170 deg. (85/85)H / 170 deg. (85/85)V (typ) |
|
Contrast Ratio |
1000:1 (typ) |
|
White luminance uniformity |
80% (typ) |
|
Pixel pitch
|
0.1533(H)X |
|
Brightness |
200 cd/m2 (typ) |
|
Response Time |
26m sec (typ) |
|
Active Area
|
294 x 166 mm 11.6 x 6.5 in |
|
Color Gamut Coverage Ratio |
NTSC 72% (CIE1931) (typ) |
|
Pen Type |
Pressure-sensitive, cordless, battery-free |
|
Pen Technology |
EMR |
|
Pen Name |
Wacom One Pen |
|
Pen Pressure Levels |
4096 |
|
Supported pen tilt angle |
60 degrees |
|
Pen resolution
|
0.01mm/point |
|
Compatibility & Connectivity
|
|
|
Hardware Requirements |
HDMI port and standard USB-A port |
|
I/O Ports |
1 x Display Connector |
|
Input Video Connector |
HDMI |
|
System Requirements
|
Windows 7 & later Mac OS 10.13 & later |
