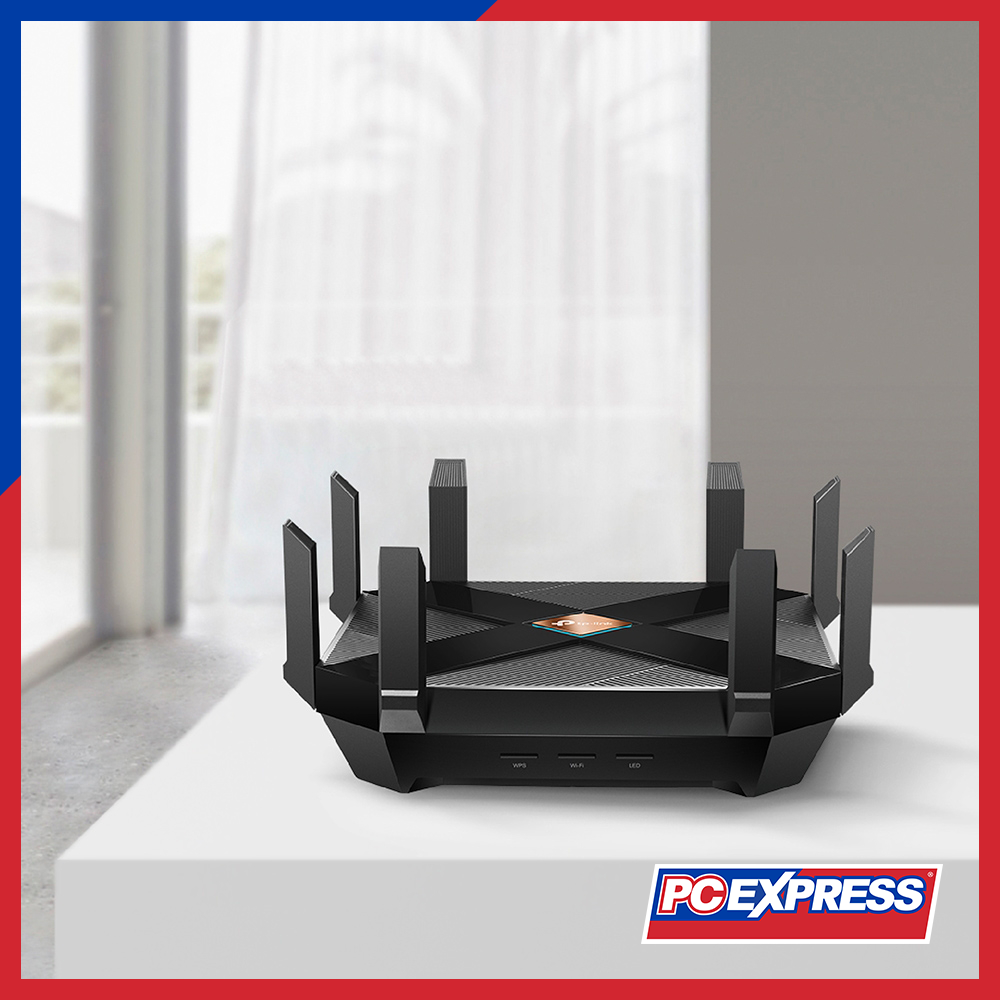

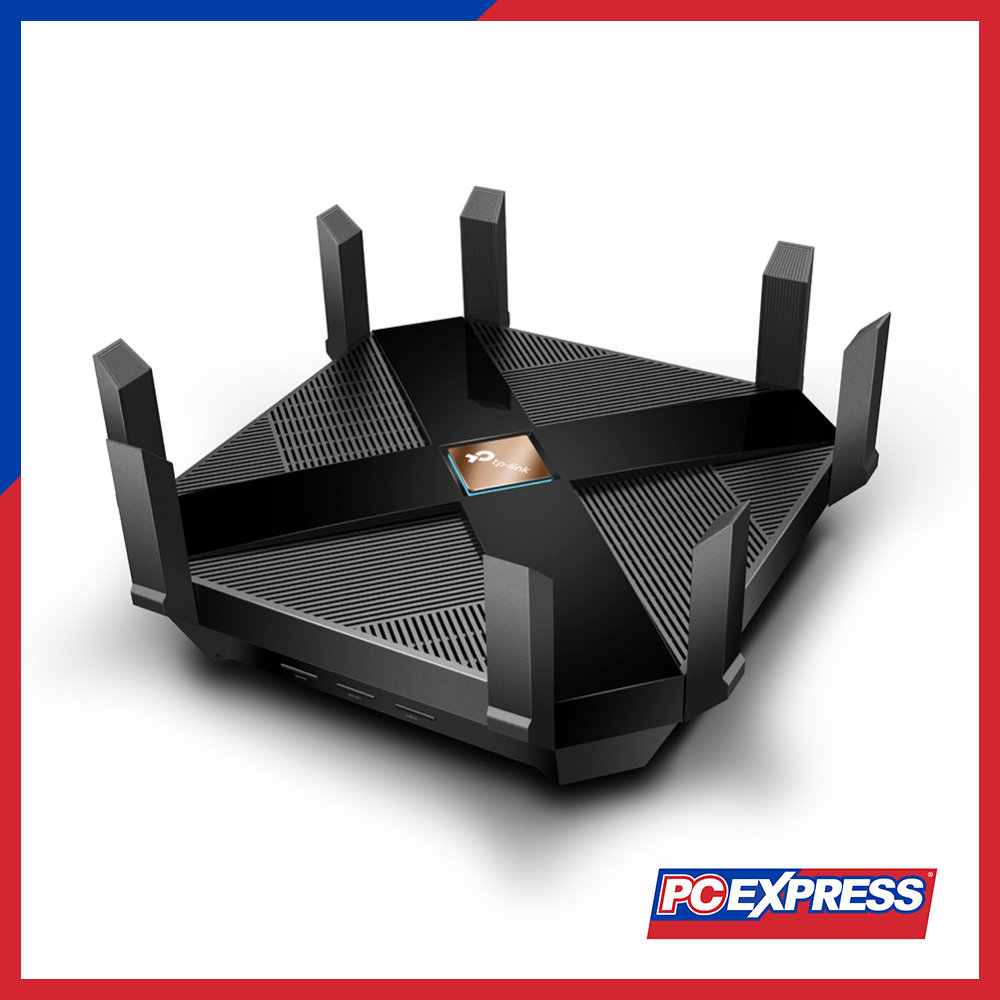

TP-LINK Archer AX6000 Next-Gen Wi-Fi Router
- Read our FAQs before ordering
- Need Help / Out of Stock? Chat with us.

SPECIFICATION
|
Wireless |
|
|
Standards |
Wi-Fi 6, IEEE 802.11ax/ac/n/a (5 GHz), IEEE 802.11ax/n/b/g (2.4 GHz) |
|
WiFi Speeds |
AX6000: 5 GHz - 4804 Mbps, 2.4 GHz - 1148 Mbps |
|
WiFi Range |
Suitable for 4 Bedroom Houses |
|
Antennas |
8× Fixed High-Performance Antennas, with Beamforming and High-Power FEM for extended coverage |
|
Capacity |
Very High, Dual-Band, 4×4 MU-MIMO, OFDMA, Airtime Fairness, DFS, 8 Streams |
|
Working Modes |
Router Mode, Access Point Mode |
|
Processor |
1.8 GHz 64 Bit Quad-Core CPU |
|
HARDWARE |
|
|
Ethernet Ports |
1× 2.5 Gbps WAN Port, 8× Gigabit LAN Ports, Static Link Aggregation (LAG) available with 2× LAN ports |
|
USB Support |
1× USB-C 3.0 Port, 1× USB-A 3.0 Port, supports NTFS, exFAT, HFS+, FAT32 |
|
Buttons |
Wi-Fi On/Off, Power On/Off, LED On/Off, WPS, Reset |
|
Power |
12 V ⎓ 4 A |
|
SECURITY |
|
|
WiFi Encryption |
WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x) |
|
Network Security |
SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway |
|
HomeCare™ Security |
Antivirus, Malicious Site Checker, Port Intrusion Prevention, Infected Device Isolation, Notification and Log |
|
Guest Network |
1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network |
|
VPN Server |
OpenVPN, PPTP |
|
SOFTWARE |
|
|
Protocols |
IPv4, IPv6 |
|
Service Kits |
HomeCare™, OneMesh™ Supported |
|
Parental Controls |
Custom Profiles, Content Filtering, App Block, URL Filtering, Time Limit, Time Schedule (Bedtime), Log Insight |
|
WAN Types |
Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
|
Quality of Service |
QoS by Device, HomeCare™ QoS, QoS by Application |
|
Cloud Service |
Auto Firmware Upgrade, OTA Firmware Upgrade, TP-Link ID, DDNS |
|
NAT Forwarding |
Port Forwarding, Port Triggering, DMZ, UPnP |
|
IPTV |
IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
|
DHCP |
Address Reservation, DHCP Client List, Server |
|
DDNS |
TP-Link, NO-IP, DynDNS |
|
Management |
Tether App, Webpage, Check Web Emulator |
|
OTHER |
|
|
System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser, Cable or DSL Modem (if needed), Subscription with an internet service provider (for internet access) |
|
Certifications |
FCC, CE, RoHS |
|
Environment |
Operating Temperature: 0℃~40℃ (32℉ 70℃ (-40℉ ~158℉), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing |
|
TEST DATA |
WiFi Transmission Power (CE/FCC) and WiFi Reception Sensitivity at 5 GHz and 2.4 GHz |
|
PHYSICAL |
Dimensions: 10.3 × 10.3 × 2.4 in. (261.2 × 261.2 × 60.2 mm) |
|
Package Contents |
Wi-Fi Router Archer AX6000, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide |
