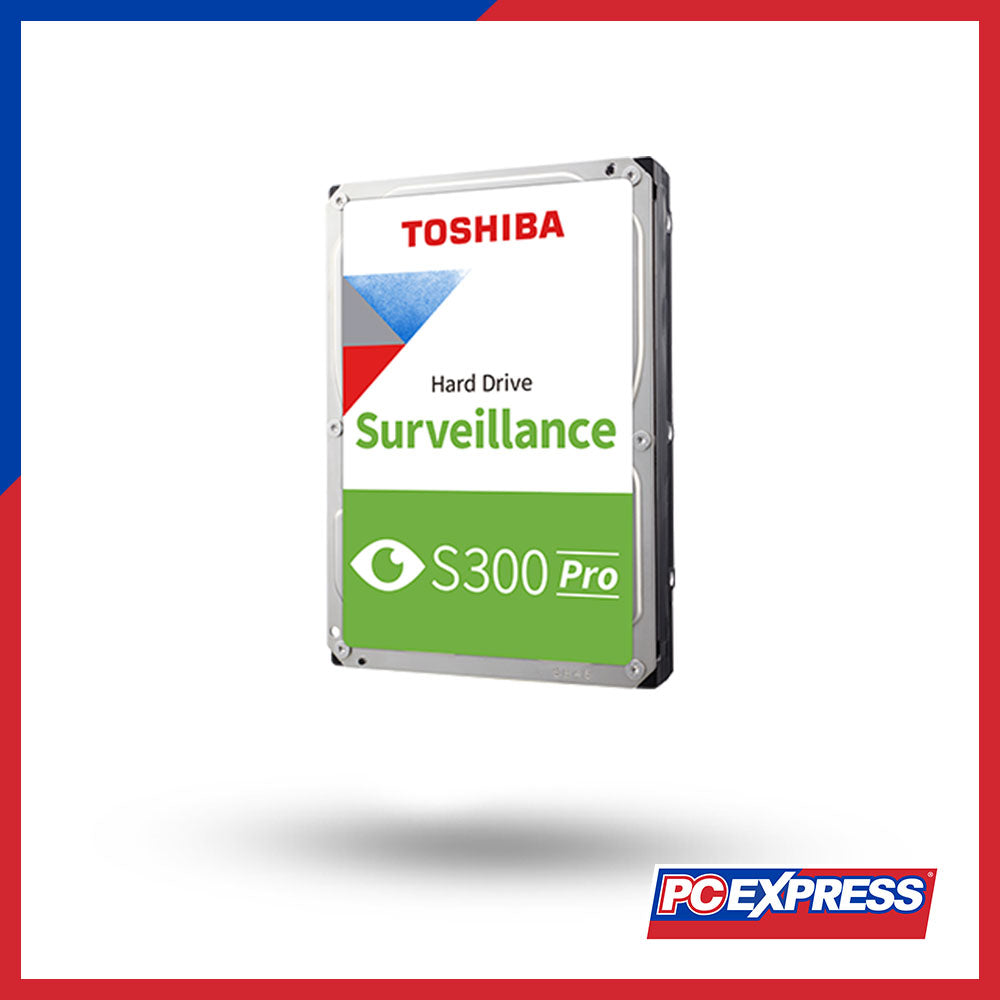

TOSHIBA S300 PRO 8TB Surveillance Hard Drive

Form factor

3.5-inch

Interface

6.0 Gbit/s

Cameras supported

64

Drive bays supported

24

RV Sensors

Yes

Shock Sensor

Yes

Advanced Format (AF)

Yes

RoHS compatible

Yes

Halogen free

Yes

Recording Technology

CMR

Performance

Rotational speed (rpm)

7200

Max. data transfer speed (MB/s, typ.)

281

Buffer size (MB)

512

Reliability

Workloads (TB/year)

300

MTTF (hours)

1,200,000

Unrecoverable error rate

1 per 10^14

24 x 7 operation

Yes

Load/Unload cycle

600,000

Limited warranty

5 years

Power Management

Supply voltage

5 VDC (+10 / -7%)
12 VDC (±10%)

Operating consumption (W, typ.)

8.19

Active idle consumption (W, typ.)

4.92

Environmental

Temperature (operating/non-operating)

0 to 65 °C / -40 to 70 °C

Vibration (operating)

Same as left

Vibration (non-operating)

29.4 m/s² {3.0 G} (5–500 Hz)

Shock (operating)

686 m/s² {70 G} (2 ms duration)

Shock (non-operating)

2450 m/s² {250 G} (2 ms duration)

Acoustics (idle mode)

34 dB typ.

Physical

Dimensions (L x W x H)

147 x 101.85 x 26.1 mm

Weight

730 g

Logistic Information – Bulk

Master carton quantity

20 pcs

Master carton size (L x W x H)

410 x 308 x 228 mm

Master carton weight

16 kg

Pallet quantity per layer

120 pcs

Number of layers

5 layers

Pallet quantity

600 pcs

Pallet size (L x W x H)

870 x 970 x 1272 mm

Pallet weight

495 kg
