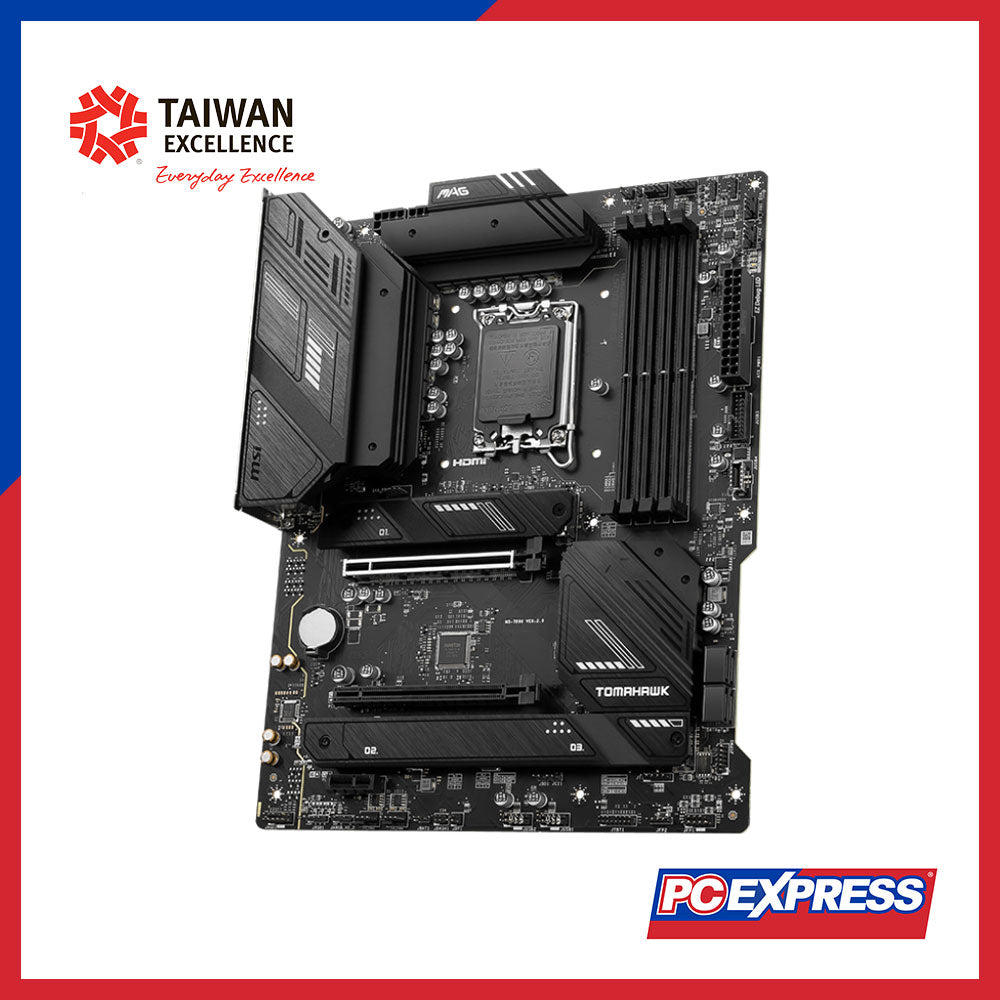

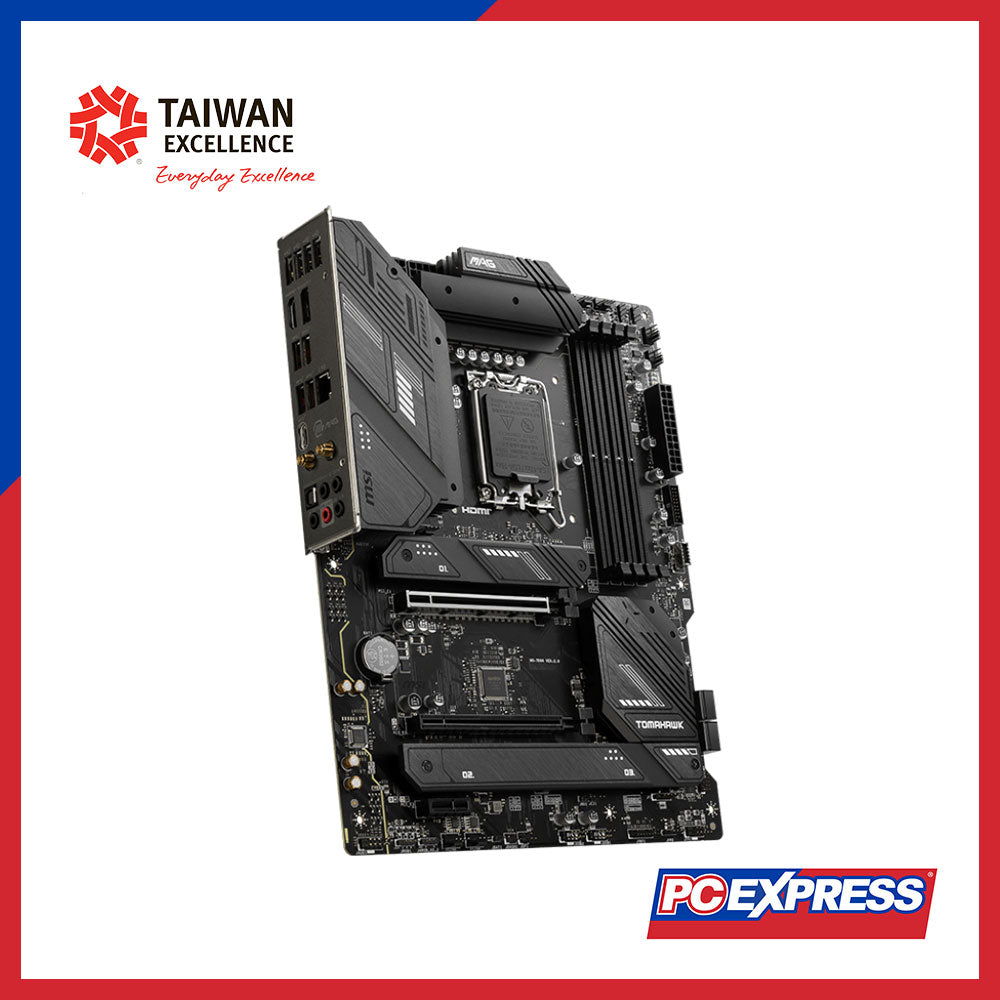

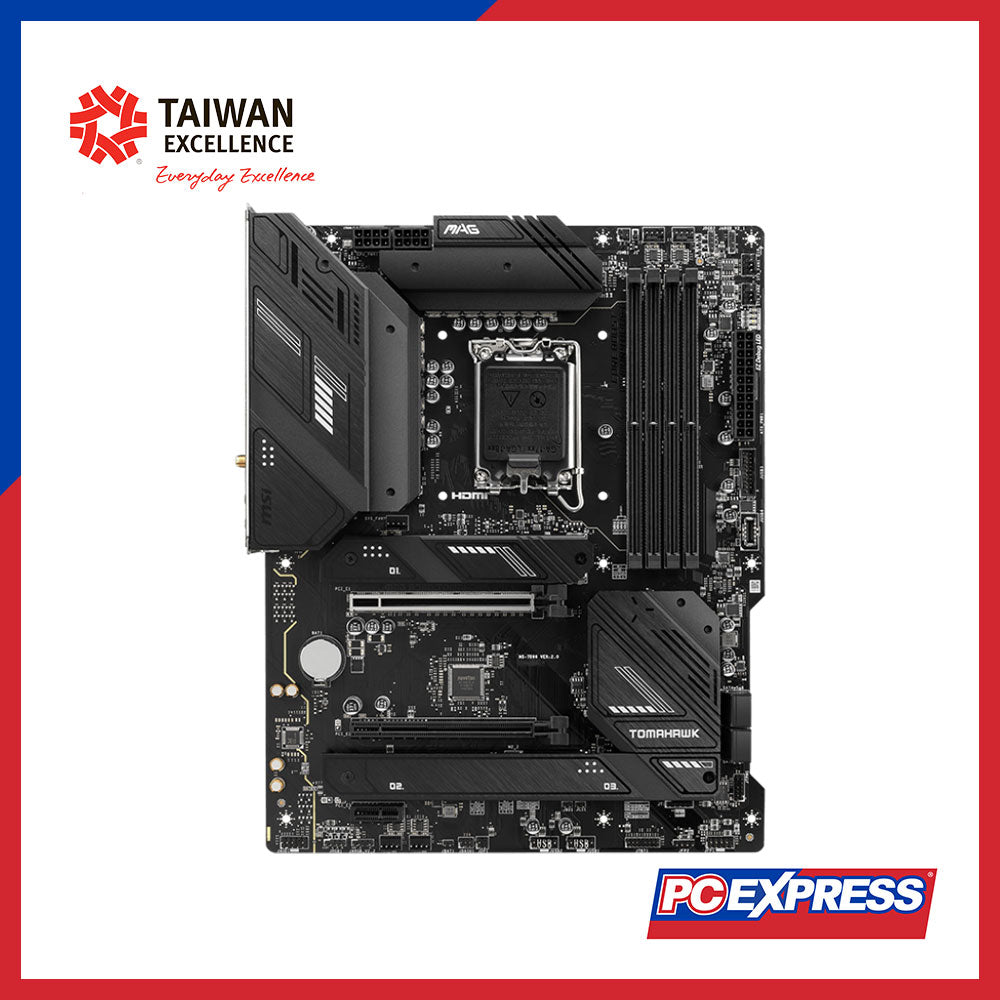

MSI MAG B760 TOMAHAWK WIFI ATX Motherboard
Shipping calculated at checkout.
- Read our FAQs before ordering
- Need Help / Out of Stock? Chat with us.
Product ID: 8854821765418
Description
SPECIFICATION
|
Chipset |
INTEL B760 |
|
CPU |
Supports Intel® Core™ 14th/13th/12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors, LGA1700 |
|
Memory |
4x DDR5, Max Memory Capacity 192GB |
|
Memory Support 7000+(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/ |
|
|
5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz |
|
|
Max. overclocking frequency: |
|
|
- 1DPC 1R Max speed up to 7000+ MHz |
|
|
- 1DPC 2R Max speed up to 6600+ MHz |
|
|
- 2DPC 1R Max speed up to 6400+ MHz |
|
|
- 2DPC 2R Max speed up to 5600+ MHz |
|
|
Supports Dual-Channel mode |
|
|
Supports non-ECC, un-buffered memory |
|
|
Supports Intel® Extreme Memory Profile |
|
|
Onboard Graphics |
1x HDMI™ (HDMITM 2.1 with HDR, max resolution 4K 60Hz) |
|
1x DisplayPort (Support DP 1.4, max resolution 8K 60Hz) |
|
|
Slots |
2x PCI-E x16 slot (Supports x16/x4) |
|
1x PCI-E x1 slot (PCI_E1 Gen PCIe 5.0 supports up to x16 - From CPU) |
|
|
1x PCI-E x1 slot (PCI_E2 Gen PCIe 3.0 supports up to x4 - From Chipset) |
|
|
1x PCI-E x1 slot (PCI_E3 Gen PCIe 4.0 supports up to x1 - From Chipset) |
|
|
Storage |
3x M.2 (M.2_1 Source supports PCIe 4.0 x4, 22110/2280/2260/2242 devices) |
|
(M.2_2 Source supports PCIe 4.0 x4, 2280/2260/2242 devices) |
|
|
(M.2_3 Source supports PCIe 4.0 x4/SATA, 2280/2260/2242 devices) |
|
|
4x SATA 6G |
|
|
RAID |
Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices |
|
USB |
4x USB 2.0 (Rear), 4x USB 2.0 (Front) |
|
2x USB 3.2 Gen1 Type A (Front) |
|
|
4x USB 3.2 Gen2 Type A (Rear) |
|
|
1x USB 3.2 Gen2 Type C (Front) |
|
|
1x USB 3.2 Gen2x2 Type C (Rear) |
|
|
LAN |
Realtek® 2.5Gbps LAN |
|
Wireless LAN & Bluetooth |
Intel® Wi-Fi 6E (Pre-installed in the M.2 (Key-E) slot) |
|
Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz* (160MHz) up to 2.4Gbps |
|
|
Supports 802.11 a/b/g/n/ac/ax |
|
|
Supports Bluetooth® 5.3, FIPS, FISMA |
|
|
Audio |
Realtek® ALC897 Codec, 7.1-Channel High-Performance Audio |
|
Supports S/PDIF output |
|
|
Internal I/O |
Various connectors including power, CPU fan, pump fan, system fan, front panel, chassis intrusion, front audio, TBT connector, tuning controller connector, addressable RGB LED connectors, RGB LED connectors, TPM pin header, USB ports, etc. |
|
LED Feature |
4x EZ Debug LED |
|

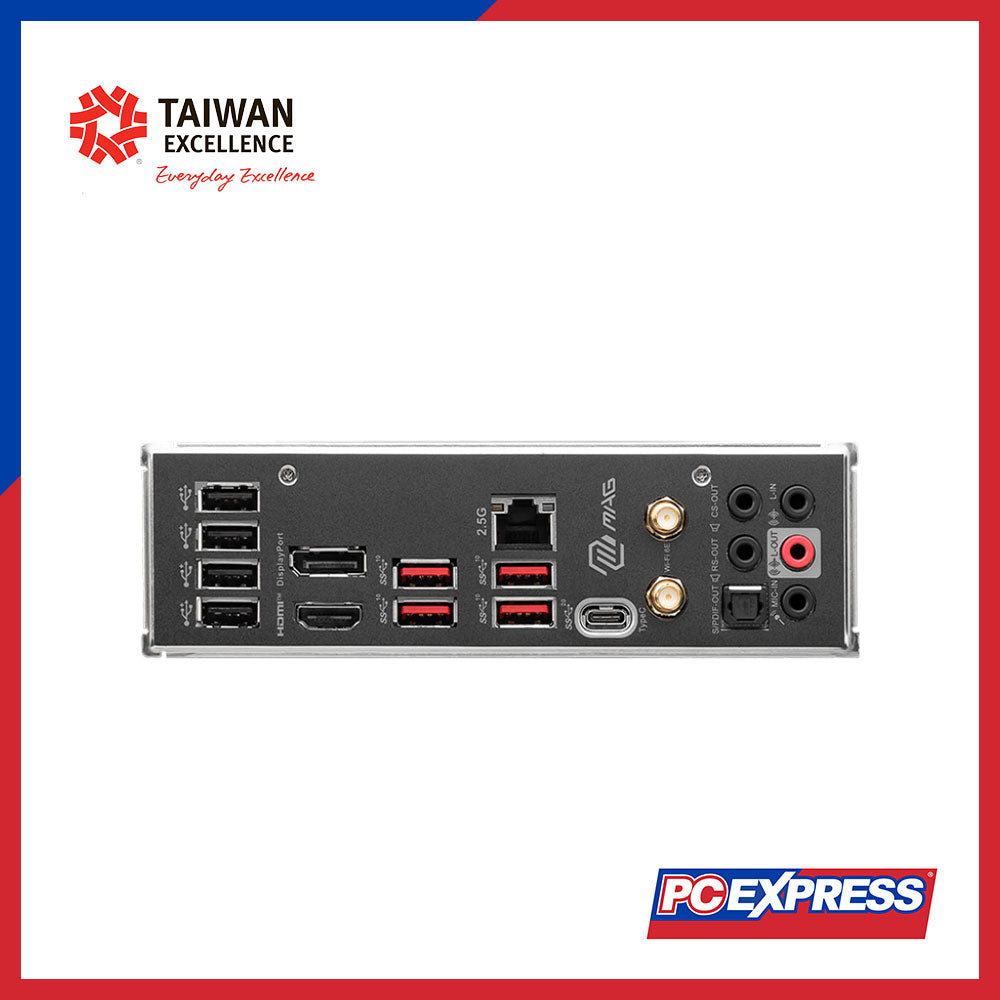

Back Panel Ports |
USB 2.0, DisplayPort 1.4, USB 3.2 Gen 2 10Gbps Type-A, 2.5G LAN Port, Wi-Fi/Bluetooth Antenna, HD Audio Connectors, HDMI™ 2.1 Port, USB 3.2 Gen 2x2 20Gbps Type-C, Optical S/PDIF OUT |
|
Operating System |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
|
PCB Info |
ATX, 243.84mm x 304.8mm |
