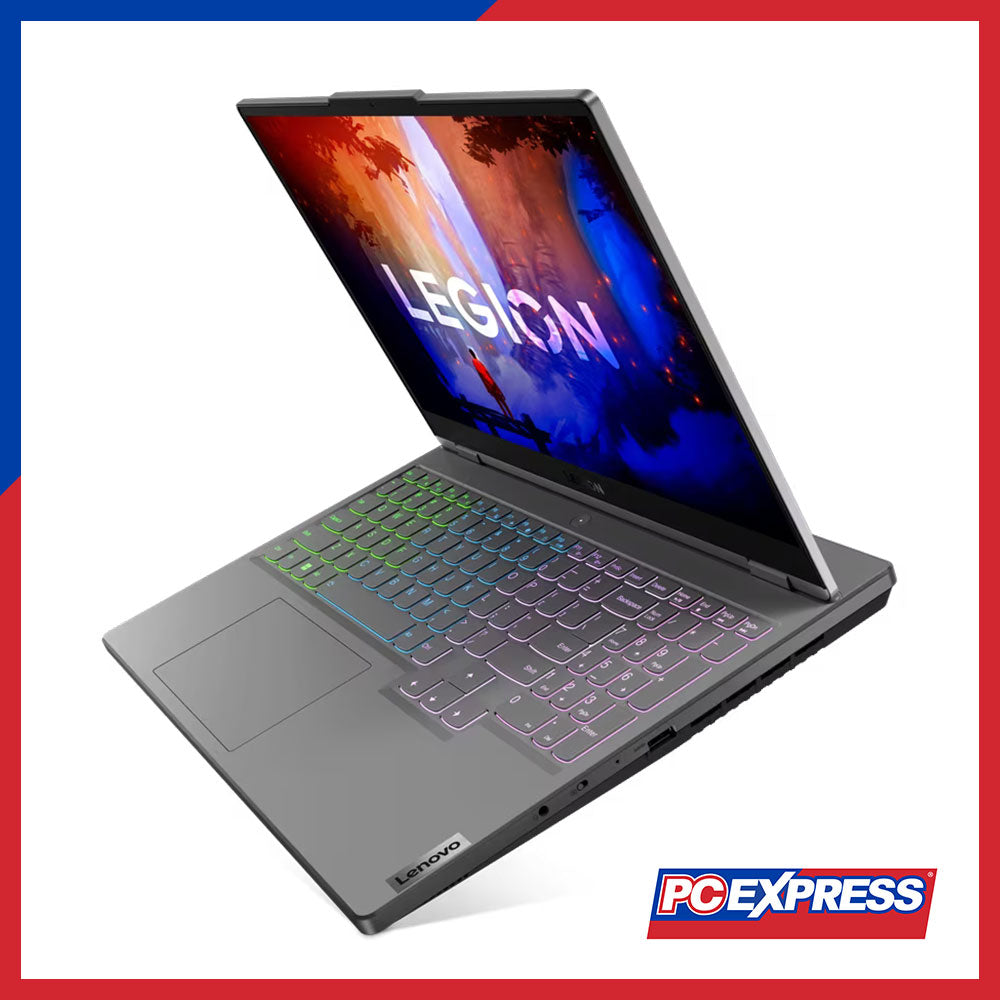

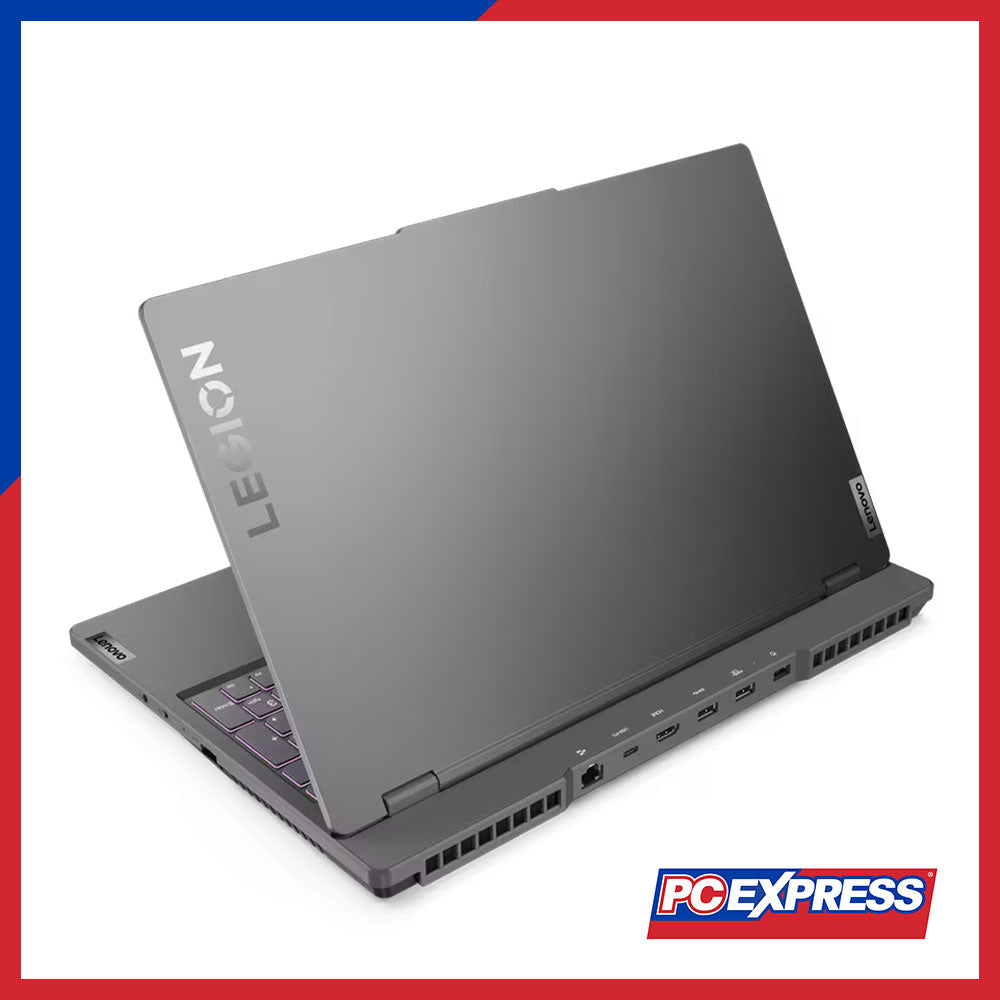

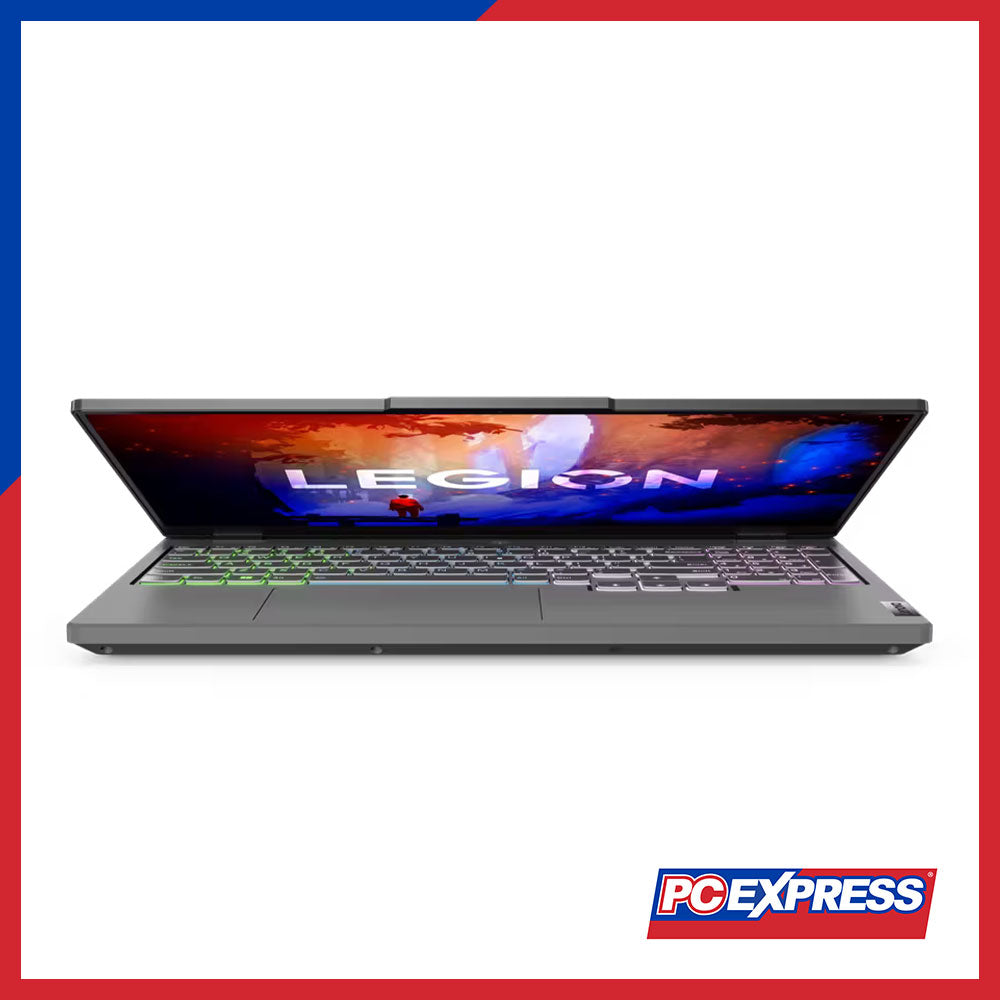

LENOVO Legion 5 (82RD001APH) GeForce® RTX 3060 AMD Ryzen™ 7 Laptop (Storm Grey)

Operating System

Windows 11 Home

Processor

AMD Ryzen™ 7 6800H

Graphics

GeForce RTX™ 3060

Display

15.6" Full-HD 165Hz

Memory

16GB 4800MHz DDR5

Storage

512GB M.2 PCIe NVMe SSD

Office

Ms Office Home and Student 2021

Removable Storage

Optical

None

Card Reader

No card reader

Multi-Media

Audio Chip

High Definition (HD) Audio, Realtek® ALC3287 codec

Speakers

Stereo speakers, 2W x2, Nahimic Audio

Microphone

Dual-microphone array

Camera**

FHD 1080p, with E-shutter, fixed focus

HD 720p, with E-shutter, fixed focus

Battery

Battery**

Integrated Li-Polymer 60Wh battery, supports Super Rapid Charge (10min charge 0~30% capacity, 30min charge 0~70% capacity, 80min charge 0~100% capacity)

Integrated Li-Polymer 80Wh battery, supports Super Rapid Charge (10min charge 0~30% capacity, 30min charge 0~70% capacity, 80min charge 0~100% capacity)

Max Battery Life

Models with 60Wh battery: MobileMark® 2018: 6.8 hr Local video (1080p) playback@150nits: 11.2 hr

Models with 80Wh battery: MobileMark 2018: 10.8 hr Local video (1080p) playback@150nits: 17.8 hr

Power Adapter

Power Adapter

230W slim tip (3-pin) AC adapter, 100-240V, 50-60Hz

300W slim tip (3-pin) AC adapter, 100-240V, 50-60Hz

Input Device

Keyboard

6-row, multimedia Fn keys, numeric keypad, black keycaps

Keyboard Backlight**

4-Zone RGB backlight

White backlight

Touchpad

Buttonless Mylar® surface multi-touch touchpad, 75 x 120 mm (2.95 x 4.72 inches)

Mechanical

Dimensions (WxDxH)

358.8 x 262.35 x 19.99 mm (14.13 x 10.33 x 0.79 inches)

Weight

Around 2.4 kg (5.3 lbs)

Network

Ethernet

Gigabit Ethernet, 1x RJ-45, supports Wake-on-LAN

WLAN + Bluetooth

802.11ac 2x2 Wi-Fi® + Bluetooth® 5.1, M.2 card

Wi-Fi 6, 802.11ax 2x2 Wi-Fi + Bluetooth 5.1, M.2 card

Wi-Fi 6E, 802.11ax 2x2 Wi-Fi + Bluetooth 5.1, M.2 card

Ports

Standard Ports

1x Ethernet (RJ-45)

1x HDMI 2.1, up to 8K/60Hz

1x Headphone / microphone combo jack (3.5mm)

1x Power connector

1x USB 3.2 Gen 1 (Always On)

1x USB-C 3.2 Gen 2 (support data transfer and DisplayPort™ 1.4)

1x USB-C 3.2 Gen 2 (support data transfer, Power Delivery 135W and DisplayPort 1.4)

1x USB4® 40Gbps (support data transfer and DisplayPort 1.4)

2x USB 3.2 Gen 1

Security

Security Chip

Firmware TPM 2.0 integrated in SoC

Fingerprint Reader

No fingerprint reader

BIOS Security

Administrator password

Power-on password

Hard disk password

Self-healing BIOS

Other Security

E-shutter

Operating Environment

Temperature

At altitudes up to 2438 m (8,000 ft) - Operating: 5°C to 35°C (41°F to 95°F) - Storage: 5°C to 43°C (41°F to 109°F)

Humidity

Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)

Storage: 5% to 95% at wet-bulb temperature 27°C (81°F)

Altitude

Maximum altitude (without pressurization): 3048 m (10,000 ft)

Green Certifications

ErP Lot 3

RoHS compliant
