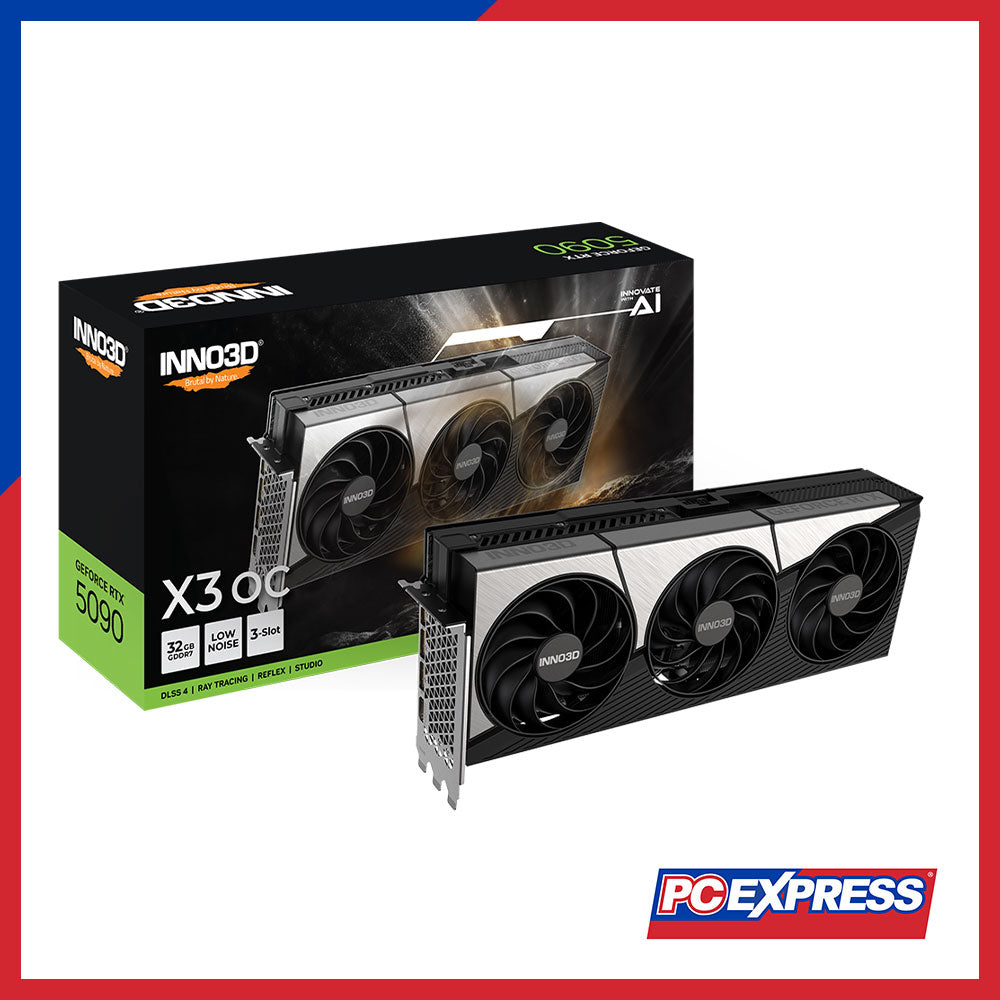

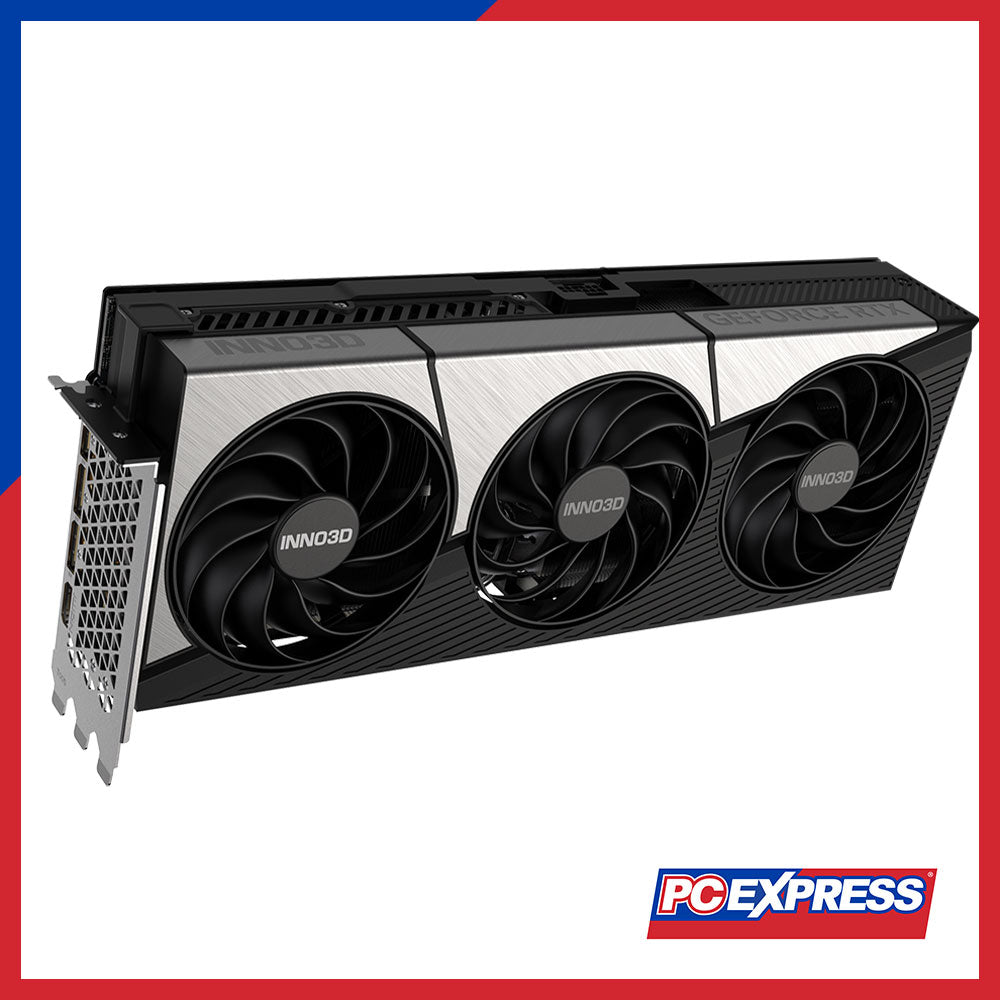

INNO3D GeForce RTX™ 5090 X3 OC 32GB GDDR7 512-bit Graphics Card
- Read our FAQs before ordering
- Need Help? Chat with us.
SPECIFICATION
GPU Engine Specs |
|
CUDA Cores |
21,760 |
Base Clock |
2017 MHz |
Boost Clock |
2452 MHz |
Thermal and Power Spec |
|
Minimum System Power |
1000W |
Power Connectors |
4x PCIe 8-pin (adapter in box) OR 1x 600W PCIe Gen 5 cable |
Memory Specs |
|
Memory Clock |
28 Gbps |
Standard Memory Config |
32 GB |
Memory Type |
GDDR7 |
Memory Interface Width |
512-bit |
Memory Bandwidth |
1792 GB/sec |
Feature Support |
|
Real-Time Ray Tracing |
Yes |
Ray Tracing Cores |
4th Gen, 318 TFLOPS |
Tensor Cores |
5th Gen, 3352 AI TOPS |
Architecture |
NVIDIA Blackwell |
Microsoft DirectX |
12 Ultimate |
NVIDIA DLSS |
Version 4 |
NVIDIA Ansel |
Yes |
NVIDIA FreeStyle |
Yes |
NVIDIA ShadowPlay |
Yes |
NVIDIA Highlights |
Yes |
NVIDIA G-SYNC™ Ready |
Yes |
NVIDIA GPU Boost™ |
Yes |
Game Ready Drivers |
Yes |
Studio Drivers |
Yes |
OS Certification |
Windows 11 / 10, Linux, FreeBSDx86 |
API Support |
Vulkan 1.4, OpenGL 4.6 |
NVIDIA Encoder |
3x Ninth Generation |
NVIDIA Decoder |
2x Sixth Generation |
Bus Support |
PCI Express Gen 5 |
Display Support |
|
Multi Monitor Support |
Up to 4 |
Max Digital Resolution |
4K at 480Hz or 8K at 165Hz (with DSC) |
HDCP Support |
Yes (2.3) |
Display Connectors |
3x DisplayPort 2.1b, 1x HDMI 2.1b |
Accessories |
Graphics Card Stand (embedded with cooler) |
Card Dimensions (mm) |
Length: 333 |
