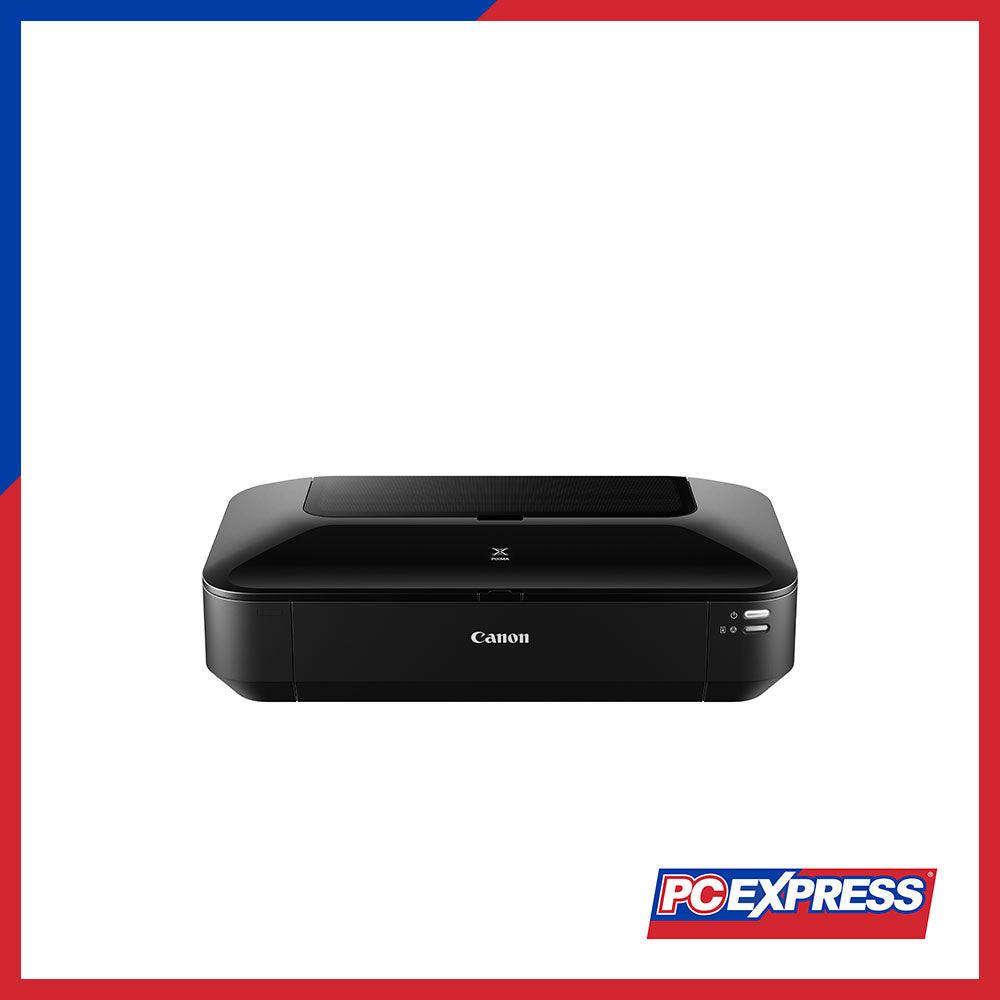

CANON PIXMA IX6770 A3 Printer

Printer

Maximum Printing Resolution

9600 (horizontal)*¹ x 2400 (vertical) dpi

Print Head / Ink

Type:

Individual Ink Tank

Number of Nozzles:

Total 5,120 nozzles

Ink Droplet Size:

1pl

Ink Tank:

PGI-750 (Pigment Black), CLI-751 (Cyan / Magenta / Yellow / Black)
[Optional: PGI-755XXL (Pigment Black), PGI-750XL (Pigment Black),
CLI-751XL (Cyan / Magenta / Yellow / Black)]

Print Speed*²
Based on ISO / IEC 24734.
Click here for summary report
Click here for Document Print and Copy Speed Measurement Conditions

Document: Col

ESAT / Simplex

approx. 10.4 ipm

Document: B/W

ESAT / Simplex

approx. 14.5 ipm

Photo (11 x 14" image)

PP-201

approx. 120 sec

Photo (4 x 6")

PP-201 / Borderless

approx. 36 sec

Printable Width

Up to 322.2 mm (12.7 inch), Borderless: Up to 329 mm (13 inch)

Printable Area

Borderless Printing*³

Top / Bottom / Right / Left margin: each 0 mm (Supported Paper Size: A3+, A3, A4, LTR, LDR, 4 x 6", 5 x 7", 8 x 10", 10 x 12")

Bordered Printing

Top margin: 3 mm, Bottom margin: 5 mm,
Left / Right margin: each 3.4 mm (LTR / LGL: Left: 6.4 mm, Right: 6.3 mm)

Recommended Printing Area

Top margin: 40.7 mm / Bottom margin: 37.4 mm

Paper Size

A3+, A3, A4, A5, B4, B5, LTR, LGL, LDR, 4 x 6", 5 x 7", 8 x 10", 10 x 12", Envelopes (DL, COM10), Custom size (width 55 - 329 mm, length 91 - 676 mm)

* F4 is possible via custom size settings.

Paper Handling (Rear Tray)
(Maximum Number)

Plain Paper

A3, A4, A5, B4, B5, LTR, LGL, LDR = 150

High Resolution Paper (HR-101N)

A3+ = 20, A3 = 50, A4 = 80

Photo Paper Pro Platinum (PT-101)

A3+ = 1, A3, A4 = 10, 4 x 6" = 20

Photo Paper Plus Glossy II (PP-201)

A3+ = 1, A3, A4 = 10, 4 x 6" = 20

Photo Paper Pro Luster (LU-101)

A3+ = 1, A3, A4 = 10

Photo Paper Plus Semi-Gloss (SG-201)

A3+ = 1, A3, A4, 8 x 10" = 10, 4 x 6" = 20

Glossy Photo Paper "Everyday Use" (GP-601)

A4 = 10, 4 x 6" = 20

Matte Photo Paper (MP-101)

A3, A4 = 10, 4 x 6" = 20

Envelope

European DL / US Com. #10 = 10

Paper Weight

Front Tray

Plain Paper: 64 - 105 g/m², Canon specialty paper: max paper weight: approx. 300 g/m2 (Photo Paper Pro Platinum PT-101)

Ink End Sensor

Optical sensor + Dot count

Print Head Alignment

Auto / Manual

System Requirements

Windows:

(Please visit https://asia.canon/support to check OS compatibility and to download the latest driver updates.)

Windows 8 / Windows 7 / Windows XP / Windows Vista

Macintosh:

Mac OS X 10.6.8 and later

General Specifications

Interface

USB 2.0 Hi-Speed USB

Operating Environment

Temperature: 15 - 30°C; Humidity: 10 - 80% RH (no dew condensation)

Storage Environment

Temperature: 0 - 40°C; Humidity: 5 - 95% RH (no dew condensation)

Acoustic Noise (PC Print)

Photo (4 x 6")*⁵

approx. 44.5 dB(A)

Power

AC 100 - 240 V, 50/60 Hz

Power Consumption

Standby
iX6770: USB connection to PC
iX6870: Wireless LAN connection to PC

Approx. 0.8 W

OFF:

Approx. 0.2 W

Printing*⁶
Wireless LAN connection to PC

Approx. 21 W

Environment

Regulation:

RoHS (EU, China), WEEE (EU)

Eco-Label:

EPEAT

Duty Cycle

up to 12,000 pages/month

Dimensions (W x D x H)

approx. 584 x 310 x 159 mm

Weight

approx. 8.1 kg
