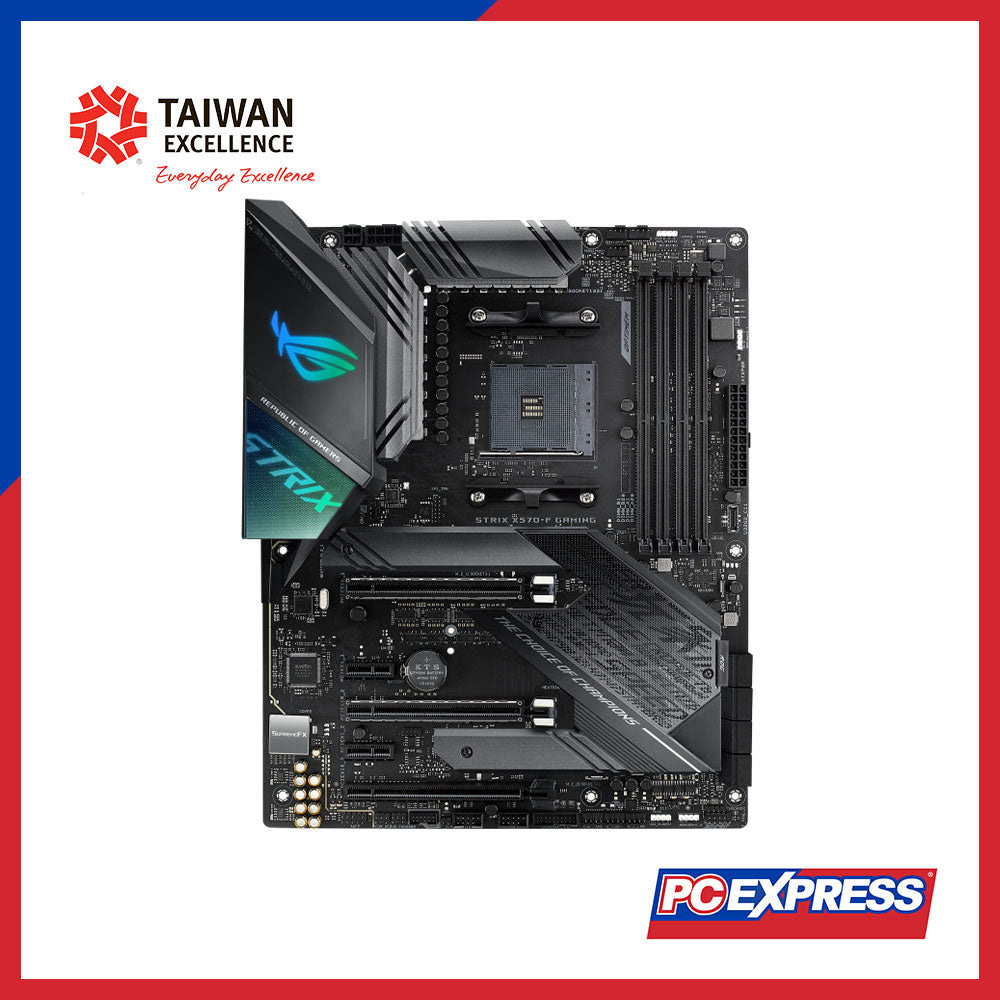

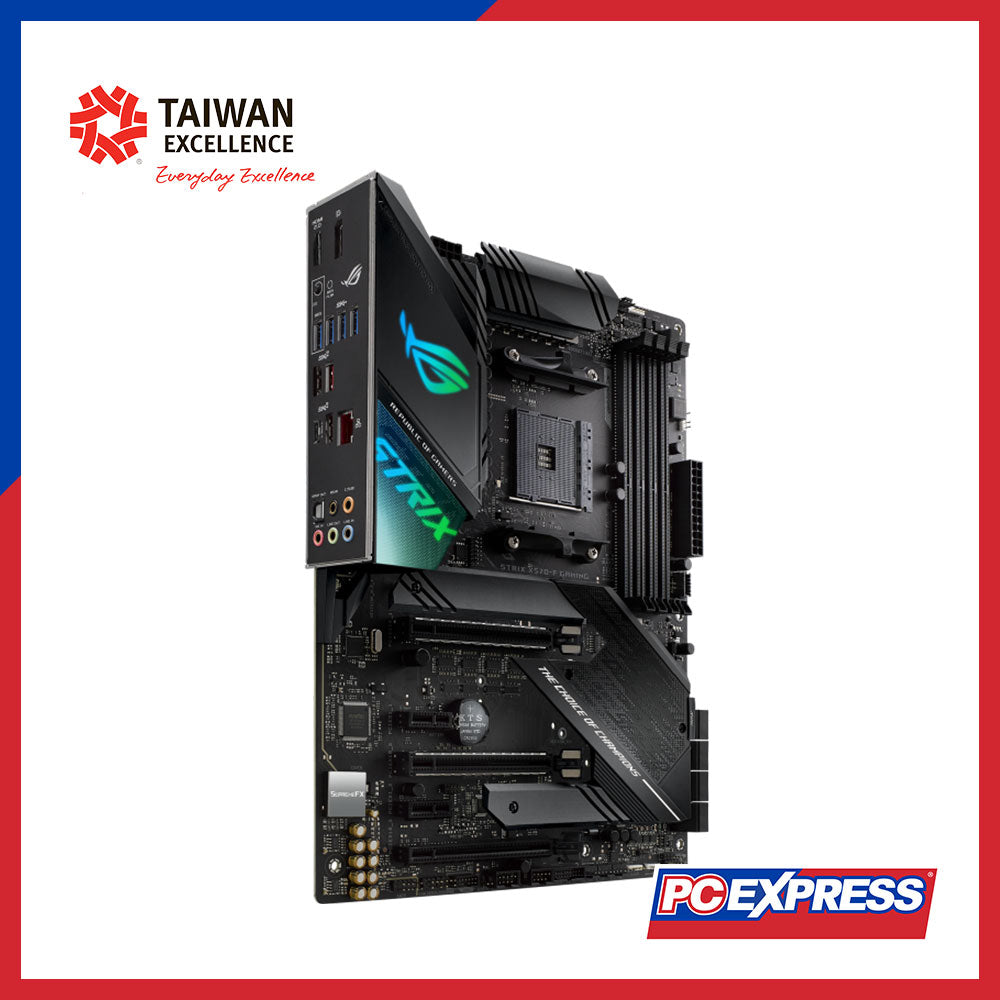

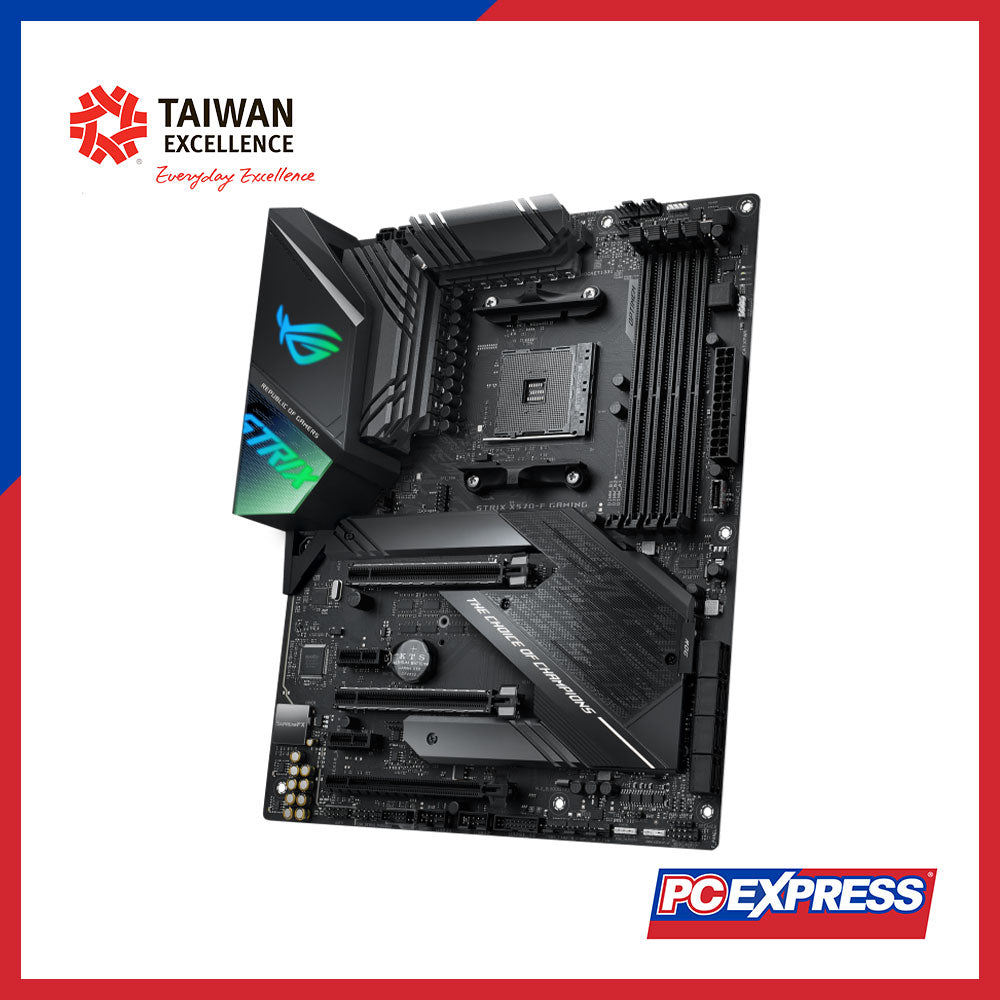

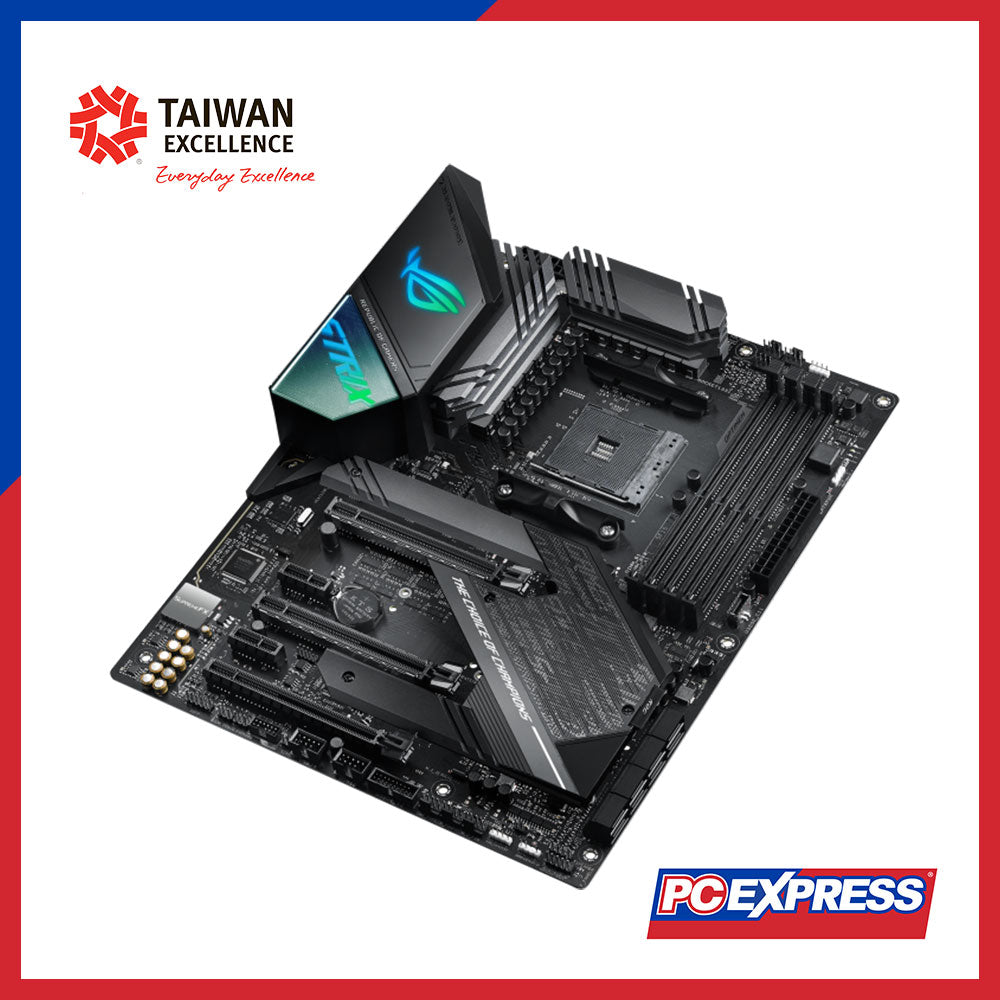

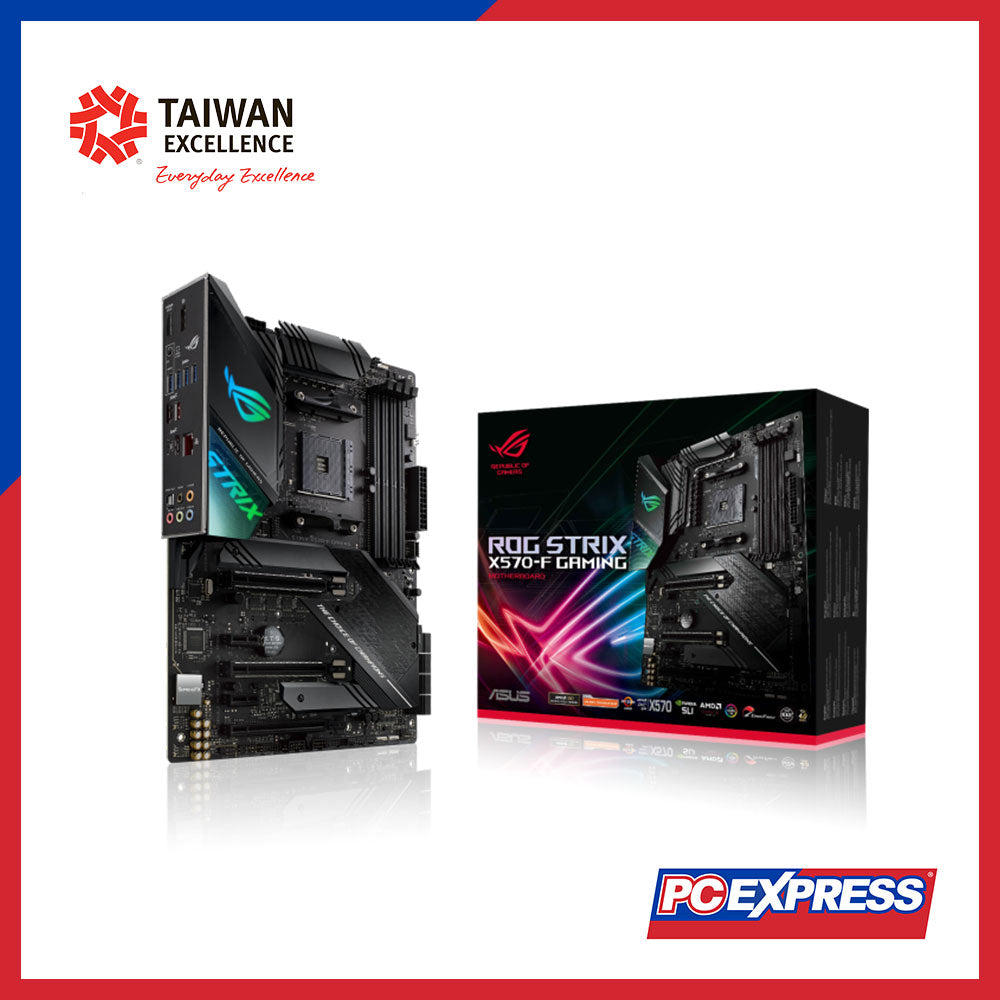

ASUS ROG Strix X570-F Gaming Motherboard

CPU

AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors. Refer to ASUS.com for CPU support list.

Chipset

AMD X570

Memory

4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory. Refer to ASUS.com for Memory QVL.

Graphics

Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors. Multi-VGA output support: HDMI/DisplayPort ports. Supports HDMI 2.0b with a maximum resolution of 4096 x 2160 @ 60 Hz. Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz.

Multi-GPU Support

3rd and 2nd Gen AMD Ryzen™ Processors: Supports NVIDIA® 2-Way SLI® Technology. Supports AMD 3-Way CrossFireX™ Technology. Supports AMD 2-Way CrossFireX™ Technology.

Expansion Slots

1 x PCIe 4.0 x16 (max at x4 mode). 2 x PCIe 4.0 x1. 2 x PCIe 4.0 x16 (x16 or dual x8). 2 x PCIe 3.0 x16 (x16 or dual x8). 1 x PCIe 3.0 x16 (x8 mode). AMD X570 chipset.

Storage

1 x M.2 x4 Socket 3 (PCIe 4.0 x4 and SATA modes). 8 x SATA 6Gb/s port(s). 1 x M.2 Socket 3 (PCIe 4.0 x4 and SATA modes). 1 x M.2 Socket 3 (PCIe 3.0 x4 and SATA modes). Supports RAID 0, 1, 10.

LAN

Intel® I211-AT, 1 x Gigabit LAN Controller(s). Anti-surge LANGuard. ROG GameFirst Technology.

Audio

SupremeFX 8-Channel High Definition Audio CODEC S1220A. Dual OP Amplifiers. High-quality 120dB SNR stereo playback output and 113dB SNR recording input. SupremeFX Shielding Technology. Supports up to 32-Bit/192kHz playback. Sonic Radar III. Sonic Studio III + Sonic Studio Link. Impedance sense for front and rear headphone outputs. Audio Feature: Optical S/PDIF out port(s) at back panel.

USB Ports

4 x USB 3.2 Gen 2 port(s) (4 at the back panel, 3 x Type-A + 1 x Type-C). 4 x USB 3.2 Gen 1 port(s) (4 at the back panel). 3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors: 1 x USB 3.2 Gen 2 front panel connector port(s). AMD X570 chipset: 4 x USB 2.0 port(s) (4 at mid-board).

Special Features

ROG Exclusive Software: RAMCache III, CPU-Z, GameFirst V, Overwolf. BIOS FlashBack™ Button. USB BIOS FlashBack™. Whole system optimization with a single click! 5-Way Optimization tuning key. TPU: Auto Tuning, TurboV, GPU Boost. Gamer´s Guardian: DRAM Overcurrent Protection, Stainless Steel Back I/O, ESD Guards on LAN, Audio, and USB ports. AURA-RGB Lighting. ASUS NODE: hardware control interface. ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED). 5-Way Optimization by Dual Intelligent Processors 5. ASUS EPU: EPU. ASUS EZ DIY: ASUS CrashFree BIOS 3, ASUS EZ Flash 3. ASUS Q-Design: ASUS Q-Slot, ASUS Q-DIMM.

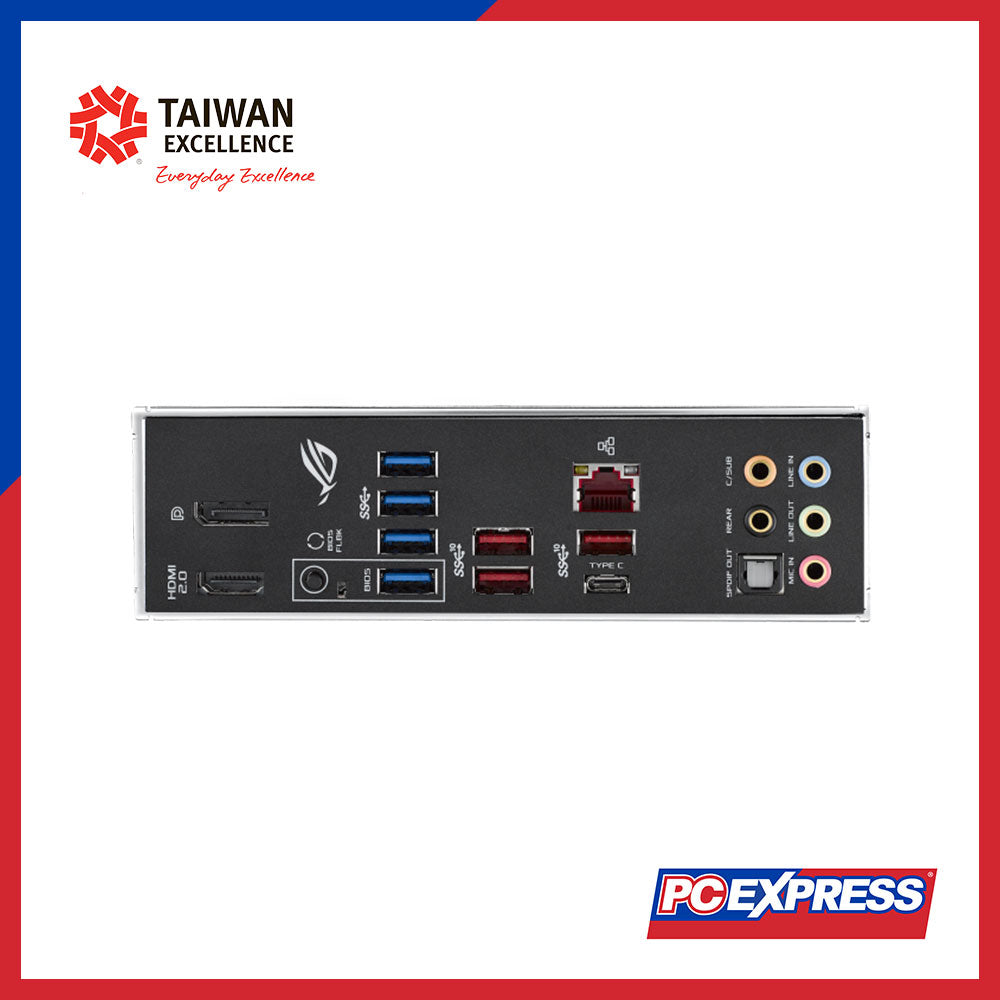

Back I/O Ports

1 x USB BIOS FlashBack™ Button. Anti-surge LAN (RJ45) port. 4 x USB 3.2 Gen 1 (up to 5Gbps) ports. 1 x DisplayPort. 1 x HDMI. 1 x Optical S/PDIF out. 5 x Audio jack(s). 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A). 1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C).

Internal I/O Ports

2 x Addressable Gen 2 header(s). 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support. 2 x Chassis Fan connector(s). 1 x W_PUMP+ connector. 1 x M.2 Fan Header. 1 x PCH_FAN. 1 x AAFP connector. 2 x Aura RGB Strip Header(s). 8 x SATA 6Gb/s connector(s). 1 x CPU Fan connector(s). 1 x CPU OPT Fan connector(s). 1 x AIO_PUMP connector. 1 x Thermal sensor connector(s). 1 x System panel connector. 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s). 1 x SPI TPM header. 1 x 24-pin EATX Power connector(s). 1 x 8-pin ATX 12V Power connector(s). 1 x 4-pin ATX 12V Power connector(s). 1 x Front panel audio connector(s) (AAFP). 1 x Clear CMOS jumper(s). 1 x Node Connector(s). 1 x T_Sensor Connector. 1 x USB 3.2 Gen 2 (up to 10Gbps) connector. 1 x USB 3.2 Gen 1 (up to 5Gbps) connector supports additional 2 USB ports.

Accessories

1 x Strix door hanger. 1 x ROG Strix stickers. 1 x Cable ties pack(s). 1 x Extension Cable for RGB strips (80 cm). 1 x Thermistor cable(s). 1 x ROG Thank you card. 4 x SATA 6Gb/s cable(s). User´s manual. 1 x M.2 Screw Package. Supporting DVD. Extension cable for Addressable LED.

BIOS

256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2.

Manageability

WOL, PXE.

Operating System

Windows® 10 64-bit

Form Factor

ATX Form Factor

Note

PCIeX16_3 slot shares bandwidth with PCIeX1_2. Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
