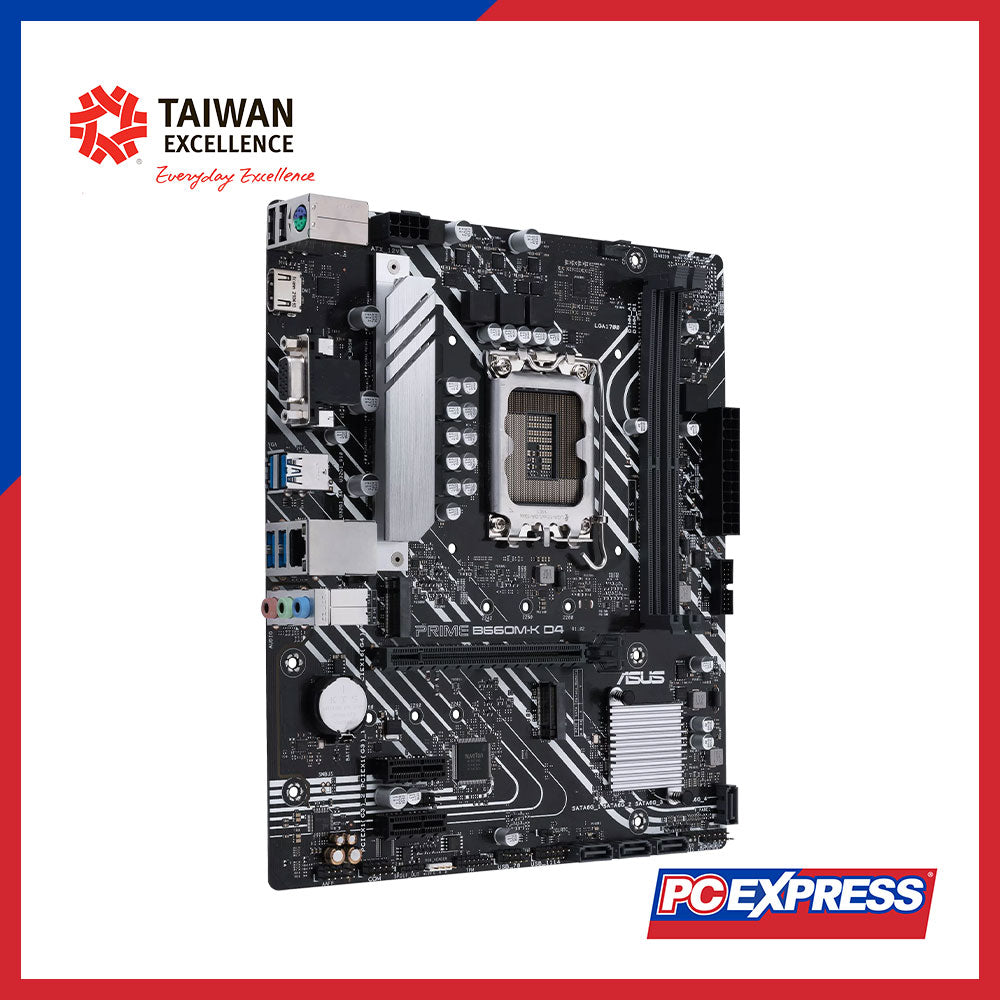

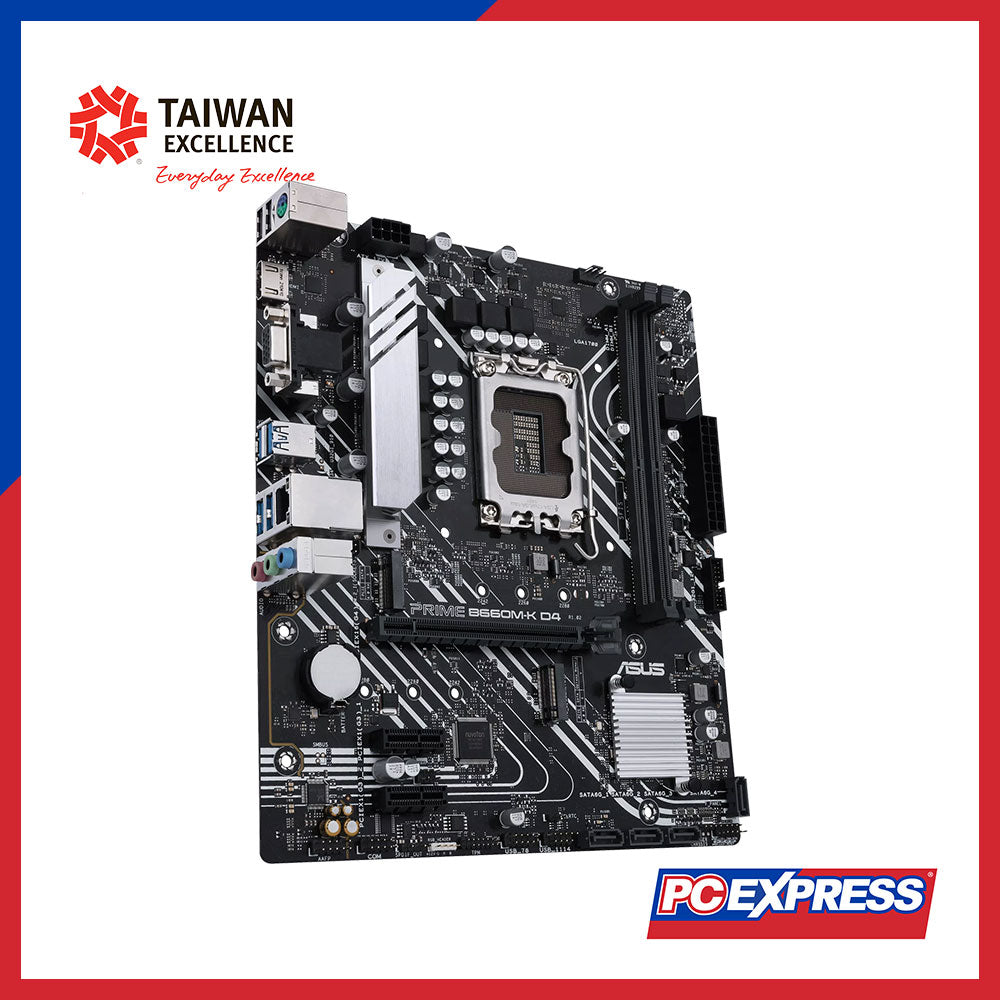

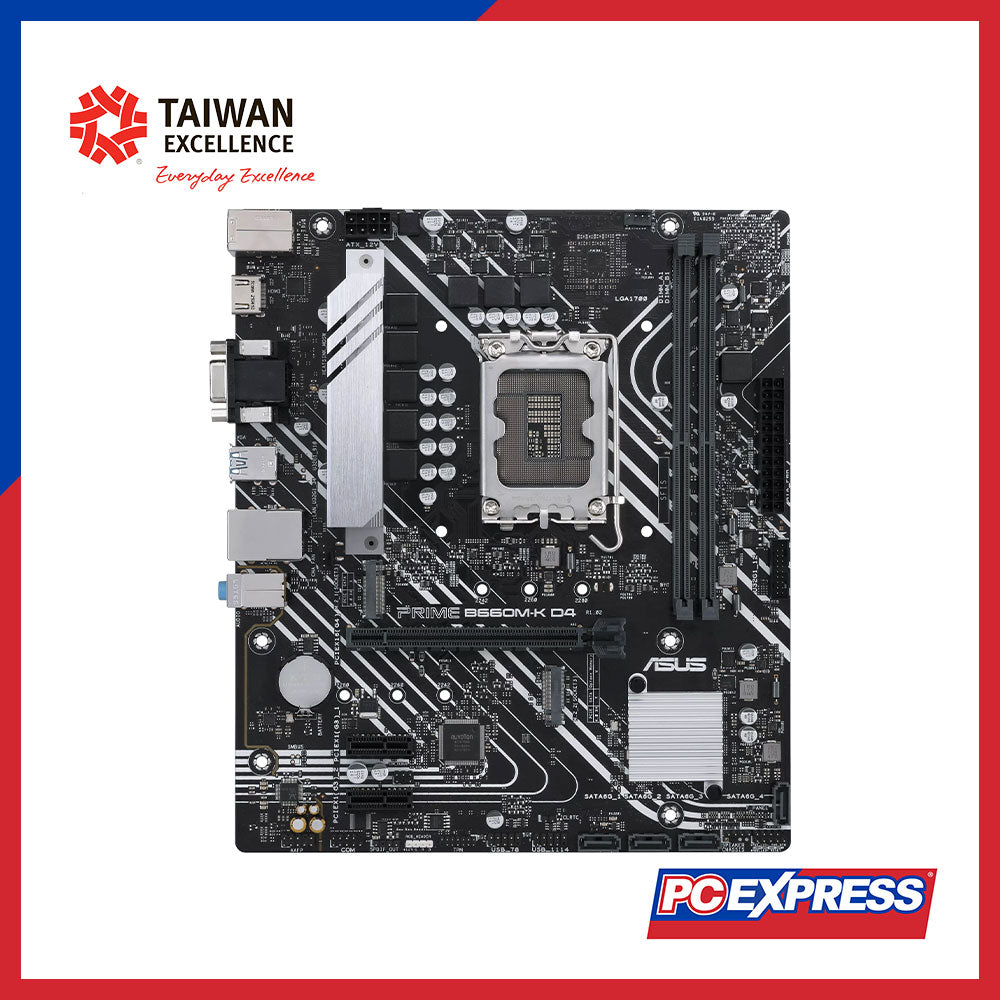

ASUS PRIME B660M-K D4 Motherboard
- Read our FAQs before ordering
- Need Help? Chat with us.
SPECIFICATION
|
Model |
PRIME B660M-K D4 |
|
CPU Socket |
Intel® LGA1700 |
|
Supported Processor Generations |
13th Gen Intel® Core™, 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors |
|
Memory |
2x DIMM, Max. 64GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/ 4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/ 2400/2133 Non-ECC, Un-buffered Memory |
|
Memory Architecture |
Dual Channel |
|
Graphics Outputs |
1 x HDMI 2.0, 1 x D-Sub port |
|
Expansion Slots |
Intel® 13th & 12th Gen Processors: 1 x PCIe 4.0/3.0 x16 slot |
|
Intel® B660 Chipset: 2 x PCIe 3.0 x1 slots |
|
|
Storage |
Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports |
|
Ethernet |
1 x Realtek 1Gb Ethernet |
|
USB Ports |
Rear USB: Total 6 ports |
|
4 x USB 3.2 Gen 1 ports (4 x Type-A) |
|
|
2 x USB 2.0 ports (2 x Type-A) |
|
|
Front USB: Total 6 ports |
|
|
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports |
|
|
2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
|
Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC |
|
Back Panel I/O Ports |
4 x USB 3.2 Gen 1 ports (4 x Type-A) |
|
2 x USB 2.0 ports (2 x Type-A) |
|
|
1 x D-Sub port |
|
|
1 x HDMI® port |
|
|
1 x Realtek 1Gb Ethernet port |
|
|
3 x Audio jacks |
|
|
1 x PS/2 Keyboard/Mouse combo port |
|
|
Internal I/O Connectors |
Various headers for fan, power, storage, USB, and more |
|
Special Features |
ASUS 5X PROTECTION III |
|
ASUS Q-Design |
|
|
ASUS EZ DIY |
|
|
ASUS Thermal Solution |
|
|
ASUS Lighting Control |
|
|
Software Features |
ASUS Exclusive Software |
|
BIOS |
128 Mb Flash ROM, UEFI AMI BIOS |
|
Manageability |
WOL by PME, PXE |
|
Accessories |
Cables, I/O Shield, M.2 anchors, Installation Media, User Manual |
|
Operating System |
Windows® 11, Windows® 10 64-bit |
|
Form Factor |
microATX |
|
Dimensions: 24.4cm x 21.1cm |
