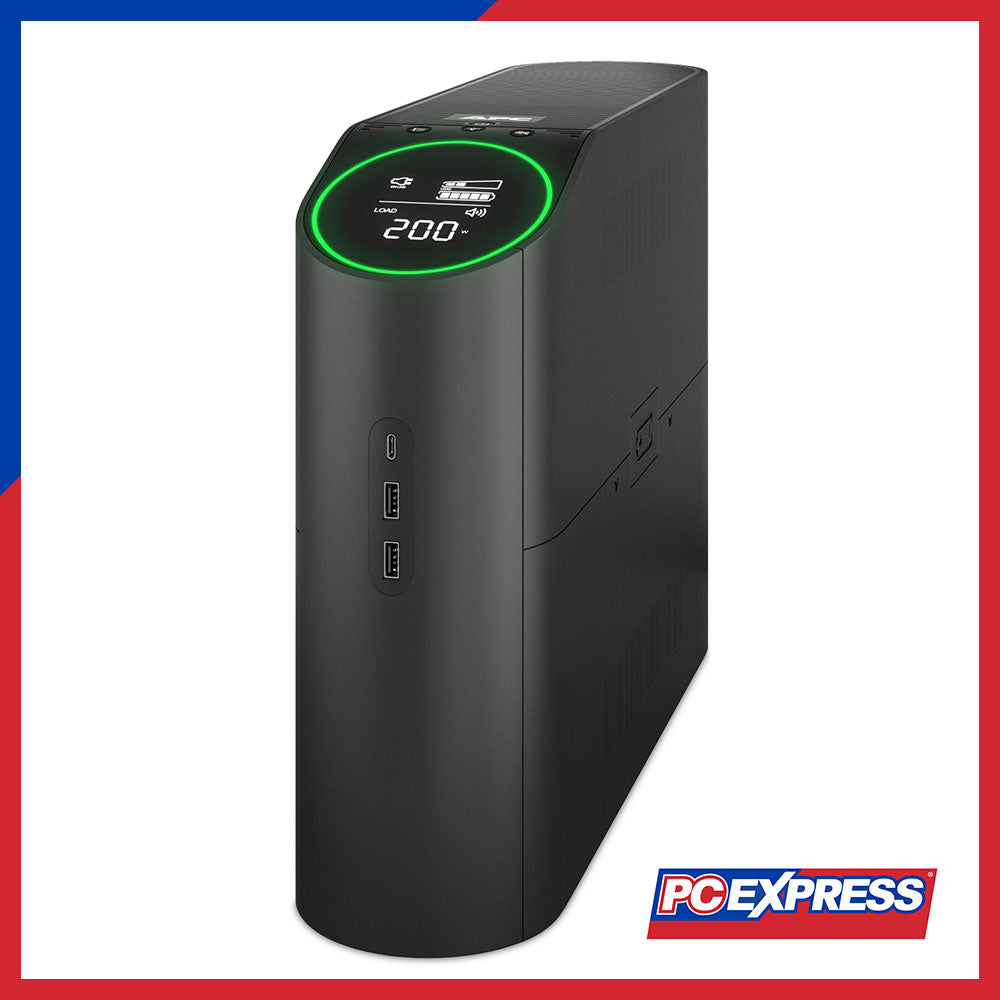

APC BGM2200B-MSX 2200VA Gaming UPS (Black)
- Read our FAQs before ordering
- Need Help / Out of Stock? Chat with us.
SPECIFICATION
|
Overview |
|
|
Lead Time |
Usually in Stock |
|
Main Specifications |
|
|
Rated Power (W) |
1320 W |
|
Rated Power (VA) |
2200 VA |
|
Run Time for Load |
0 min 28 s |
|
Max Capacity Used |
100 % |
|
Main Input Voltage |
230 V AC 1 phase |
|
Other Input Voltage |
230 V |
|
Main Output Voltage |
230 V 1 phase |
|
Product Type |
Uninterruptible Power Supply (UPS) |
|
Connections |
|
|
Input Connection Type |
C19/C21 |
|
Output Connection Type |
2 IEC 60320 C13 surge, 1 IEC 60320 C13 surge, 2 universal C13 surge, 1 universal C13 surge |
|
Cable Length |
1.5 m |
|
Number of Cables |
1 |
|
Battery Specifications |
|
|
Battery Type |
Lead-acid battery |
|
Battery Voltage |
24 V |
|
Battery Recharge Time |
16 h |
|
Number of Battery Slots (filled) |
1 |
|
Number of Battery Slots (free) |
0 |
|
Battery Replacement Quantity |
1 |
|
Battery Life |
3 to 5 years |
|
Battery Charger Power |
12 W rated |
|
General Specifications |
|
|
Provided Equipment |
USB cable, safety guide, 2 power cables, 1 power adapter |
|
Product Web Sub-Family |
Gaming performance |
|
Number of Preinstalled Power Modules |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
|
Physical Dimensions |
|
|
Colour |
Black |
|
Height |
292.1 mm |
|
Width |
104.1 mm |
|
Depth |
408.9 mm |
|
Net Weight |
12.24 kg |
|
Mounting Support |
Floor |
|
Mounting Preference |
No preference |
|
Mounting Mode |
Not rack-mountable |
|
USB Compatible |
Yes |
|
Mounting Position |
Vertical |
|
Input Specifications |
|
|
Network Frequency |
50/60 Hz +/- 3 Hz |
|
Plug Standard |
C19/C21 |
|
Input Voltage Limits |
168...302 V |
|
Maximum Input Current |
12 A |
|
Switching Current Capacity |
15 A |
|
Input Harmonic Distortion |
Less than 3 % for full load |
|
Input Protection Type |
Circuit breaker |
|
Output Specifications |
|
|
|
