AMD Ryzen™ 5 5500 Desktop Processor (3.6GHZ)
- Read our FAQs before ordering
- Need Help? Chat with us.
SPECIFICATION
|
Platform |
Desktop |
|
Market Segment |
Mainstream Desktop |
|
Product Family |
AMD Ryzen™ Processors |
|
Product Line |
AMD Ryzen™ 5 Desktop Processor |
|
Consumer Use |
Yes |
|
Regional Availability |
Global, China, NA, EMEA, APJ, LATAM |
|
Former Codename |
"Cezanne" |
|
Architecture |
"Zen 3" |
|
# of CPU Cores |
6 |
|
Multithreading (SMT) |
Yes |
|
# of Threads |
12 |
|
Max. Boost Clock |
Up to 4.2GHz |
|
Base Clock |
3.6GHz |
|
L1 Cache |
384KB |
|
L2 Cache |
3MB |
|
L3 Cache |
16MB |
|
Default TDP |
65W |
|
Processor Technology for CPU Cores |
TSMC 7nm FinFET |
|
CPU Compute Die (CCD) Size |
180mm² |
|
Package Die Count |
1 |
|
Unlocked for Overclocking |
Yes |
|
CPU Socket |
AM4 |
|
Socket Count |
1P |
|
Supporting Chipsets |
X570 X470 X370 B550 B450 B350 A520 |
|
CPU Boost Technology |
Precision Boost 2 |
|
Instruction Set |
x86-64 |
|
Supported Extensions |
AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
|

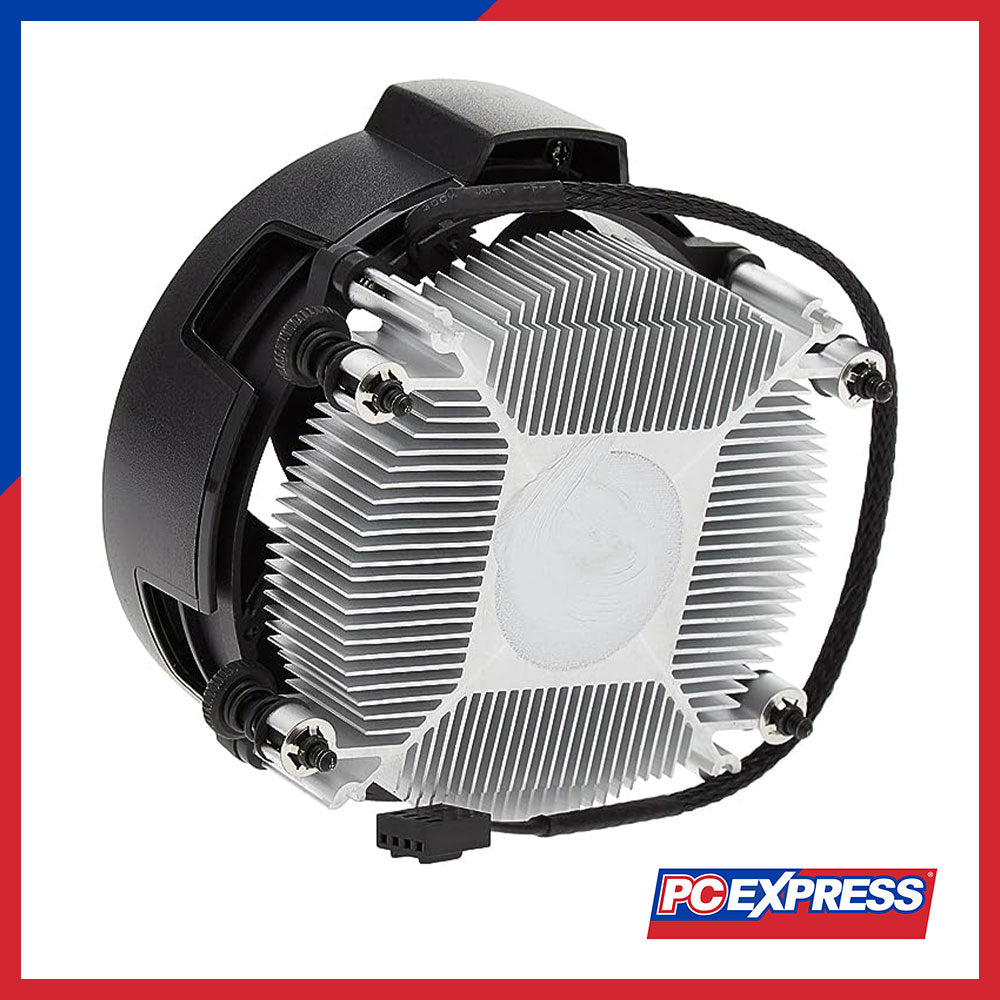

Thermal Solution (PIB) |
AMD Wraith Stealth |
|
Max. Operating Temperature (Tjmax) |
90°C |
|
Launch Date |
4/4/2022 |
|
OS Support |
Windows 11 - 64-Bit Edition Windows 10 - 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer. |
|
Connectivity
|
|
|
USB Type-C® Support |
Yes |
|
Native USB 4 (40Gbps) Ports |
0 |
|
Native USB 3.2 Gen 2 (10Gbps) Ports |
4 |
|
Native USB 3.2 Gen 1 (5Gbps) Ports |
0 |
|
Native USB 2.0 (480Mbps) Ports |
0 |
|
Native SATA Ports |
2 |
|
PCI Express® Version |
PCIe 3.0 |
|
Native PCIe® Lanes (Total/Usable) |
24 / 20 |
|
Additional Usable PCIe Lanes from Motherboard |
AMD X570 16x Gen 3
AMD X470 2x Gen 3
AMD X470 8x Gen 2 |
|
NVMe Support |
Boot, RAID0, RAID1, RAID10 |
|
System Memory Type |
DDR4 |
|
Memory Channels |
2 |
|
Max. Memory |
128GB |
|
System Memory Subtype |
UDIMM |
|
System Memory Specification |
Up to 3200MT/s |
|
Max Memory Speed |
2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667 |
|
ECC Support |
No |
|
Graphics Capabilities
|
|
|
Integrated Graphics |
No |
|
Graphics Model |
Discrete Graphics Card Required |
|
Key Features
|
|
|
Supported Technologies |
AMD StoreMI Technology AMD Ryzen™ VR-Ready Premium |
