Part Number |
ZT-B50600G-10L |
|
GPU |
NVIDIA GeForce RTX 5060 |
|
CUDA Cores |
3840 |
|
Video Memory |
8GB GDDR7 |
|
Memory Bus |
128-bit |
|
Engine Clock |
2497 MHz |
|
Memory Clock |
28 Gbps |
|
PCI Express |
PCI Express 5.0 x8 |
|

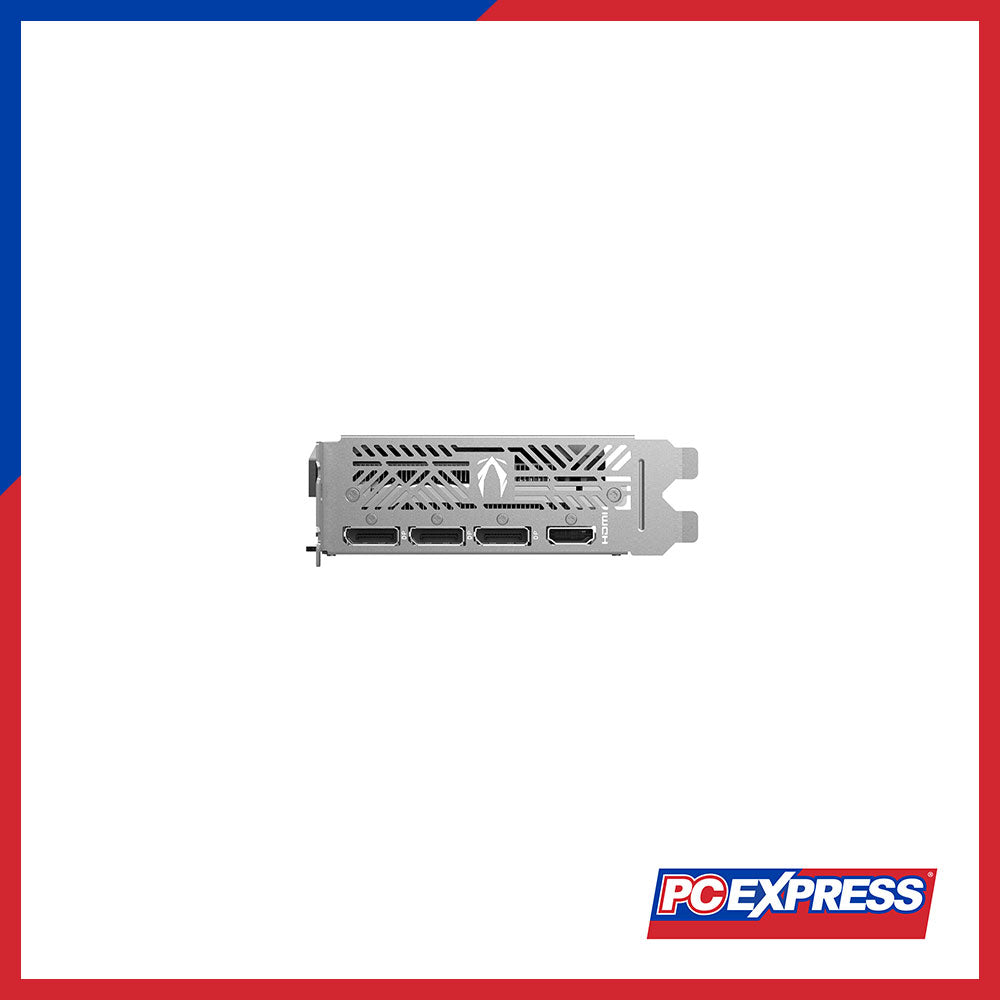

Display Outputs |
3× DisplayPort 2.1b (up to 4K 480Hz or 8K 165Hz with DSC) |
|
1× HDMI 2.1b (4K 480Hz HDR or 8K 120Hz HDR with DSC, VRR supported) |
|
|
HDCP Support |
2.3 |
|
Multi Display Capability |
Quad Display |
|
Power Requirements |
|
|
Recommended PSU |
550W |
|
Power Consumption |
145W |
|
Power Input |
1× 8-pin power connector |
|
API Support |
|
|
DirectX |
Microsoft DirectX® 12 Ultimate |
|
OpenGL |
4.6 |
|
Cooling & Size |
|
|
Cooling |
Air Cooled |
|
Slot Size |
2 |
|
Card Dimensions |
164.5 mm × 111.2 mm × 36.4 mm (6.5" × 4.4" × 1.4") |
|
Other Features |
|
|
SLI Support |
No |
|
Supported OS |
Windows 11 / 10 64-bit (v1809 or later) |
|
Accessories |
User Manual |
