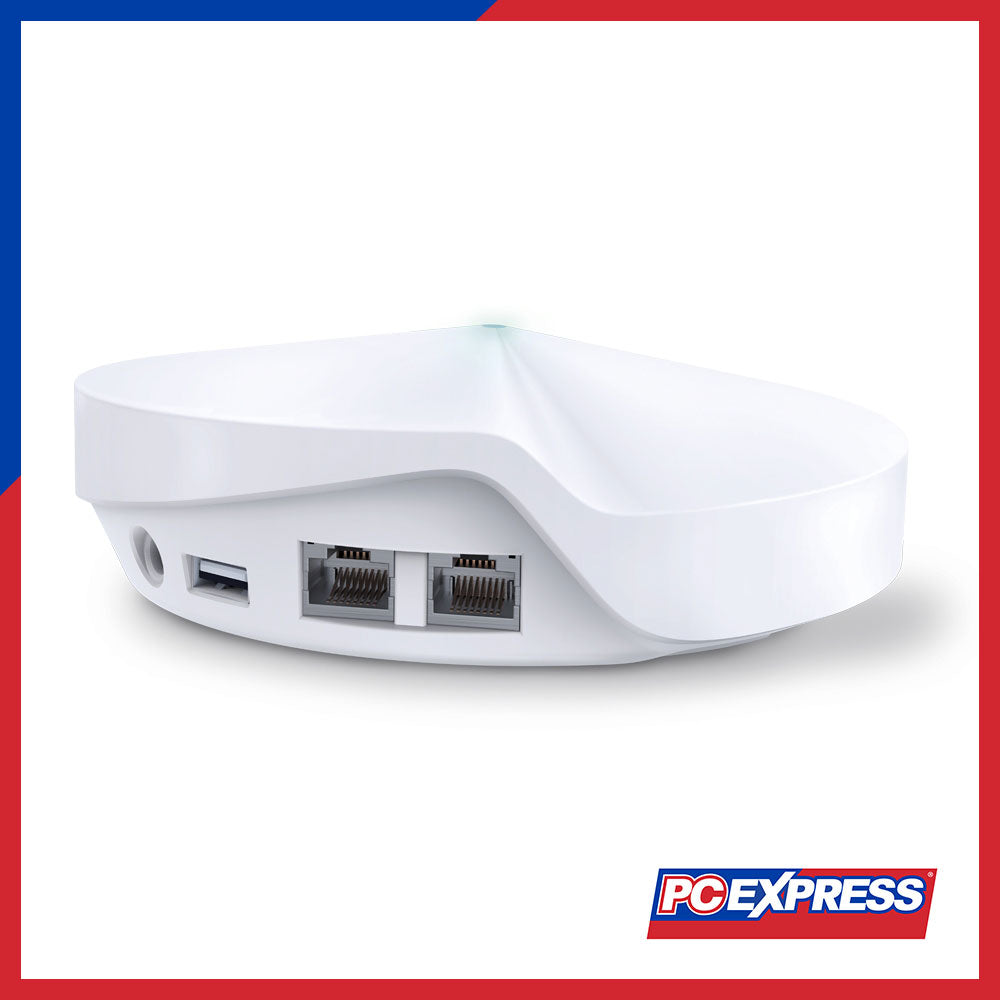

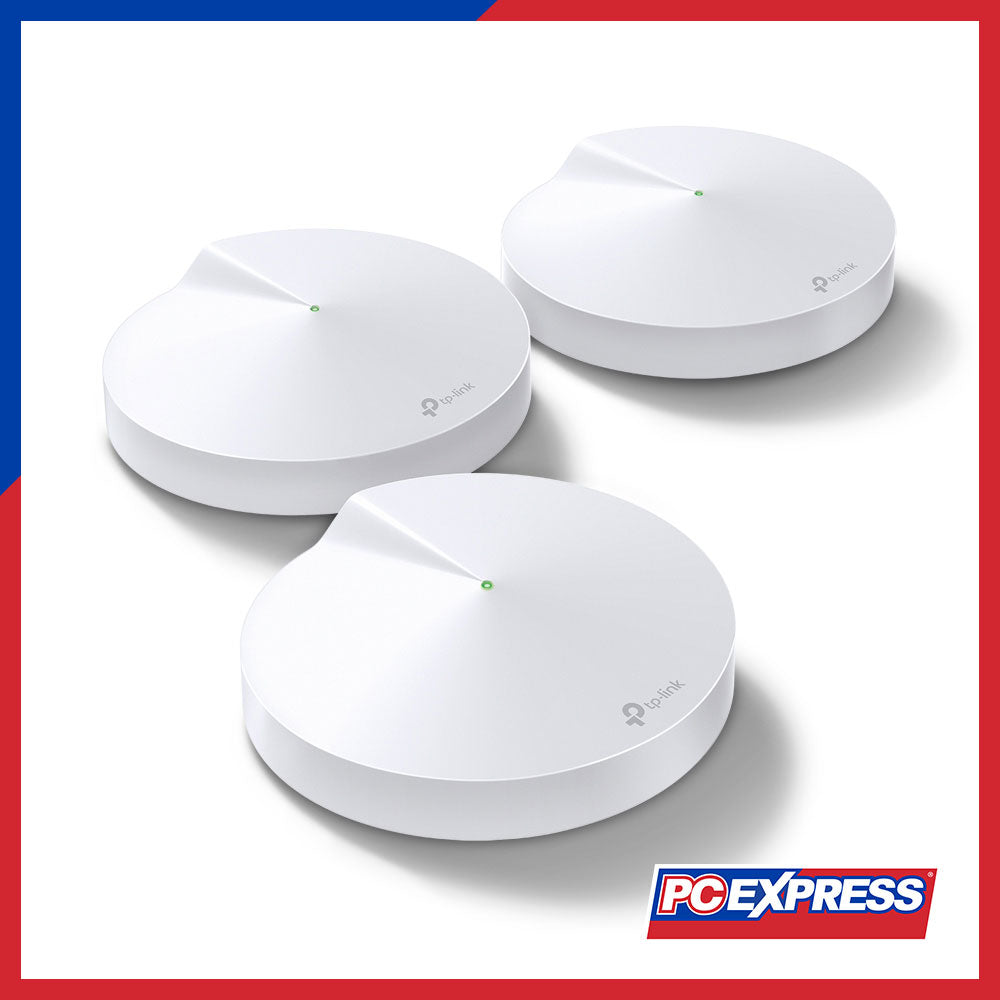

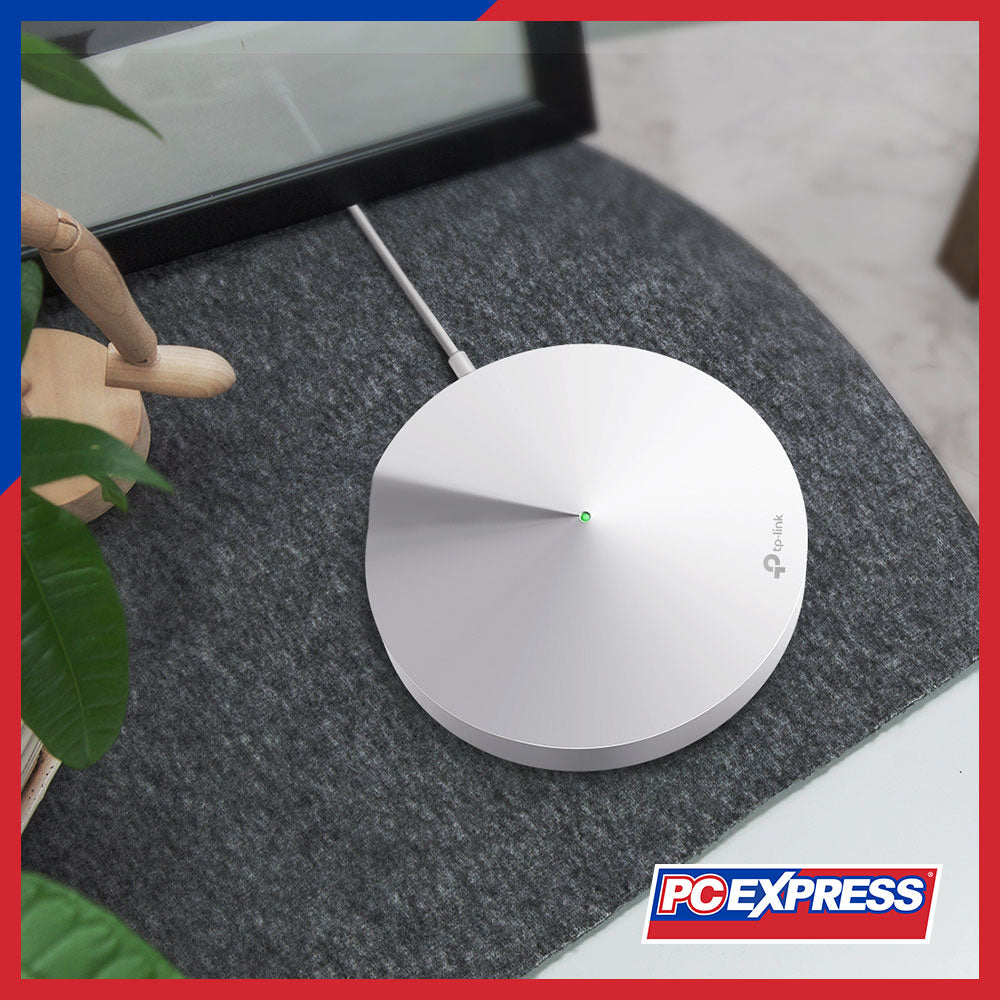

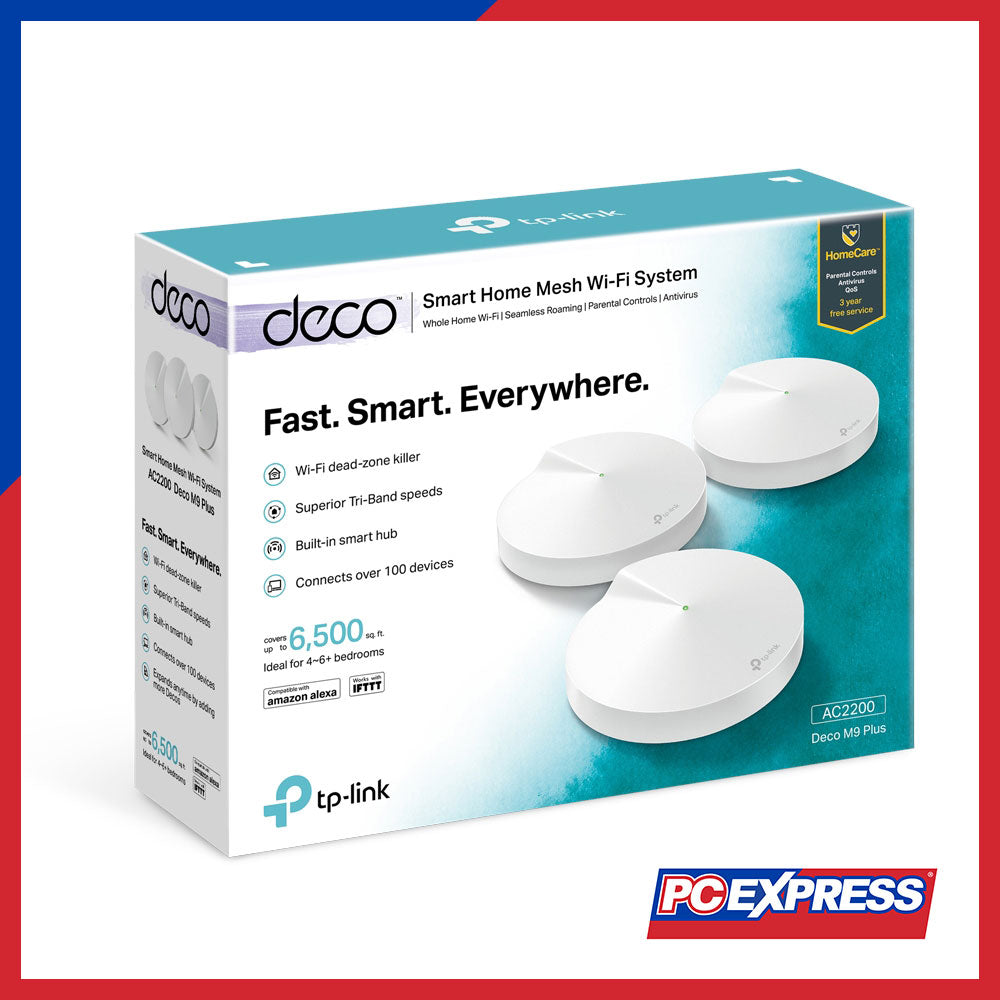

TP-LINK Deco M9+ AC2200 Smart Home Mesh WiFi System
- Read our FAQs before ordering
- Need Help? Chat with us.

SPECIFICATION
Standards |
Wi-Fi 5 |
IEEE 802.11ac/n/a 5 GHz |
|
IEEE 802.11n/b/g 2.4 GHz |
|
Bluetooth 4.2 |
|
ZigBee HA 1.2 |
|
WiFi Speeds |
AC2200 |
5 GHz: 867 Mbps (802.11ac) |
|
5 GHz: 867 Mbps (802.11ac) |
|
2.4 GHz: 400 Mbps (802.11n) |
|
WiFi Range |
4-6+ Bedroom Houses (3-pack) |
TP-Link Mesh Technology |
|
Optional Ethernet backhaul |
|
8× Antennas (Internal) |
|
Beamforming |
|
WiFi Capacity |
Medium |
Tri-Band |
|
4×4 MU-MIMO |
|
Working Modes |
Router Mode |
Access Point Mode |
|
HARDWARE |
Ethernet Ports: 2× Gigabit Ports (Per Deco Unit) |
Buttons: Reset Button |
|
SECURITY |
WiFi Encryption: WPA-Personal, WPA2-Personal |
Network Security: SPI Firewall, Access Control, HomeCare™ Antivirus, Malicious Site Checker, Port Intrusion Prevention, Infected Device Isolation, Notification and Log |
|
Guest Network: 1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network |
|
SOFTWARE |
Protocols: IPv4, IPv6 |
Service Kits: HomeCare™ |
|
Parental Controls: HomeCare™ Parental Controls, Custom Profiles, Content Filtering, URL Filtering, Time Limit, Time Schedule (Bed Time), Log Insight, Usage Monitor, Monthly Reports |
|
WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
|
Quality of Service: HomeCare™ QoS, QoS by Device, QoS by Application |
|
Cloud Service: OTA Firmware Upgrade, TP-Link ID, DDNS |
|
NAT Forwarding: Port Forwarding, UPnP |
|
IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
|
DHCP: Address Reservation, DHCP Client List, Server, DDNS: TP-Link |
|
Management: Deco App |
|
TEST DATA |
WiFi Transmission Power: CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz), FCC: <30 dBm |
PHYSICAL |
Dimensions (W×D×H): 5.7 × 5.7 × 1.8 in (144 × 144 × 46 mm) |
Package Contents: Deco M9 Plus (3-pack) - 3 Deco M9 Plus Units, 1 RJ45 Ethernet Cable, 3 Power Adapters, 1 Quick Installation Guide |
|
Deco M9 Plus (2-pack) - 2 Deco M9 Plus Units, 1 RJ45 Ethernet Cable, 2 Power Adapters, 1 Quick Installation Guide |
|
Deco M9 Plus (1-pack) - 1 Deco M9 Plus Unit, 1 RJ45 Ethernet Cable, 1 Power Adapter, 1 Quick Installation Guide |
|
OTHERS |
System Requirements: Android 5.0 or later, iOS 9.0 or later |
Certifications: CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS |
|
Environment: Operating Temperature: 0℃~40℃ (32℉ 70℃ (-40℉ ~158℉), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing |
