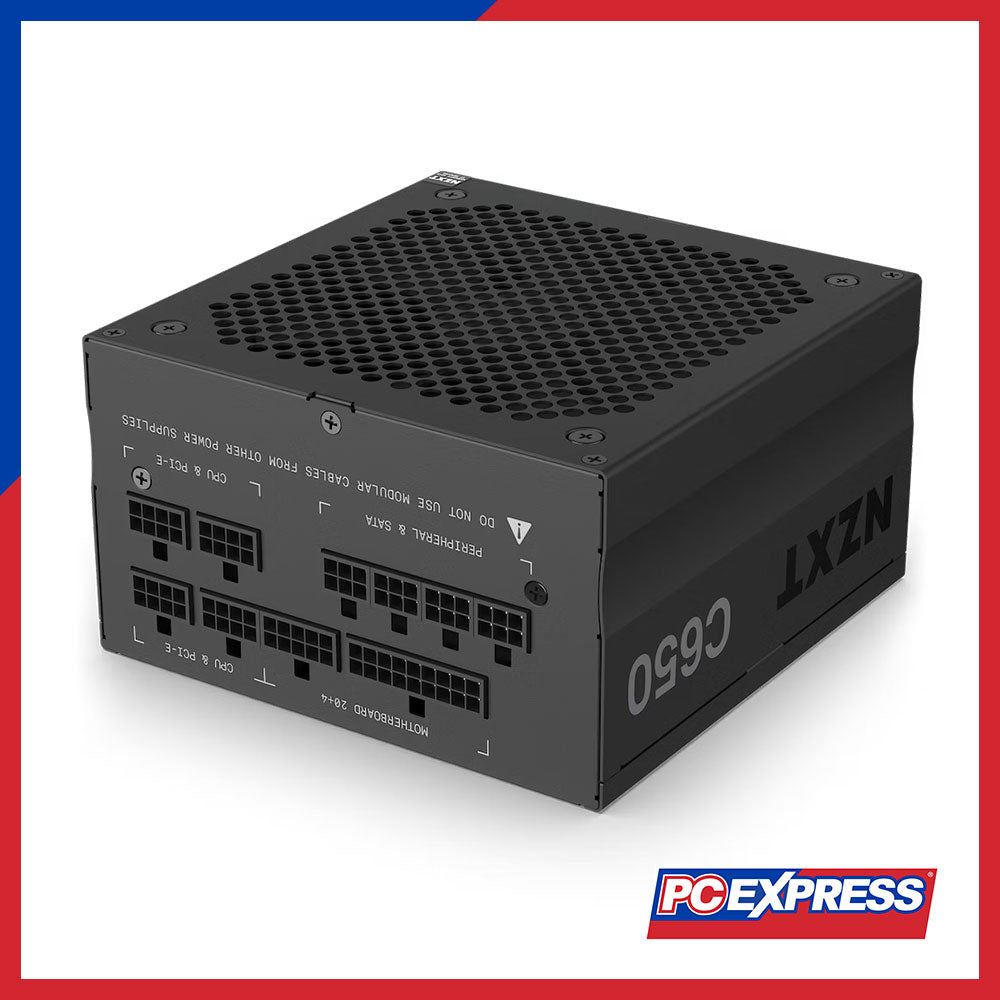

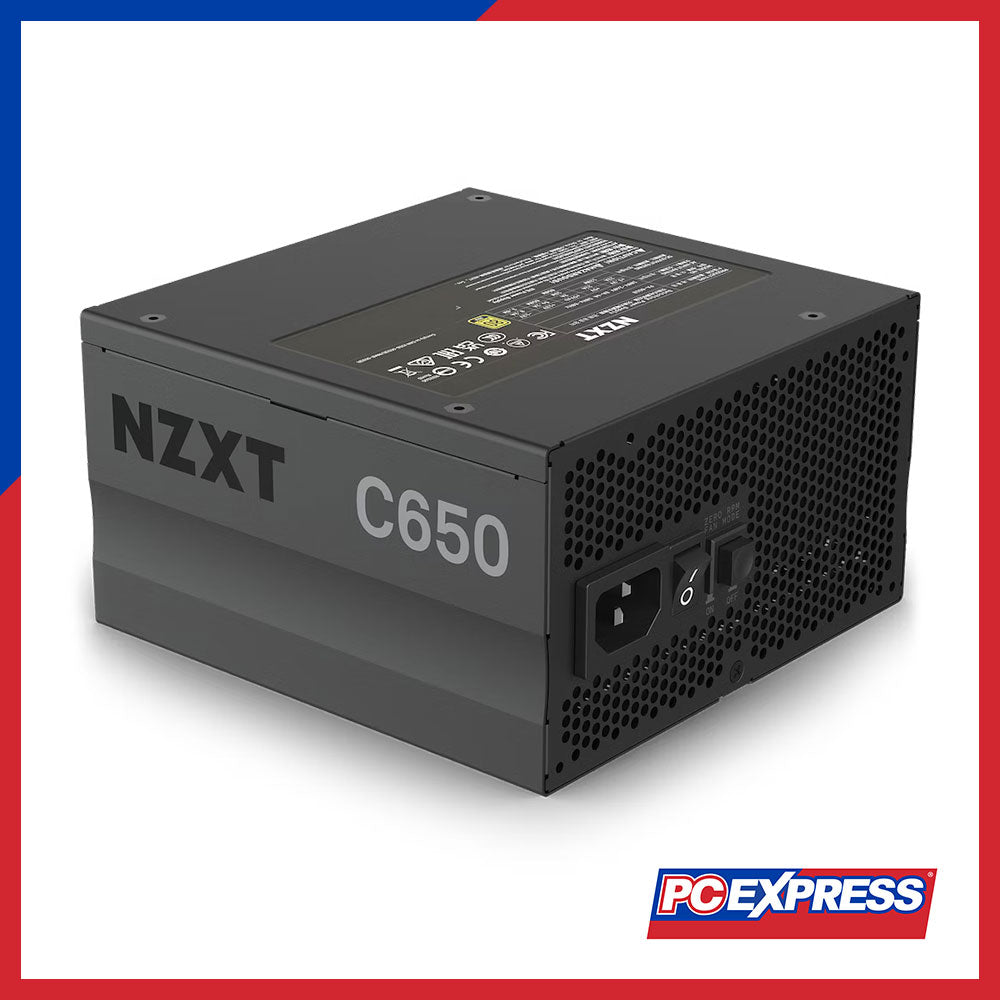

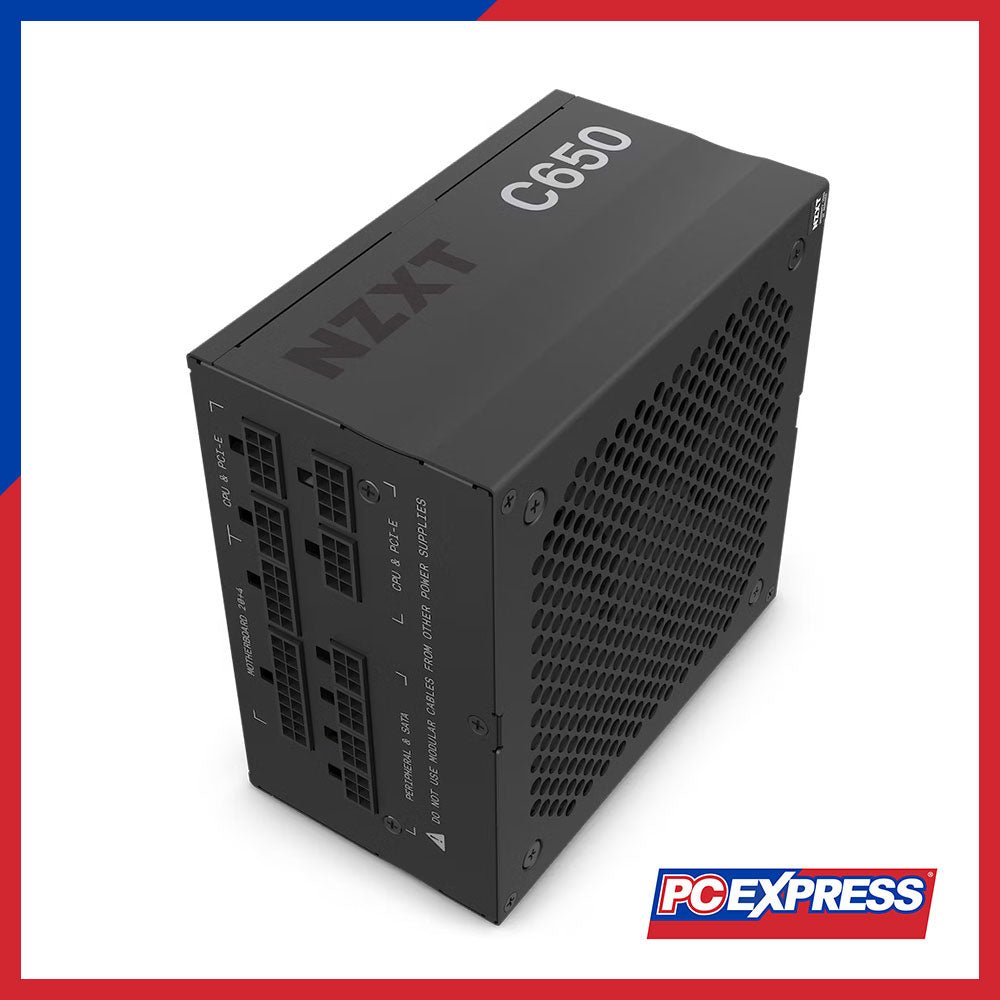

NZXT C650 650W 80+ Gold Fully Modular True Rated Power Supply

This PSU delivers 650 watts of reliable power which is a great choice for almost every build.

  • Modular design lets builders use only the cables they need
  • The sleeved main cables lresist heat damage as well as fraying

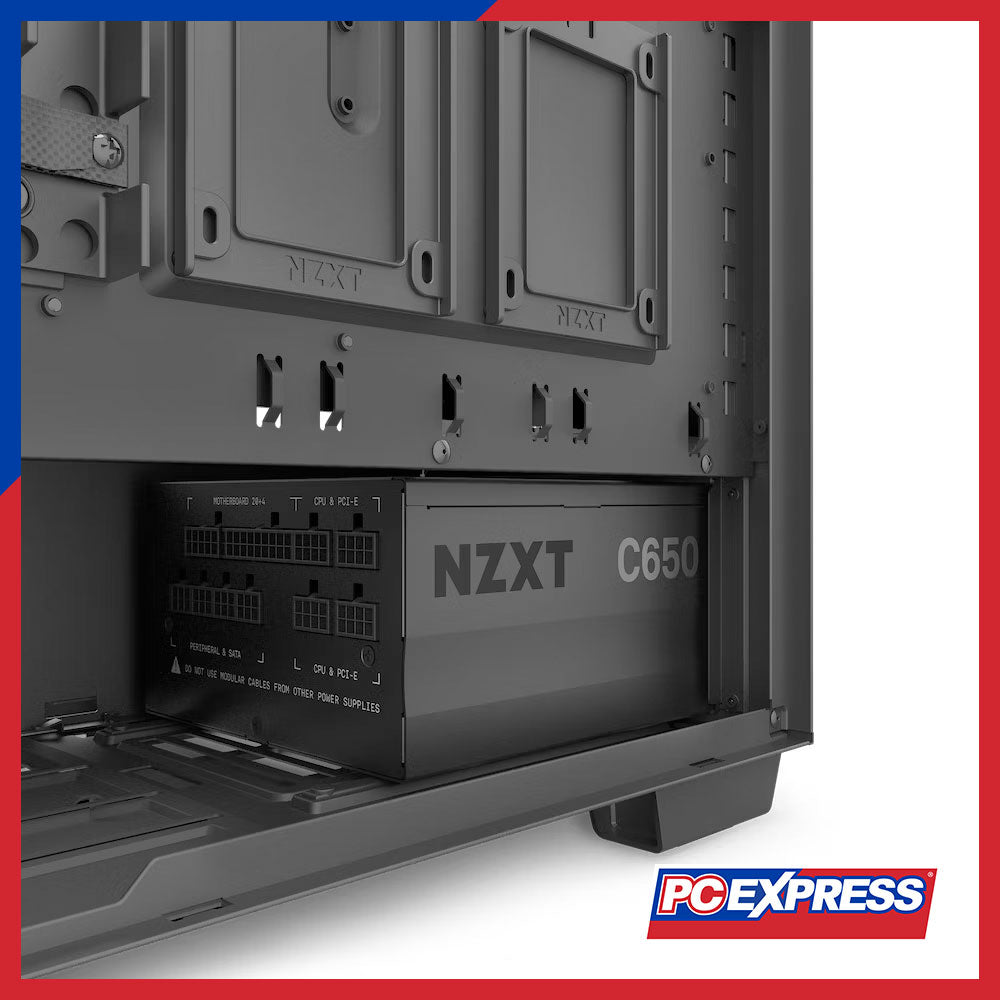

  • Fits any case conforming to the ATX standard
  • Supports NVIDIA GPUs up to 3070 and AMD GPUs up to RX 6800
  • Zero RPM Fan mode silences the fan under low-load conditions

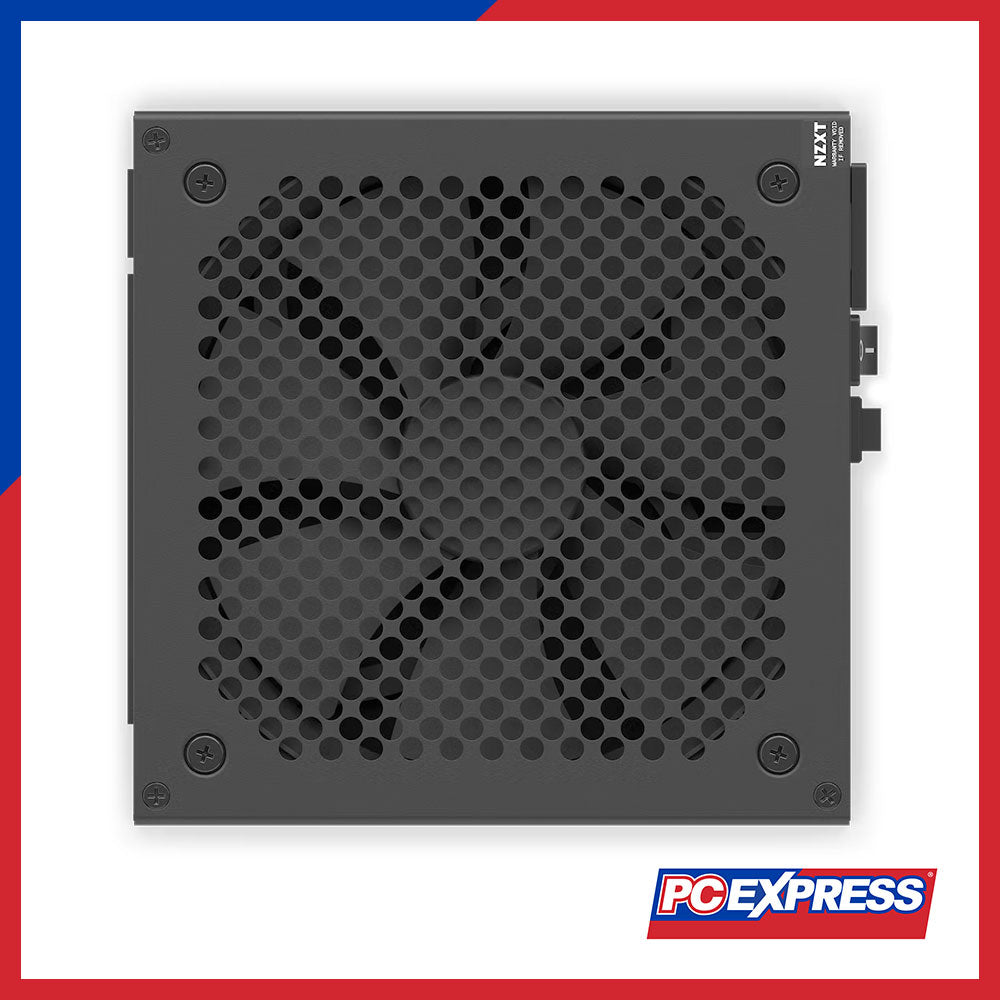

  • Dynamic 135mm fluid-dynamic bearing fan
₱5,500.00 ₱4,989.00 SAVE 9%
Tax included. Shipping calculated at checkout.
Add to WishlistCompare
NZXT
Vendor: NZXT
Type: Power Supplies
SKU: PS-NZXT C650 650W 80+ GOLD FULL-MOD
Availability : In Stock Pre order Out of stock
Categories: All Products All regular products New Products PC Components Power Supplies
Tags: (NP-C650M-US) 650W 80+ Gold All Products C650 Fully Modular NZXT PCX Power Supply True Rated
Description

SPECIFICATION

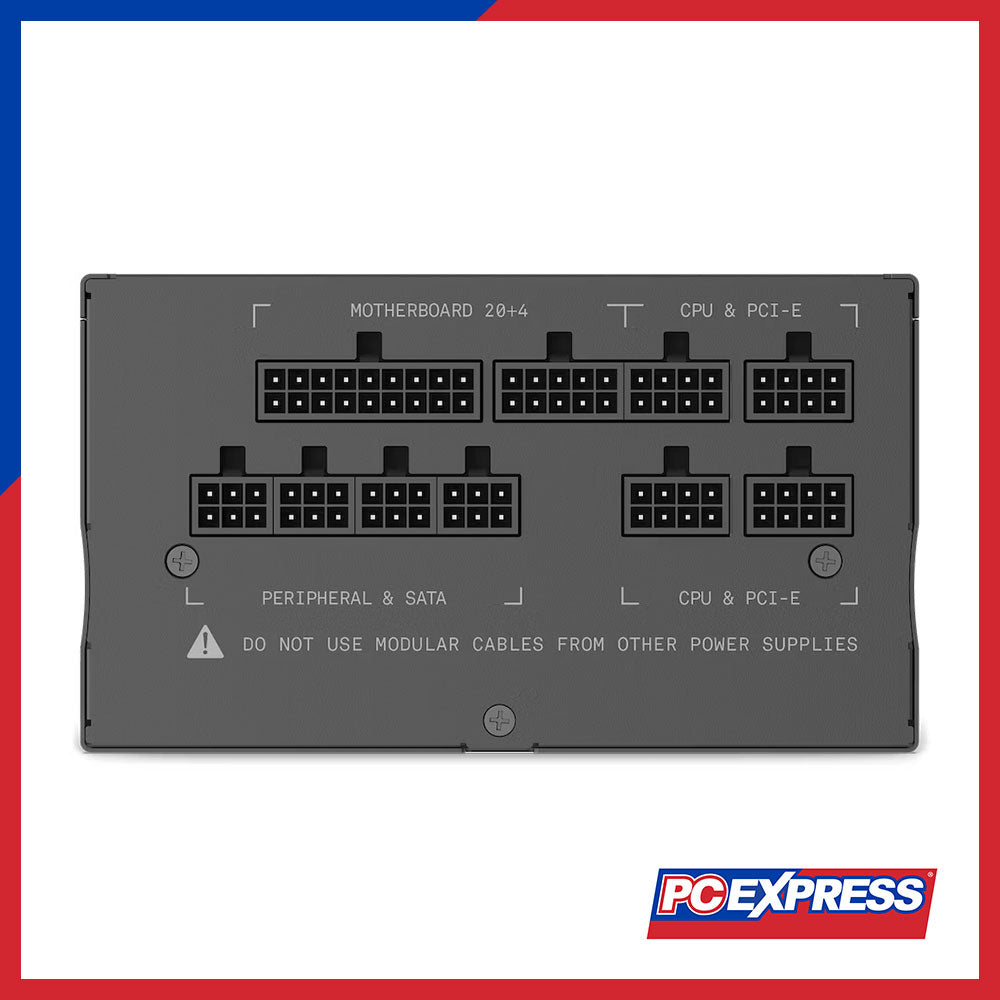

OUTPUT CONNECTORS

24-pin ATX power

1

4+4-pin CPU power

2

6+2-pin PCIe power

4

SATA power

6

Peripherals

6

CABLE SPECS

24-pin ATX power

600 mm, Nylon sleeving

4+4-pin CPU power

700 mm, Nylon sleeving

6+2-pin PCIe power

650 + 150 mm, Nylon sleeving

SATA power

500 + 150 mm

Peripherals

500 + 150 mm

AC INPUT RATING

100-240Vac

8A-4A 50Hz-60Hz

DC OUTPUT RATING

+3.3V and +5V

22A (120W)

+12V

54.2A (650W)

-12V

0.3A (3.6W)

5Vsb

3A (15W)

Total

650W

OPERATION

PF Correction

Active @0.96

MTBF

100,000 hours

Temperature

0 - 50 °C (derating from 100% to 80% from 40 °C to 50 °C)

ENERGY EFFICIENCY

Rating

80 Plus Gold

20% loading

87% @115Vac

50% Loading

90.5% @115Vac

100% Loading

87.5% @115Vac

FAN SPECS

Dimensions

135 x 135 x 25 mm

Speed

0-2300 ± 10% RPM

Airflow

93.02 CFM (Tpy.)

Noise

44.5 dBA max

Bearing

Fluid Dynamic Bearing (FDB)

GENERAL

Dimensions

150 x 150 x 86 mm

Material(s)

Steel, PCB, and plastic

Compliance Standard

ATX12V v2.52 / EPS12V v2.92

Regulation & Certification

cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA

Model Number

PA-6G1BB

UPC

UPC (TW)

815671017123

UPC (CN)

815671017055

UPC (AR)

815671017062

UPC (US)

815671017079

UPC (EU)

815671017086

UPC (UK)

815671017093

UPC (AU)

815671017109

UPC (JP)

815671017116

UPC (WO)

815671017147

UPC (IN)

815671017130

EAN

EAN (TW)

5060301697434

EAN (CN)

5060301697366

EAN (AR)

5060301697373

EAN (US)

5060301697380

EAN (EU)

5060301697397

EAN (UK)

5060301697403

EAN (AU)

5060301697410

EAN (JP)

5060301697427

EAN (WO)

5060301697458
