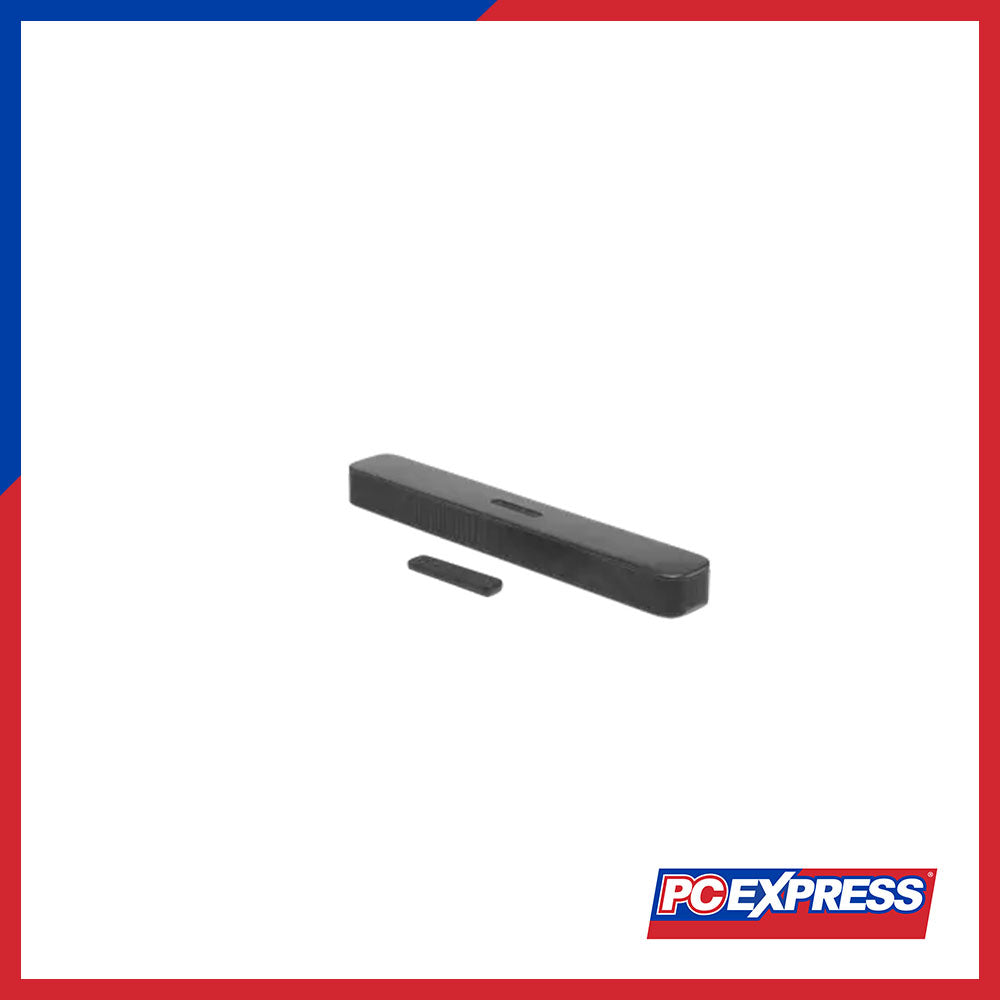

JBL BAR 2.0 AIO Compact 2.0 channel soundbar
- Read our FAQs before ordering
- Need Help? Chat with us.

SPECIFICATION
General Specifications |
|
Power supply |
100 - 240V AC, ~ 50/60Hz |
Total speaker power output |
80W @THD 1% |
Soundbar output power |
2 x 40 W @THD 1% |
Soundbar transducer |
2 x racetrack drivers |
Soundbar standby power |
<0.5W |
Operating temperature |
0°C - 45°C |
Audio Specifications |
|
Frequency response |
70Hz - 20KHz |
Audio inputs |
1 Optical, Bluetooth, USB (USB playback in US version. For other versions, USB is for Service only.) |
Dimensions |
|
Soundbar dimensions (W x H x D) |
614 x 58 x 90 mm / 24.17” x 2.28” x 3.54” |
Soundbar weight |
1.61 kg |
Packaging dimensions (W x H x D) |
855 x 125 x 145 mm |
Packaging weight (Gross weight) |
2.6 kg |
Control and Connection |
Specifications |
USB port |
Type A |
USB rating |
5V DC / 0.5A |
Supporting file format |
mp3, wav |
MP3 Codec |
MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3 |
MP3 sampling rate |
16KHz - 48 KHz |
MP3 bitrate |
80kbps - 320kbps |
WAV sample rate |
16KHz - 48 KHz |
WAV bitrate |
Up to 3000kbps |
Bluetooth version |
4.2 |
Bluetooth profile |
A2DP V1.3, AVRCP V1.5 |
Bluetooth frequency range |
2402MHz - 2480MHz |
Bluetooth Max. transmitting power |
<10dBm (EIRP) |
Modulation Type |
GFSK, π/4 DQPSK, 8DPSK |
