Functions |
|
|
Print Speed |
25 sec/page on A1, 82 A1 prints per hour |
|
Ink Drop |
5.5 pl (C, M, Y); 12 pl (K) |
|
Print Head Nozzles |
1376 |
|
Print Cartridge Volume |
80 ml (K); 38 ml (K); 29 ml (C, M, Y) |
|
Ink Types |
Dye-based (C, M, Y); Pigment-based (K) |
|
Print Cartridges |
4 (C, M, Y, K) |
|
Print Heads |
1 (cyan, magenta, yellow, black) |
|
High Capacity Page Yield |
20 ml of ink yields 101 A1 pages |
|
Print Quality (Best) |
Up to 2400 x 1200 optimised dpi |
|
Max Optical Density (Black) |
8 L* min / 2.10 D |
|
Finished Output Handling |
Sheet feed, roll feed, automatic sheet feeder, media bin, auto cutter |
|
Media Sizes (Standard Rolls) |
279 to 914 mm |
|
Roll External Diameter |
100 mm |
|
Roll Maximum Input |
1 |
|
Roll Maximum Weight |
6.2 kg |
|
Recommended Media |
HP Universal Bond Paper, HP Coated Paper, HP Heavyweight Coated Paper |
|
Media Thickness |
Up to 0.3 mm (11.8 mil) |
|
Media Width (Max) |
914 mm |
|
Supported Applications |
Line drawings, presentations, renderings |
|
Non-Printable Area (Cut-Sheet) |
5 x 5 x 5 x 17 mm (manual feed); 5 x 5 x 5 x 5 mm (input tray) |
|
Non-Printable Area (Roll Media) |
5 x 5 x 5 x 5 mm |
|
Media Sizes (Custom) |
Auto sheet feeder: 210 x 279 to 330 x 482 mm; Manual feed: 210 x 279 to 914 x 1897 mm |
|
Media Sizes Supported |
Auto sheet feeder: A4, A3; Manual feed: A4, A3, A2, A1, A0 |
|
Media Types |
Bond, coated, technical paper, film, photographic, self-adhesive |
|
Media Weight (Recommended) |
60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (auto sheet feeder) |
|
Model Size |
914 mm |
|
Internal Storage |
None |
|
Line Accuracy |
±0.1% |
|
Printer Drivers |
Raster driver for Windows/macOS, HP Click Driver for Windows 11 |
|
Print Languages |
HP-GL/2, HP-RTL, CALS G4, JPEG, URF |
|
Print Technology |
HP Thermal Inkjet |
|
Min Line Width |
0.02 mm |
|
Printing Path |
HP Smart app, HP Click App, HP Click Driver, HP driver for Windows/macOS, email printing, Apple AirPrint |
|
Connectivity (Standard) |
Gigabit Ethernet, Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct |
|
Remote Print Enabled |
Yes |
|
Print Multi-Size Files in One Click |
Yes |
|
Dimensions (W x D x H) |
1317 x 605 x 932 mm |
|
Package Dimensions |
1470 x 575 x 590 mm |
|
Weight |
35.4 kg |
|
Package Weight |
56 kg |
|
Memory |
1 GB |
|
Acoustic Power Emissions |
5.8 B(A) (printing), <3.4 B(A) (idle) |
|
Acoustic Pressure Emissions |
42 dB(A) (printing), <16 dB(A) (idle) |
|
Operating Humidity Range |
20 to 80% RH |
|
Non-Operating Humidity Range |
0 to 95% RH |
|
Operating Temperature |
5 to 40ºC (41 to 104ºF) |
|
Storage Temperature |
-25 to 55ºC (-13 to 131ºF) |
|
Operating Altitude |
Up to 3000 m |
|
Recycled Plastic Content |
30% post-consumer recycled plastic |
|
Power Consumption |
<35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (off) |
|
Power Input |
100-240V (±10%), 50/60Hz, 1200mA max |
|
Software Included |
HP Click App, HP Smart App, HP Print Preview, HP Easy Start, HP DesignJet Utility, HP Support Assistant |
|
Electromagnetic Compliance |
USA (FCC), Canada (ICES), EU (EMC/RED), Australia (ACMA), Japan (VCCI), China (CCC), Korea (KCC) |
|
Energy Star Certified |
Yes |
|
Environmental Certifications |
ENERGY STAR, WEEE, RoHS, REACH, EPEAT Gold |
|
Safety Certifications |
CSA (USA/Canada), LVD (EU), EAC (Russia), CCC (China), BIS (India), NYCE (Mexico) |
|
What's in the Box |

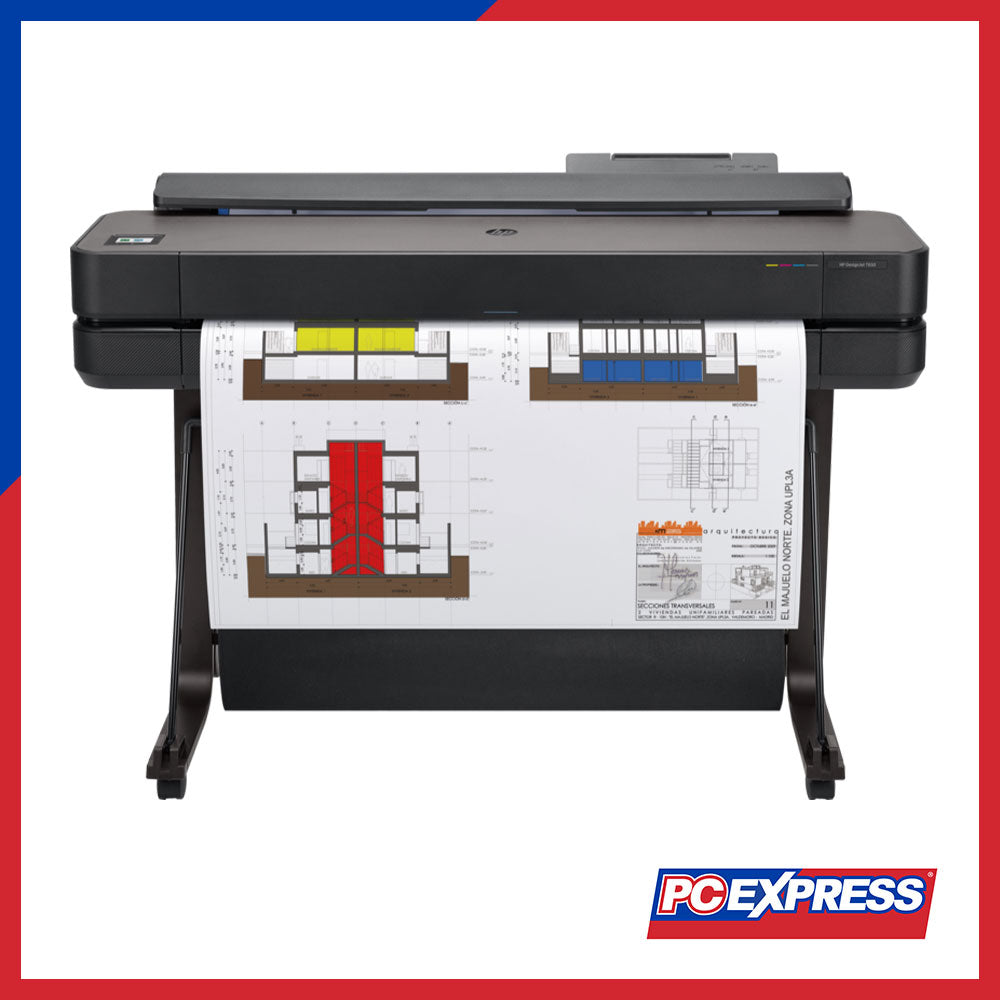

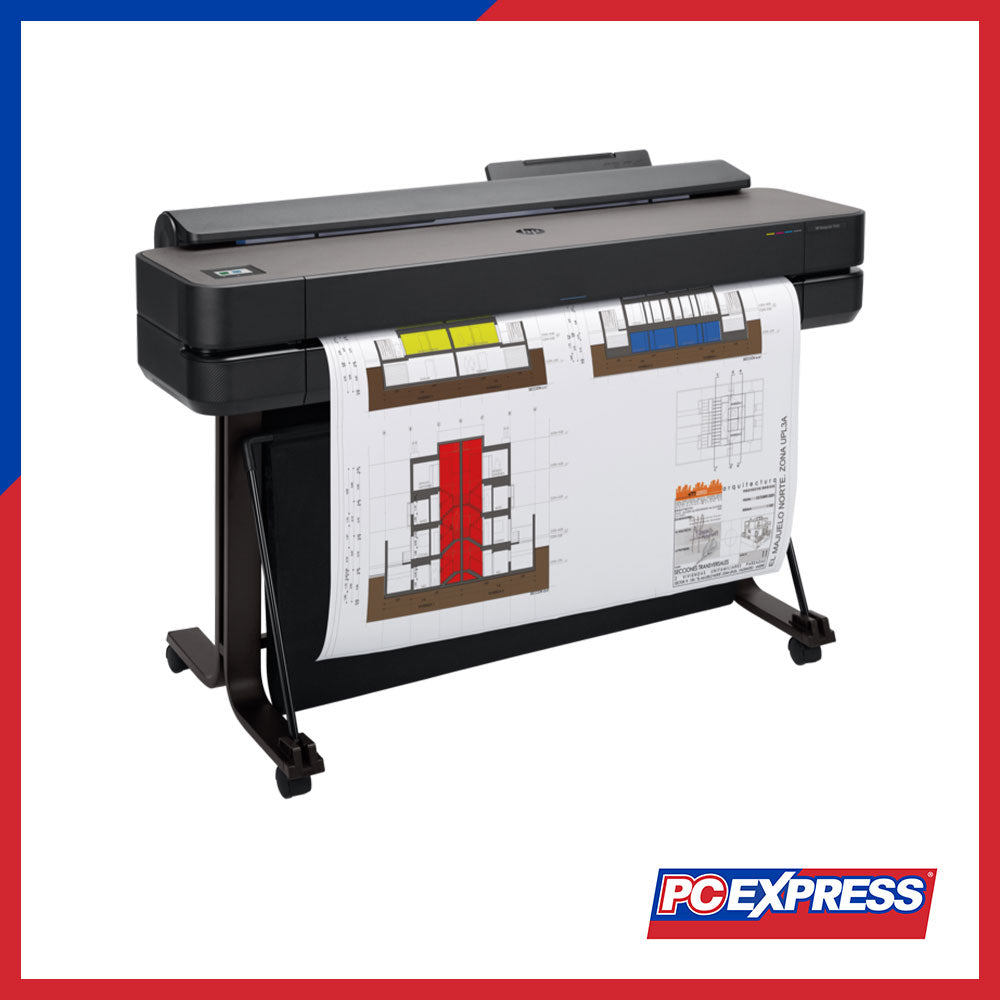

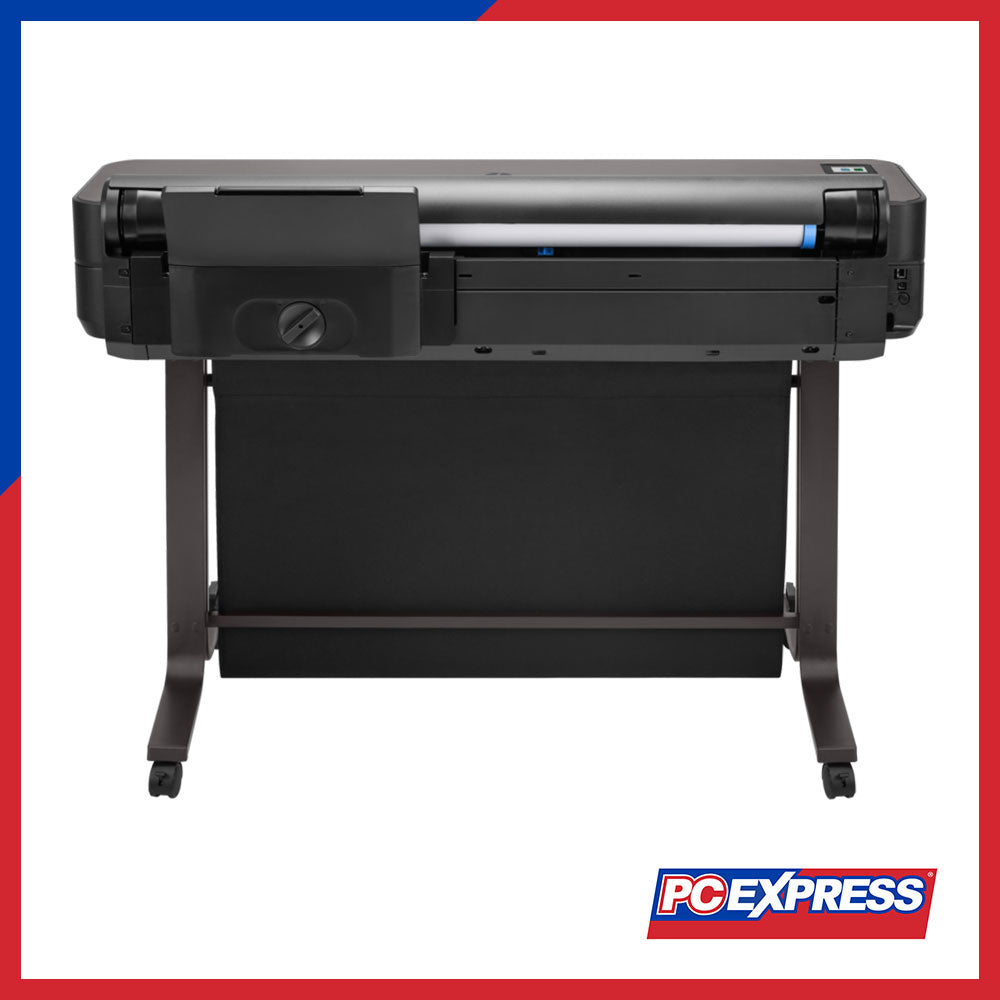

HP DesignJet T650 36-in Printer, stand, sheet feeder, roll cover, printhead, ink cartridges, spindle, quick reference guide, setup poster, power cord |
