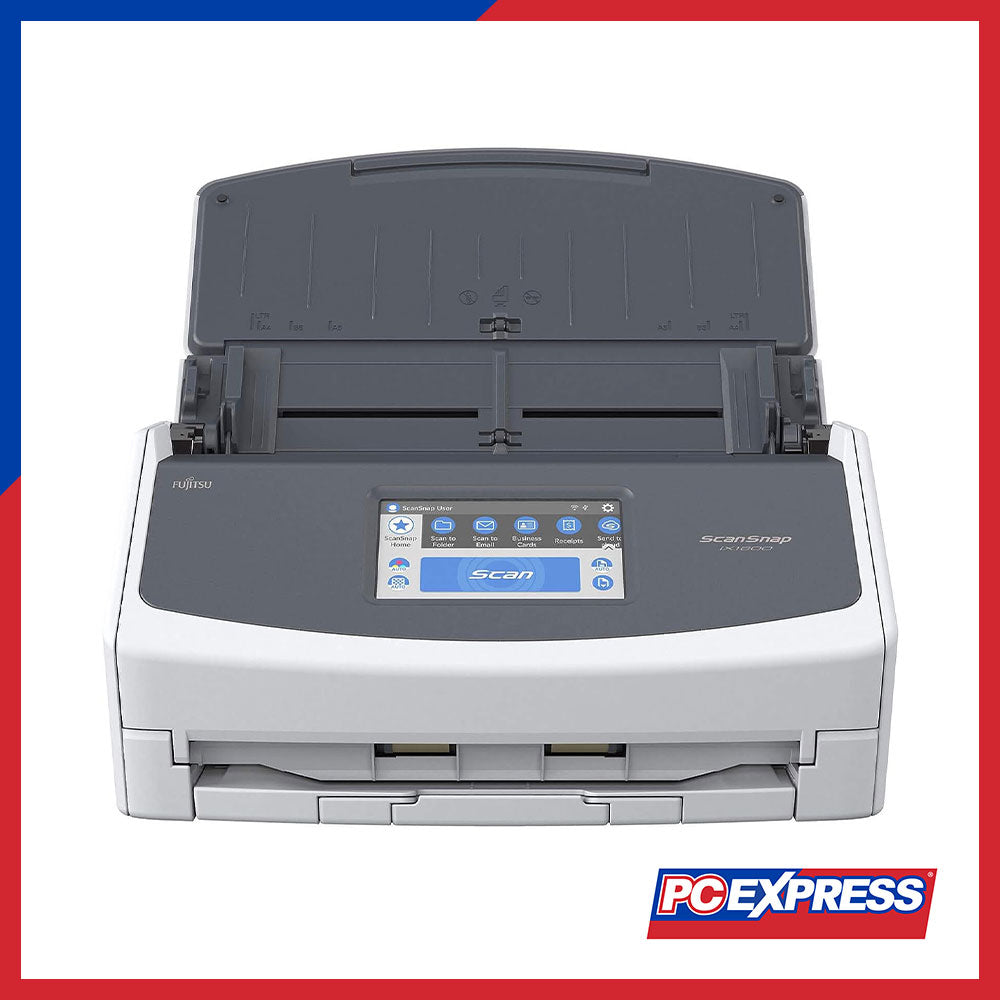

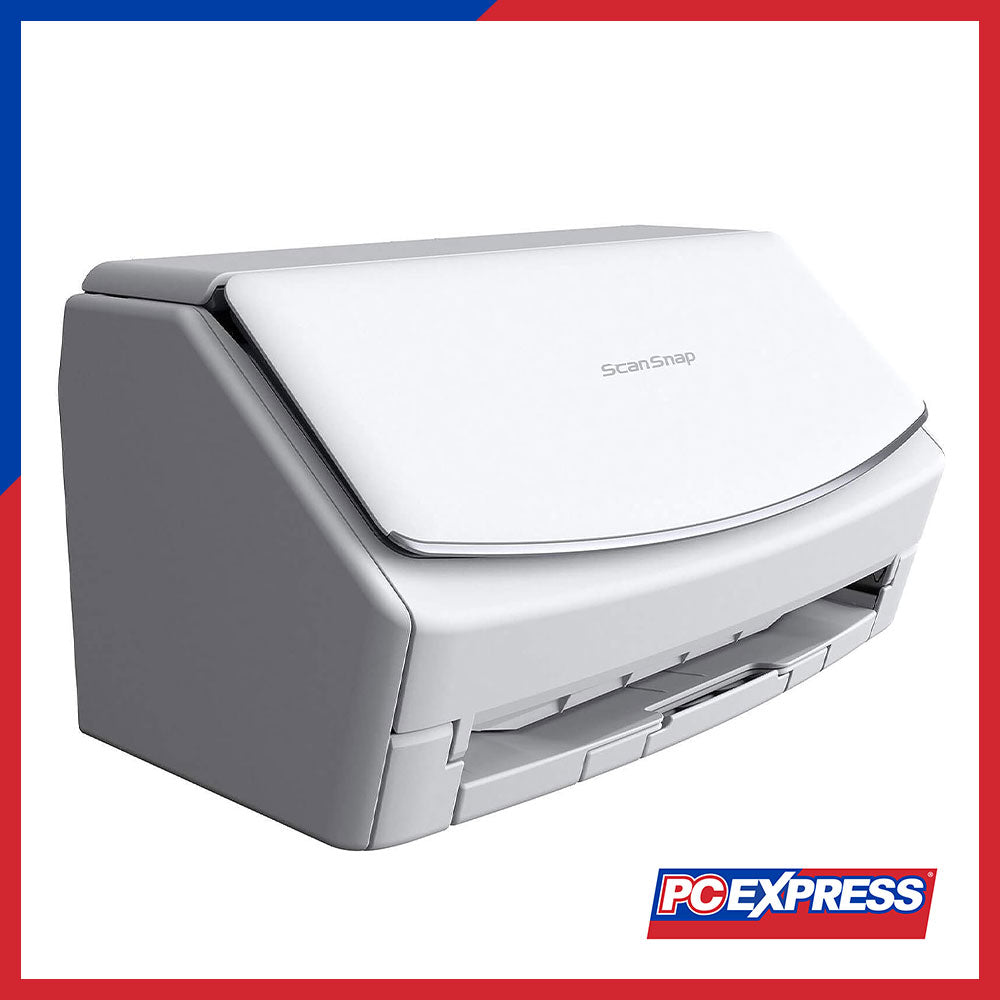

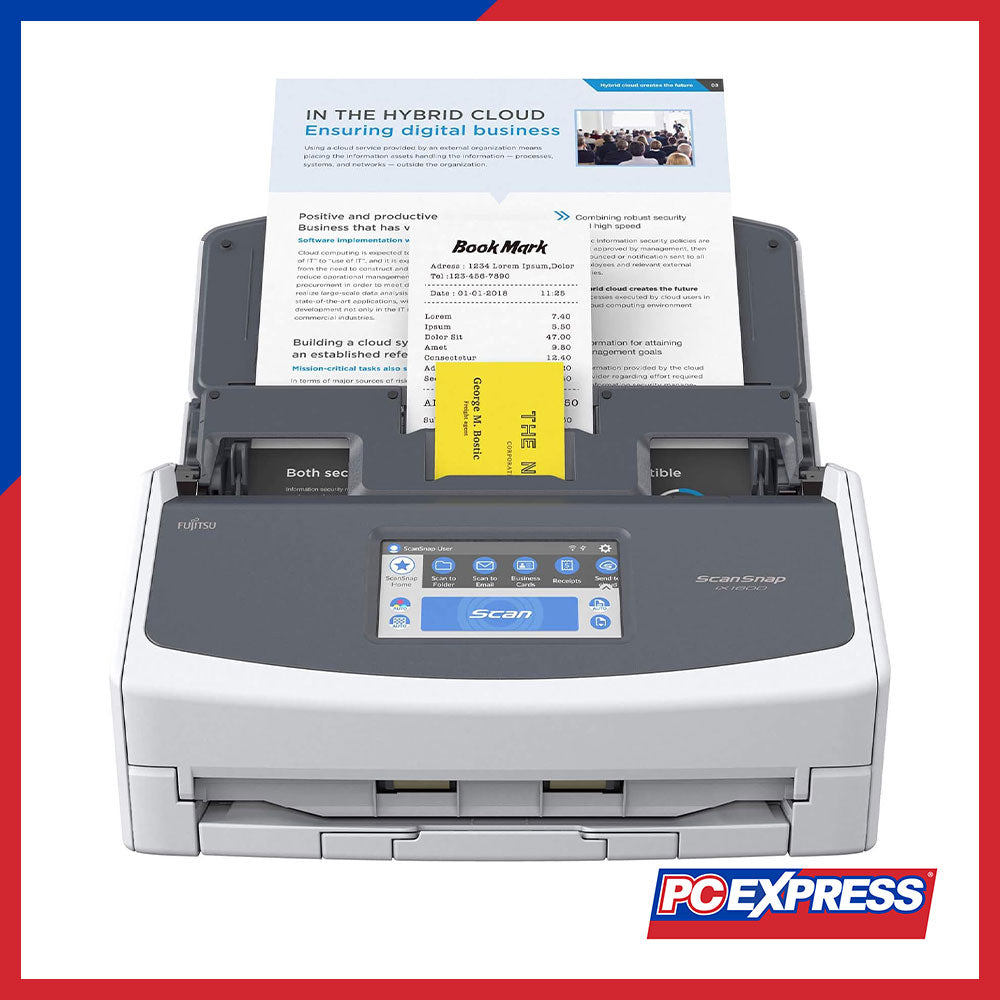

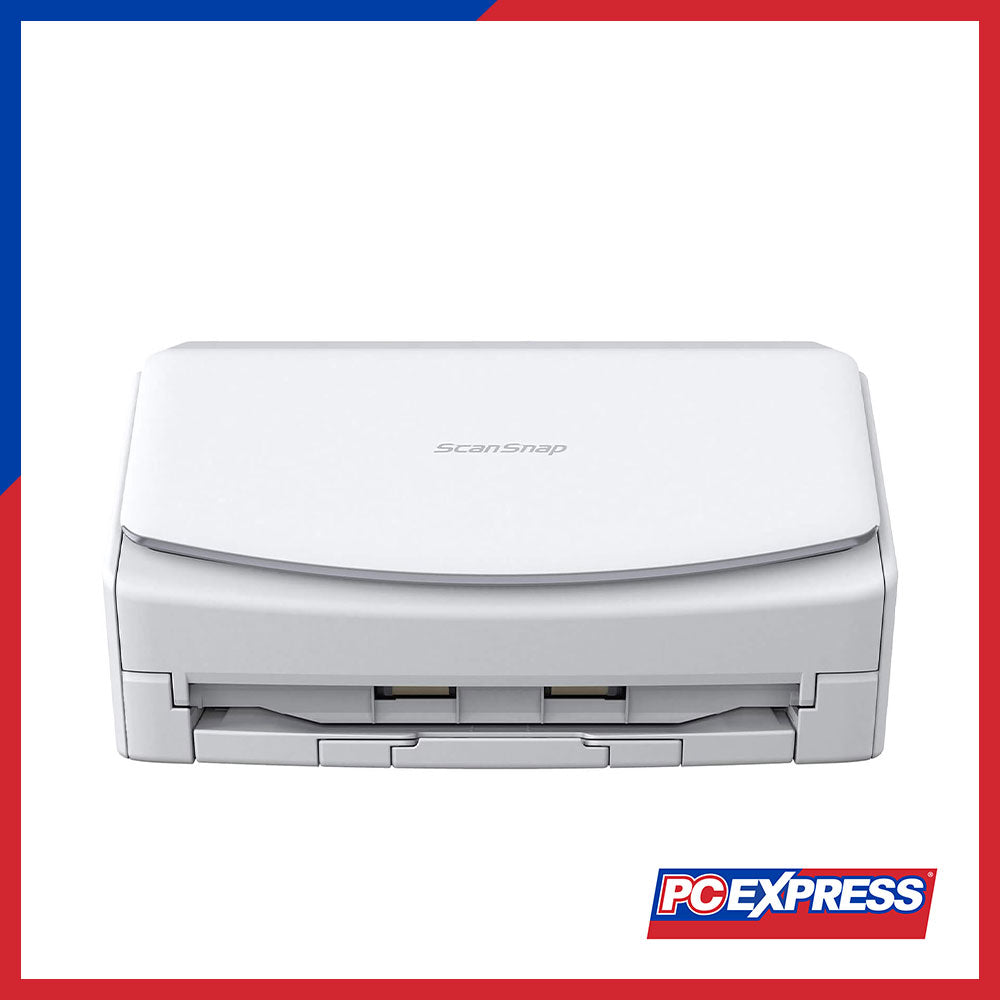

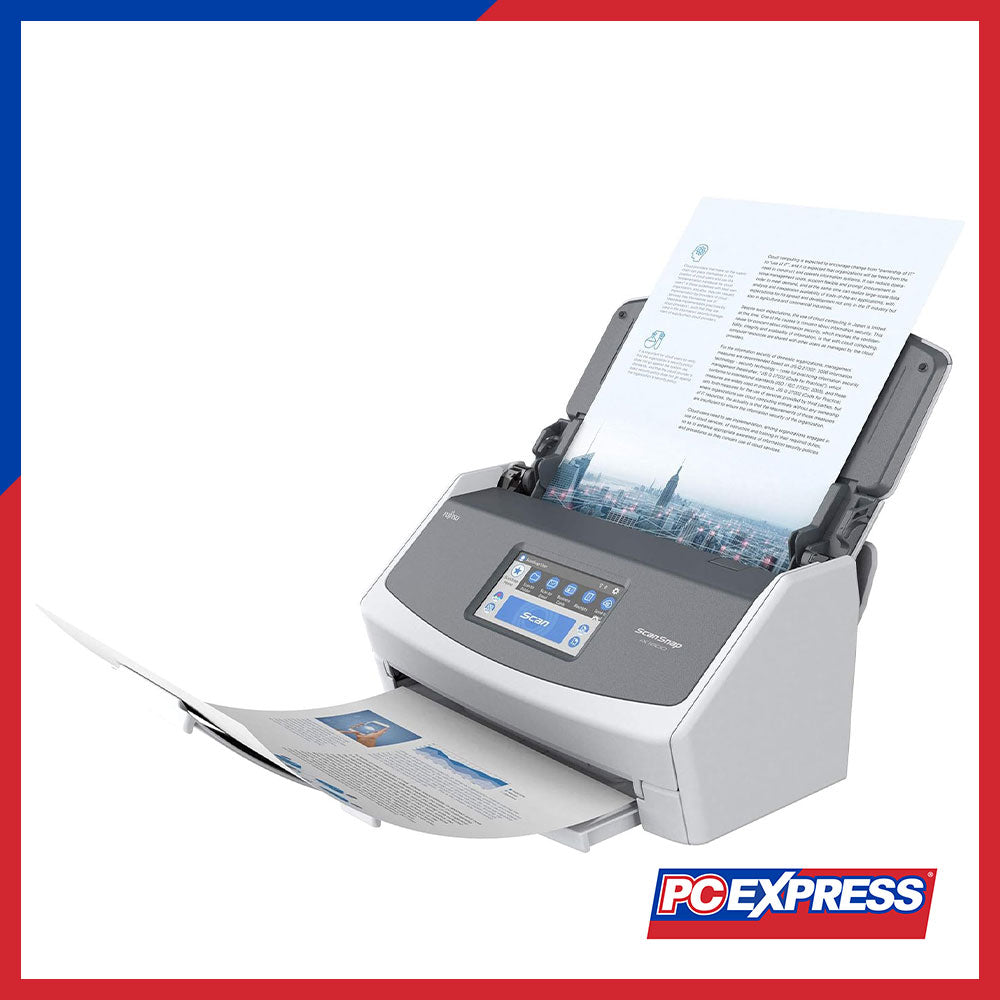

FUJITSU IX1600 Document Scanner
- Read our FAQs before ordering
- Need Help? Chat with us.

SPECIFICATION
Scanner Type |
ADF (Automatic Document Feeder) / Manual Feed, Duplex |
Scanning Speed (A4 portrait)
|
|
Auto mode |
Simplex / Duplex: 40 ppm |
Normal mode |
Simplex / Duplex: 40 ppm (Color / Grayscale: 150 dpi, Monochrome: 300 dpi) |
Better mode |
Simplex / Duplex: 40 ppm (Color / Grayscale: 200 dpi, Monochrome: 400 dpi) |
Best mode |
Simplex / Duplex: 40 ppm (Color / Grayscale: 300 dpi, Monochrome: 600 dpi) |
Excellent mode
|
Simplex / Duplex: 10 ppm (Color / Grayscale: 600 dpi, Monochrome: 1,200 dpi) |
Scanning Color Mode |
Color, Grayscale, Monochrome, Automatic (Color / Grayscale / Monochrome*4 detection) |
Image Sensor |
CIS x 2 (Front x 1, Back x 1) |
Light Source |
3 color LED (Red / Green / Blue) |
Optical Resolution |
600 dpi |
Document Size
|
|
Normal Scan |
Minimum 50.8 x 50.8 mm (2 x 2 in.) |
Manual Scan |
A3, B4, 279 x 432 mm (11 x 17 in.) |
Long Paper Scanning |
3,000 mm (863 mm in 32-bit) |
Paper Weight (Thickness) |
40 to 209 g/m2 (11 to 56 lb) |
ADF Capacity |
50 sheets (A4, 80 g/m2 or 20 lb) |
Multifeed Detection |
Overlap detection (Ultrasonic sensor), Length detection |
Interface
|
|
USB |
USB3.2 Gen1x1 / USB2.0 / USB1.1 (Connector Type: Type-B) |
Wi-Fi |
IEEE802.11a/b/g/n/ac |
Wi-Fi Interface
|
|
Connection Mode |
Access Point Connect Mode (Infrastructure mode) |
Security |
WEP (64bit / 128bit), WPA (TKIP / AES), WPA2 (AES), WPA-PSK (TKIP / AES), WPA2-PSK (AES) |
Easy Installation |
WPS2.0 |
Rated Power (EIRP)
|
2.4 GHz: 11b: +19.0dBm / 11g: +20.5dBm / 11n/ac: +20.5dBm (20 / 40MHz) |
LCD |
4.3 in. color TFT touch screen |
Power Requirements |
AC 100 to 240 V, 50/60 Hz |
Power Consumption
|
|
Operating Mode |
17 W or less |
Sleep Mode |
USB connected: 1.5 W or less |
Operating Environment
|
|
Temperature |
5 to 35 °C (41 to 95 °F) |
Relative Humidity |
20 to 80% (Non-condensing) |
Environmental Compliance |
ENERGY STAR®, RoHS |
Dimensions (W x D x H) |
292 x 161 x 152 mm (11.5 x 6.3 x 6.0 in.) |
Weight |
3.4 kg (7.5 lb) |
Driver |
ScanSnap specific driver |
Software |
ScanSnap Home (All-in-one document management software/driver) |
