DELL Ultra Sharp 23.8" U2424HE IPS Monitor

Diagonal Viewing Size

23.8"

Preset Display Area (H x V)

527.04 mm x 296.46 mm
20.75" x 11.67"
156,246.27 mm² (242.15 in²)

Panel Type

IPS

Display Screen Coating

Anti-Glare with 3H hardness

Maximum Preset Resolution

Full HD (1920 × 1080) at 120 Hz

Viewing Angle

178° vertical / 178° horizontal

Pixel Pitch

0.2745 mm × 0.2745 mm

Pixel Per Inch (PPI)

92.53

Contrast Ratio

1000:1 (typical)

Aspect Ratio

16:9

Backlight Technology

LED Edgelight System

Brightness

250 cd/m² (typical)

Response Time

8 ms (Normal) / 5 ms (Fast)

HDR Ready

No

Ambient Light Sensor

Yes (auto brightness & color temperature adjustment)

Color Support

16.7 million colors

Color Gamut

100% sRGB, 100% BT.709, 85% DCI-P3
Delta E < 2 (sRGB & BT.709)

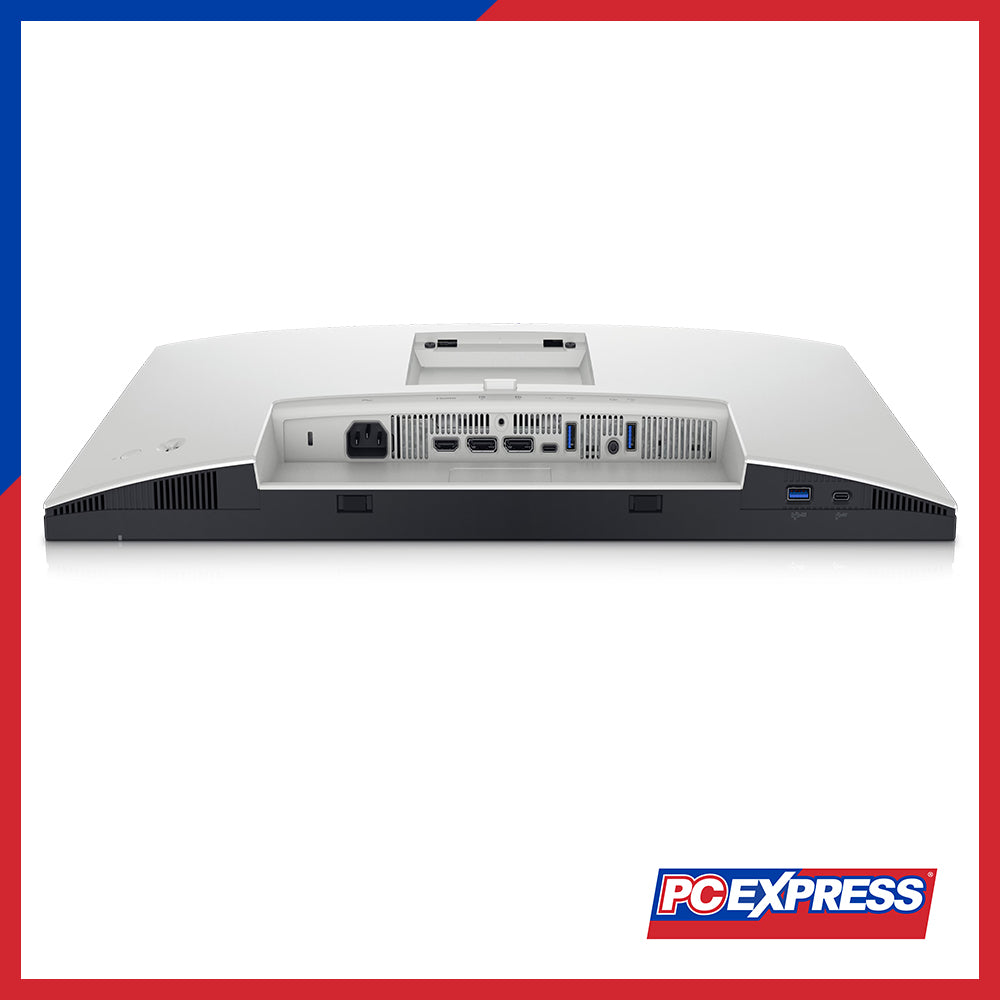

Interfaces

1x DisplayPort 1.4 (HDCP 1.4)
1x HDMI (HDCP 1.4, FHD 120Hz)
1x DisplayPort 1.4 (Out, MST, HDCP 1.4)
1x USB-C upstream (10Gbps, USB 3.2 Gen2)
2x USB-A downstream (10Gbps, USB 3.2 Gen2)
1x Audio line-out
Quick Access:
1x USB-C downstream (10Gbps, 15W charging)
1x USB-A downstream (10Gbps, BC1.2 charging)

Adjustability

Height, Tilt, Swivel, Pivot

Height Adjustment

150 mm

Tilt

-5° to +21°

Swivel

-45° to +45°

Pivot

-90° to +90°

PbP / PiP

No

KVM

No

Daisy Chain

Yes

Audio Output

1x Audio line-out

Built-in Speaker

No

Security

Security lock slot
Anti-theft stand lock slot

Compliant Standards

ENERGY STAR, EPEAT, RoHS, TCO Certified & Edge, BFR/PVC free, Arsenic-free glass, Mercury-free panel

Flat Panel Mount Interface

VESA 100 × 100 mm (behind VESA cover)

What's Included

Monitor, Stand riser, Stand base, Quick setup guide, Safety & regulatory info, Factory calibration report

Cables Included

1x Power cable
1x DisplayPort 1.4 cable (1.8 m)
1x USB-A to USB-C Gen2 cable (1 m)

Voltage Required

100–240 VAC, 50/60 Hz ± 3 Hz, 1.5 A (typical)

Power Consumption (On mode)

13.7 W

Power Consumption (Max)

72 W

Power Consumption (Standby)

0.5 W

Power Consumption (Off)

0.3 W

Dell Display Manager Compatibility

Yes (Easy Arrange, other features)

Temperature Range

Operating: 0°C–40°C (32°F–104°F)
Non-operating: –20°C–60°C (–4°F–140°F)

Humidity Range

Operating: 10%–80% (non-condensing)
Non-operating: 5%–90% (non-condensing)

Altitude

Operating: 5000 m (16404 ft)
Non-operating: 12192 m (40000 ft)

Height with Stand (Compressed–Extended)

14.33" – 19.55"

Width with Stand

21.21"

Depth with Stand

7.16"

Height without Stand

12.25"

Width without Stand

21.21"

Depth without Stand

1.93"

Weight (Panel only, VESA mount)

7.76 lb

Weight (with Stand & Cables)

11.86 lb

Weight (with Packaging)

17.46 lb
