ASUS ROG THOR 850W 80+ PLATINUM II Modular Power Supply

Dimensions

160 x 150 x 86 mm

Efficiency

80Plus Platinum

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

Thermal Features

ROG Thermal Solution

DC Output Voltage

+3.3V, +5V, +12V, -12V, +5Vsb

Maximum Load

20A, 20A, 71A, 0.3A, 3A

Combined Load

100W, 100W, 852W, 3.6W, 15W

Total Output

850W

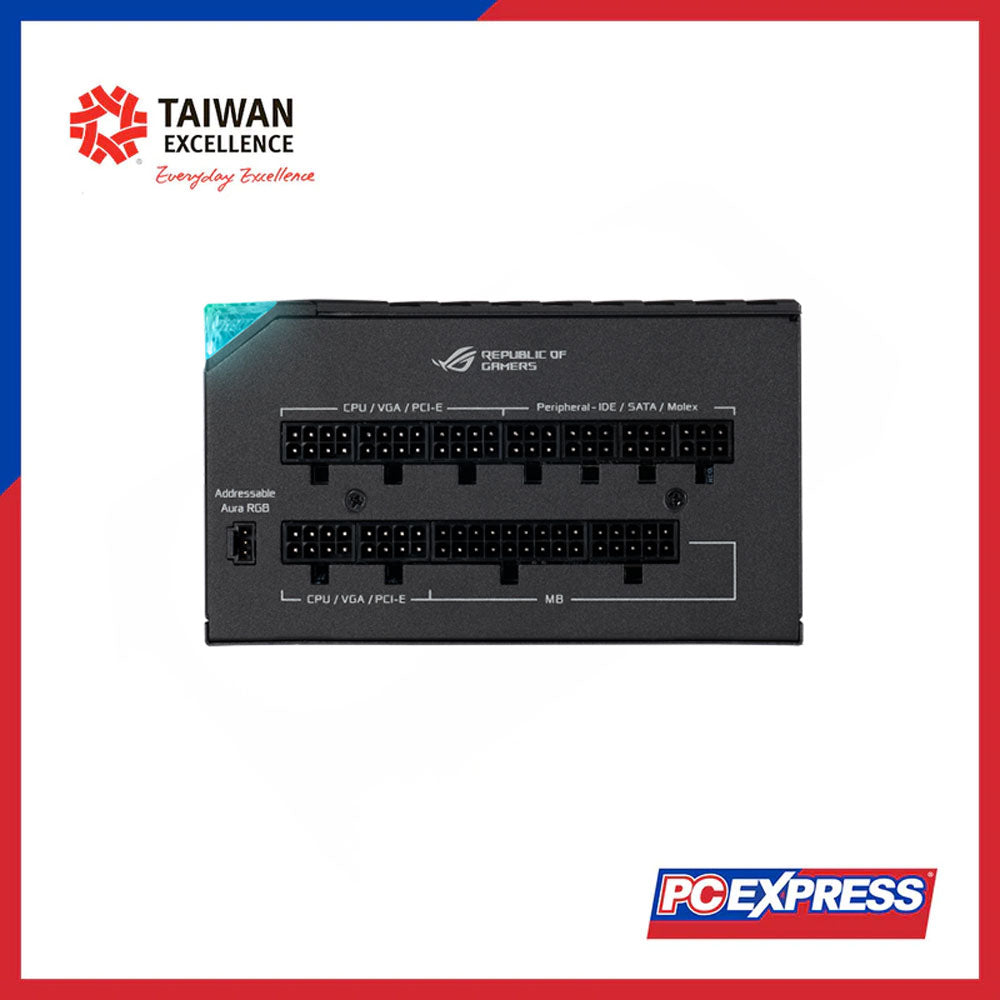

Cable Connectors

MB 24/20-pin x 1, CPU 4+4-pin x 2, PCI-E 16-pin x 1 (component side), PCI-E 6+2-pin x 3, SATA x 10, PERIPHERAL x 6

Package Contents

Power Cord x 1, Motherboard Power Cable x1 (610mm), CPU Cable x2 (650mm), PCIE Cable 16-pin x1 (675mm), PCIE 1-to-1 Cable x3 (675mm), PCIE 1-to-2 Cable x2 (675+75mm), SATA 1-to-2 Cable x1 (400+120mm), SATA 1-to-4 Cable x2 (400+120+120+120mm), Peripheral 1-to-3 Cable x2 (450+120+120mm), Addressable RGB Cable x1 (800mm), ROG sticker x 1, ROG cable tie x 4, Sleeved Cable Combs (6-pin) x 2, Sleeved Cable Combs (8-pin) x 6, Sleeved Cable Combs (24-pin) x 2, Chassis Screws Package x 1, Cable Tie x 10, User Manual x 1

Weight

1.865kg (Single)

AURA SYNC

ARGB

0dB Fan Button

Yes

Cybenetics Noise Level Certification

A++
