IP Video Input

4-Channel

Incoming Bandwidth

80 Mbps

Outgoing Bandwidth

60 Mbps

HDMI Output Resolution

3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz

VGA Output Resolution

1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz

Video Output Mode

HDMI/VGA Simultaneous Output

Multi-View Display

1/4

Audio Compression

G.711A/G.711U/G.726

Decoding Format

H.265+/H.265/H.264+/H.264

Video Compression

H.265+/H.265/H.264+/H.264

Record Resolution

8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Live View/Playback Resolution

8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous Playback

4 Channel

Capability

2-ch @ 8MP, 4-ch @ 4MP

Record Mode

Manual, Scheduling, Motion Detection

Playback Mode

Instant, Regular, Tag, Event Playback

Backup Mode

Regular, Video Clip Backup

Playback Functions

Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off

Protocol

TCP/IP, DHCP, DNS, NTP, UPnP

Mobile Phone Access

Android, iOS

Web Browser Compatibility

Chrome (57+), Firefox (52+), Edge (91+)

Interoperability

ONVIF, CGI

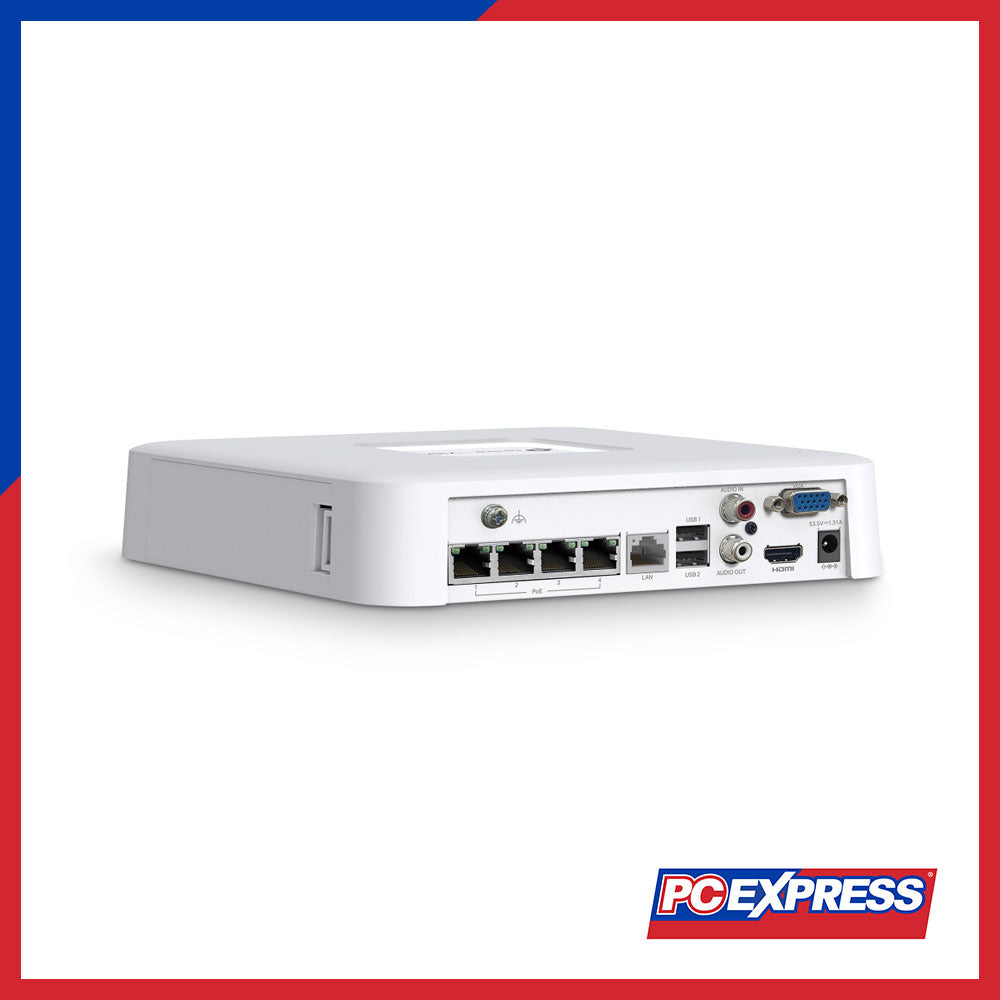

Network Interface

1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

USB Interface

2 × USB 2.0

Audio Interface

1-ch RCA Input; 1-ch RCA Output

Power Supply

1 × DC Jack

Speaker

1; Real-time Audio Output without Needing Peripherals

HDMI Output

1

VGA Output

1

SATA Interface

1 SATA Interface

Capacity

Up to 10 TB

PoE Standard

802.3at/af Compliant

PoE Budget

53 W Available for All PoE+ Ports, 30 W Max per Port

General Alarm

Various detection options including motion, video tampering, scene change, etc.

Anomaly Alarm

Video Loss, Offline/IP Conflict, Disk Exception, Login Exception

Alarm Linkage

Recording, White Light Alarm, Buzzer, Log, Audible Alarm

Operating Temperature

-10–55 °C

Storage Temperature

-40–70 °C

Storage Humidity

10%~90% RH Non-Condensing

Package Contents

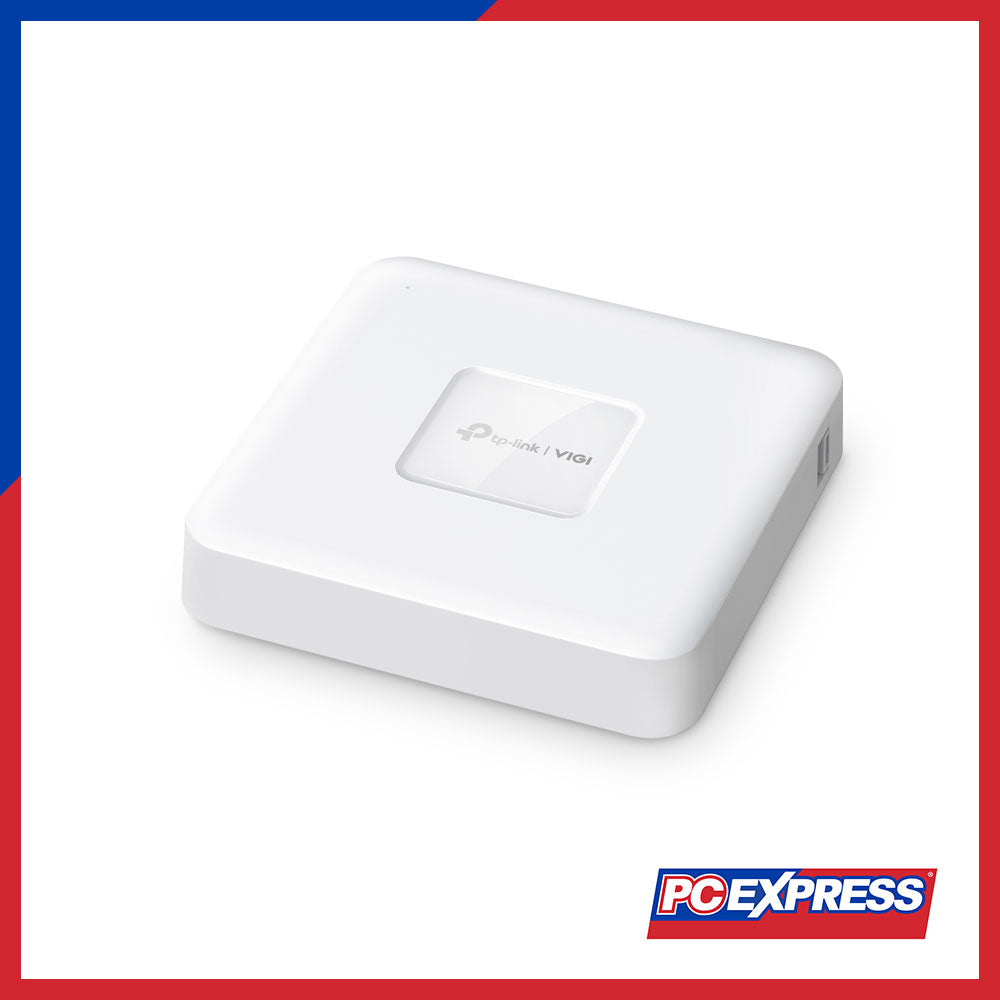

VIGI Network Video Recorder, Power Adapter, HDD Screws, Mouse, Quick Installation Guide

Dimensions (W x D x H)

200.3 × 200.3 × 43 mm

Power Consumption

4.82 W (without disk)

Certifications

CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
