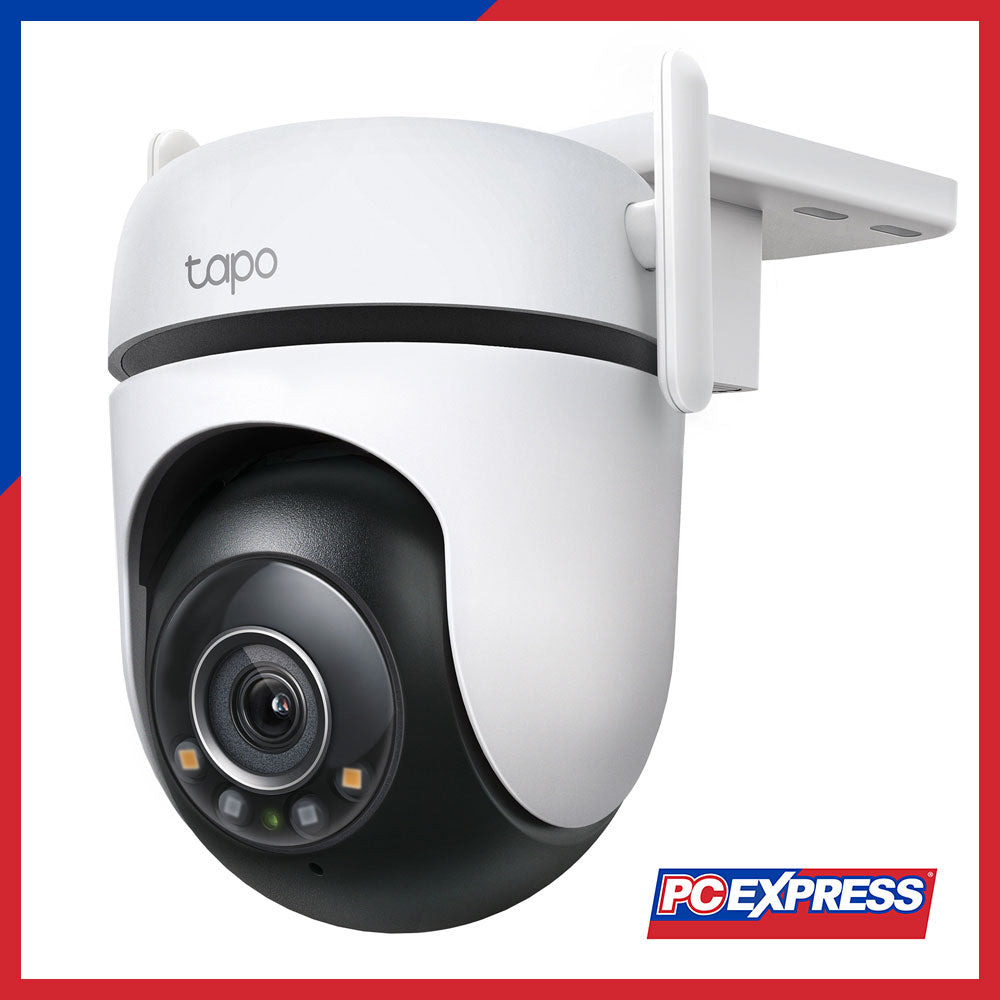

TP-Link Tapo C520WS Outdoor Pan/Tilt Security Wi-Fi Camera

CAMERA

Image Sensor: 1/3″ CMOS
Lens: F/NO: 1.61 ± 10 %; Focal Length: 3.18 mm ± 5 %
Motion Range: Pan 340° (360° coverage); Tilt 60° (130° coverage)
Night Vision: 850 nm IR LED (up to 98 ft); Starlight Color Night Vision
Lighting: 2× built‑in spotlights
Interface & Button: 1× Ethernet port; 1× RESET button; 1× MicroSD slot (up to 512 GB)
Weatherproof Rating: IP66
View Range: 360° horizontal; 130° vertical
Resolution: 2K QHD 4 MP (2560 × 1440 px)

VIDEO & AUDIO

Max. Resolution: 2K QHD 4 MP (2560 × 1440 px)
Frame Rate: 15/20/25/30 fps (default 15 fps)
Digital Zoom: 12×
Video Compression: H.264
Live View: Yes
Image Enhancement: 3D‑DNR; BLC
Audio I/O: Built‑in mic & speaker
Audio Comms: Two‑way with noise cancellation
Siren Volume: 93 dB (measured at 10 cm)

STORAGE

Local: MicroSD on camera (up to 512 GB)
Cloud: Tapo Care (subscription required)

DETECTION & NOTIFICATIONS

AI Detection: Motion; Person; Pet; Vehicle; Line‑crossing; Tamper
Activity Zones: Yes
Notifications: System notifications; Snapshots via Tapo Care

NETWORK

Connectivity: Wi‑Fi or Ethernet
Wireless: IEEE 802.11 b/g/n (2.4 GHz)
Protocol: TCP/IP, ICMP, DNS, HTTPS, TCP, UDP; RTSP; ONVIF
Ethernet Port: 1× 10/100 Mbps RJ45
Security: WPA/WPA2‑PSK; 128‑bit AES w/ SSL/TLS

SECURITY

On‑device machine learning; 128‑bit AES w/ SSL/TLS; WPA/WPA2‑PSK

POWER

Source: 9 V DC adapter
Input: 100–240 V, 50/60 Hz
Output: 9 V ⎓ 0.85 A

ACTIVITY NOTIFICATIONS

Triggers: Motion; Person; Pet; Vehicle; Line‑crossing
Outputs: Snapshots & clips via Tapo Care

HARDWARE

Button: RESET
LED: System indicator
Adapter: Input 100–240 V/50–60 Hz; Output 9 V/0.85 A
Dimensions: 4.9 × 4.8 × 3.5 in. (123.8 × 123 × 90 mm)

GENERAL

Smart Integration: Google Assistant; Amazon Alexa
Weather Resistance: IP66
App Req’t: iOS 9.0+; Android 4.4+
Mounting: Ceiling; wall; pole (loops sold separately)
Op. Temp.: –30 °C to 60 °C
St. Temp.: –40 °C to 60 °C
Op. Humidity: 10 – 90 % RH, non‑condensing
St. Humidity: 0 – 90 % RH, non‑condensing

PACKAGE CONTENT

Tapo C520WS camera; Power adapter; 4× anchors; 4× mounting screws; 2× bracket screws; Mounting template & bracket; Waterproof seal & cable attachments; Quick Start Guide

CERTIFICATIONS & COMPLIANCE

CE; FCC; RoHS; RCM
