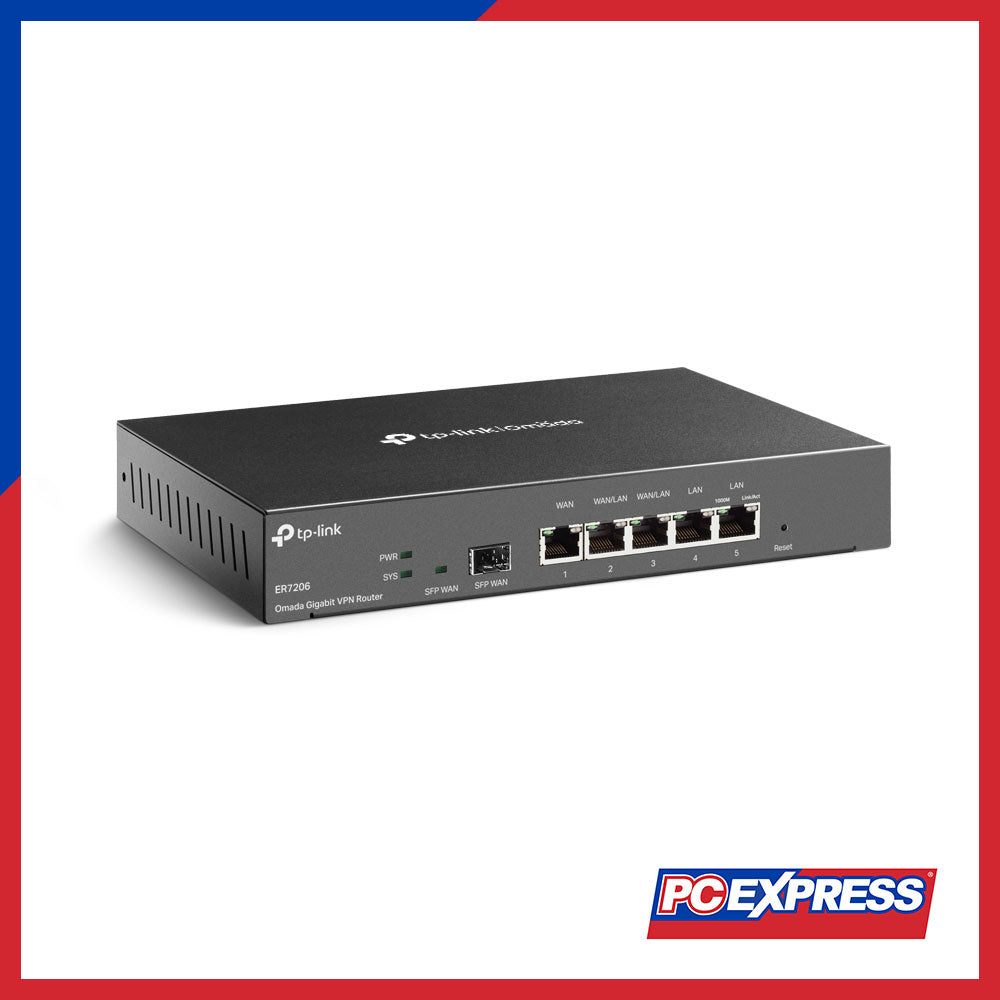

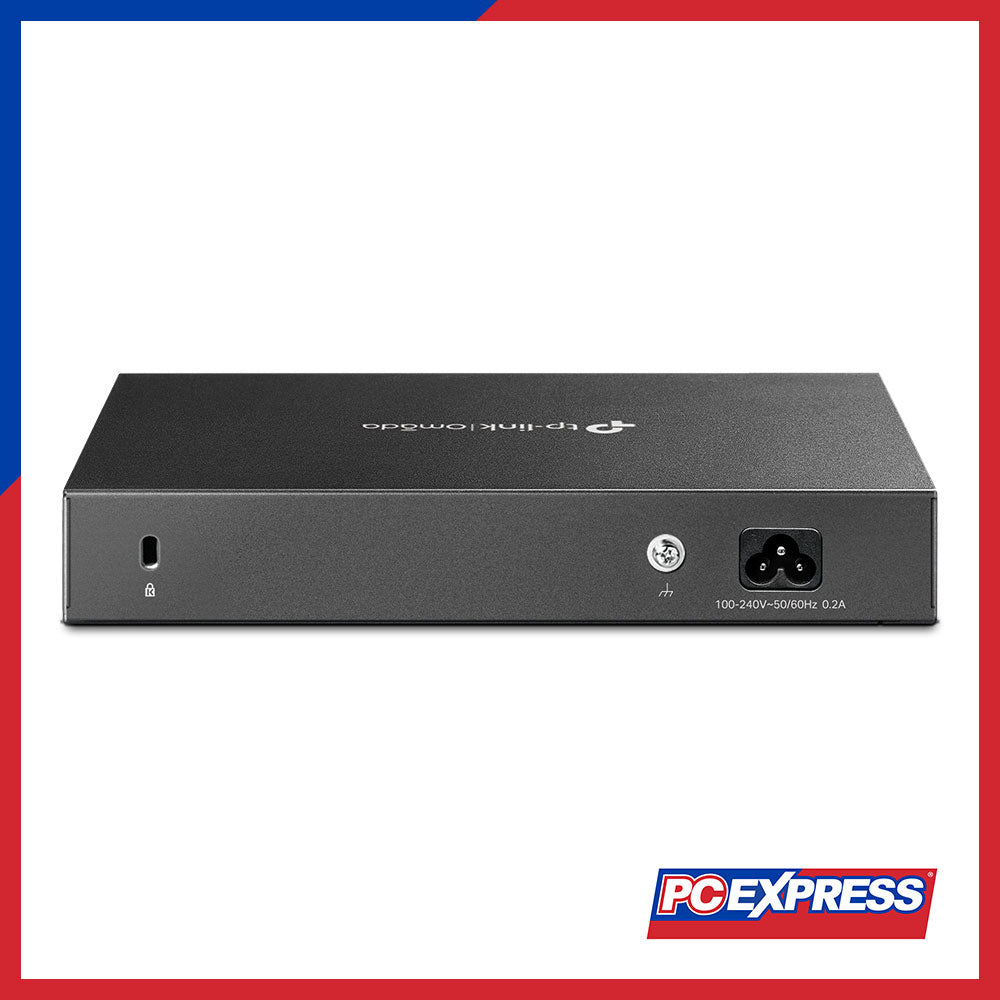

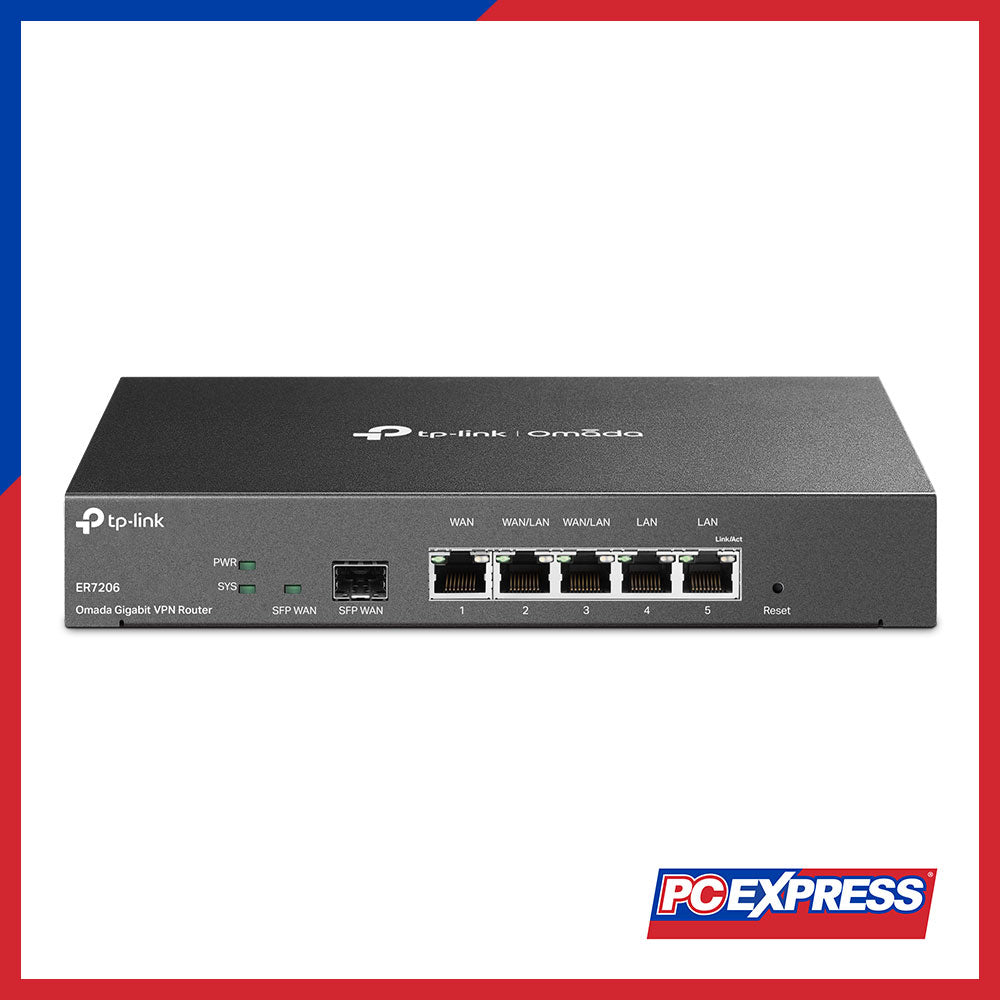

TP-LINK ER7206 Omada Gigabit VPN Router

SECURITY

Access Control

Source/Destination IP Based Access Control / FQDN

Filtering

• WEB Group Filtering§
• URL Categories and URLs Filtering
• Web Security§

ARP Inspection

• Sending GARP Packets§
• ARP Scanning§
• IP-MAC Binding
• ARP Detection

Attack Defense

• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN

HARDWARE FEATURES

Standards and Protocols

• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP

Interface

• 1 Gigabit SFP WAN/LAN Port
• 1 Gigabit WAN Port
• 4 Gigabit LAN/WAN Ports
• 1 USB 3.0 Port (supports USB LTE dongle and USB storage)

Network Media

• 10BASE-T: UTP cat 3, 4, 5 (Max 100 m) EIA/TIA-568 100Ω STP
• 100BASE-TX: UTP cat 5, 5e (Max 100 m) EIA/TIA-568 100Ω STP
• 1000BASE-T: UTP cat 5, 5e, 6 (Max 100 m)

Fan Quantity

Fanless

Button

Reset Button

Power Supply

12V DC/1A Power Adapter

PoE Budget

-

Flash

128 MB NAND

DRAM

512 MB DDR4

LED

PWR, SYS, SFP, USB, WAN(1000M/100/10M), WAN/LAN(1000M/100/10M)

Dimensions (W x D x H)

8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)

Protection

4 kV surge protection

Enclosure

Steel

Mounting

Desktop/Wall-Mounting/Rack-Mounting

Max. Power Consumption

• 7.5 W (with USB 3.0)
• 4.5 W (without USB 3.0)

PERFORMANCE

IPS Throughput

TCP: 229 Mbps;
UDP: 188 Mbps

DPI Throughput

TCP: 933 Mbps;
UDP: 927 Mbps

WireGuard VPN

341.3 Mbps

Concurrent Sessions

150,000

New Sessions/Second

5,300

NAT (Static IP)

945.3 Mbps / 940.5 Mbps

NAT (DHCP)

939.6 Mbps / 940.9 Mbps

NAT (PPPoE)

943.6 Mbps / 940.9 Mbps

NAT (L2TP)

880.1 Mbps / 859.0 Mbps

NAT (PPTP)

855.0 Mbps / 907.2 Mbps

64 Byte Packet Forwarding Rate

-

IPsec VPN Throughput

• ESP-SHA1-AES256: 617.1 Mbps
• ESP-SHA256-AES256: 592.8 Mbps
• ESP-SHA384-AES256: 592.4 Mbps
• ESP-SHA512-AES256: 604.5 Mbps

OpenVPN

139.1 Mbps

L2TP VPN Throughput

• Unencrypted: 977.4 Mbps
• Encrypted: 334.6 Mbps

PPTP VPN Throughput

• Unencrypted: 1064.1 Mbps
• Encrypted: 206.8 Mbps

SSL VPN Throughput

131.6 Mbps

66 Byte Packet Forwarding Rate

1,453,489 pps / 1,453,488 pps

1,518 Byte Packet Forwarding Rate

81,279 pps / 81,275 pps

BASIC FUNCTIONS

WAN Connection Type

• Static IP
• Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP

MAC Clone

Modify WAN/LAN MAC Address†

DHCP

• DHCP Server
• DHCPv6 PD Server (Standalone Mode only)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP
• WAN DHCP 60

IPv6

Static IP/SLAAC/DHCPv6/PPPoE/6to4 Tunnel/PassThrough/Non-Address mode

VLAN

802.1Q VLAN

IPTV

IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

ADVANCED FEATURES

Access Control

IP/Port/Protocol/Domain Name Filtering

Advanced Routing

• Static Routing
• Policy Routing
• RIP§
• OSPF§

Bandwidth Control

IP-based Bandwidth Control

Load Balance

• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing, Failover)
• Online Detection

NAT

• One-to-One NAT
• Multi-Net NAT
