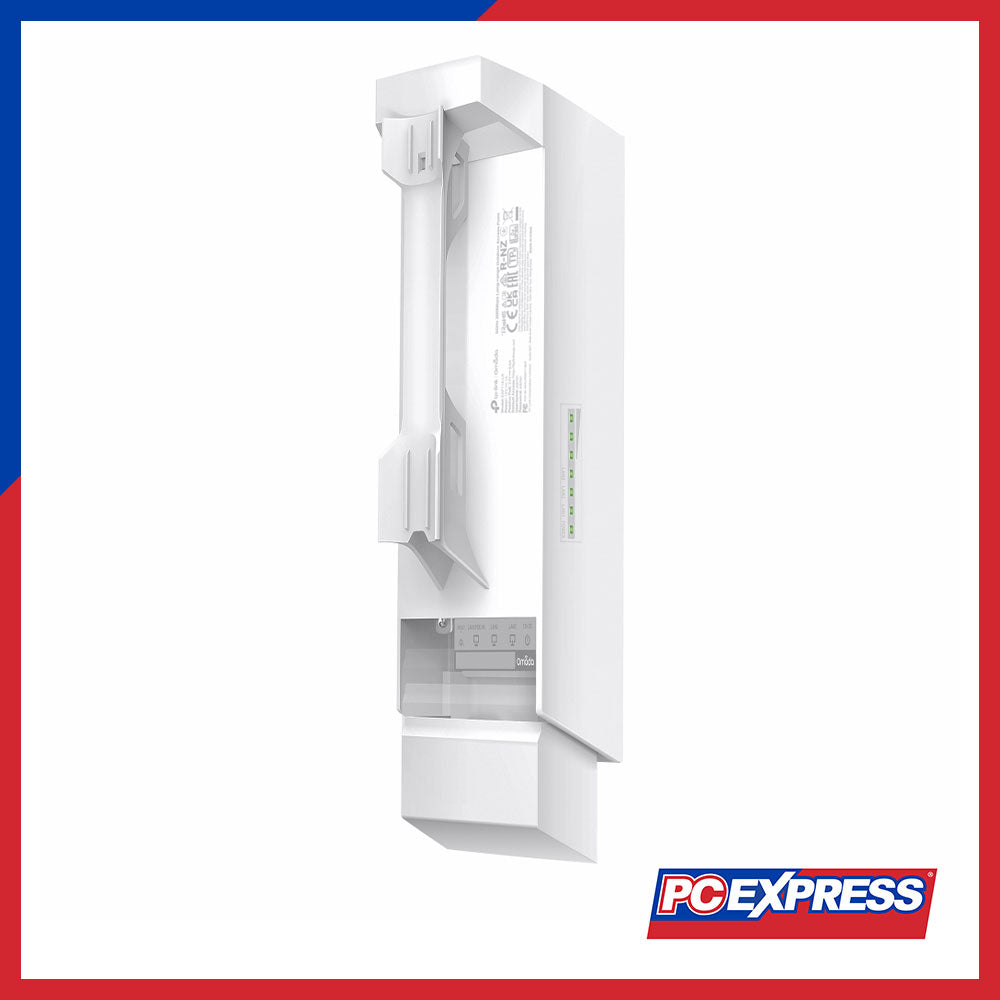

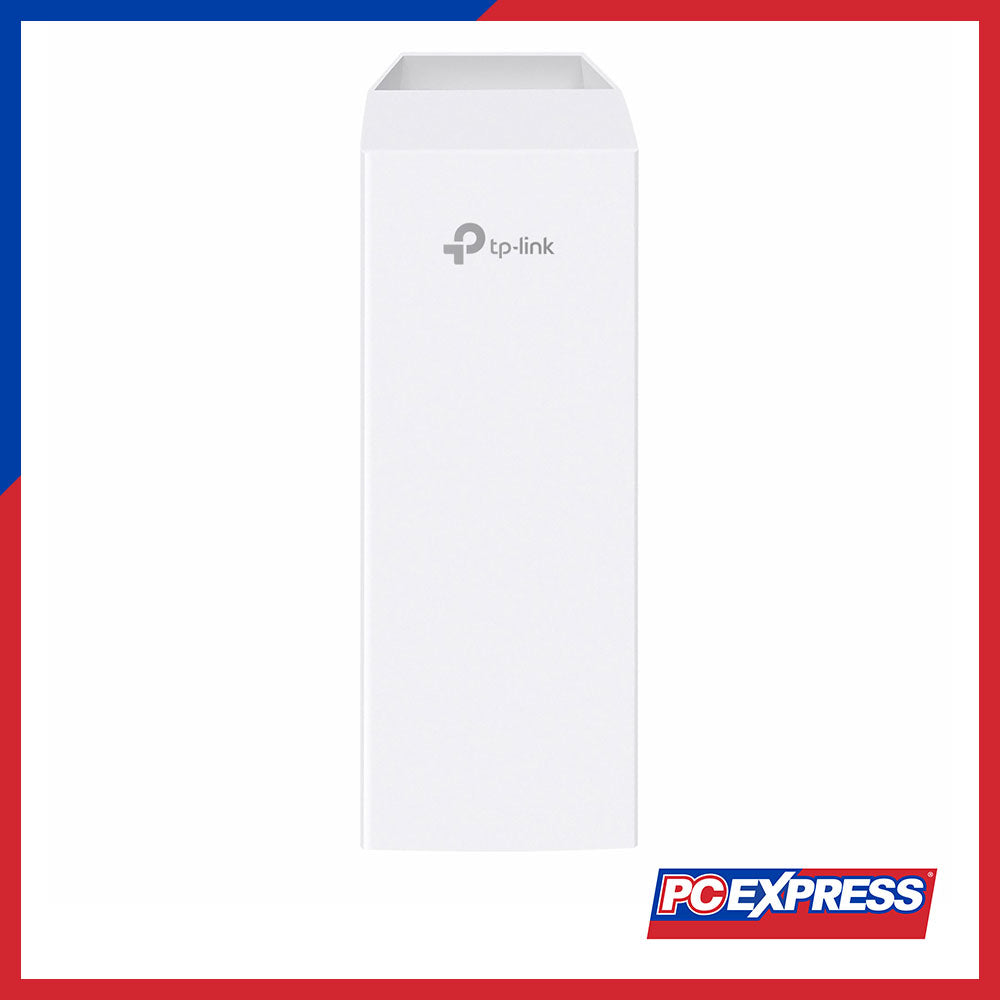

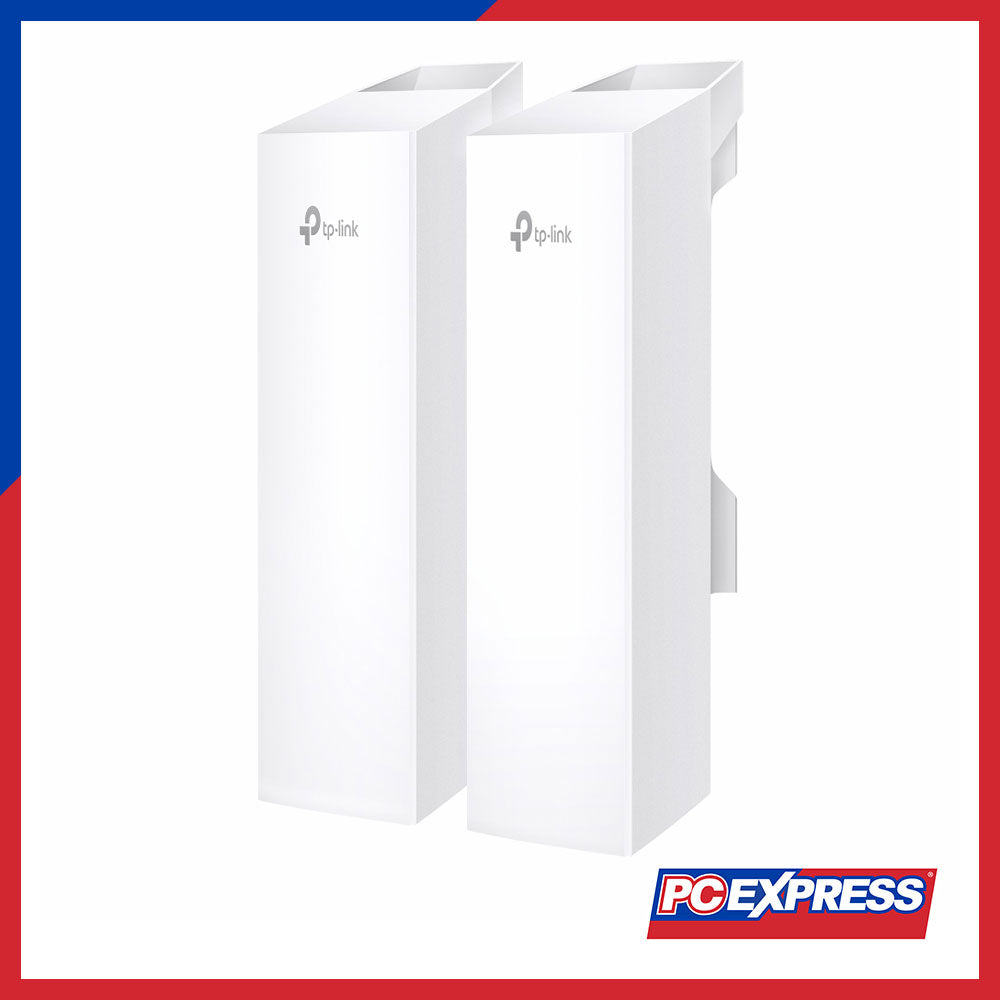

TP-LINK EAP215-Bridge KIT Omada Wireless Bridge 5 GHz AC867 Long-Range Indoor/Outdoor Access Point

Interface

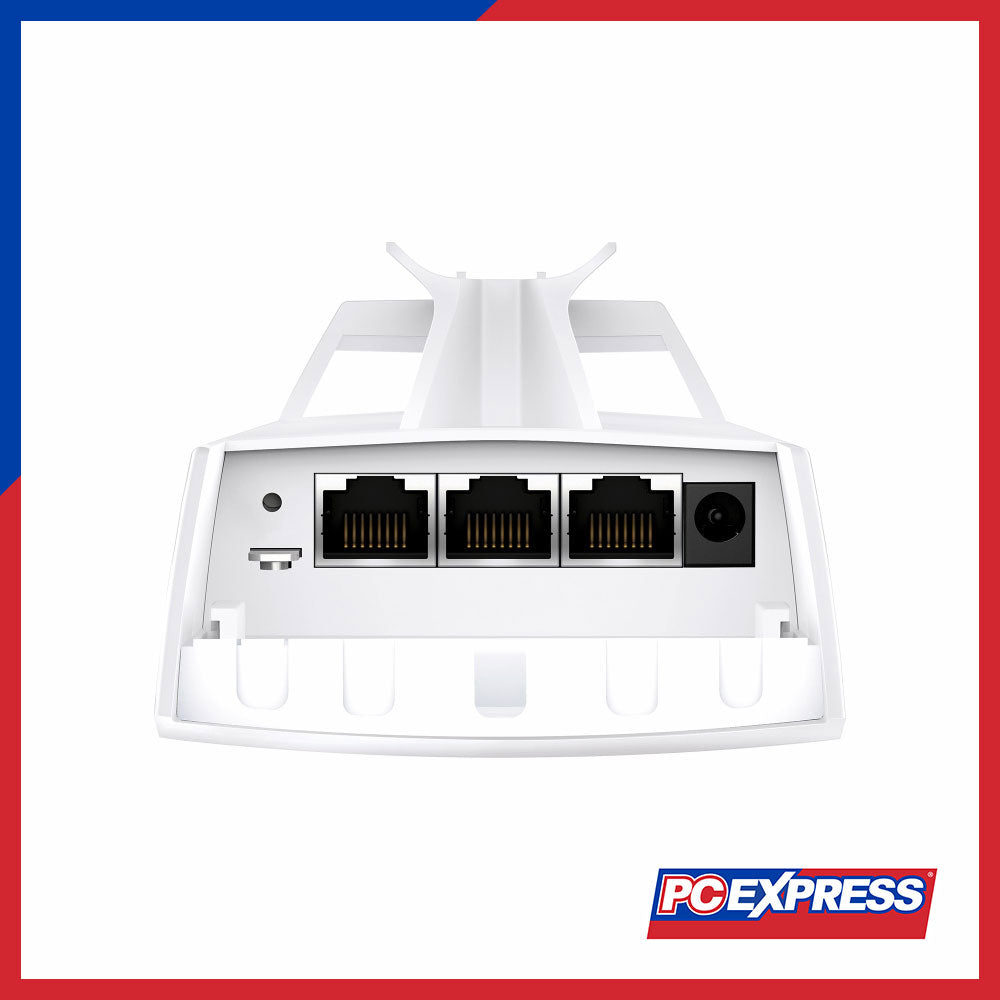

3 × Gigabit Ethernet Ports*
*Passive PoE adapter included

Button

Reset

Power Supply

12 V DC / 24 V Passive PoE

Max. Power Consumption

11.5 W

Dimensions (W × D × H)

3.1 × 2.4 × 8.8 in (79 × 60 × 224 mm)

Antenna

Internal 2 × 2 dual‑polarized directional MIMO antennas
• 5 GHz: 11.0 dBi
• Horizontal: 35°, Vertical: 35°

Weatherproof Enclosure

IP65

Mounting

Pole mounting (accessories included)

Coverage

5,000 m (16,400 ft)⁵

Wireless Standards

IEEE 802.11a/b/g/n/ac

Frequency

5 GHz

Signal Rate

5 GHz: Up to 867 Mbps

Wireless Functions

• Mesh*⁴
• MU‑MIMO: 5 GHz 2×2 DL
• Load Balance
• Beamforming
• Seamless Roaming (802.11r)
• Airtime Fairness
• Multiple SSIDs (up to 8)
• Wireless Statistics
• Wireless Schedule
• Reboot Schedule
• RADIUS Accounting
• MAC Authentication
• Static/Dynamic IP

Wireless Security

• VLAN
• Access Control
• Rogue AP Detection
• Captive Portal Authentication*⁴
• Max. MAC Filters: 4,000
• WPA‑Personal/Enterprise, WPA2‑Personal/Enterprise

Transmission Power

• CE:
  – < 23 dBm (5 GHz band 1/2, EIRP)
  – < 30 dBm (5 GHz band 3, EIRP)
• FCC:
  – < 22 dBm (5 GHz band 1/4)

Management Features

• Omada App
• Restore & Backup
• Firmware Update via Web
• NTP
• Centralized Management:
  – OC300/OC200 Hardware Controllers
  – Omada Software Controller
  – Omada Cloud‑Based Controller
• Cloud Access (via OC300, OC200, Software or Cloud Controller)
• LED ON/OFF Control
• Management MAC Access Control
• SNMP v1/v2c/v3
• SSH
• Web‑based Management

Certification

CE, FCC, RoHS

Package Content

• EAP215‑Bridge KIT
• Passive PoE Adapter
• Power Cord
• Installation Guide
• Mounting Kit

Environment

• Operating Temp: –40 ℃ to 70 ℃ (–40 ℉ to 158 ℉)
• Storage Temp: –40 ℃ to 70 ℃ (–40 ℉ to 158 ℉)
• Operating Humidity: 10 %–90 % non‑condensing
• Storage Humidity: 5 %–90 % non‑condensing
