P/N |
PS-SPD-0650NNFABU-3 |
|
Model |
SPD-0650AH2NLB-3 |
|
Watts |
650 W |
|
Max Output Capacity |
650 W |
|
Color |
Black |
|
Dimensions (W×H×D) |
150 mm × 86 mm × 140 mm |
|
PFC (Power Factor Correction) |
Active PFC |
|
Power Good Signal |
100–150 ms |
|
Hold-Up Time |
> 17 ms at 80 % load |
|
Input Current |
15 A – 6 A |
|
Input Frequency Range |
50 Hz / 60 Hz |
|
Input Voltage |
100–240 V ~ |
|
Operating Temperature |
5 °C to 45 °C |
|
Operating Humidity |
20 % to 85 % |
|
Storage Temperature |
– 40 °C to 55 °C |
|
Storage Humidity |
10 % to 95 % |
|
Cooling System |

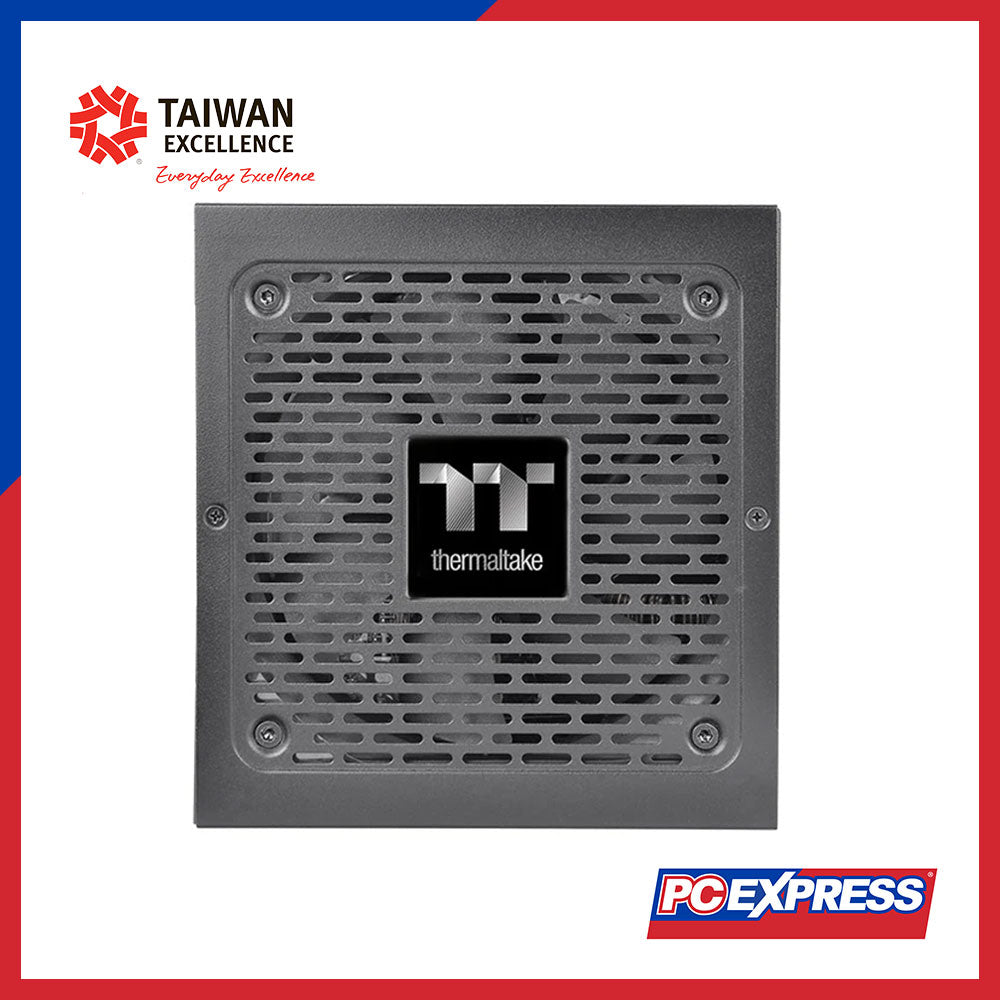

120 mm FDB fan |
|
Efficiency |
Meets 80 PLUS® Bronze at 115 Vac input |
|
MTBF |
100 (typical) |
|
Safety Approvals |
CE / UKCA / LVD / FCC / ICES / TUV / CB / cTUVus / BSMI / CCC |
|
PCI-E 6+2-Pin Connectors |
2 |
|
Protections |
OCP, OVP, UVP, OPP, OTP, SCP |
