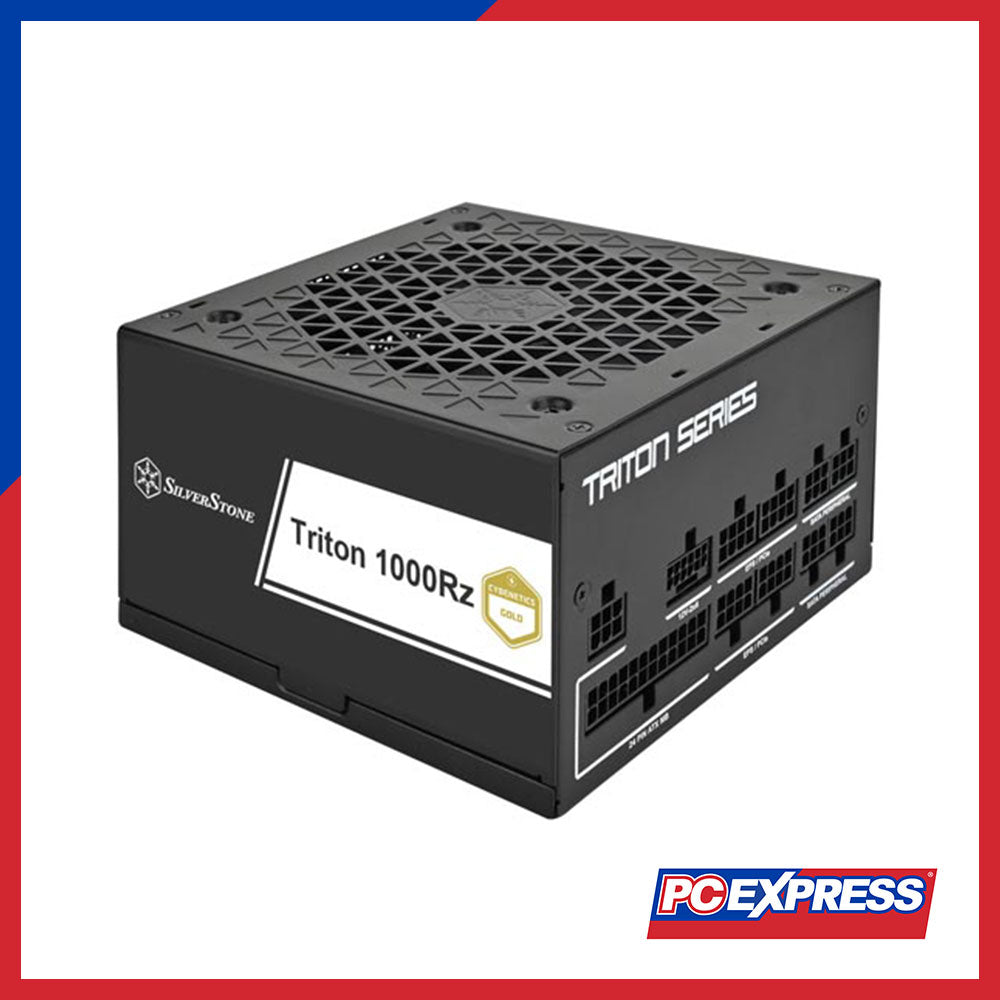

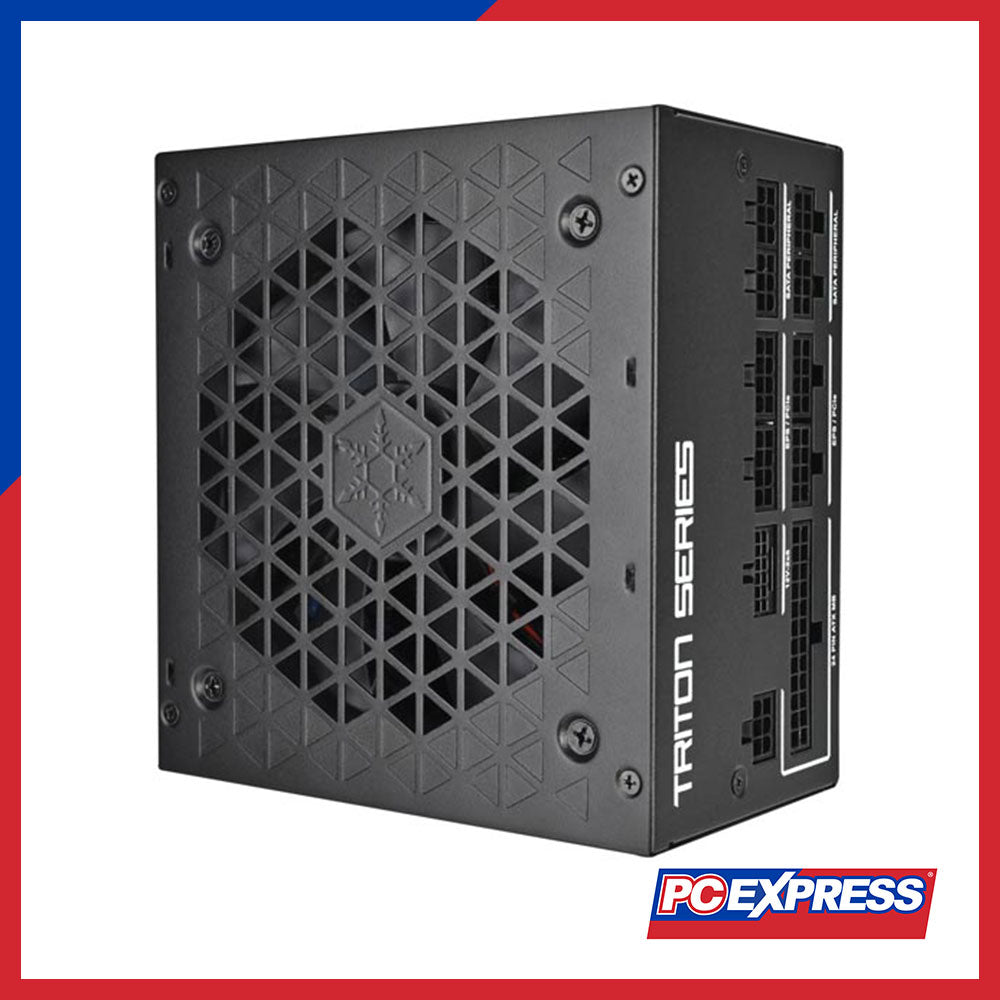

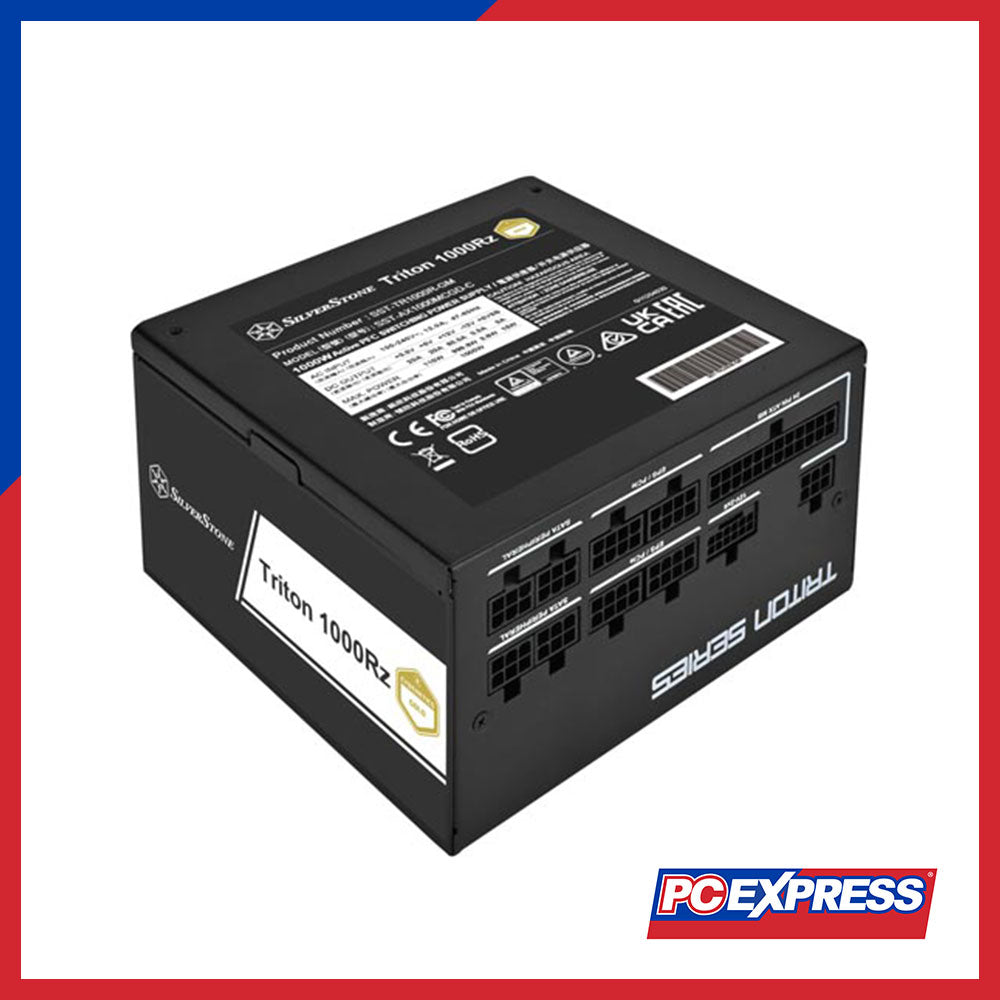

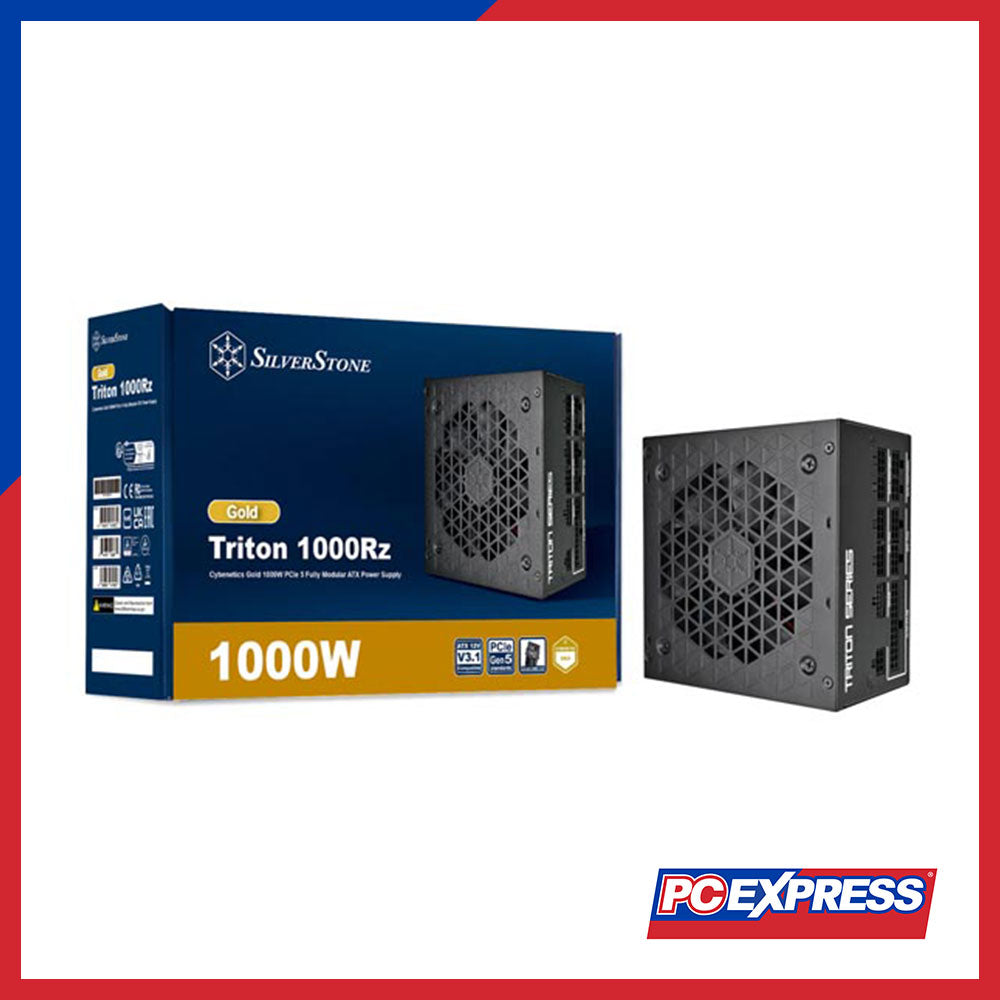

SILVERSTONE Triton 1000Rz Cybenetics Gold 1000W Fully Modular ATX Power Supply

Product No.

SST-TR1000R-GM
SST-TR1000R-GM-WWW

Model (safety certification)

SST-AX1000MCGD-C

Color

Black (lead-free paint)
White (lead-free paint)

Max. DC Output

1000 W

Power density

553.7 W/L

Load Range

+3.3 V: Max 20 A, Min 0 A, ±3 %, Line Reg ±1 %, Ripple 30 mVp-p
+5 V: Max 20 A, Min 0 A, ±3 %, Line Reg ±1 %, Ripple 30 mVp-p
+12 V1: Max 83.3 A, Min 0 A, ±3 %, Line Reg ±1 %, Ripple 40 mVp-p
+5 VSB: Max 3 A, Min 0 A, ±3 %, Line Reg ±1 %, Ripple 30 mVp-p
–12 V: Max 0.3 A, Peak 3 A, Min 0 A, ±10 %, Line Reg ±1 %, Ripple 50 mVp-p

Combined +3.3 V & +5 V

110 W

Combined +12 V

1000 W

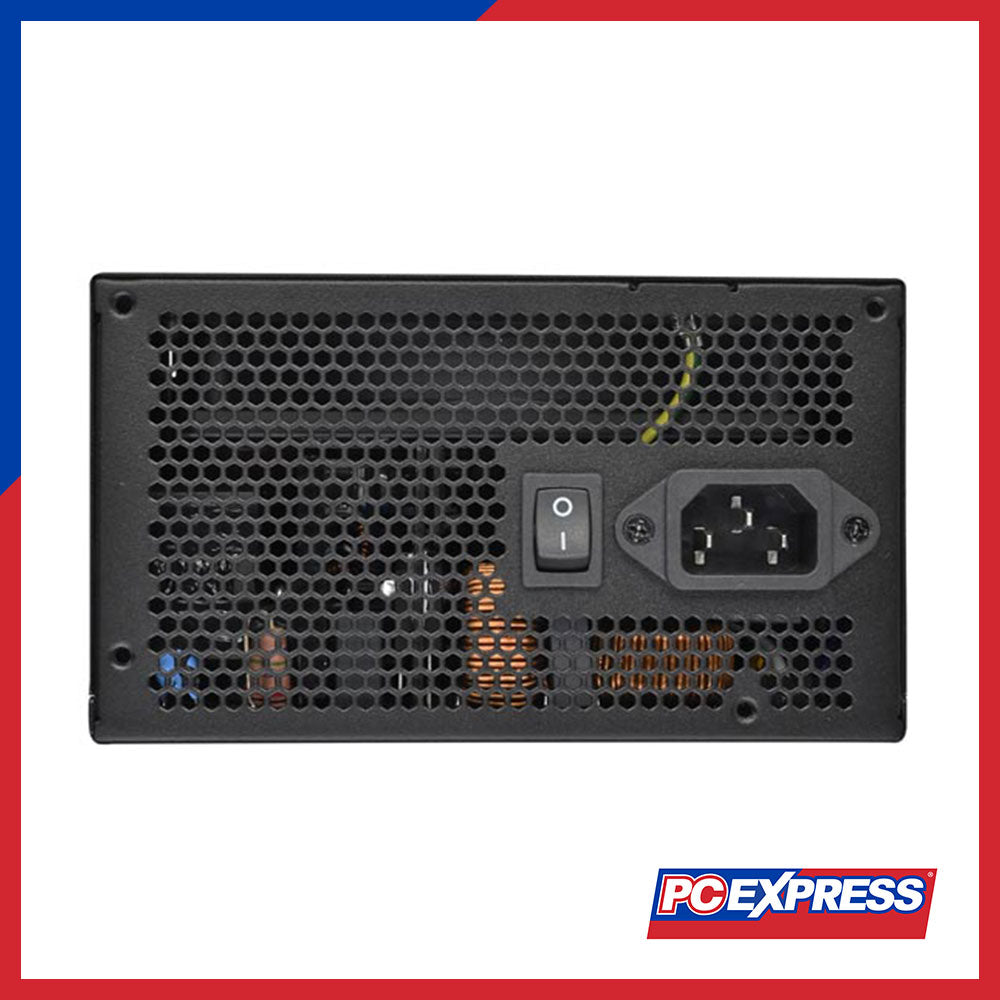

Input Voltage

90 – 264 Vrms

Input Frequency Range

47 – 63 Hz

PFC

Active PFC (PF > 0.9 at full load)

Efficiency

≥ 87 % to < 89 % overall

MTBF

100,000 hours

Operating Temperature

0 °C – 40 °C

Protection

Over-power protection
Over-current protection
Over-voltage protection
Short-circuit protection
Over-temperature protection

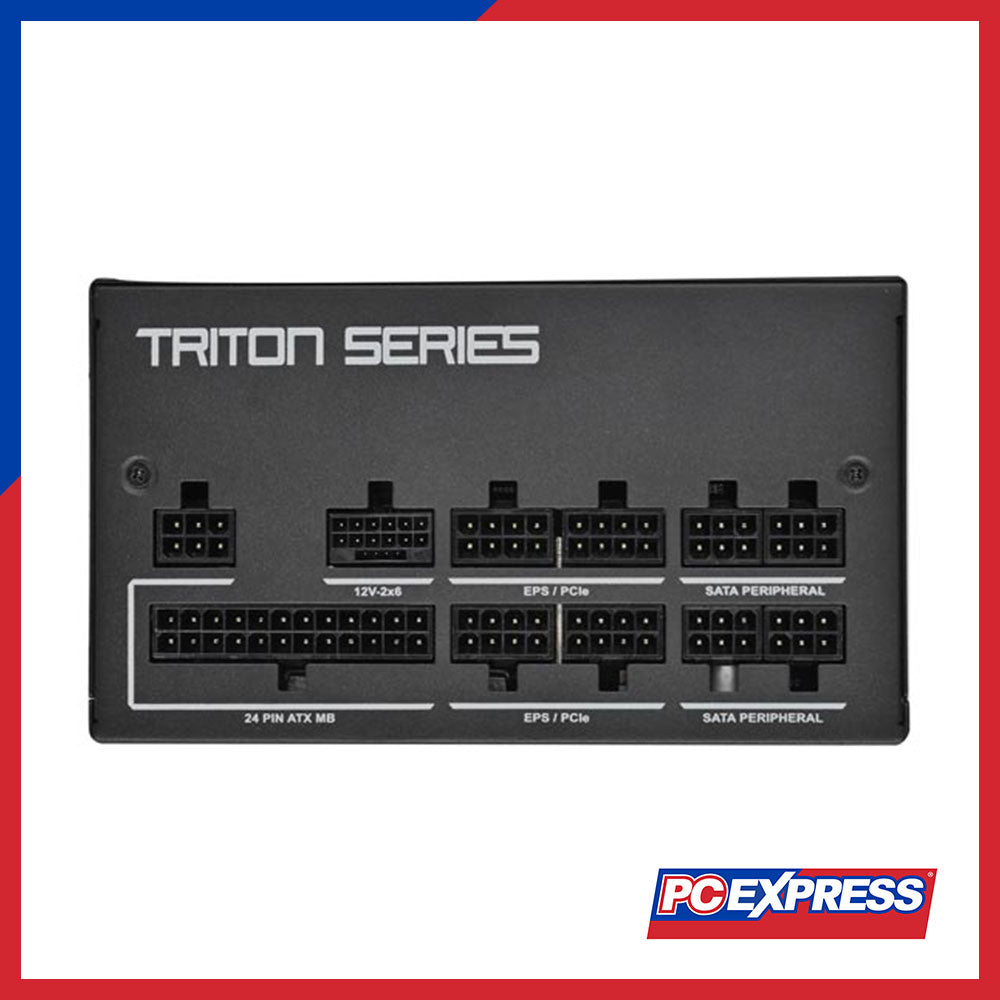

Connectors

• 1× 24/20-pin motherboard
• 2× 8/4-pin EPS/ATX 12V
• 1× 12+4-pin “12V-2×6”
• 4× 8/6-pin PCIe
• 8× SATA
• 4× 4-pin peripheral

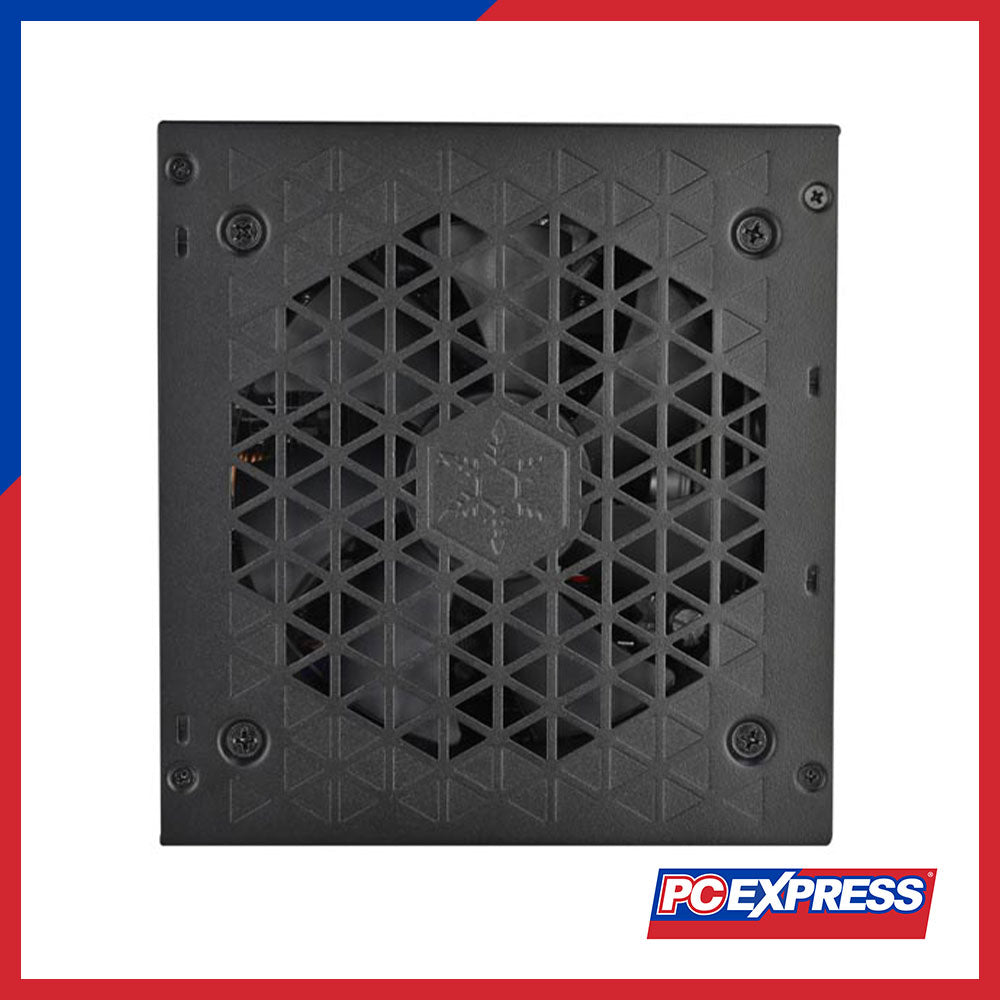

Cooling System

Single 120 mm FDB fan

Noise Level

18 dBA (min)

Certification

Cybenetics Gold

Form factor

ATX (PS2)

Dimensions

150 × 86 × 140 mm (W×H×D)
5.91″ × 3.39″ × 5.51″ (W×H×D)

Weight

2.7 kg
