NZXT C1200 1200W 80+GOLD Fully Modular ATX 3.0 True Rated Power Supply

Utilizing the ATX v3.0 power standard, the NZXT C1200 Gold pumps up to 600 watts of power to NVIDIA 40-series graphics cards over a single cable while maintaining highly efficient, low-noise performance.

  • 16-pin PCIe 12VHPWR connector can pump up to 600 watts of power to a graphics card over a single cable
  • Built and tested with the strictest standards for trouble-free installation and operation
  • 90.5% efficiency peak at 50% load lowers temperatures, energy consumption, and noise
  • Zero Fan Mode stops the fan when under light loads to reduce system noise
  • 135mm PWM fan with fluid dynamic bearing operates quietly with a long lifespan
  • Constructed with high-quality Japanese 105°C capacitors
₱12,250.00
Tax included. Shipping calculated at checkout.
Add to WishlistCompare
NZXT
Vendor: NZXT
Type: Power Supplies
SKU: PS-NZXT C1200 1200W 80+GOLD FULL-MOD ATX 3.0
Availability : In Stock Pre order Out of stock
Categories: All Products All regular products New Products PC Components Power Supplies
Tags: (PA-2G1BB-US) All Products ATX 3.0 C1200 1200W 80+GOLD Fully Modular NZXT PCX Power Supply True Rated
Description

SPECIFICATION

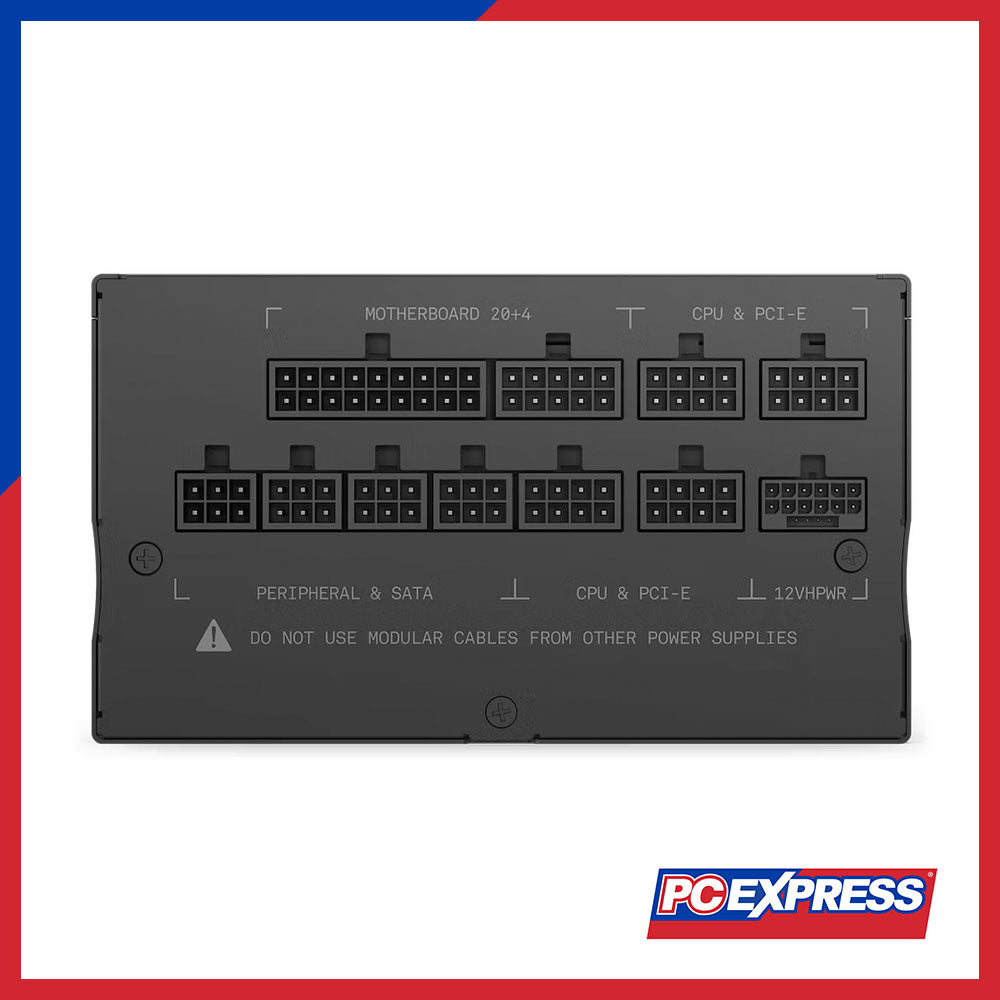

OUTPUT CONNECTORS

24-pin ATX power

1

4+4-pin CPU power

1

8-pin CPU Cable

1

6+2-pin PCIe power

2

16-pin (12+4) 12VHPWR PCIe Cable

1

SATA power

8

Peripherals

4

CABLE SPECS

24-pin ATX power

600 mm, Nylon sleeving

4+4-pin CPU power

700 mm, Nylon sleeving

8-Pin CPU Power Cable

700mm, Nylon sleeving

6+2-pin PCIe power

650 + 150 mm, Nylon sleeving

16-Pin (12+4) 12VHPWR PCIe Cable

650mm, Nylon sleeving

SATA power

500 + 150 mm

Peripherals

500 + 150 mm

AC INPUT RATING

100 - 240Vac

14A-7A 50Hz-60Hz

DC OUTPUT RATING

+3.3V and +5V

22A (120W)

+12V

100A (1200W)

-12V

0.3A (3.6W)

5Vsb

3A (15W)

Total

1200W

OPERATION

PF Correction

Active @0.96

MTBF

100,000 hours

Temperature

0 - 50 °C (derating from 100% to 80% from 40 °C to 50 °C)

ENERGY EFFICIENCY

Rating

80 Plus Gold

20% loading

90.97% @115Vac

50% loading

91.55% @115Vac

100% loading

88.51% @115Vac

FAN SPECS

Dimensions

135 x 135 x 25 mm

Speed

0-2300 ± 10% RPM

Airflow

93.02 CFM (Tpy.)

Noise

44.5 dBA max

Bearing

Fluid Dynamic Bearing (FDB)

GENERAL

Dimensions

150 x 150 x 86mm

Material(s)

Steel, PCB and Plastic

Compliance Standard

ATX12V v3.0 / EPS12V v2.92

Regulation & Certification

cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA

Warranty

10 years

Model Number

PA-2G1BB

UPC

UPC (CN)

810074842549

UPC (US)

810074842563

UPC (EU)

810074842570

UPC (UK)

810074842587

UPC (AU)

810074842594

UPC (JP)

810074842600

UPC (WO)

810074842631

EAN

EAN (CN)

5056547202464

EAN (US)

5056547202488

EAN (EU)

5056547202495

EAN (UK)

5056547202501

EAN (AU)

5056547202518

EAN (JP)

5056547202525

EAN (WO)

5056547202556
