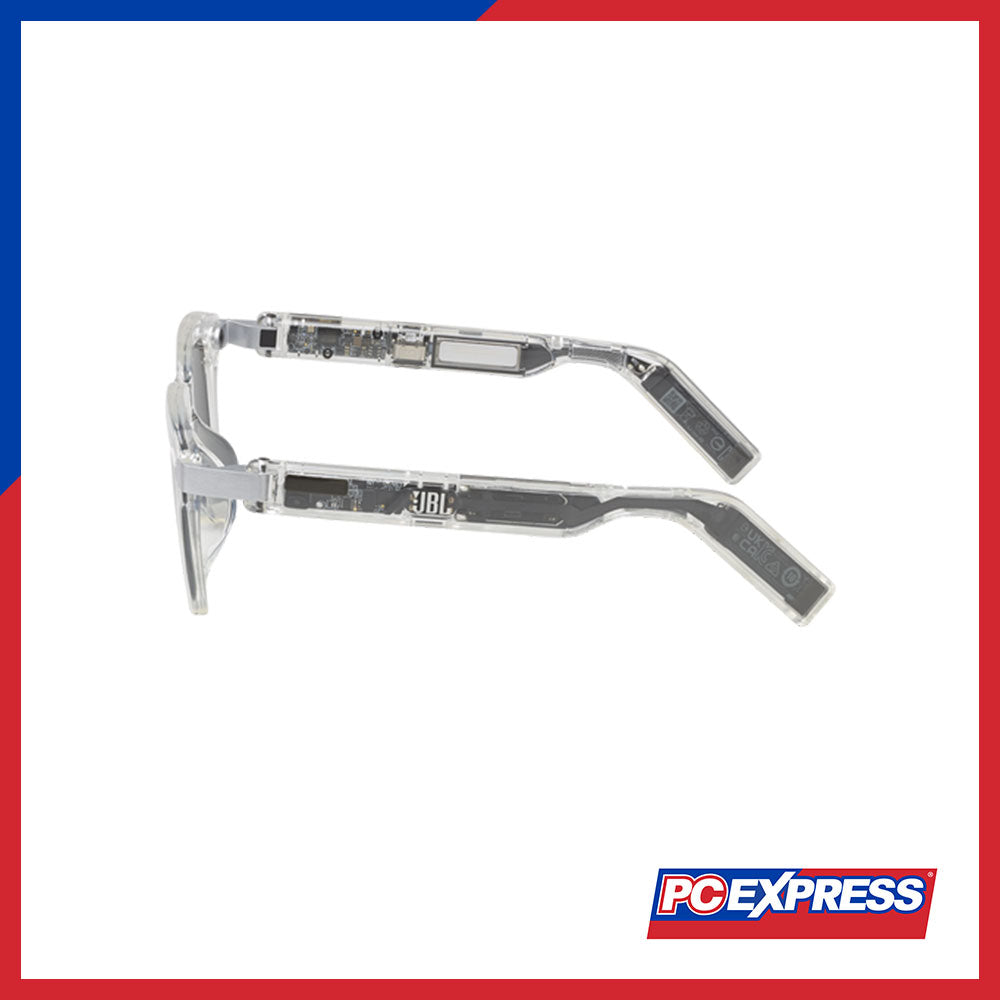

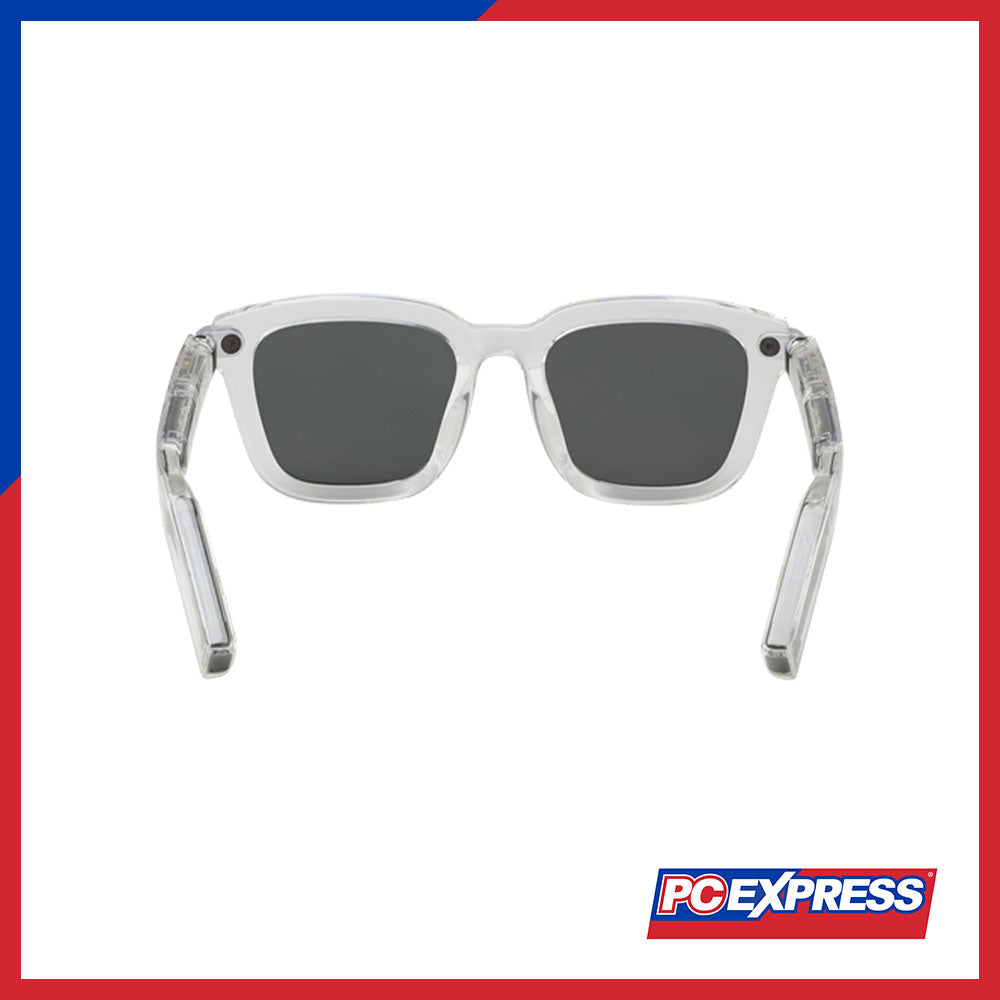

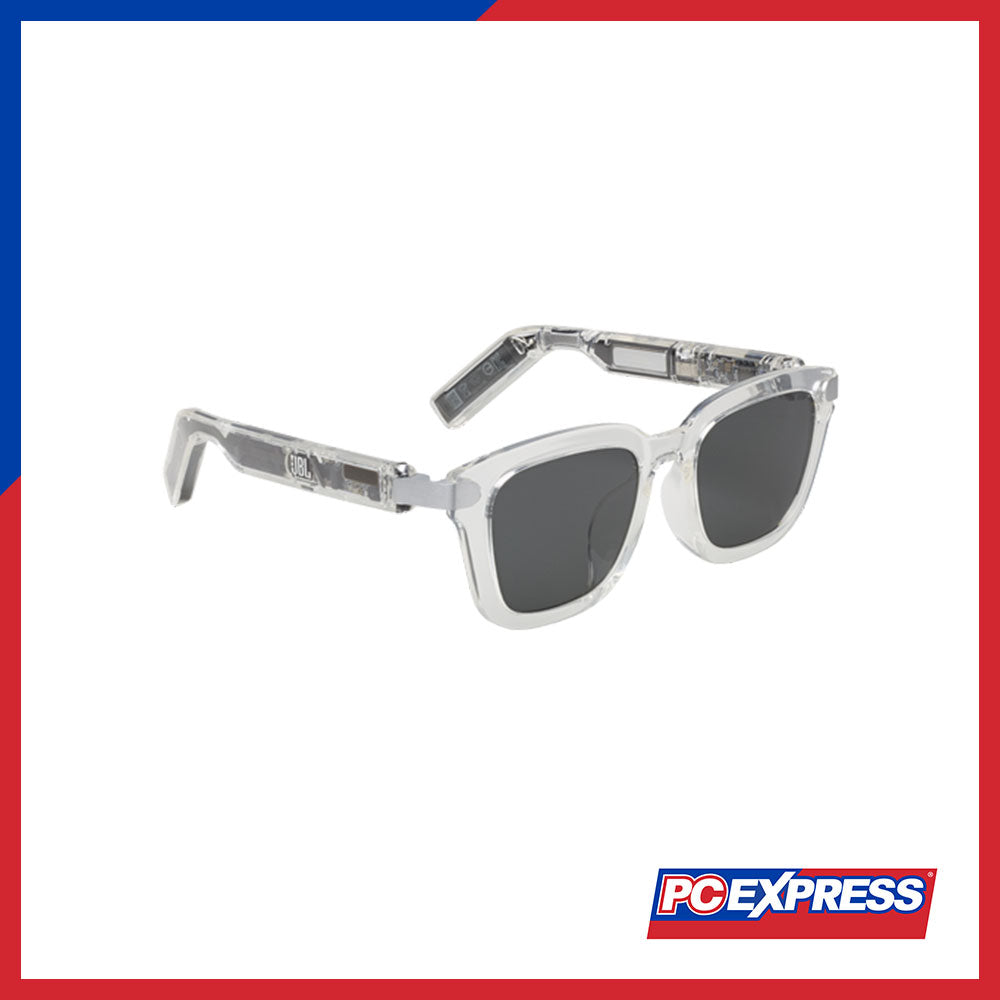

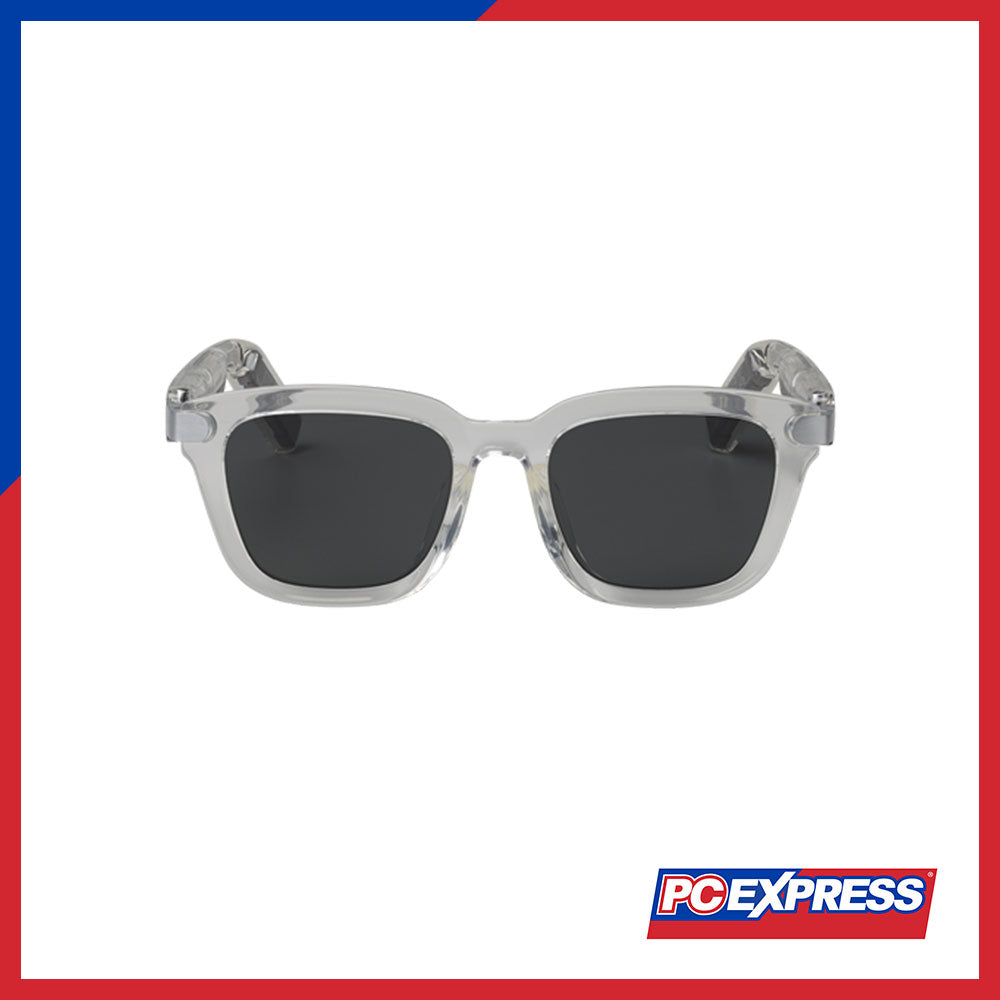

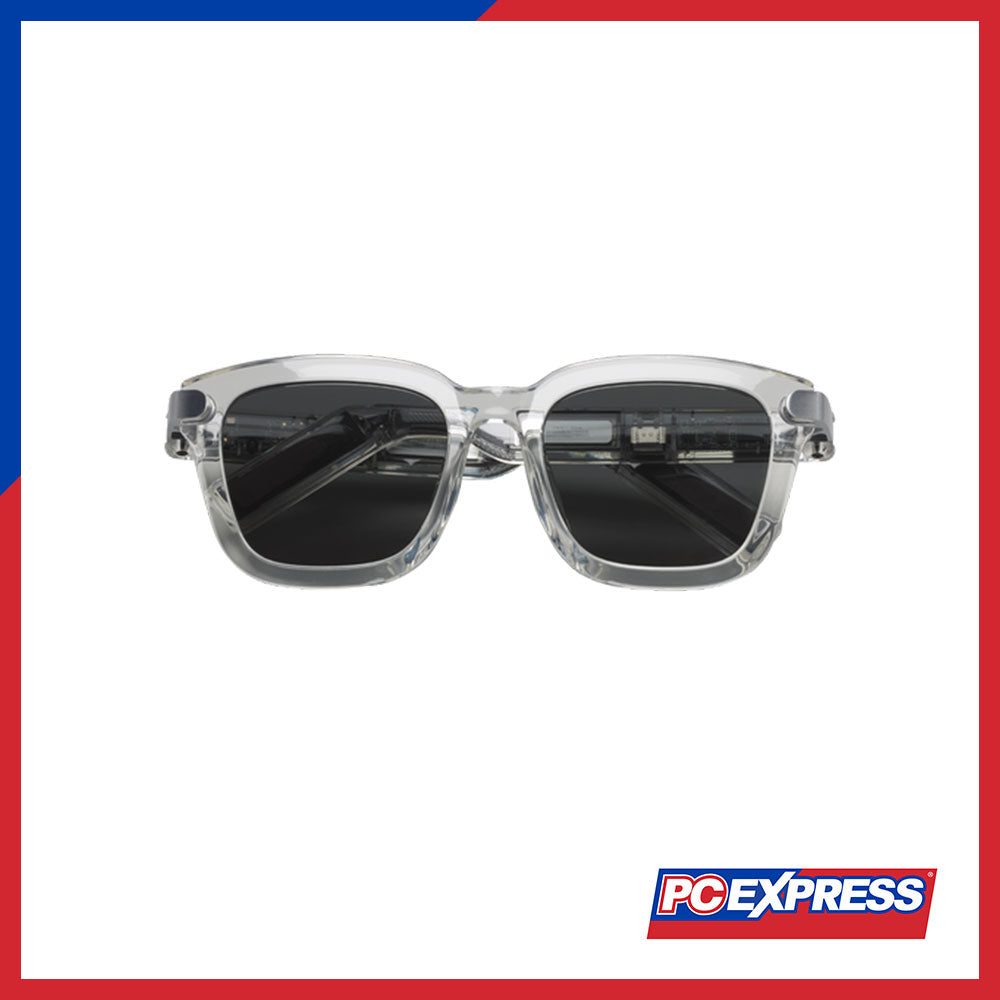

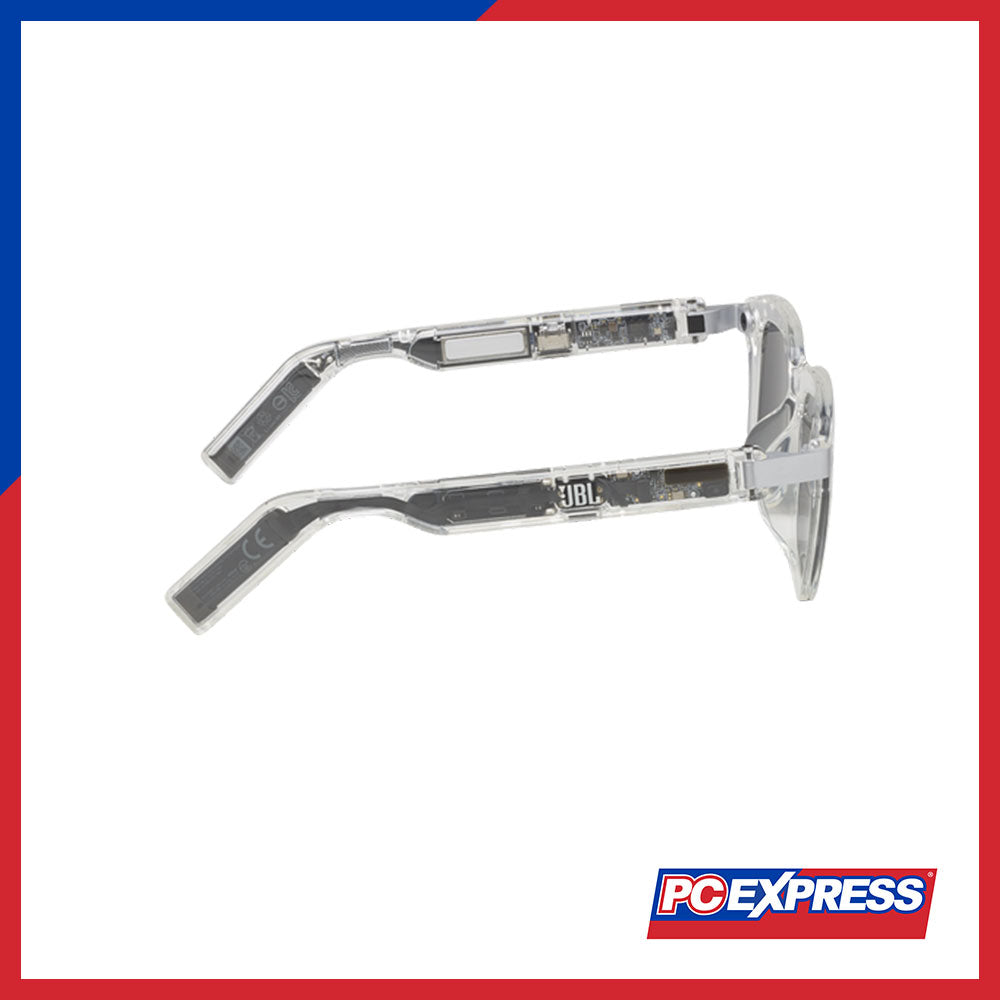

JBL Soundgear Frames Square Bluetooth Speaker (Pearl)
- Read our FAQs before ordering
- Need Help? Chat with us.
![](https://cdn.shopify.com/s/files/1/0749/0525/6234/files/1_e74b9ef4-ffb6-4997-8a71-52fcb5a87d61.png?v=1721448491)
SPECIFICATION
General Specification |
|
Material |
Frame: Plastic (TR90), Hinge: Metal (SUS316), Temple Housing: Plastic (PC) |
IPX Rate |
IP54 |
Audio Specifications |
|
Driver Size |
25mm x 9mm / 0.98" x 0.35" Dynamic Driver |
Frequency Response |
100 Hz - 18 kHz |
Impedance |
20 ohm |
Sensitivity |
114 dB SPL @ 1 kHz |
Maximum SPL |
90 dB |
Microphone Sensitivity |
-38 dBV/Pa @ 1 kHz |
Maximum Operation Temperature |
45 °C |
Dimensions |
|
Dimensions (Round Shape) |
160.87mm x 150.54mm x 53.68mm / 6.33" x 5.93" x 2.11" |
Dimensions (Square Shape) |
160.21mm x 152.54mm x 50.83mm / 6.31" x 6.01" x 2.00" |
Control and Connection Specifications |
|
Bluetooth Version |
5.2 |
Bluetooth Transmitter Frequency Range |
2.4 GHz – 2.4835 GHz |
Bluetooth Transmitter Power |
<12 dBm (EIRP) |
Bluetooth Transmitter Modulation |
GFSK, π/4-DQPSK, 8DPSK |
Battery |
|
Battery Type |
Lithium-ion battery (110 mAh / 3.8 V) |
Charging Time |
2 hrs from empty |
