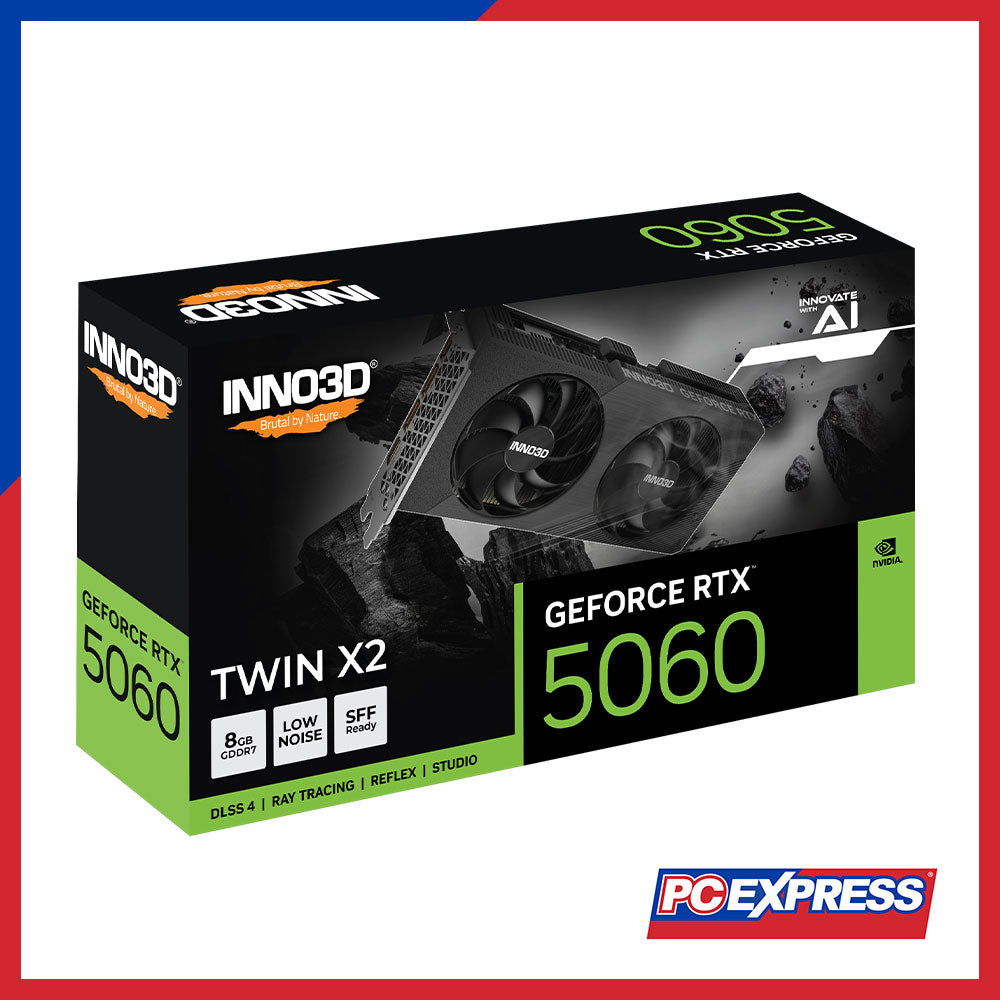

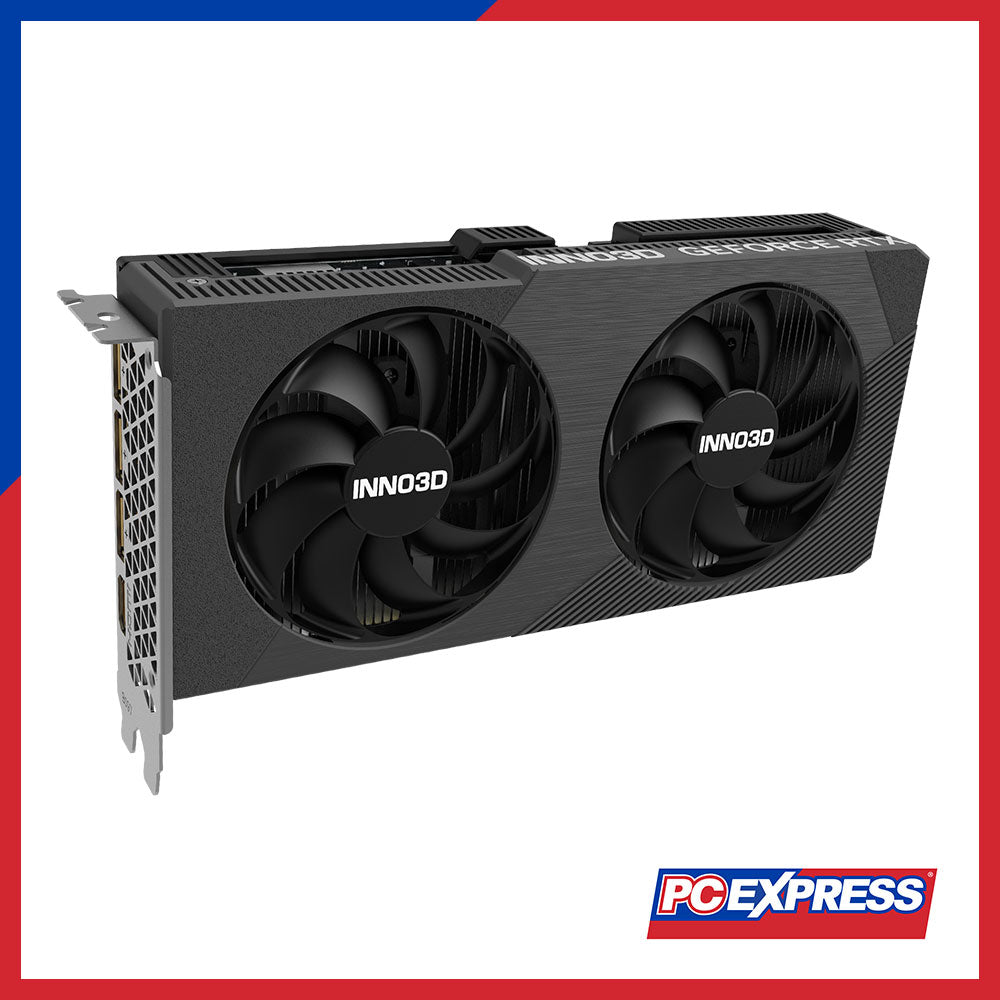

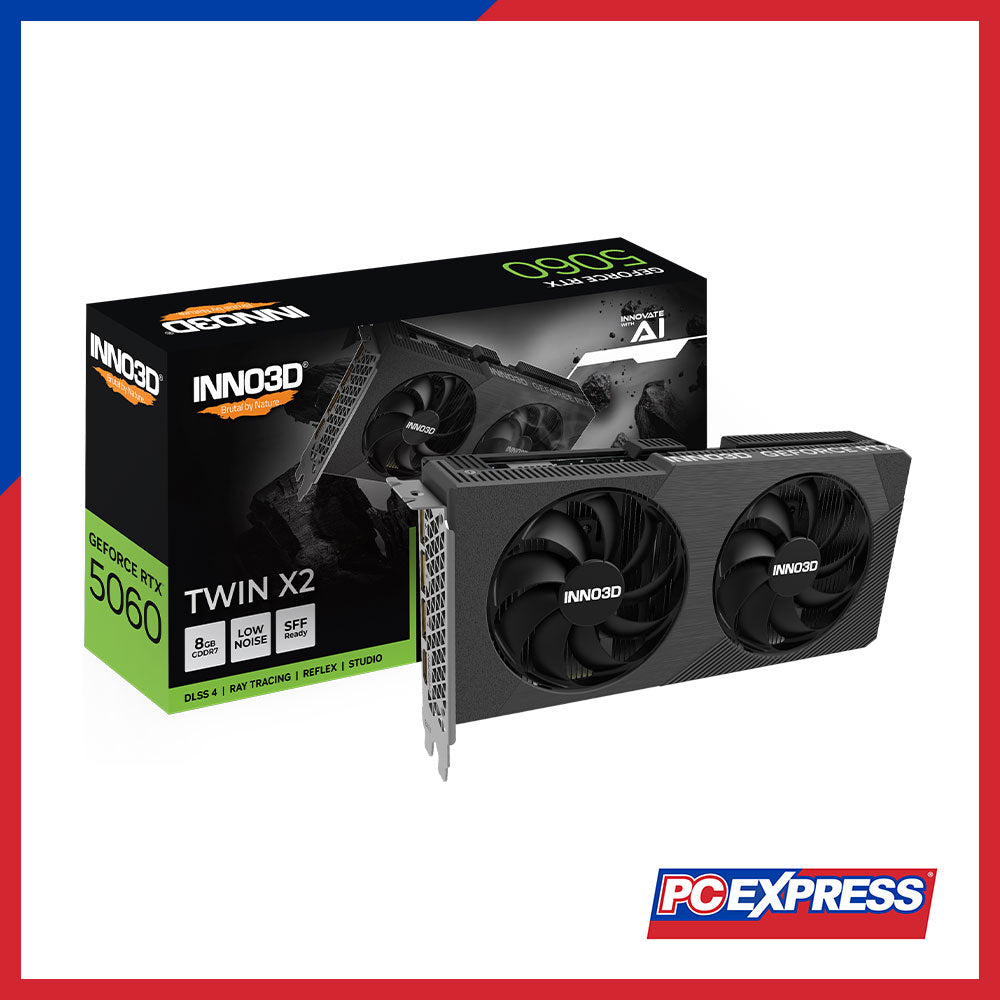

INNO3D GeForce RTX™ 5060 TWIN X2 8GB GDDR7 128-bit Graphics Card
- Read our FAQs before ordering
- Need Help? Chat with us.
SPECIFICATION
CUDA Cores |
3840 |
Boost Clock |
2497 MHz |
Base Clock |
2280 MHz |
Minimum System Power Requirement |
550 W |
Supplementary Power Connectors |
1 × PCIe 8-pin cable |
Memory Clock |
28 Gbps |
Standard Memory Config |
8 GB |
Memory Type |
GDDR7 |
Memory Interface Width |
128-bit |
Memory Bandwidth |
448 GB/sec |
Real-Time Ray Tracing |
Yes |
Ray Tracing Cores |
4th Generation (58 TFLOPS) |
Tensor Cores |
5th Generation (614 AI TOPS) |
NVIDIA Architecture |
Blackwell |
Microsoft DirectX |
12 Ultimate |
NVIDIA DLSS |
4 |
NVIDIA Ansel |
Yes |
NVIDIA FreeStyle |
Yes |
Bus Support |
PCI Express Gen 5 |
NVIDIA ShadowPlay |
Yes |
OS Certification |
Windows 11/10, Linux, FreeBSD x86 |
NVIDIA Highlights |
Yes |
NVIDIA G-SYNC™-Ready |
Yes |
Game Ready Drivers |
Yes |
NVIDIA Studio Drivers |
Yes |
NVIDIA GPU Boost™ |
Yes |
Vulkan API |
1.4 |
OpenGL |
4.6 |
NVIDIA Encoder |
Ninth Generation |
NVIDIA Decoder |
Sixth Generation |
Card Length |
225 mm |
Card Height |
116 mm |
Card Width |
41 mm |
Multi-Monitor Support |
Up to 4 |
Maximum Digital Resolution |
4K @ 480 Hz or 8K @ 165 Hz with DSC |
HDCP Support |
2.3 |
Standard Display Connectors |
3 × DisplayPort 2.1b, 1 × HDMI 2.1b |
