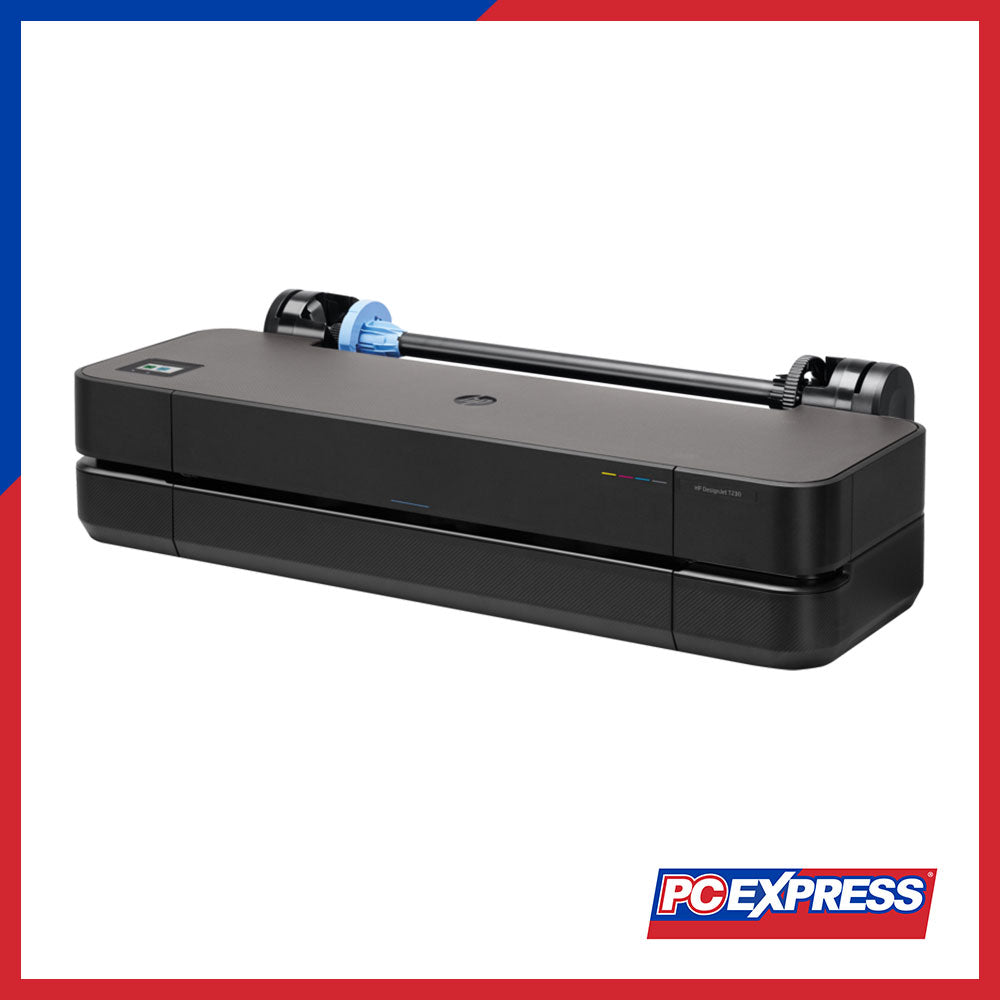

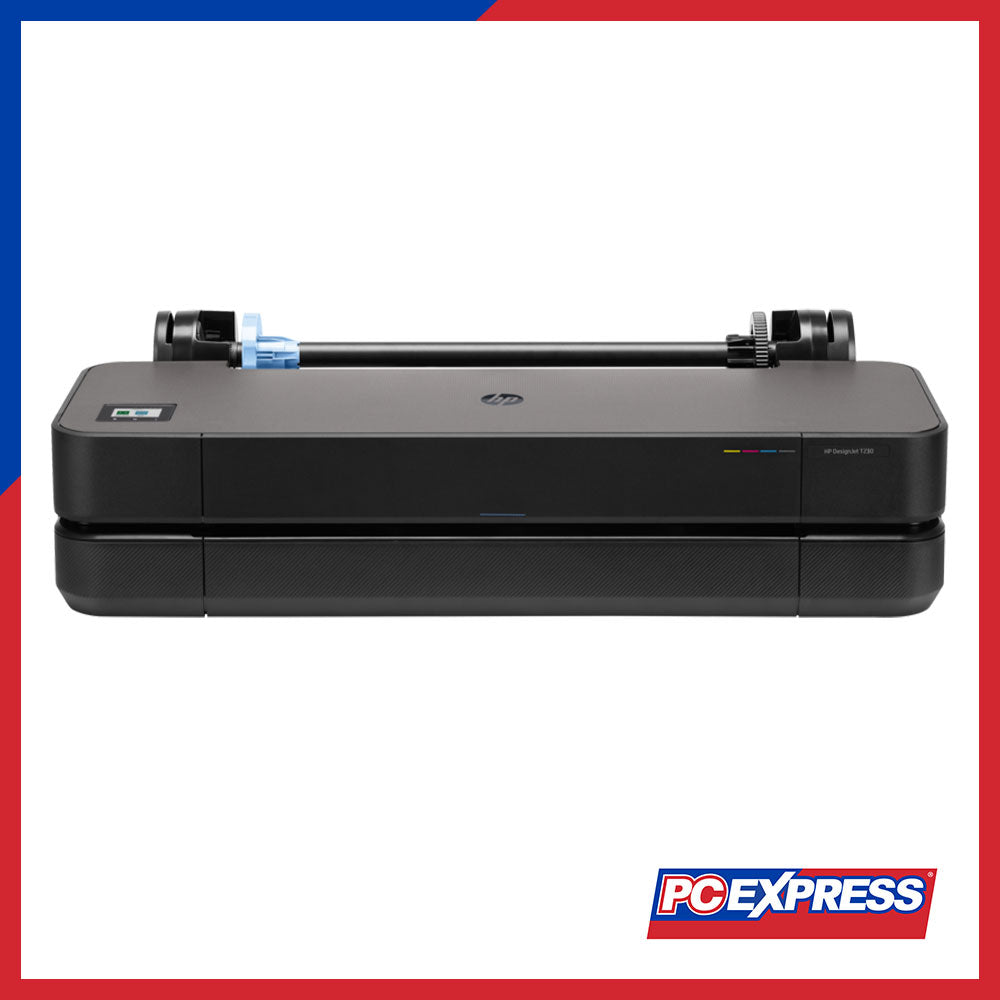

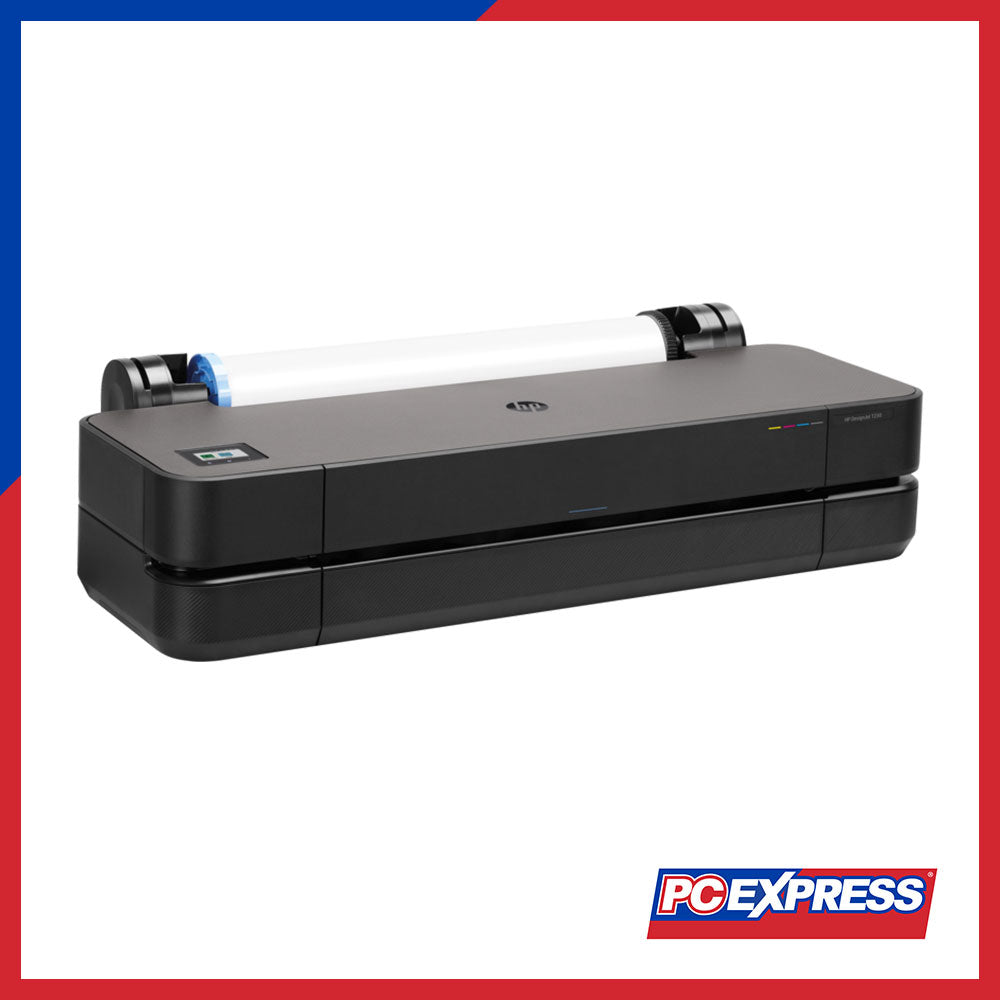

HP DesignJet T230 24-inch Printer (5HB07A)

Functions

Print

Print Speed

35 sec/page on A1, 68 A1 prints per hour

Ink Drop

5.5 pl (C, M, Y); 12 pl (K)

Print Head Nozzles

1376

Print Cartridge Volume

80 ml (K); 38 ml (K); 29 ml (C, M, Y)

Ink Types

Dye-based (C, M, Y); Pigment-based (K)

Print Cartridges

4 (C, M, Y, K)

Print Heads

1 (C, M, Y, K)

Color Print Quality

Up to 2400 x 1200 optimized dpi

Max Optical Density (Black)

8 L* min / 2.10 D

Finished Output Handling

Sheet feed, roll feed, automatic horizontal cutter

Media Sizes (Rolls)

279 to 610 mm

Roll External Diameter

100 mm

Max Roll Input

1

Max Roll Weight

4.1 kg

Recommended Media

HP Universal Bond Paper, HP Coated Paper, HP Heavyweight Coated Paper

Media Thickness

Up to 0.3 mm (11.8 mil)

Max Media Width

610 mm

Supported Applications

Line drawings, presentations, renderings

Non-Printable Area (Cut-Sheet)

5 x 5 x 5 x 17 mm (manual feed), 5 x 5 x 5 x 5 mm (input tray)

Non-Printable Area (Roll Media)

5 x 5 x 5 x 5 mm

Custom Media Sizes

210 x 279 mm to 610 x 1897 mm

Supported Media Sizes

A4, A3, A2, A1

Media Types

Bond, coated, technical, film, photographic, self-adhesive

Media Weight (Recommended)

60 to 280 g/m²

Model Size

610 mm

Internal Storage

None

Line Accuracy

±0.1%

Printer Drivers

Raster driver (Windows/macOS), HP Click Driver (Windows 11)

Print Languages

JPEG, URF

Print Technology

HP Thermal Inkjet

Min Line Width

0.02 mm

Printing Path

HP Smart App, HP Click App, HP Click Driver (Windows 11), HP/Mac drivers, Chrome OS support, Apple AirPrint, HP Print Service Plugin (Android)

Connectivity

Gigabit Ethernet, Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct

Remote Print Enabled

Yes

Multi-Size File Printing

Yes

Dimensions (W x D x H)

1013 x 440 x 285 mm

Package Dimensions

1155 x 575 x 405 mm

Weight

21.5 kg

Package Weight

28 kg

Memory

512 MB

Acoustic Power (Printing)

5.8 B(A) (operating), <3.4 B(A) (idle)

Acoustic Pressure

42 dB(A) (operating), <16 dB(A) (idle)

Operating Humidity

20 to 80% RH

Storage Humidity

0 to 95% RH

Operating Temperature

5 to 40°C (41 to 104°F)

Storage Temperature

-25 to 55°C (-13 to 131°F)

Operating Altitude

Up to 3000 m

Recycled Plastic Usage

30% by weight

Power Consumption

<35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (off)

Power Supply

100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max

Software Included

HP Click App, HP Click Driver (Windows 11), HP Smart App, HP Print Preview (Windows), HP Easy Start, HP DesignJet Utility (Windows), HP Support Assistant

Electromagnetic Compliance

FCC, ICES, EMC/RED, ACMA, RSM, CCC, VCCI, KCC

Energy Star Certified

Yes

Environmental Certifications

ENERGY STAR, WEEE, RoHS, REACH, ErP, EPEAT Gold

Safety Compliance

CSA, LVD, EAC, CCC, BIS, IRAM, NYCE

What's in the Box

HP DesignJet T230, printhead, ink cartridges, spindle, quick reference guide, setup poster, power cord
