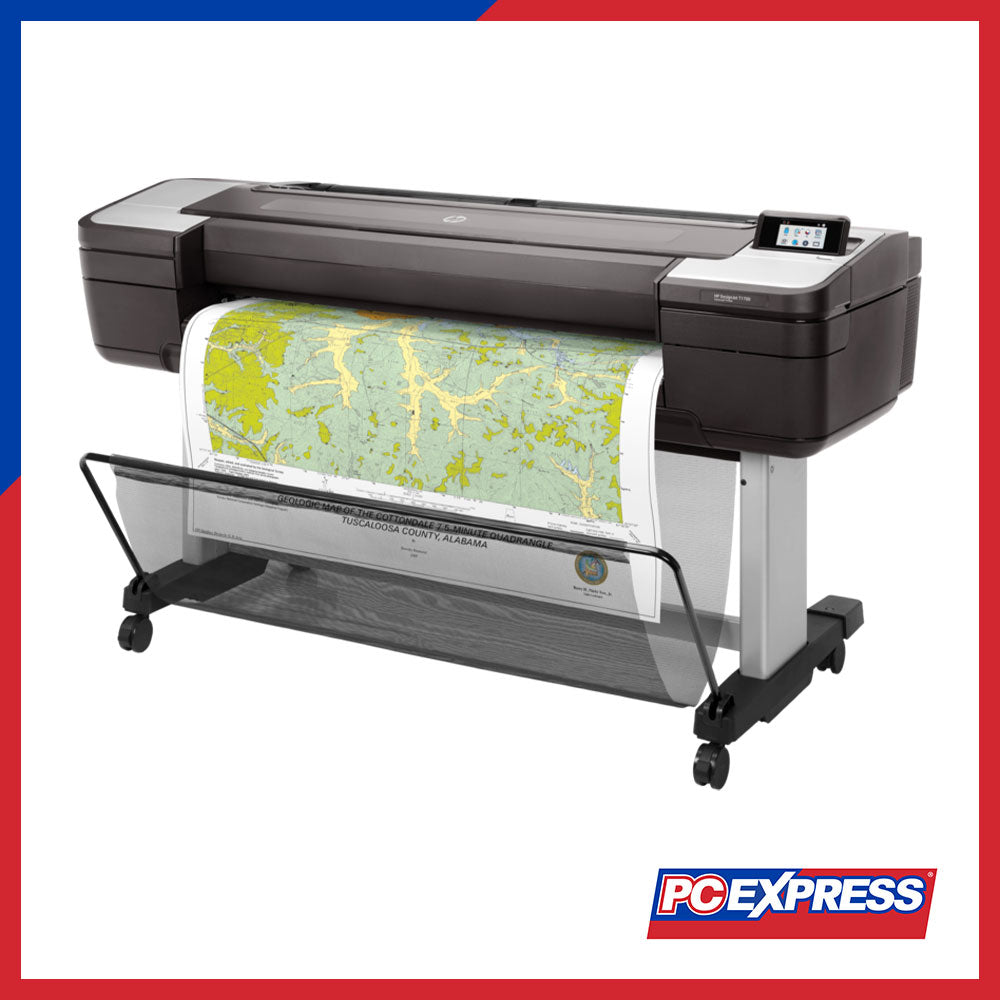

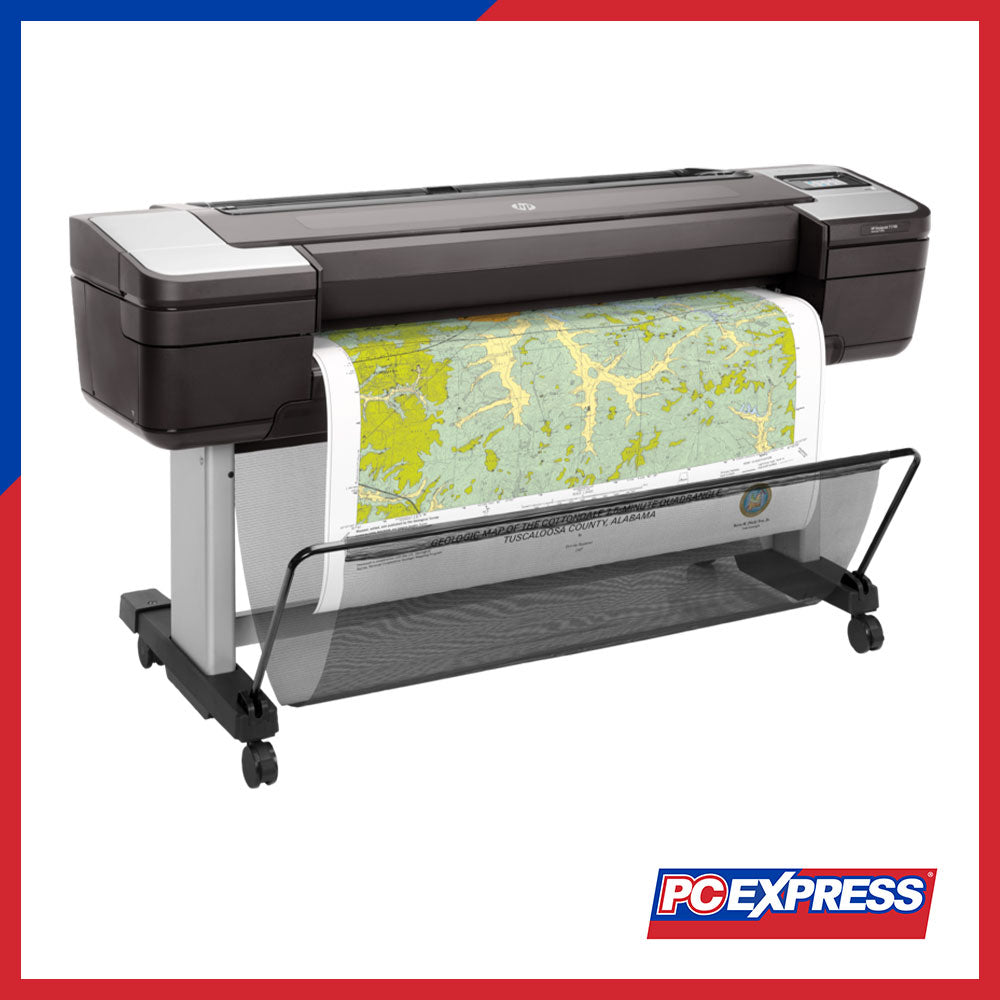

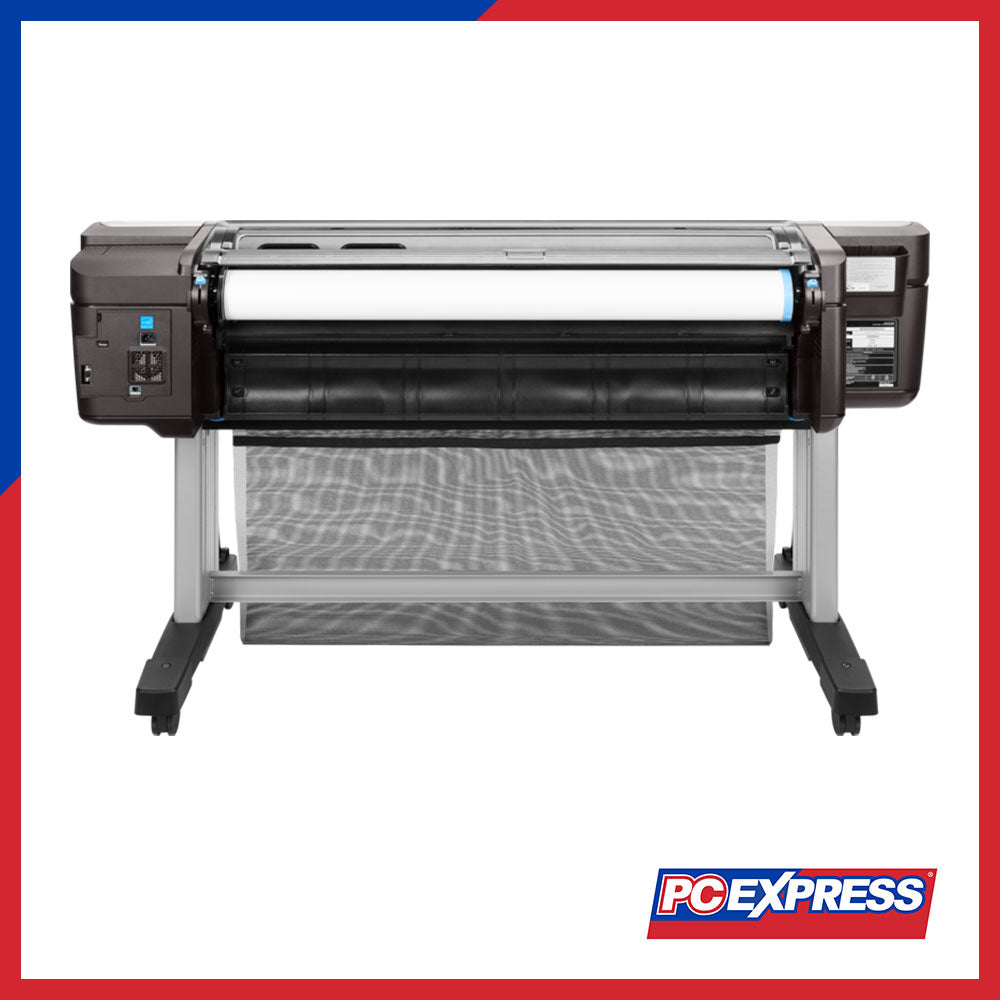

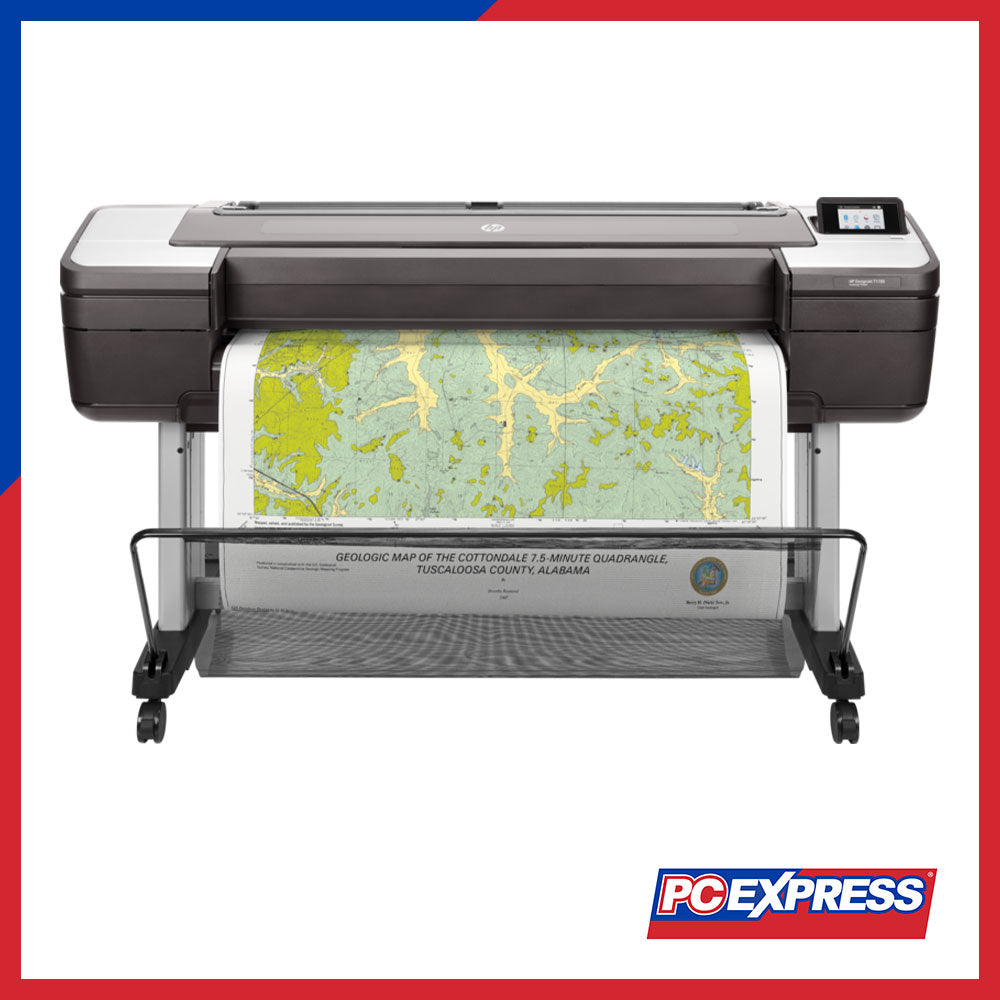

HP DesignJet T1700 44-inch PostScript Printer (1VD87A)

Functions

Print

Print Speed

116 A1/hr, 26 sec/A1

Ink Drop

6 pl

Print Head Nozzles

2112 each color

Print Cartridge Volume

Cyan, Magenta, Yellow, Photo Black, Matte Black, Grey (300 ml, 130 ml)

Ink Types

Dye-based (C, M, Y, PK, G); Pigment-based (MK)

Number of Cartridges

6 (Cyan, Magenta, Yellow, Photo Black, Matte Black, Grey)

Print Heads

3 universal printheads, 2 colors each

Print Quality (Best)

Up to 2400 x 1200 optimized dpi

Maximum Optical Density (Black)

2.15 max (6 L*min)

Finished Output Handling

Sheet feed, Roll feed, Automatic horizontal cutter

Media Sizes (Rolls)

279 to 1118 mm

Roll External Diameter

135 mm

Roll Maximum Input

1

Roll Maximum Weight

11.9 kg

Recommended Media

Various HP certified media types

Media Thickness

Up to 31.5 mil (0.8 mm)

Max Media Width

1118 mm

Supported Applications

Line drawings, Maps, Orthophotos, Presentations, Renderings

Non-Printable Area (Cut-Sheet)

3 x 17 x 3 x 3 mm

Non-Printable Area (Roll Media)

3 x 3 x 3 x 3 mm

Custom Media Sizes

210 x 279 mm to 1118 x 1676 mm

Supported Media Sizes

A4, A3, A2, A1, A0

Media Types

Bond, Coated, Technical, Film, Photographic, Backlit, Self-Adhesive

Media Weight (Recommended)

60 to 328 g/m²

Model Size

1118 mm

Internal Storage

500 GB self-encrypting HDD

Line Accuracy

±0.1%

Printer Drivers

Raster drivers (Windows/macOS), PostScript, PDF

Print Languages

Adobe PostScript 3, Adobe PDF 1.7, HP-GL/2, TIFF, JPEG, URF, CALS G4

Print Technology

HP Thermal Inkjet

Min. Line Width

0.02 mm (PDF @ 1200 dpi)

Printing Path

USB, Email, HP Drivers, HP Click, HP Smart App, Apple AirPrint

Standard Connectivity

Ethernet, Fast Ethernet, Gigabit Ethernet, USB Type-A host port

Optional Connectivity

HP USB 3.0 to Gigabit LAN Adapter

HP ePrint Capability

Yes

Network Ready

Standard

Security Features

HP Wolf Pro Security, Secure Boot, Role-Based Access, Secure Disk Erase, PIN Printing, IPsec, HTTPS

Mobile Printing

Direct Print (iOS, Android, Chrome OS), HP ePrint, HP Smart App

Dimensions (W x D x H)

1802 x 695 x 998 mm

Package Dimensions (W x D x H)

1955 x 770 x 710 mm

Weight

88.9 kg

Package Weight

126 kg

Memory

128 GB (virtual)

Acoustic Power Emissions

6.1 B(A) (active), 5.0 B(A) (idle), <3.1 B(A) (sleep)

Acoustic Pressure Emissions

45 dB(A) (active), 32 dB(A) (idle), <15 dB(A) (sleep)

Operating Humidity

20 to 80% RH

Non-Operating Humidity

0 to 90% RH

Operating Temperature

5 to 40°C (41 to 104°F)

Storage Temperature

-25 to 55°C (-13 to 131°F)

Power Consumption

<100 W (printing), <24 W (ready), <0.3 W (sleep), 0.1 W (off)

Power Supply

100-240V (±10%), 50/60 Hz (±3 Hz), 2A max

Software Included

HP Click, HP Utility, HP WebJet Admin, HP Embedded Web Server, HP JetAdvantage Security Manager

EMC Compliance

FCC, ICES, EMC Directive, ACMA, CCC, VCCI, KCC, SABS

Energy Star Certified

Yes

Environmental Certification

ENERGY STAR, WEEE, RoHS, REACH, EPEAT Silver

Safety Standards

CSA, LVD, EAC, PSB, CCC, IRAM, BIS

What's in the Box

Printer, Printheads, Ink Cartridges, Printer Stand, Spindle, Setup Poster, Warranty, Power Cords, Label Kits
