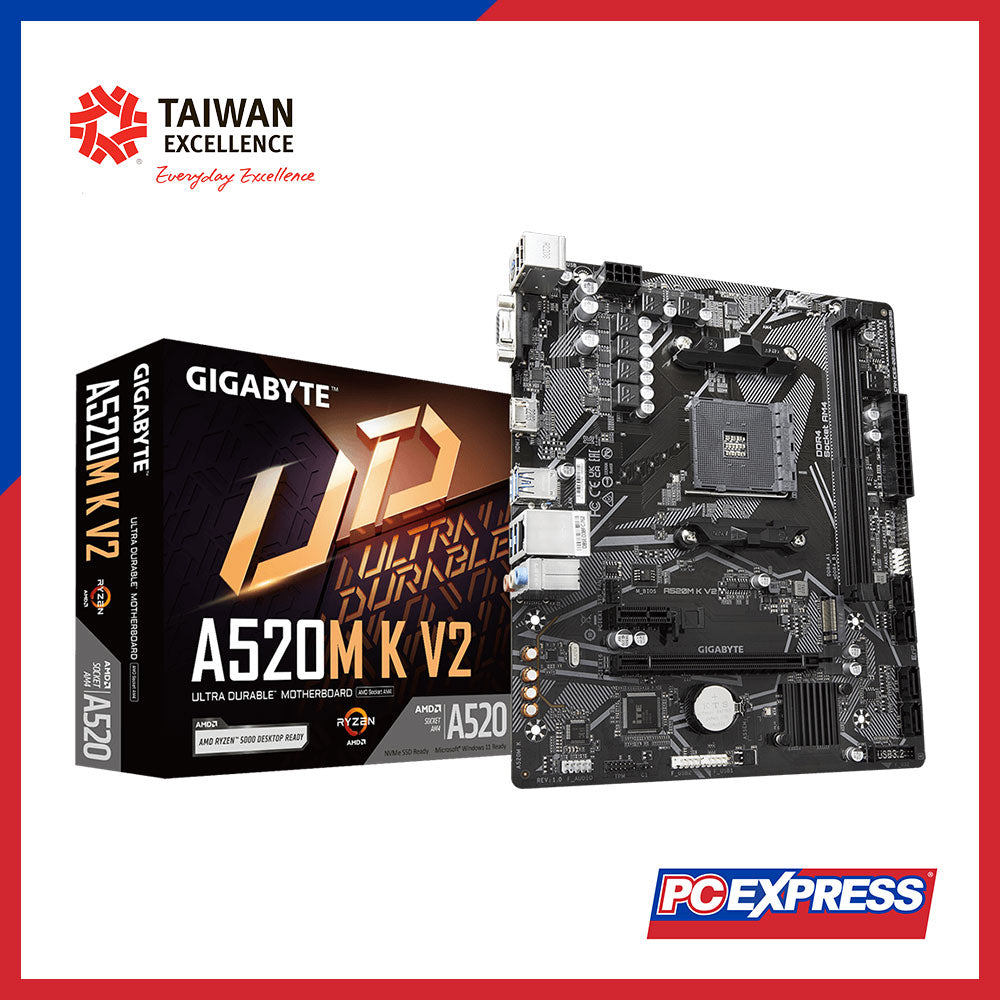

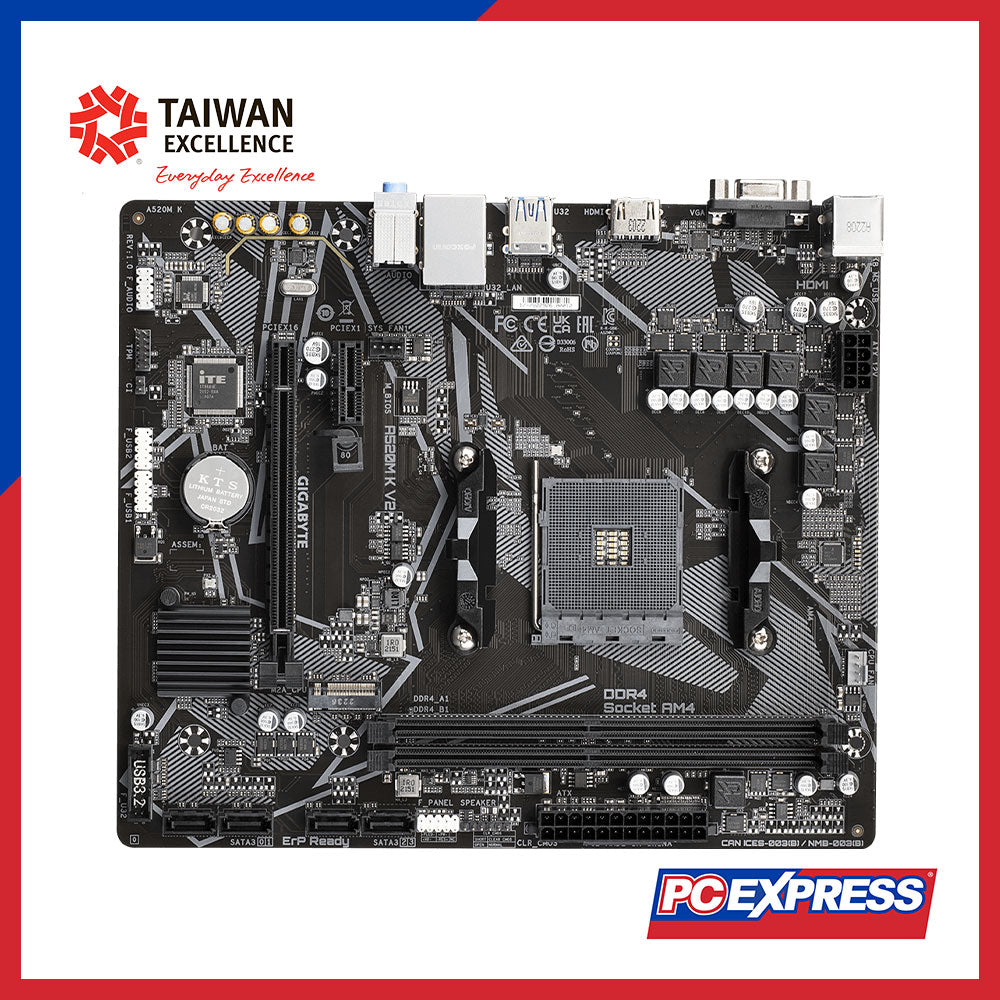

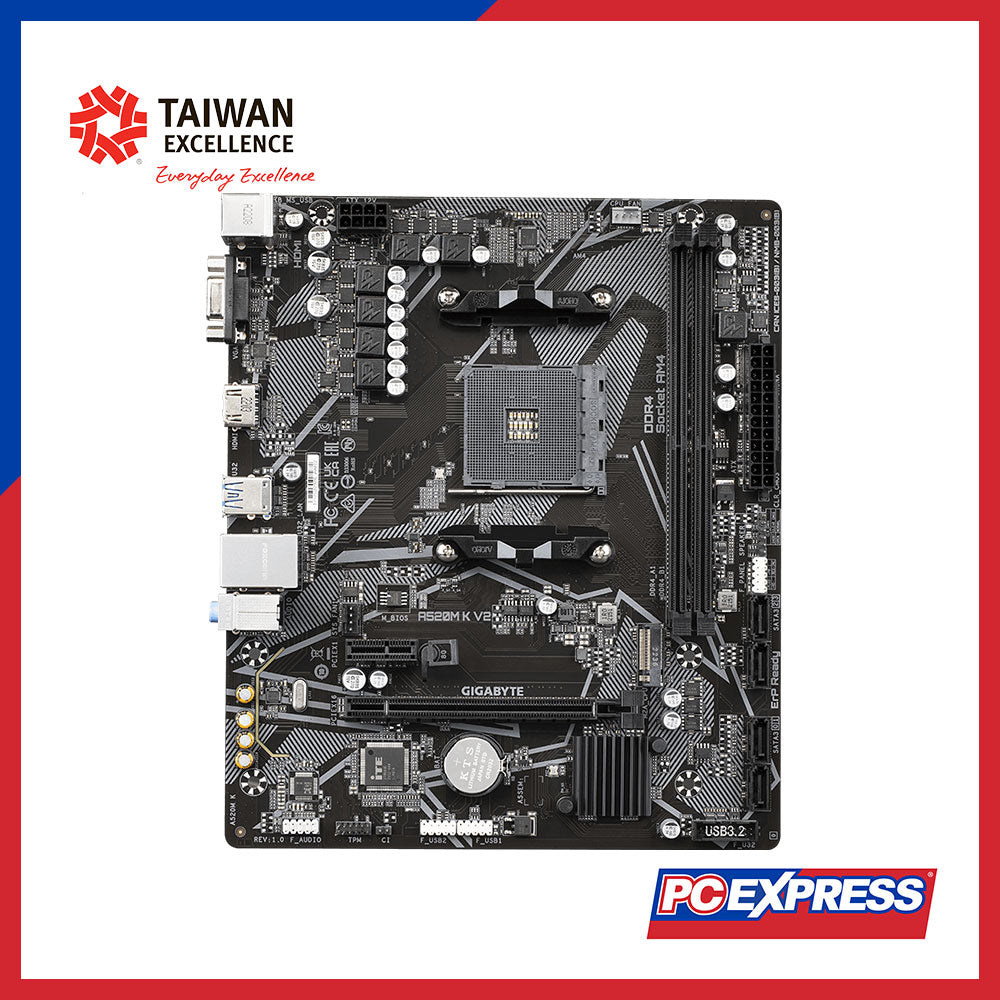

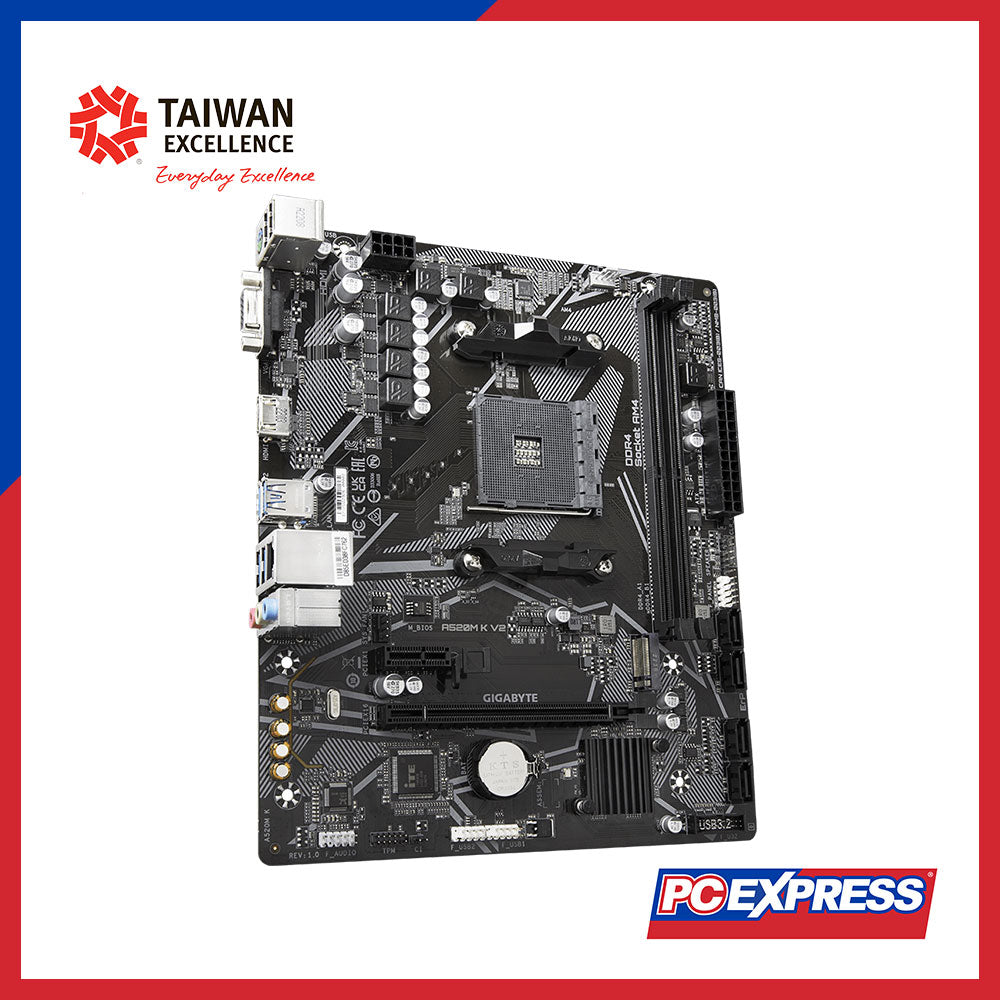

GIGABYTE A520M-K V2 micro-ATX Motherboard

CPU

AMD Socket AM4; Supports AMD Ryzen™ 5000 G-Series, Ryzen™ 5000, Ryzen™ 4000 G-Series, Ryzen™ 3000, and Ryzen™ 3000 G-Series Processors. Refer to "CPU Support List" for details.

Chipset

AMD A520

Memory

2 x DDR4 DIMM sockets; Up to 64 GB (32 GB per DIMM); Dual-channel; Supports ECC/Non-ECC Un-buffered DIMM modules; DDR4 speeds up to 5100(O.C.) and various lower speeds; Extreme Memory Profile (XMP) supported.

Onboard Graphics

Integrated Graphics Processor: 1 x D-Sub (1920x1200@60 Hz), 1 x HDMI (4096x2160@60 Hz, HDMI 2.1, HDCP 2.3, HDR); Max shared memory of 16 GB.

Audio

Realtek® Audio CODEC; High Definition Audio; Supports 2/4/5.1/7.1-channel (configurable through audio software).

LAN

Realtek® GbE LAN chip (1 Gbps/100 Mbps)

Expansion Slots

CPU: 1 x PCIe 3.0 x16 slot; Chipset: 1 x PCIe 3.0 x1 slot

Storage Interface

CPU: 1 x M.2 (SATA & PCIe 3.0 x4/x2 SSD support); Chipset: 4 x SATA 6Gb/s connectors; RAID 0, 1, 10 supported

USB

CPU: 4 x USB 3.2 Gen 1 (rear); Chipset: 2 x USB 3.2 Gen 1 (internal header), 6 x USB 2.0/1.1 (2 rear, 4 internal header)

Internal I/O Connectors

1 x 24-pin ATX, 1 x 8-pin ATX 12V, 1 x CPU fan header, 1 x system fan header, 1 x M.2 connector, 4 x SATA 6Gb/s, 1 x front panel, 1 x front panel audio, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, 1 x TPM header, 1 x speaker, 1 x Clear CMOS, 1 x chassis intrusion header

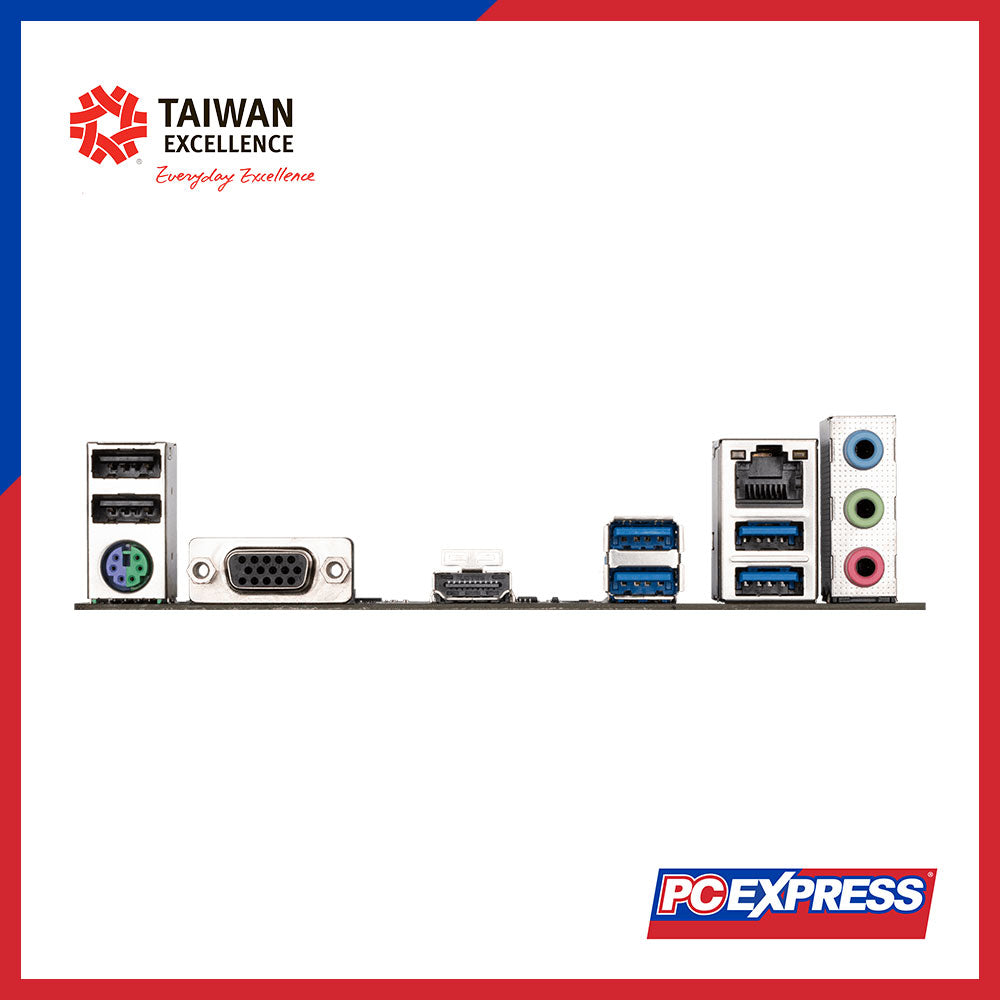

Back Panel Connectors

1 x PS/2 keyboard/mouse, 1 x D-Sub, 1 x HDMI, 4 x USB 3.2 Gen 1, 2 x USB 2.0/1.1, 1 x RJ-45, 3 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage, temperature, and fan speed detection; Fan fail warning; Fan speed control (depends on cooler).

BIOS

128 Mbit flash; AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

APP Center, @BIOS, EasyTune, Smart Backup, System Information Viewer, Q-Flash, Xpress Install

Bundled Software

Norton® Internet Security (OEM), LAN bandwidth management software

Operating System

Windows 11 64-bit, Windows 10 64-bit

Form Factor

Micro ATX, 23.3cm x 19.8cm

Remark

For Linux support, download drivers from chipset vendors' or 3rd party sites; No support for Win9X/ME/2000/XP if drivers are unavailable.
