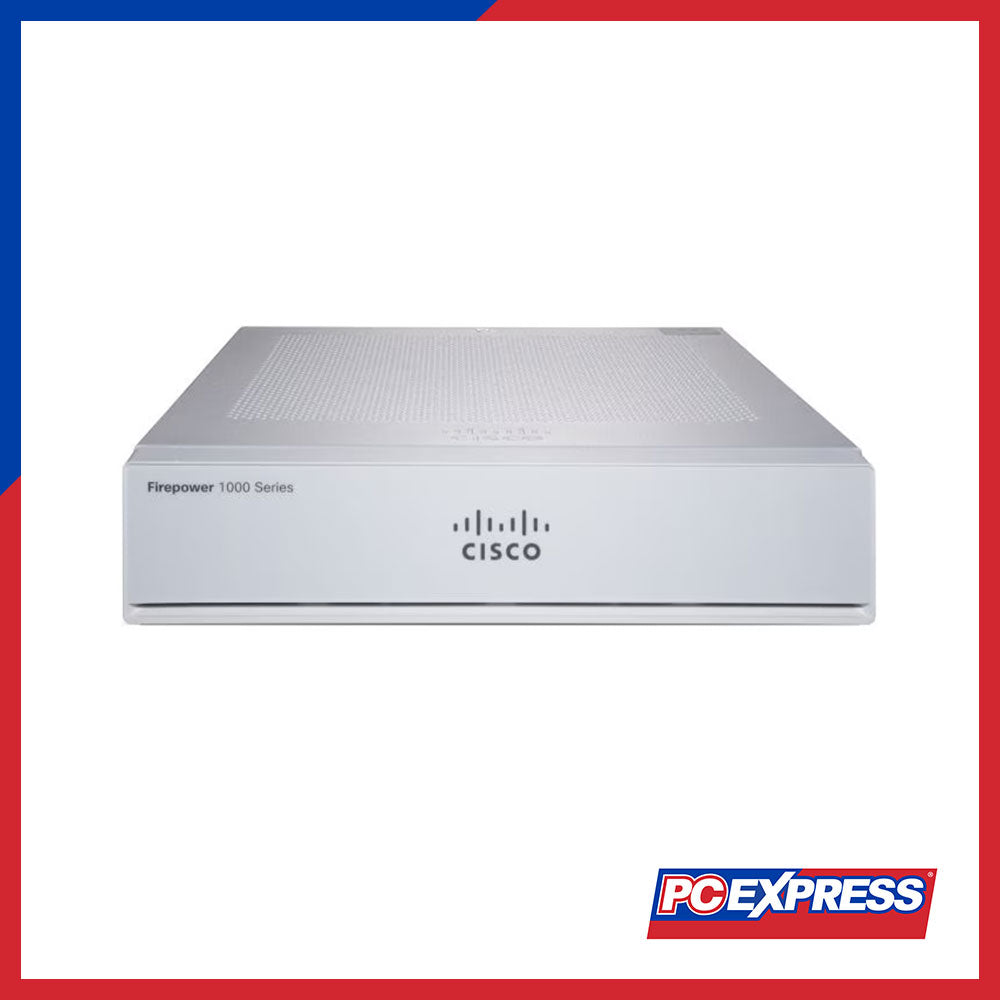

CISCO Firepower 1010E (FPR1010E-NGFW-K9) Desktop Switch

FPR-1010

890 Mbps

900 Mbps

8 x RJ45

FPR-1120

2.3 Gbps

2.6 Gbps

8 x RJ45, 4 x SFP

FPR-1140

3.3 Gbps

3.5 Gbps

8 x RJ45, 4 x SFP

FPR-1150

5.3 Gbps

6.1 Gbps

8 x RJ45, 2 x SFP, 2 x 10G SFP+

Throughput: Firewall (FW) + Application Visibility and Control (AVC) (1024B)

890 Mbps

2.3 Gbps

3.3 Gbps

5.3 Gbps

Throughput: FW + AVC + Intrusion Prevention System (IPS) (1024B)

880 Mbps

2.3 Gbps

3.3 Gbps

4.9 Gbps

Maximum concurrent sessions, with AVC

100K

200K

400K

600K

Maximum new connections per second, with AVC

6K

15K

22K

28K

Transport Layer Security (TLS)

195 Mbps

850 Mbps

1.2 Gbps

1.4 Gbps

Throughput: NGIPS (1024B)

900 Mbps

2.6 Gbps

3.5 Gbps

6.1 Gbps

IPSec VPN throughput
(1024B TCP w/Fastpath)

400 Mbps

1.2 Gbps

1.4 Gbps

2.4 Gbps

Maximum VPN Peers

75

150

400

800

Cisco Device Manager (local management)

Yes

Yes

Yes

Yes

Centralized management

Centralized configuration, logging, monitoring, and reporting are performed by the Threat Defense Manager (FMC) or, alternatively, from the cloud with Cisco Defense Orchestrator

AVC

Standard, supporting more than 4000 applications, as well as geolocations, users, and websites

AVC: OpenAppID support for custom, open-source application detectors

Standard

Cisco Security Intelligence

Standard, with IP, URL, and DNS threat intelligence

Cisco IPS

Available; can passively detect endpoints and infrastructure for threat correlation and Indicators of Compromise (IoC) intelligence

Cisco Malware Defense for Networks

Available; enables detection, blocking, tracking, analysis, and containment of targeted and persistent malware, addressing the attack continuum both during and after attacks.

Integrated threat correlation with Cisco AMP for Endpoints is also optionally available

Cisco Malware Analytics sandboxing

Available

URL filtering: number of categories

More than 80

URL filtering: number of URLs categorized

More than 280 million

Automated threat feed and IPS signature updates

Yes: class-leading Collective Security Intelligence (CSI) from the Cisco Talos^® group (https://www.cisco.com/c/en/us/products/security/talos.html)

Third-party and open- source ecosystem

Open API for integrations with third-party products; Snort^® and OpenAppID community resources for new and specific threats

High availability and clustering

Active/standby

Cisco Trust Anchor Technologies

Cisco Firepower 1000 Series platforms include Trust Anchor Technologies for supply chain and software image assurance. Please see the section below for additional details

Stateful inspection firewall throughput¹

2 Gbps

4.5 Gbps

6 Gbps

7.5 Gbps

Stateful inspection firewall throughput (multiprotocol)²

1.4 Gbps

2.5 Gbps

3.5 Gbps

4.5 Gbps

Concurrent firewall connections

100,000

200,000

400,000

600,000

Firewall latency
(UDP 64B microseconds)

-

-

-

-

New connections per second

25,000

75,000

100,000

150,000

IPsec VPN throughput
(450B UDP L2L test)

500 Mbps

1 Gbps

1.2 Gbps

1.7 Gbps

Maximum VPN Peers

75

150

400

800

Security contexts
(included; maximum)

NA

2; 5

2; 5

2; 25

High availability

Active/standby

Active/active and Active/standby

Active/active and Active/standby

Active/active and Active/standby

Clustering

-

Scalability

VPN Load Balancing

Centralized management

Centralized configuration, logging, monitoring, and reporting are performed by Cisco Security Manager or alternatively in the cloud with Cisco Defense Orchestrator

Adaptive Security Device Manager

Web-based, local management for small-scale deployments

Dimensions
(H x W x D)

1.82 x 7.85 x 8.07 in.

1.72 x 17.2 x 10.58 in.

1.72 x 17.2 x 10.58 in.

1.72 x 17.2 x 10.58 in.

Form factor

Compact (Desktop, wall-mount)

Rack mount, 1U

Rack mount, 1U

Rack mount, 1U

Network interfaces

8 x 1000BASE-T

8 x 1000BASE-T
4 x SFP

8 x RJ-45
4 x SFP

8 x RJ-45
2 x SFP
2 x SFP+

Power over Ethernet

2 ports PoE+ (IEEE 802.3at)

N/A

N/A

N/A

N/A

Management interfaces

1x 1000BASE-T

1x Serial console (RJ-45)

1x 1000BASE-T

1x Serial console (RJ-45)

1x 1000BASE-T

1x Serial console (RJ-45)

1x 1000BASE-T

1x Serial console (RJ-45)

USB

1 x USB 3.0 Type-A (500mA)

1 x USB 3.0 Type-A (500mA)

1 x USB 3.0 Type-A (500mA)

1 x USB 3.0 Type-A (500mA)

Storage

1 x 200 GB

1 x 200 GB

1 x 200 GB

1 x 200 GB

Power supply configuration

External power supply, AC input

Integrated, single AC input

Integrated, single AC input

Integrated, single AC input

AC input voltage

100 to 240V AC

100 to 240V AC

100 to 240V AC

100 to 240V AC

AC maximum current draw

< 2A at 100V, < 1A at 240V

< 2A at 100V, < 1A at 240V

< 2A at 100V, < 1A at 240V

< 2A at 100V, < 1A at 240V

AC maximum power draw

115W

55W

100W

100W

100W

AC frequency

50 to 60 Hz

50 to 60 Hz

50 to 60 Hz

50 to 60 Hz

AC efficiency

>88% at 50% load

>85% at 50% load

>85% at 50% load

>85% at 50% load

Fans

None

1 integrated fan

1 integrated fan

1 integrated fan

Noise

0 dBA

31.7 dBA @ 25C, 56.8 dBA at highest system performance

34.2 dBA @ 25C, 56.8 dBA at highest system performance

34.2 dBA @ 25C, 56.8 dBA at highest system performance

Rack mounting

Via optional rack mount kit

2-post mounting Brackets included.

2-post mounting Brackets included.

2-post mounting Brackets included.

Weight

3 lb (1.4 kg)

8 lb (3.6 kg)

8 lb (3.6 kg)

8 lb (3.6 kg)

Temperature: operating

32 to 104°F
(0 to 40°C)

32 to 104°F
(0 to 40°C)

32 to 104°F
(0 to 40°C)

32 to 104°F
(0 to 40°C)

Temperature: nonoperating

-13 to 158°F (-25 to 70°C)

-13 to 158°F
(-25 to 70°C)

-13 to 158°F
(-25 to 70°C)

-13 to 158°F
(-25 to 70°C)

Humidity: operating

90% noncondensing

90% noncondensing

90% noncondensing

90% noncondensing

Humidity: nonoperating

10 to 90%

noncondensing

10 to 90% noncondensing

10 to 90% noncondensing

10 to 90% noncondensing

Altitude: operating

9,843 ft (max)

3,000 m (max)

9,843 ft (max)

3,000 m (max)

9,843 ft (max)

3,000 m (max)

9,843 ft (max)

3,000 m (max)

Altitude: nonoperating

15,000 ft (max)

15,000 ft (max)

15,000 ft (max)

15,000 ft (max)

Regulatory compliance

Products comply with CE markings per directives 2004/108/EC and 2006/108/EC

Safety

●  UL 60950-1

●  CAN/CSA-C22.2 No. 60950-1

●  EN 60950-1

●  IEC 60950-1

●  AS/NZS 60950-1

●  GB4943

EMC: emissions

●  47CFR Part 15 (CFR 47) Class A (FCC Class A)

●  AS/NZS CISPR22 Class A

●  CISPR22 CLASS A

●  EN55022 Class A

●  ICES003 Class A

●  VCCI Class A

●  EN61000-3-2

●  EN61000-3-3

●  KN22 Class A

●  CNS13438 Class A

●  EN300386

●  TCVN7189

EMC: immunity

●  EN55024

●  CISPR24

●  EN300386

●  KN24

●  TVCN 7317

●  EN-61000-4-2, EN-61000-4-3, EN-61000-4-4, EN-61000-4-5, EN-61000-4-6,EN-61000-4-8, EN61000-4-11
