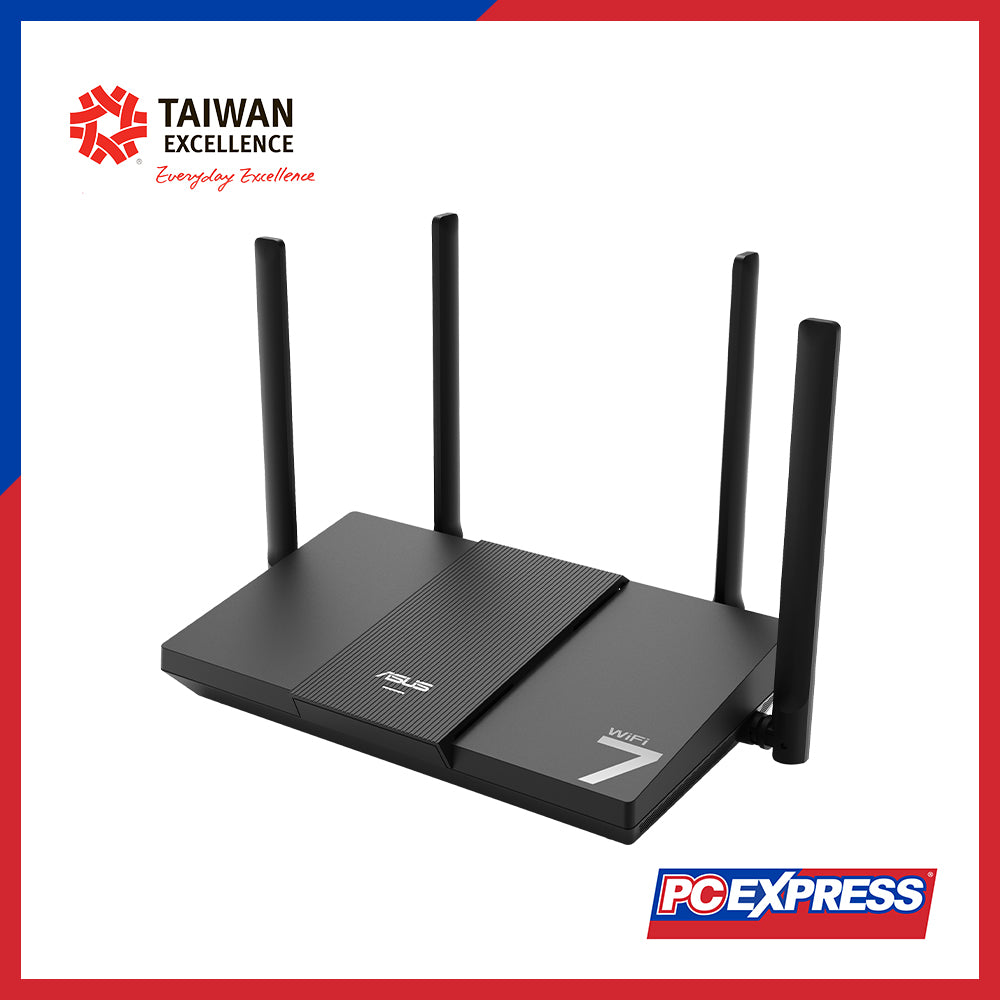

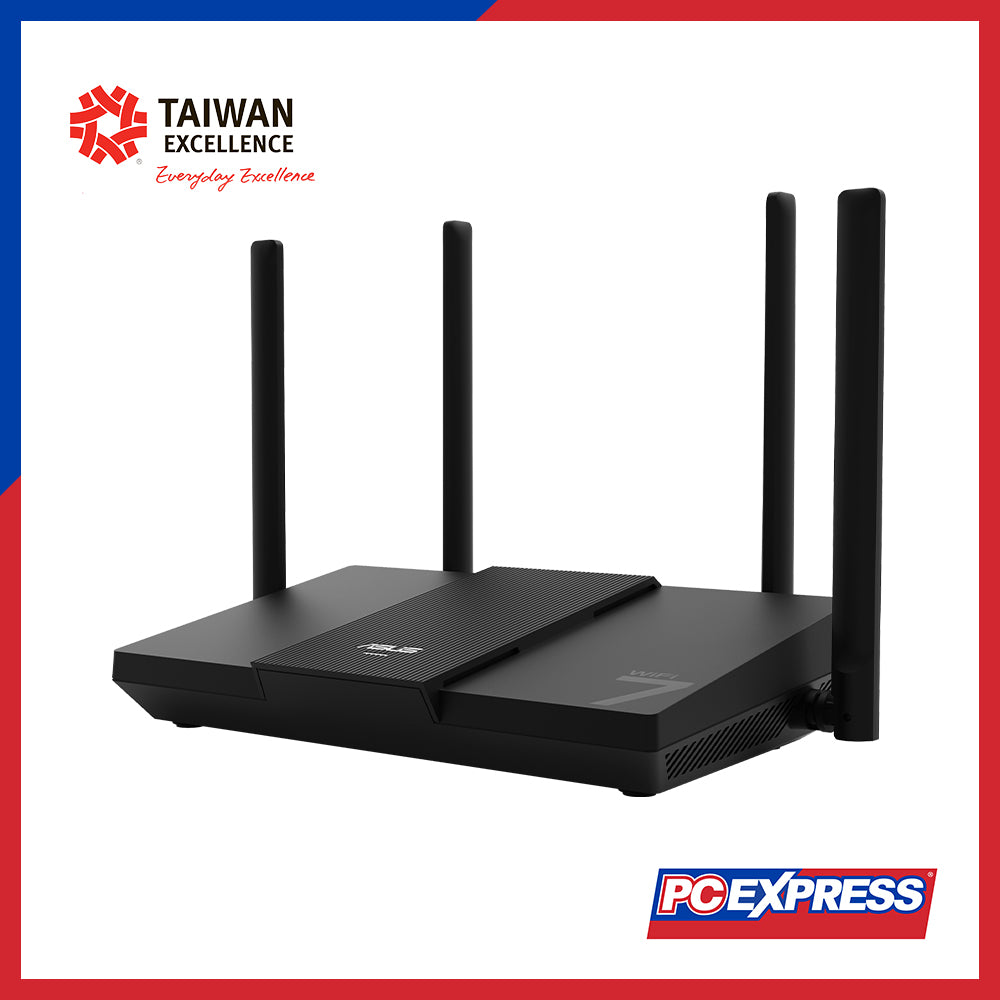

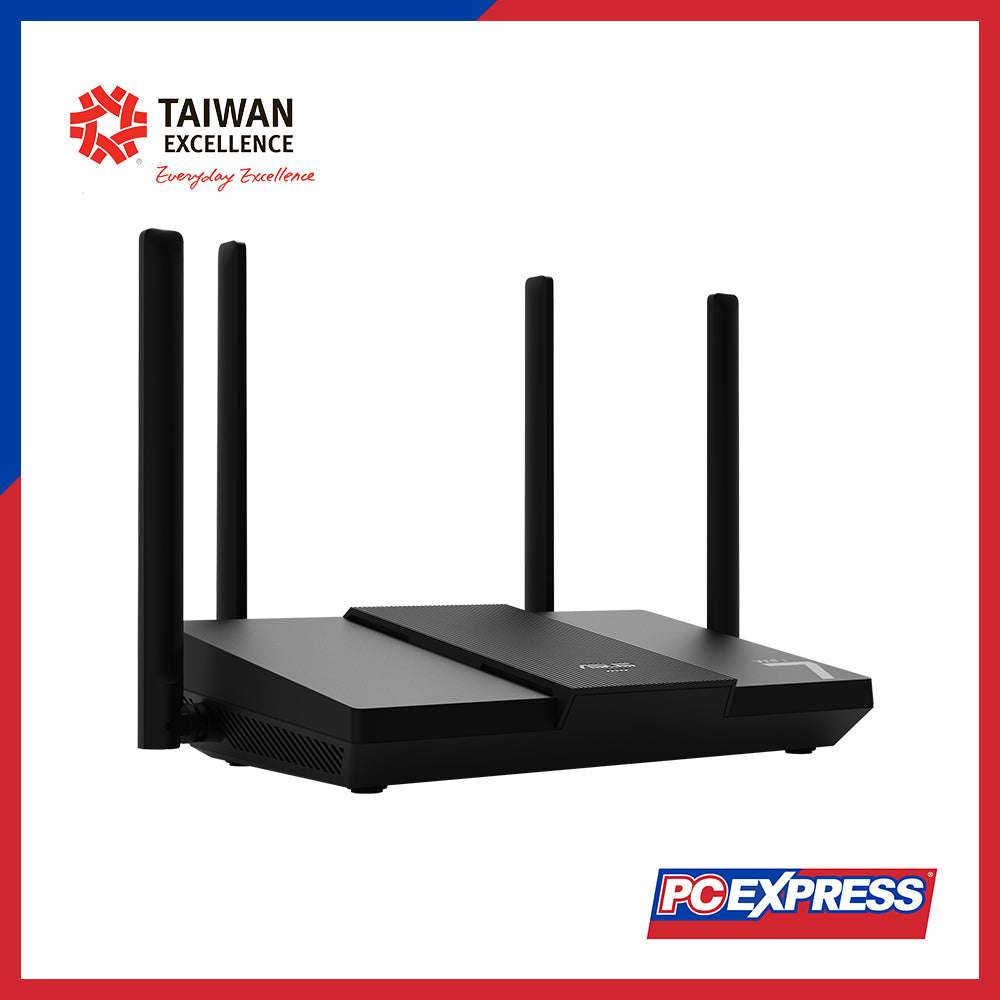

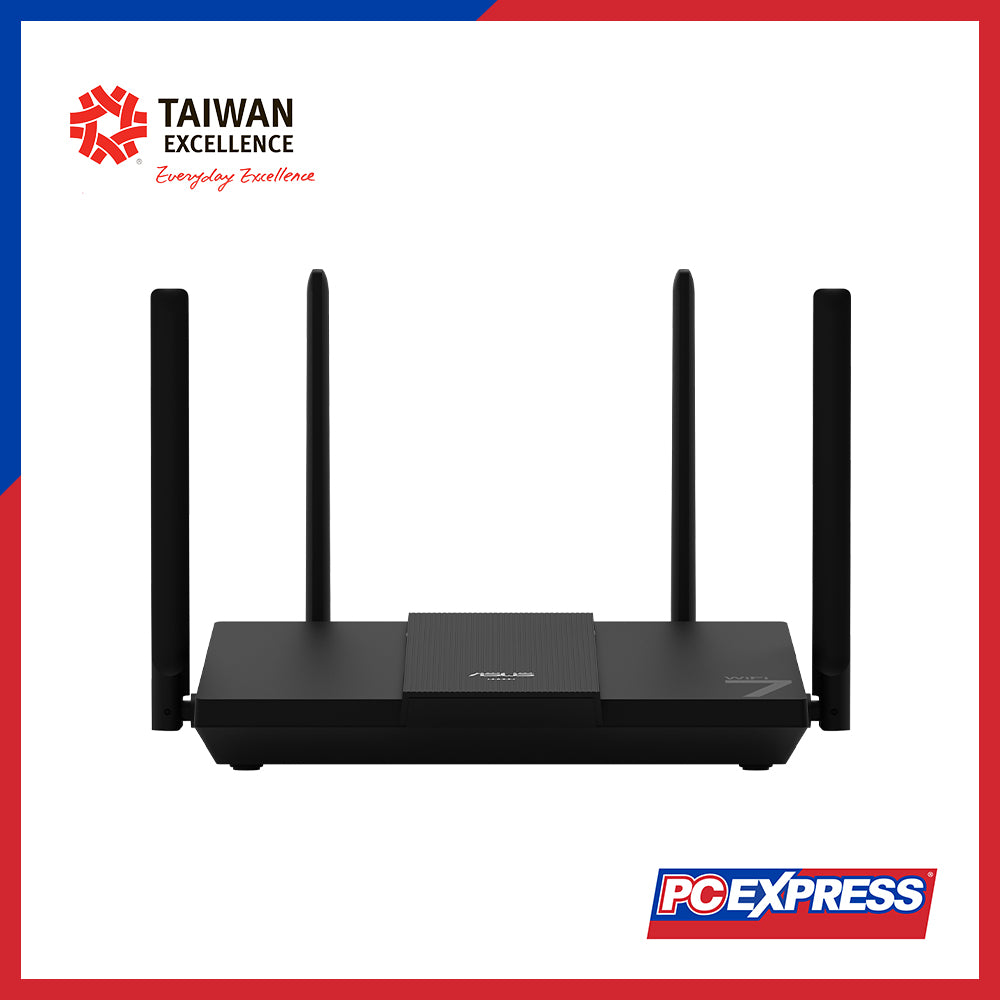

ASUS RT-BE50 Dual Band Wifi 7 Wireless Router

Model

RT-BE50

Network Standard

IEEE 802.11a / 802.11b / 802.11g / WiFi 4 (802.11n) / WiFi 5 (802.11ac) / WiFi 6 (802.11ax) / WiFi 7 (802.11be) / IPv4 / IPv6

Product Segment

BE3600 ultimate BE performance: 688 + 2882 Mbps

WiFi Data Rate

802.11a: up to 54 Mbps
802.11b: up to 11 Mbps
802.11g: up to 54 Mbps
WiFi 7 (2.4GHz): up to 688 Mbps
WiFi 7 (5GHz): up to 2882 Mbps

Antenna

External antenna x 4

Transmit / Receive

2.4GHz 2x2
5GHz 2x2

Processor

Quad-core processor

Memory

128 MB Flash
256 MB RAM

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming (standard-based and universal)
4096-QAM high data rate
20/40/80/160 MHz bandwidth

Operating Frequency

2.4GHz / 5GHz

Operating Mode

Wireless Router Mode
AiMesh Node Mode
Range Extender Mode
Access Point Mode
Media Bridge Mode
Repeater Mode

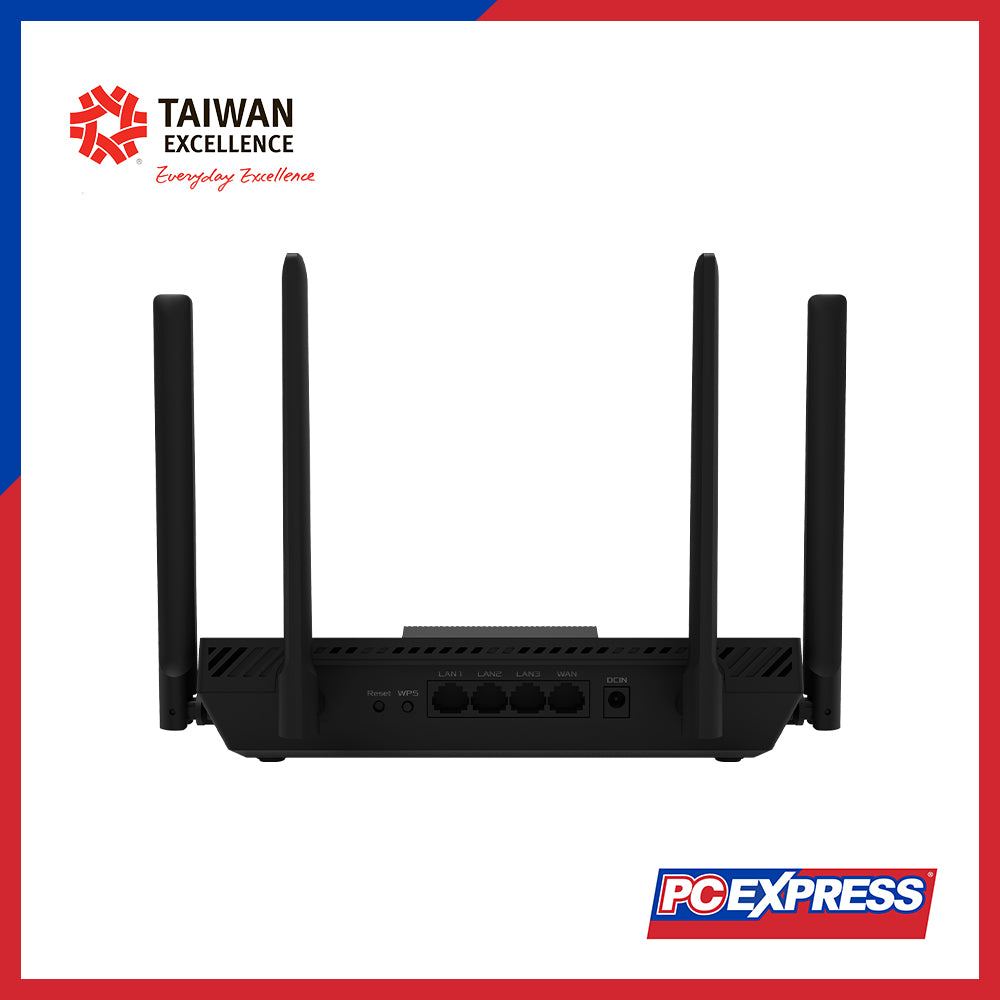

I/O Ports

1 x 2.5G WAN port
3 x 1G LAN ports

Buttons

WPS Button
Reset Button

LED Indicator

Power x 1

Power Supply

AC Input: 100V–240V (50/60Hz)
DC Output: 12V / 1.5A max

Package Content

RT-BE50 router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card

Product Weight

450 g

Product Dimensions

261 x 156 x 50 mm

AiMesh

AiMesh support (Primary AiMesh Router / AiMesh Node)

Parental Control

Time Scheduling
Safe Browsing
Customized Internet Schedule

Guest Network

Provides Internet for guests with restricted local access
Max Guest Network Rule: 2.4GHz x3, 5GHz x3
Guest Network Connection Time Limit

Security

WPS support
WPA/WPA2/WPA3-Personal
WPA/WPA2-Enterprise
Let’s Encrypt
DNS-over-TLS
SSH
Security Scan

Firewall

Max Keyword Filter: 64
Max Network Service Filter: 32
Max URL Filter: 64

VPN

Instant Guard
VPN Client: L2TP, OpenVPN, PPTP, WireGuard
VPN Server: IPSec, OpenVPN, PPTP, WireGuard
VPN Fusion

Traffic Control

Bandwidth Monitor / Limiter (max 32 rules)
Traditional QoS (max 32 rules)
Real-time / Wired / Wireless Traffic Monitor
Website History

WAN

Internet connection types: PPPoE, PPTP, L2TP, Automatic IP, Static IP
Port Forwarding (max 64 rules)
Port Triggering (max 32 rules)
DMZ, DDNS
NAT Passthrough: PPTP, L2TP, IPSec, RTSP, H.323, SIP, PPPoE relay

LAN

DHCP Server
IGMP Snooping
IPTV
Manually Assign IP (max 64 rules)
Wake on LAN (WOL)

Wireless

MU-MIMO
UTF-8 SSID
WiFi MAC Address Filter (max 64)
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal & Explicit Beamforming

User Interface

Web: ASUSWRT
App: ASUS Router App

Administration

Configuration Backup & Restore
Diagnosis Tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
