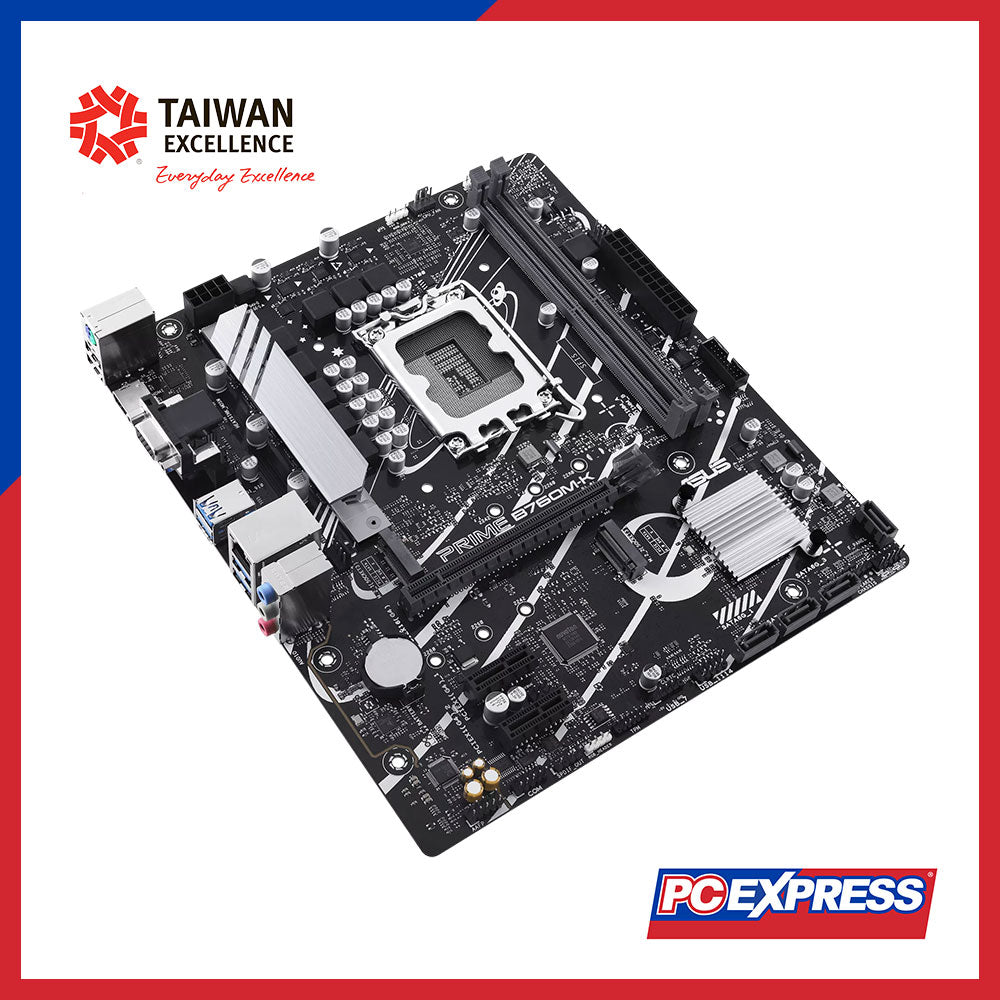

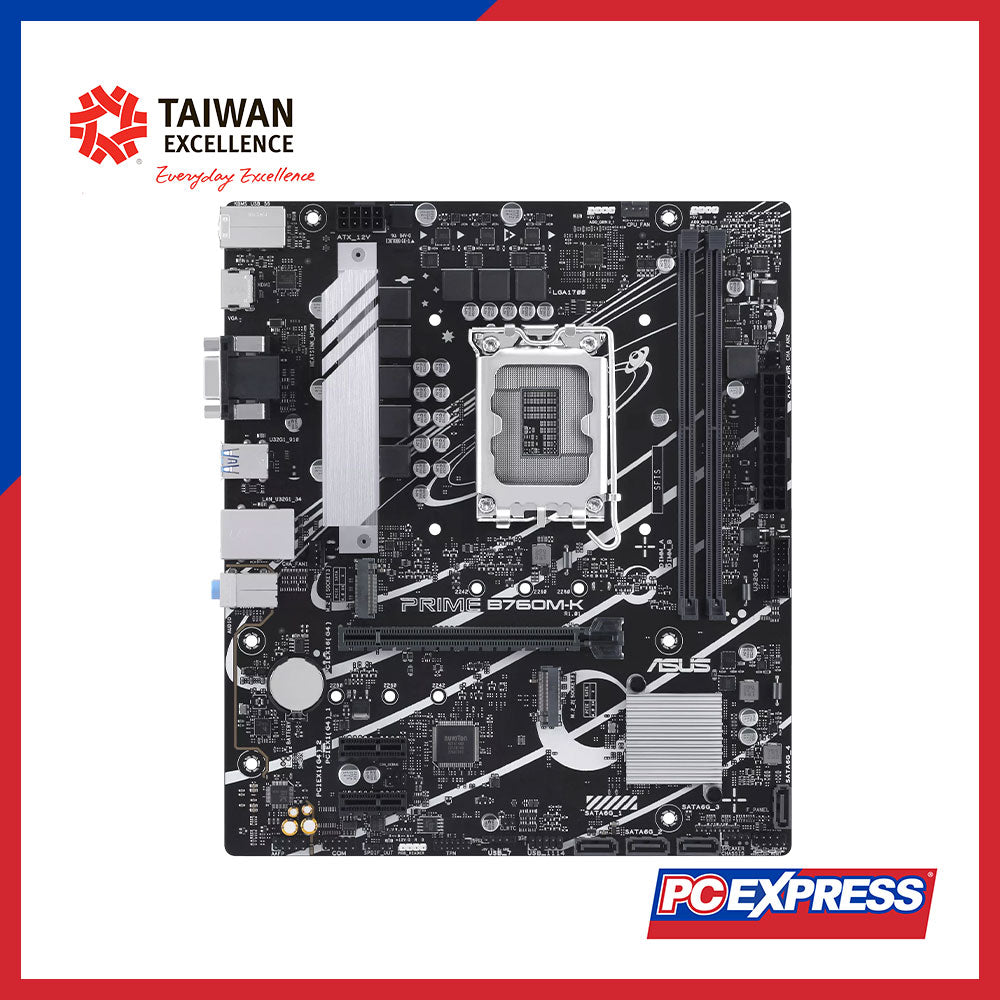

ASUS PRIME B760M-K Micro-ATX Motherboard

Model

PRIME B760M‑K

CPU Support

LGA1700 socket: 14th/13th/12th Gen Intel® Core™, Pentium® Gold, Celeron®; Intel® Turbo Boost 2.0 & TB Max 3.0*

Chipset

Intel® B760

Memory

2× DIMM, up to 96 GB DDR5 4800–8000 MT/s (OC), dual‑channel, XMP support; On‑Die ECC

Graphics Outputs

1× VGA, 1× HDMI 2.1 (4K@60 Hz)

Expansion Slots

1× PCIe 4.0 x16; 2× PCIe 4.0 x1

Storage

2× M.2 Key M (2242/2260/2280, PCIe 4.0 ×4); 4× SATA 6 Gb/s (RAID 0/1/5/10 via Intel RST)

Ethernet

Realtek® 2.5 Gb LAN

USB – Rear

4× USB 3.2 Gen 1 (5 Gbps Type‑A); 2× USB 2.0 (Type‑A)

USB – Front/Internal

1× USB 3.2 Gen 1 header (adds 2× ports); 2× USB 2.0 headers (adds 3× ports)

Audio

Realtek® ALC887 7.1‑ch HD CODEC; jack‑detection, multi‑streaming, front‑panel retasking; up to 24‑bit/192 kHz; audio shielding, premium caps, dedicated PCB layers

Back I/O

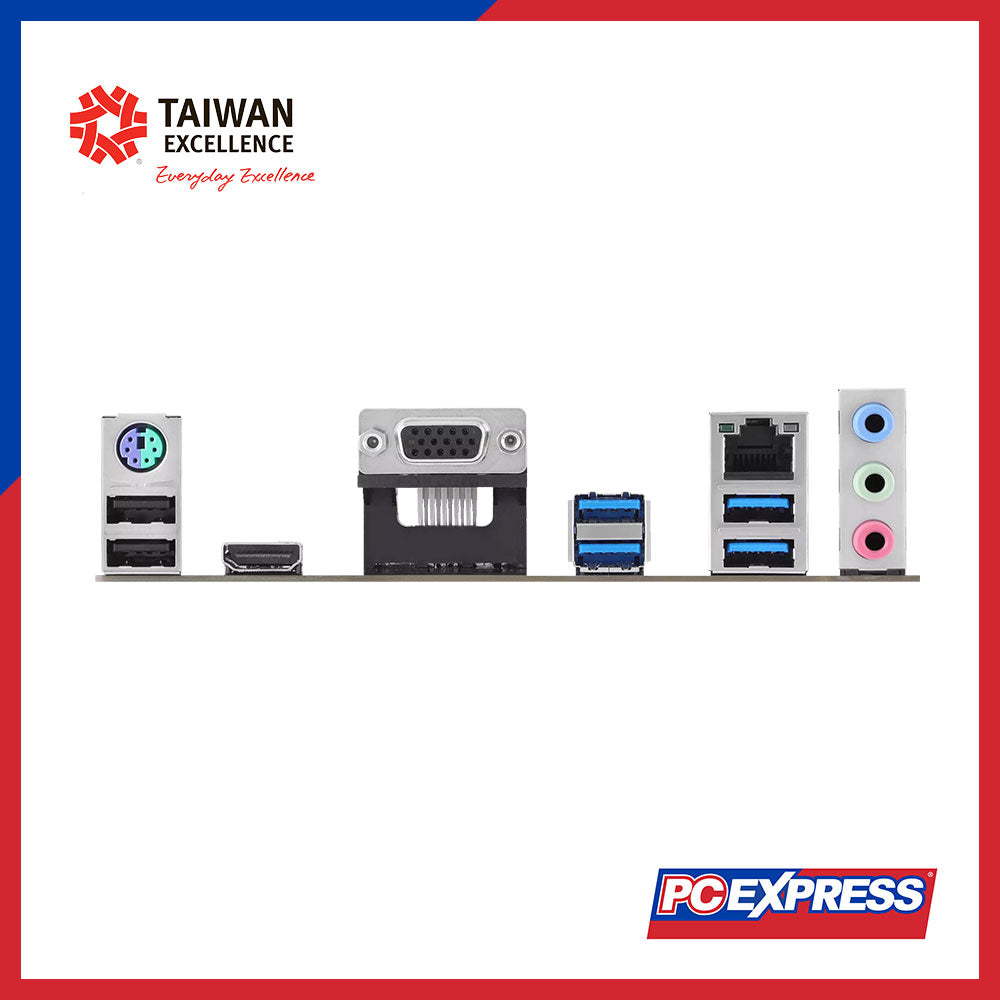

4× USB 3.2 Gen 1; 2× USB 2.0; VGA; HDMI; 1× 2.5 GbE; 3× audio jacks; PS/2 combo

Internal Headers

CPU fan, 2× chassis fan; 24‑pin, 8‑pin power; 2× M.2; 4× SATA; USB headers; 2× ARGB Gen 2; Aura RGB; Clear CMOS; COM; front‑panel audio; S/PDIF Out; speaker; SPI‑TPM; system panel

Special Features

ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, OVP, SafeSlot, stainless I/O); Q‑Design (Q‑DIMM, Q‑LED Core, Q‑Slot); EZ DIY (ProCool); Thermal Solution (VRM heatsink); Aura Sync

Software

Armoury Crate (Aura Sync, Fan Xpert 2+, Power Saving, AI Noise Cancel); AI Suite 3; ASUS CPU‑Z; Norton 360 (60 d trial); WinRAR; UEFI BIOS EZ Mode/Flash/CrashFree

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME; PXE boot

Accessories

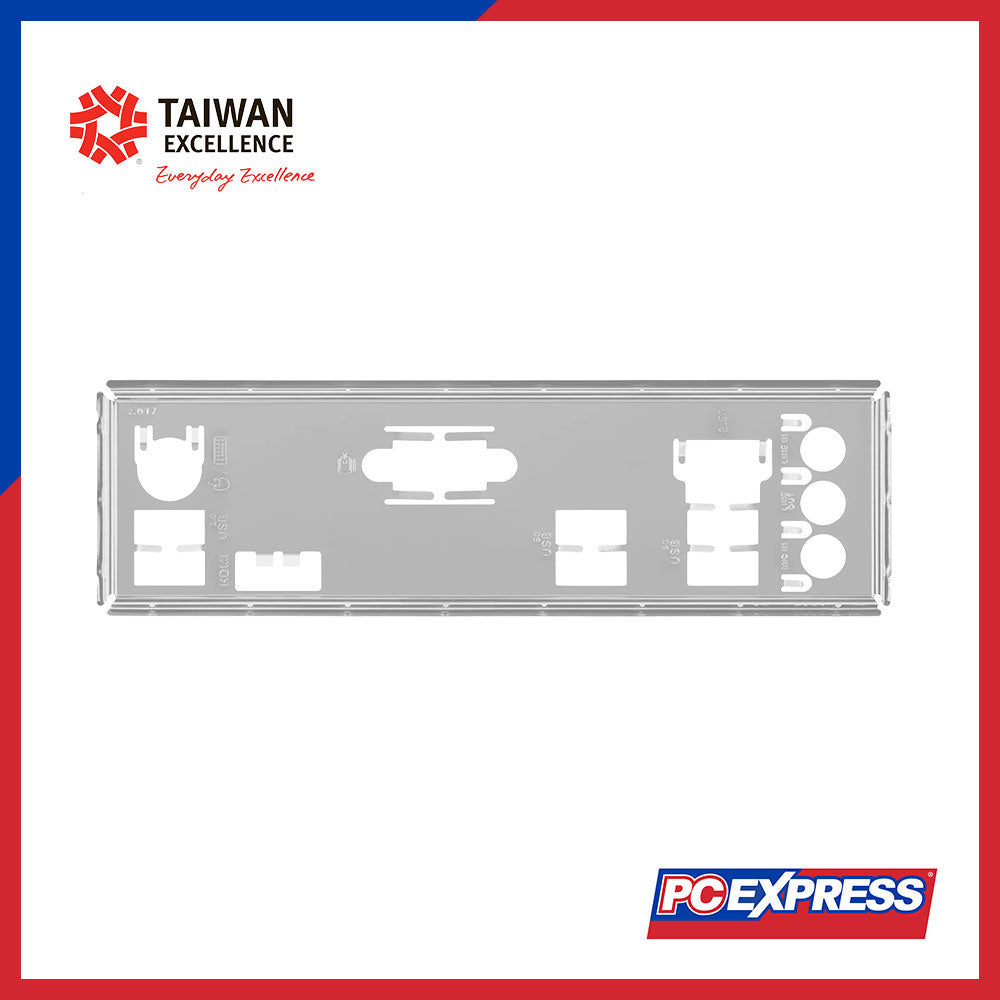

2× SATA cables; I/O shield; 2× M.2 standoffs; user guide

OS Compatibility

Windows 11 / Windows 10 64‑bit

Form Factor

mATX (24.4 × 21.1 cm / 9.6″ × 8.3″)
