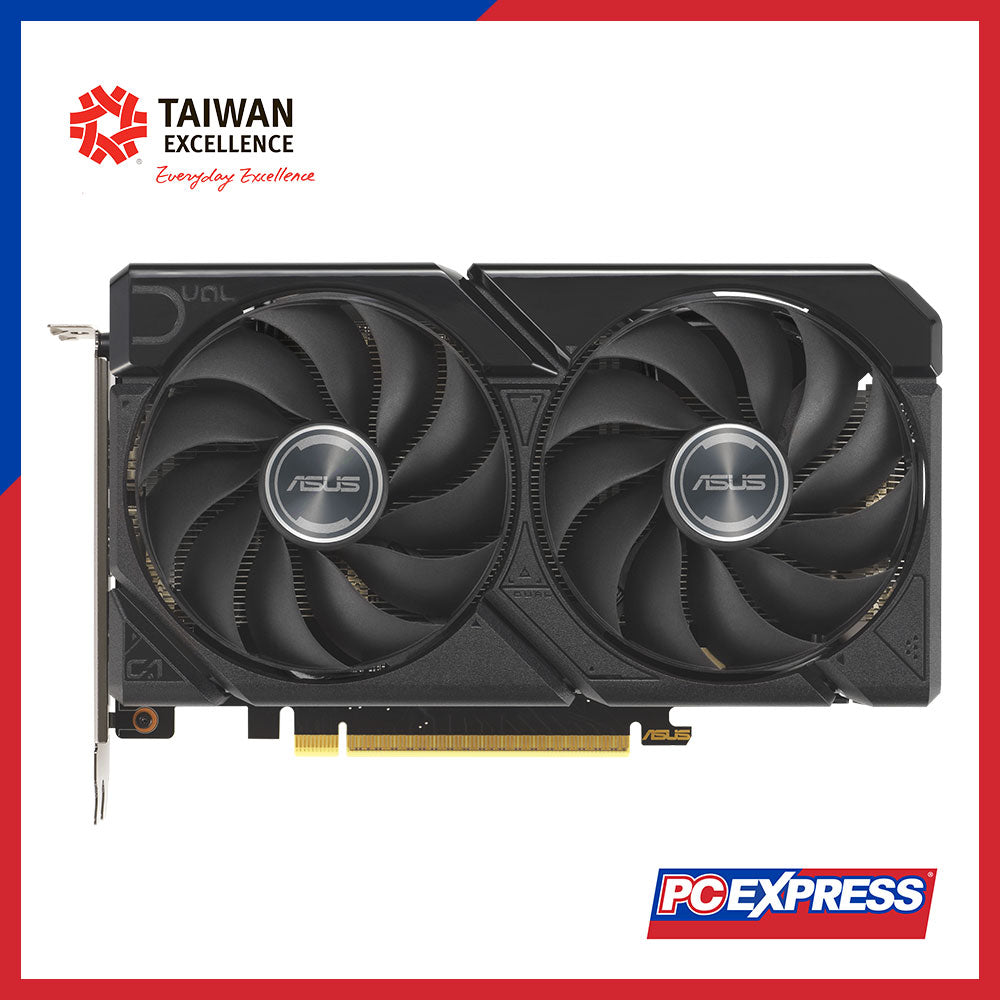

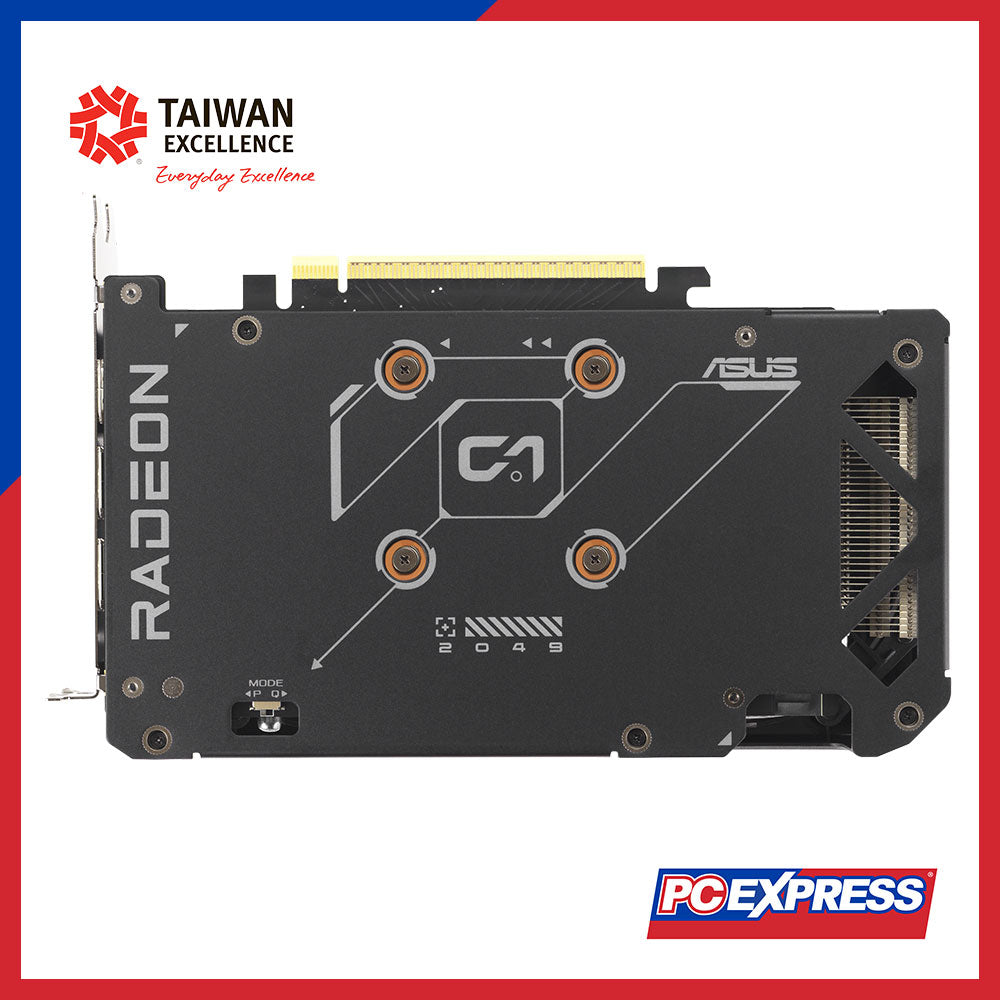

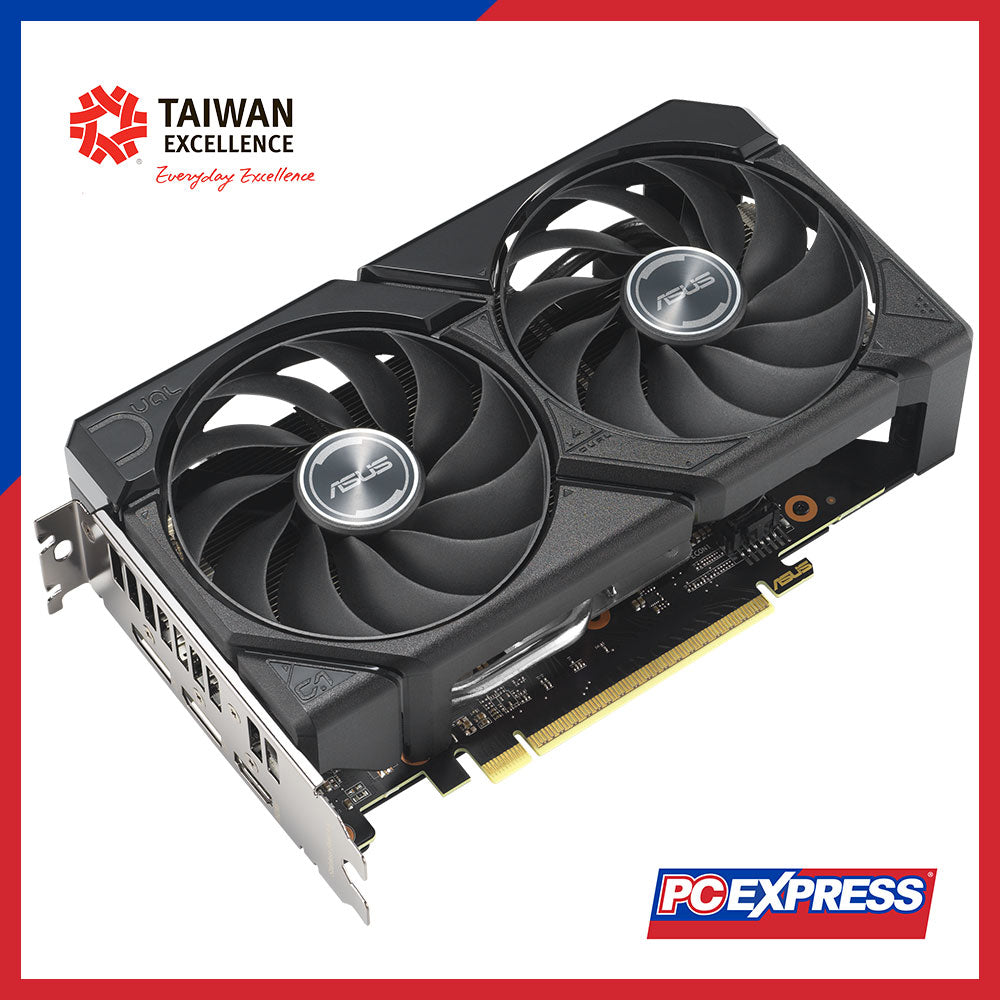

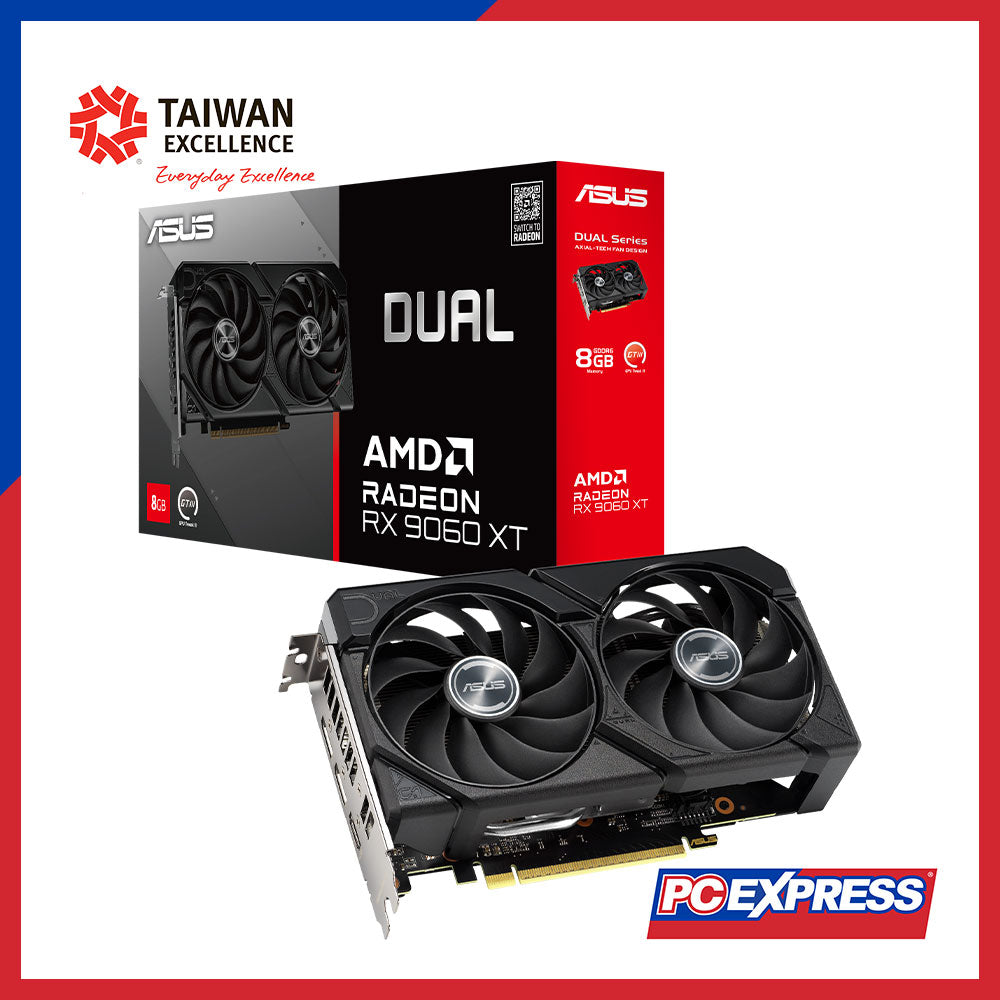

ASUS Dual Radeon™ RX9060XT 8G GDDR6 128-bit Graphics Card
- Read our FAQs before ordering
- Need Help / Out of Stock? Chat with us.
SPECIFICATION
|
Part Number |
DUAL-RX9060XT-8G |
|
Graphic Engine |
AMD Radeon™ RX 9060 XT |
|
Bus Standard |
PCI Express 5.0 |
|
OpenGL |
OpenGL® 4.6 |
|
Video Memory |
8GB GDDR6 |
|
Engine Clock (OC mode) |
up to 3150 MHz (Boost) / up to 2550 MHz (Game) via GPU Tweak III |
|
Engine Clock (Default mode) |
up to 3130 MHz (Boost) / up to 2530 MHz (Game) |
|
Stream Processors |
2048 |
|
Memory Speed |
20 Gbps |
|
Memory Interface |
128-bit |
|
Digital Max Resolution |
7680 × 4320 |
|
Display Outputs |
• 1 × HDMI 2.1b (native) |
|
HDCP Support |
Yes (2.3) |
|
Maximum Displays Supported |
3 |
|
NVLink / Crossfire |
No |
|
Accessories |
1 × Thank you card |
|
Software |
ASUS GPU Tweak III & Drivers (download from support site) |
|
Dimensions (L × W × H) |
202 mm × 120 mm × 49 mm |
|
Recommended PSU |
550 W |
|

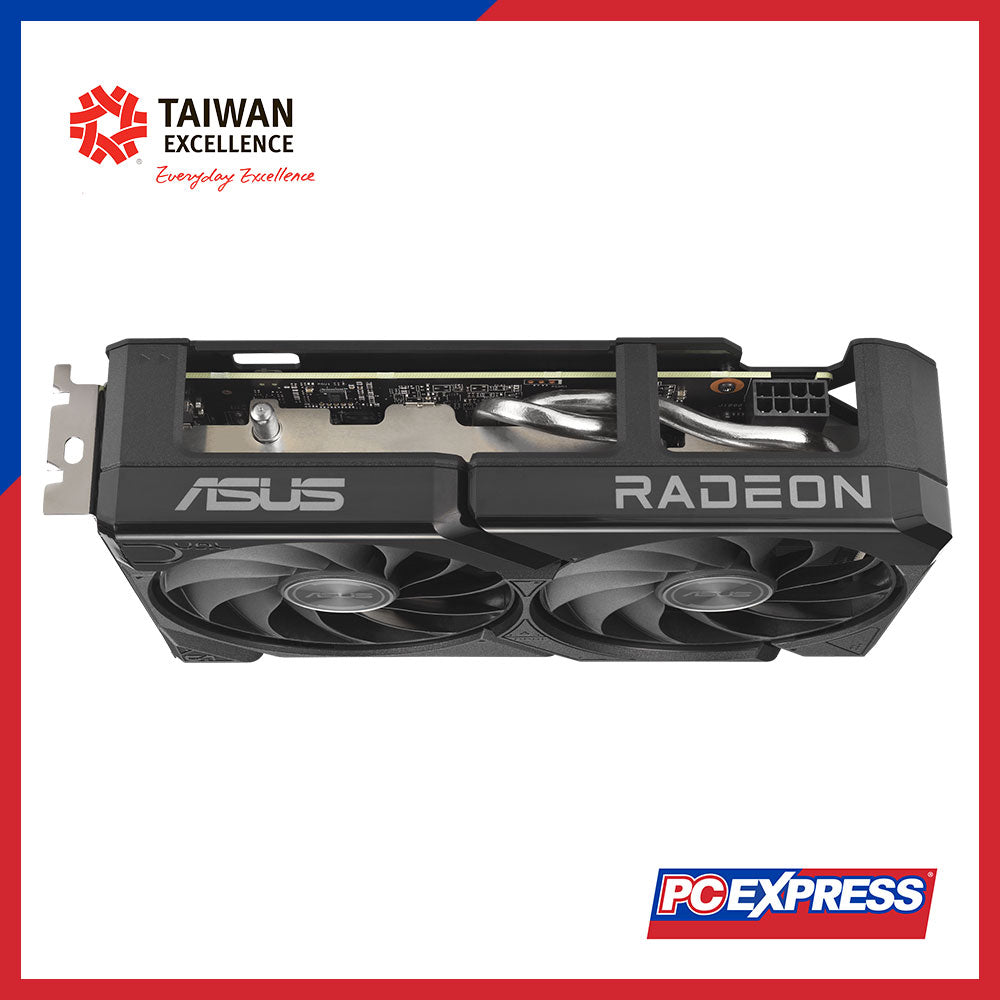

Power Connectors |
1 × 8-pin |
|
Slot Width |
2.5 slots |
|
Notes |
• Wattage recommendation is for a fully overclocked GPU+CPU system; use “Choose By Wattage” PSU tool for tailored advice. |
