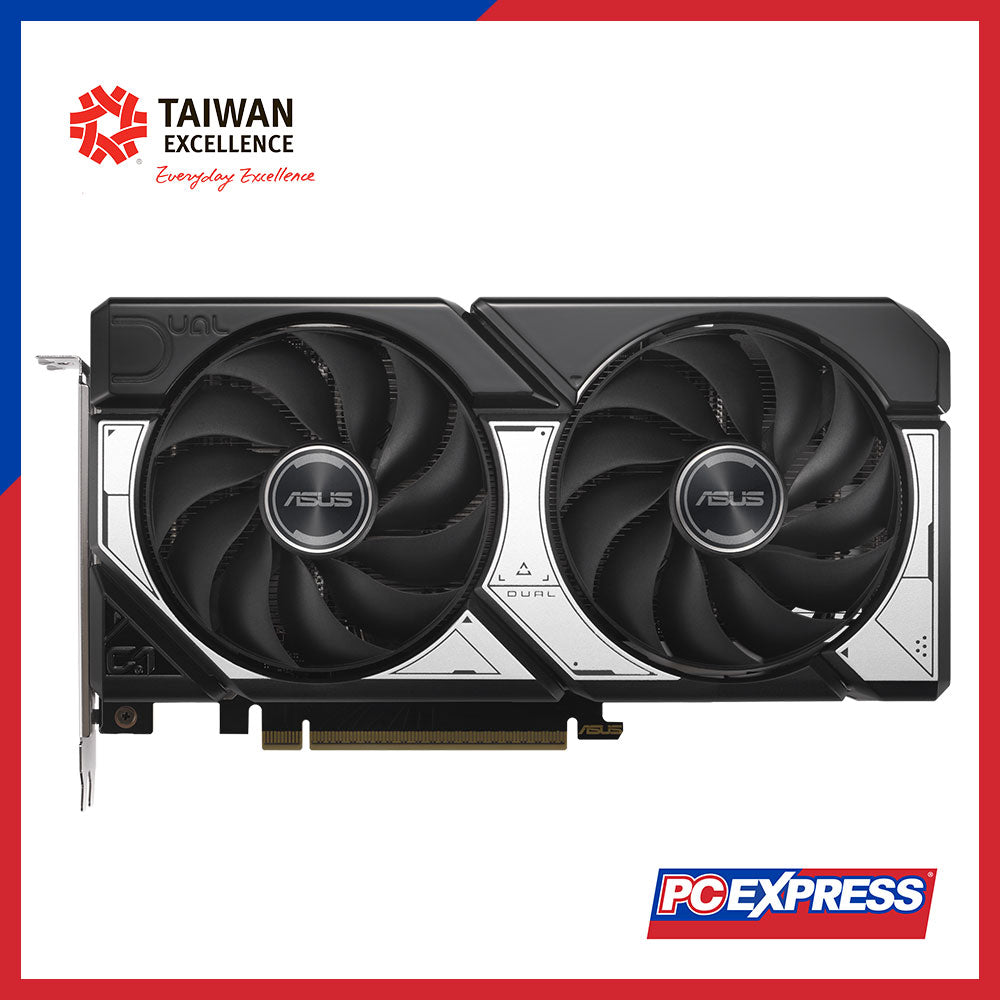

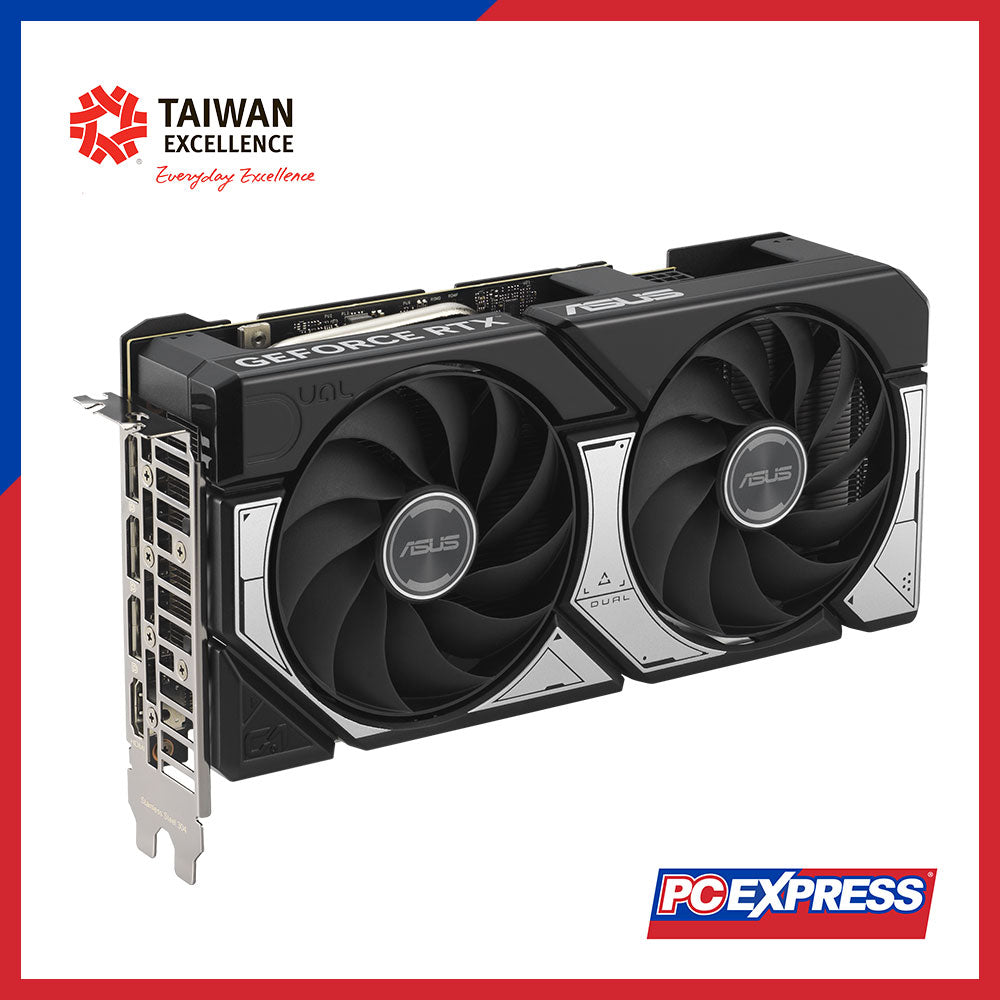

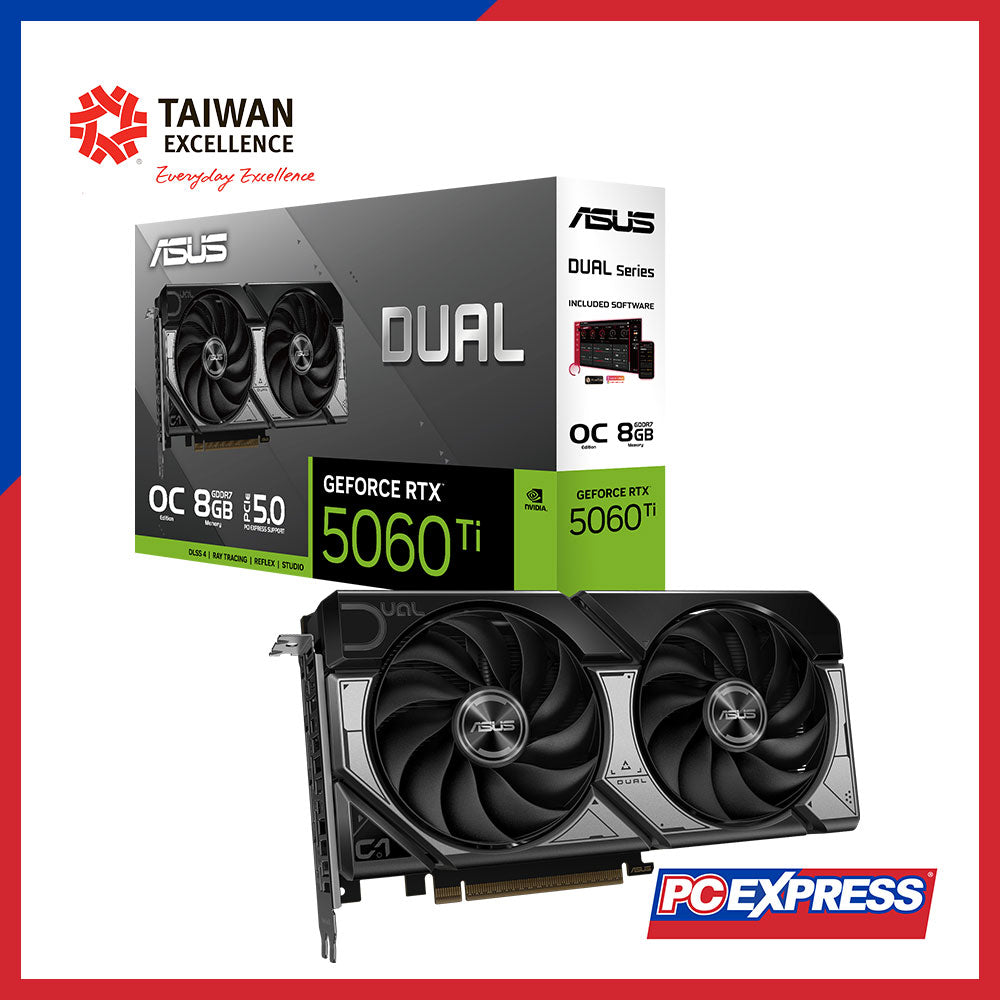

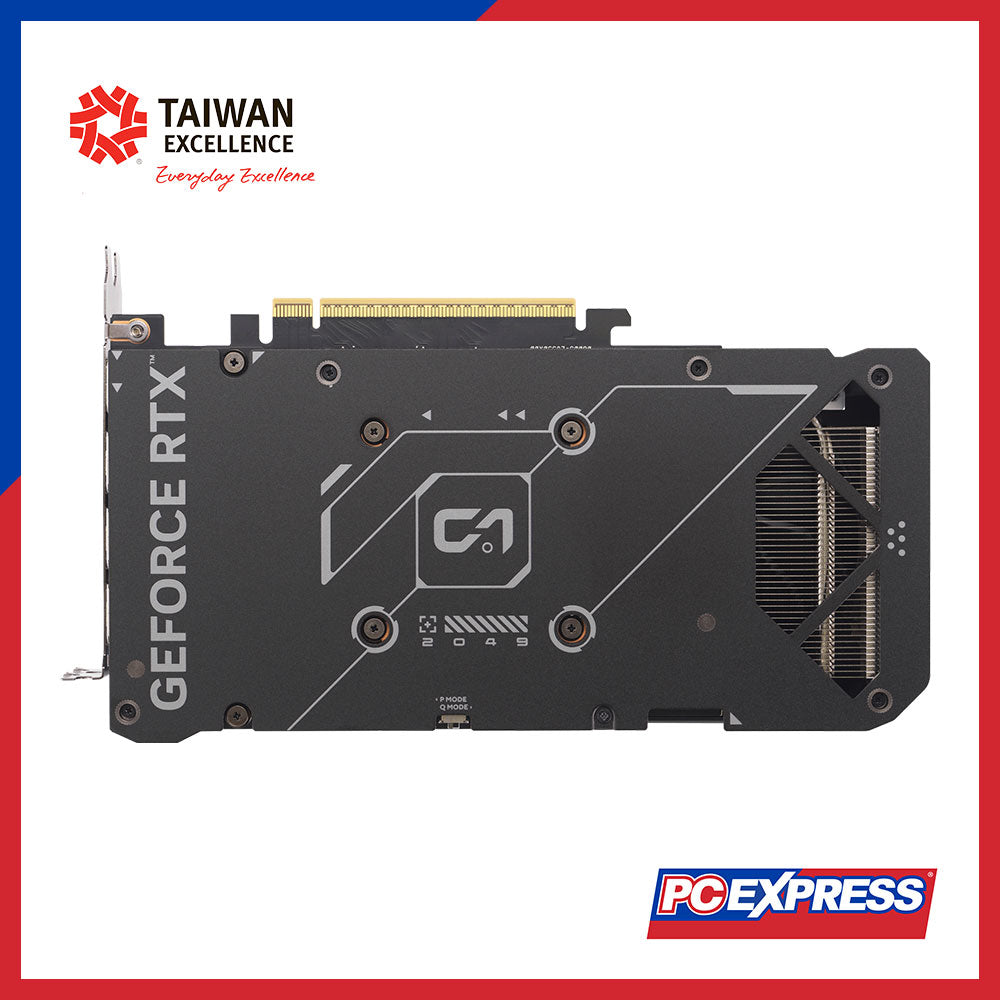

ASUS Dual GeForce RTX™ 5060 Ti OC Edition 8GB GDDR7 128-bit Graphics Card
- Read our FAQs before ordering
- Need Help? Chat with us.
SPECIFICATION
Model |
DUAL-RTX5060TI-O8G |
Graphic Engine |
NVIDIA® GeForce RTX™ 5060 Ti |
AI Performance |
767 TOPs |
Bus Standard |
PCI Express 5.0 |
OpenGL |
OpenGL® 4.6 |
Video Memory |
8 GB GDDR7 |
Engine Clock |
• OC mode: 2632 MHz |
CUDA Cores |
4608 |
Memory Speed |
28 Gbps |
Memory Interface |
128-bit |
Maximum Resolution |
7680 × 4320 (Digital Max) |

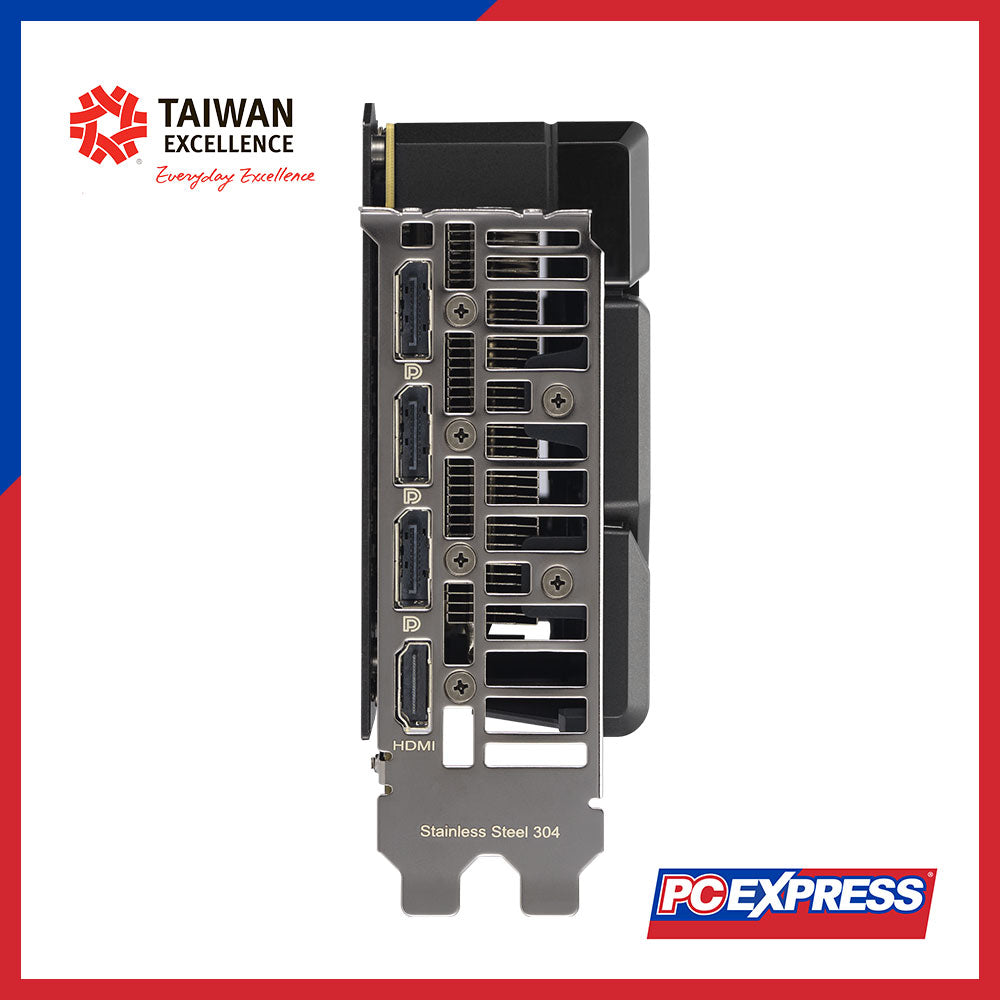

Display Outputs |
• 1 × HDMI 2.1b (native) |
HDCP Support |
Yes (2.3) |
Maximum Displays Supported |
4 |
NVLink / CrossFire Support |
No |
Accessories Included |
• Speedsetup Manual |
Software |
ASUS GPU Tweak III; MuseTree; GeForce Game Ready Driver; Studio Driver (available from ASUS support site) |
Dimensions (L × W × H) |
229 × 120 × 50 mm |
Recommended PSU |
550 W (based on fully overclocked GPU + CPU) |
Power Connector |
1 × 8-pin PCIe |
Slot Width |
2.5 slots |
SFF (Small Form Factor) Ready |
Compatible |
Notes |
• Wattage recommendation considers a fully overclocked system—use “Choose By Wattage” on ASUS PSU page for tailored advice |
