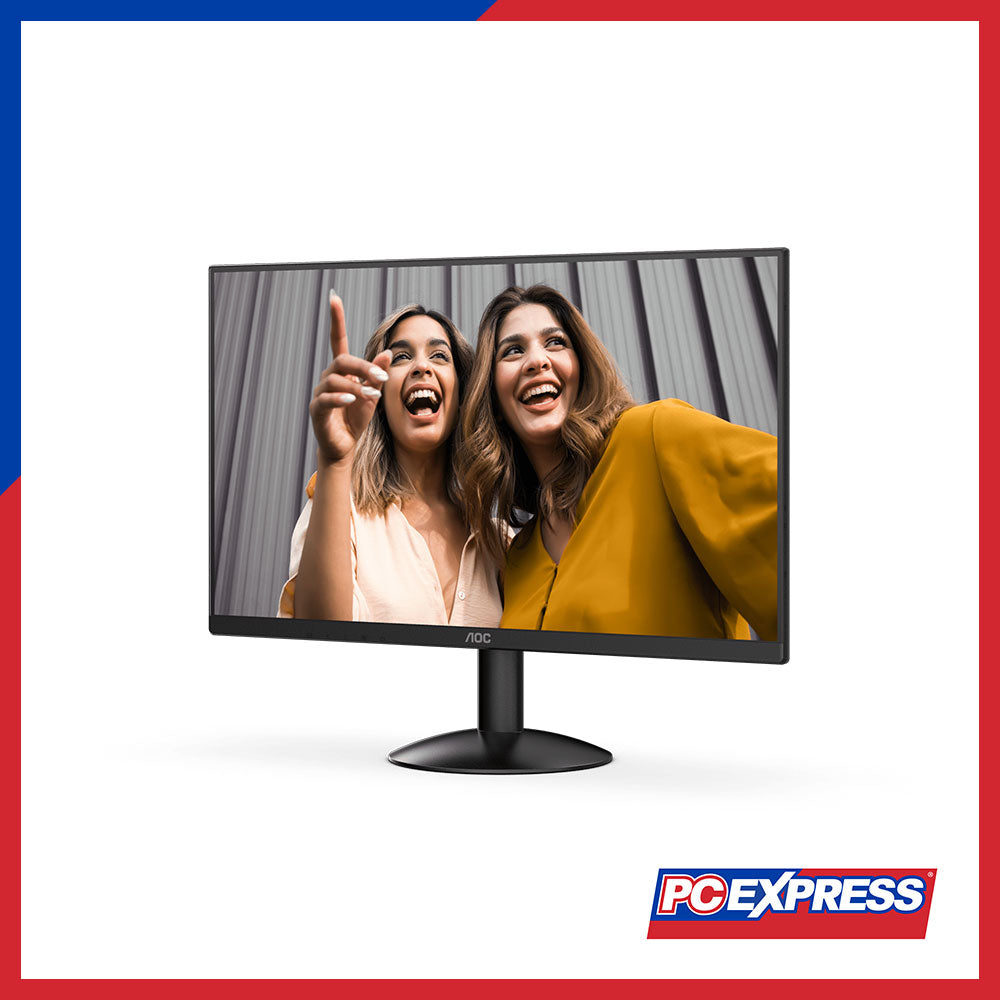

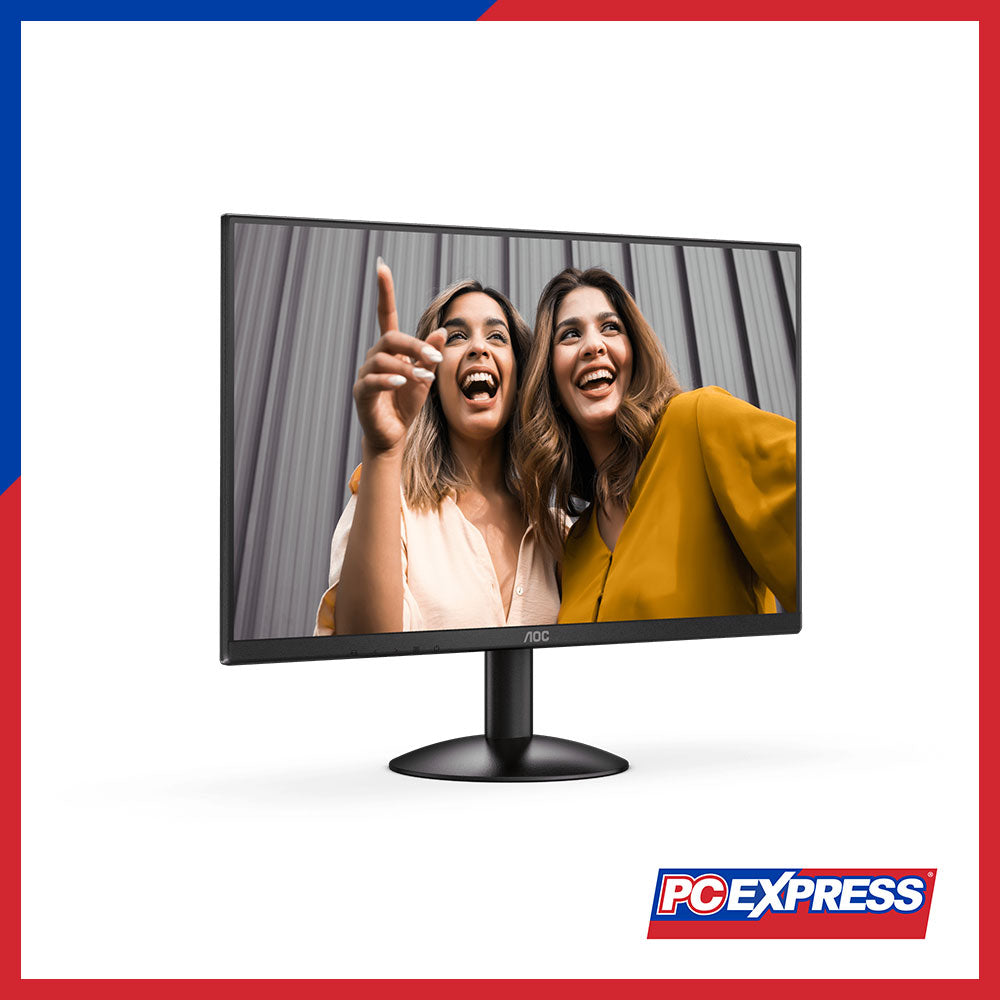

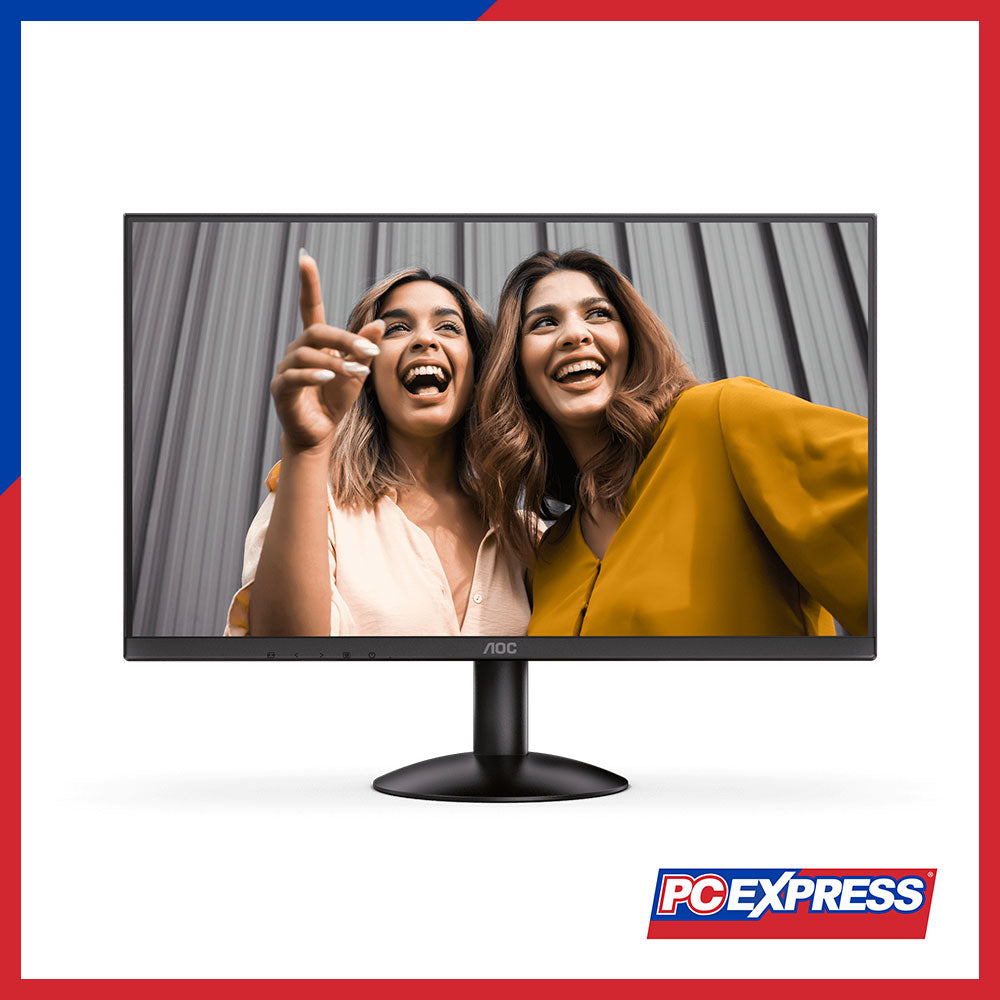

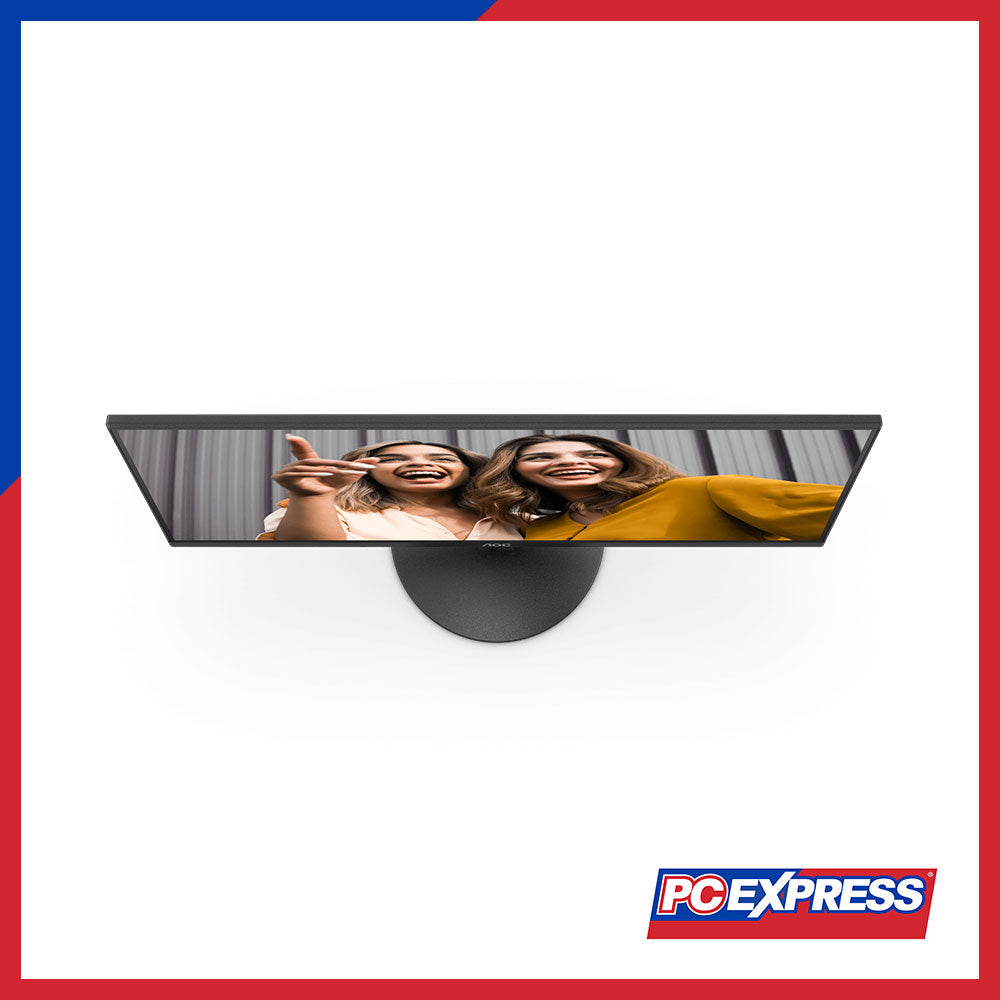

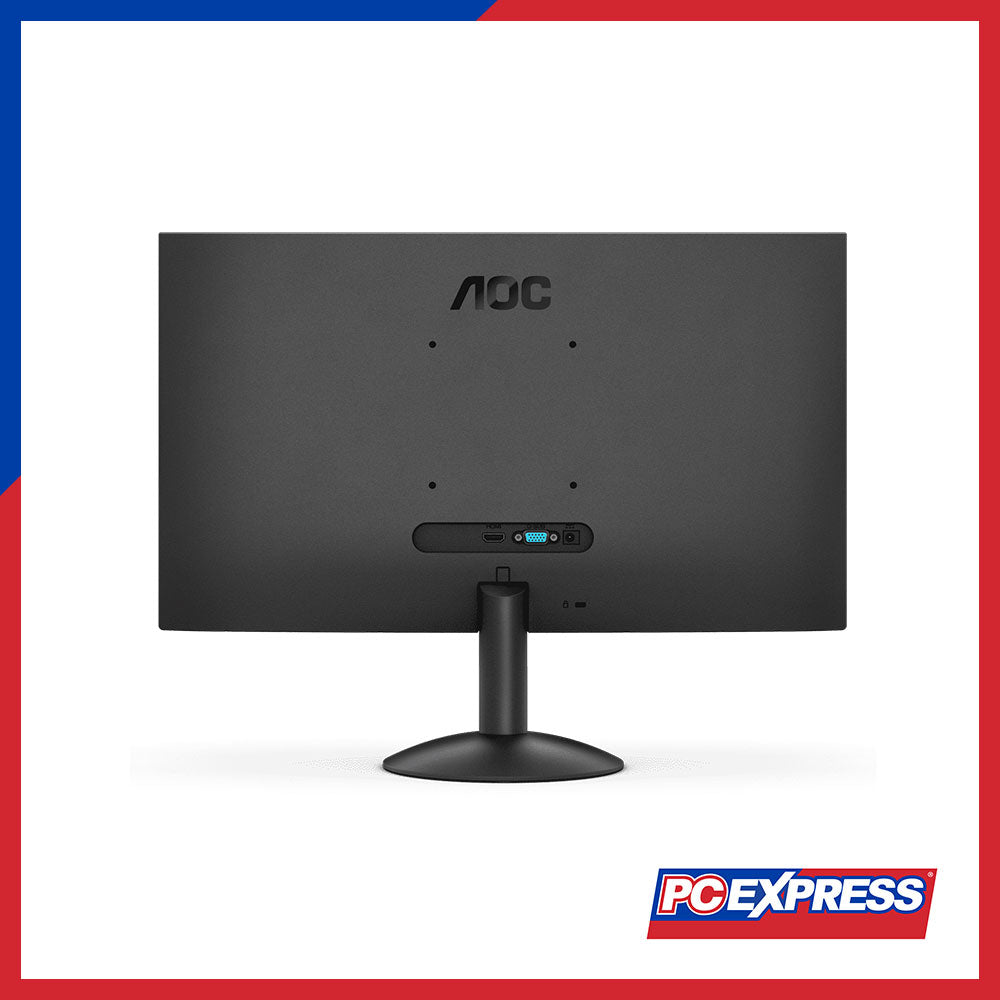

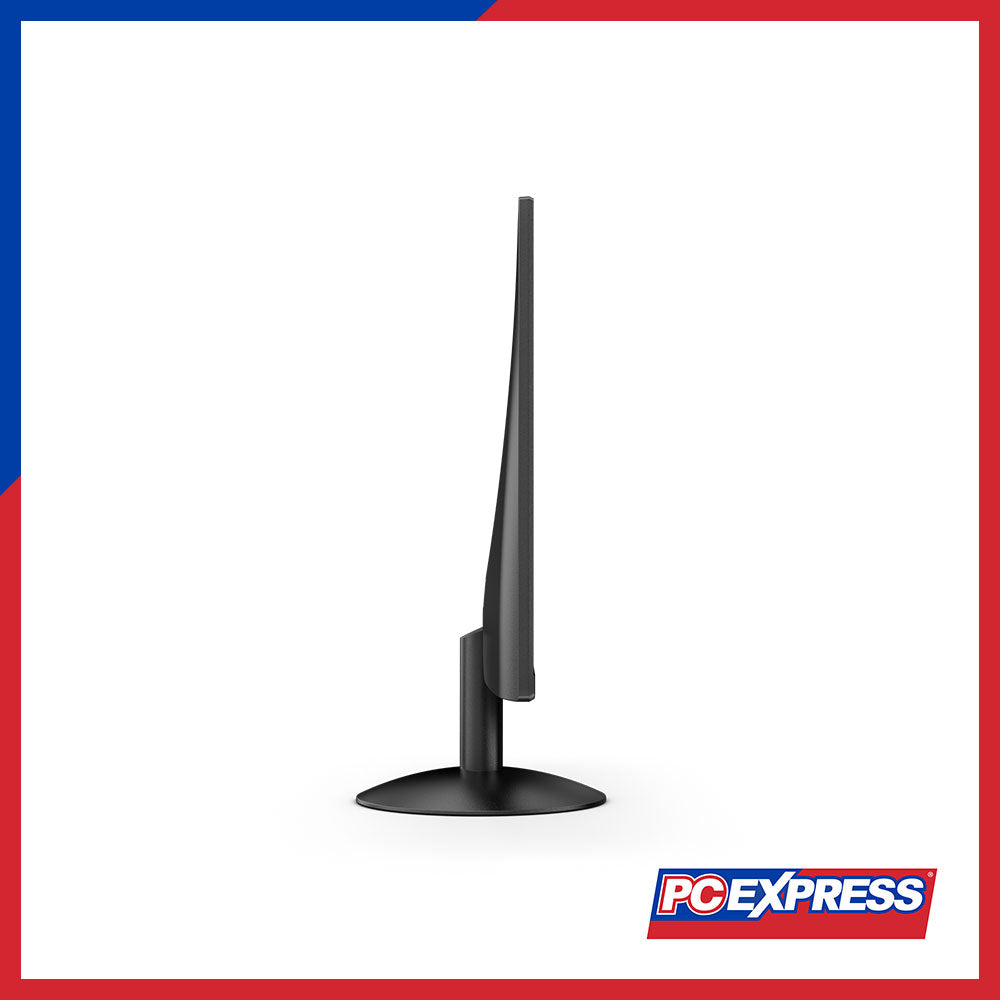

AOC 21.5" 22B30HM2/71 Full-HD 120Hz Monitor
- Read our FAQs before ordering
- Need Help / Out of Stock? Chat with us.
SPECIFICATION
|
Model Name |
22B30HM2 |
|
Panel |
21.45″ (VA) |
|
Pixel Pitch (H × V) |
0.2493 mm × 0.241 mm |
|
Effective Viewing Area (H × V) |
478.66 mm × 260.28 mm |
|
Brightness (typical) |
250 cd/m² |
|
Contrast Ratio |
3000 : 1 (typical) / 20 M : 1 (DCR) |
|
Response Time |
4 ms GtG / 1 ms MPRT |
|
Viewing Angle (H / V, CR > 10) |
178° / 178° |
|
Color Gamut |
NTSC 86% (CIE1976) / sRGB 102% (CIE1931) |
|
Color Accuracy |
– |
|
Optimum Resolution |
1920 × 1080 @ 120 Hz (HDMI); 1920 × 1080 @ 75 Hz (VGA) |
|
Display Colors |
16.7 million |
|
Signal Input |
VGA × 1, HDMI 1.4 × 1 |
|
HDCP Version |
HDMI 1.4 |
|
USB Hub |
No |
|
Power Supply |
External 19 V DC, 1.31 A |
|
Power Consumption (typical) |
17 W |
|
Speakers |
No |
|
Line‑in & Earphone |
No |
|
Wall‑Mount |
100 mm × 100 mm |
|
Adjustable Stand |
Tilt: –5° to +23° |
|
Product without Stand (H × W × D) |
284.8 × 493.8 × 35.8 mm |
|
Product with Stand (H × W × D) |
379.1 × 493.8 × 169.9 mm |
|
Packaging (H × W × D) |
350 × 565 × 93 mm |
|
Product without Stand (kg) |
1.79 kg |
|
Product with Stand (kg) |
2.02 kg |
|
Product with Packaging (kg) |
3.49 kg |
|
Cabinet Color |
Black |
|
Regulatory Approvals |
CE / BSMI / RCM / MEPS / RoHS |
