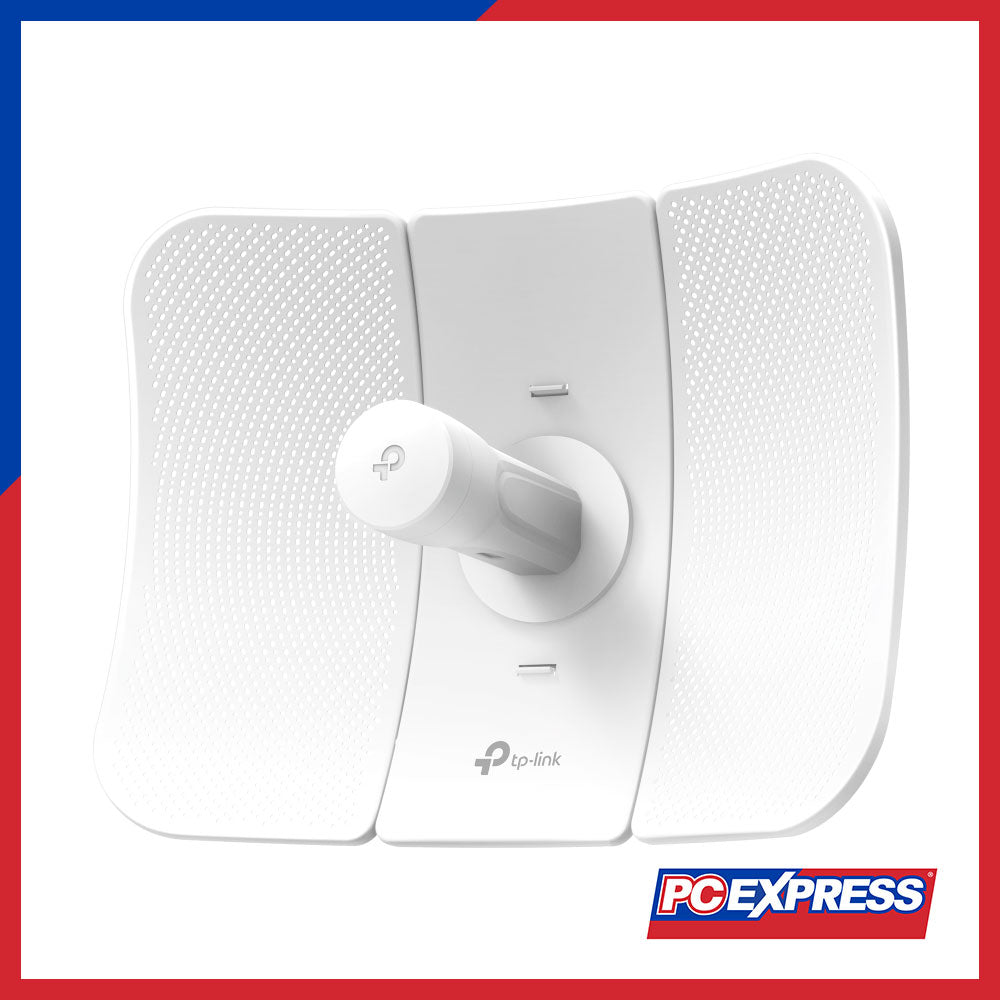

TP-LINK CPE610 5GHz 300Mbps 23dBi Outdoor CPE

Processor

Qualcomm 560 MHz CPU, MIPS 74Kc

Memory

64 MB DDR2 RAM, 8 MB Flash

Interface

• 1 × 10/100 Mbps Shielded Ethernet Port (LAN/PoE)
• 1 × Reset Button

Power Supply

Passive PoE via LAN (+4,5 pins; –7,8 pins)
Voltage range: 16–27 V DC

Max. Power Consumption

8.8 W
^{*Note: When using Passive PoE, actual draw increases with cable length.}

Dimensions (W × D × H)

366 × 280 × 207 mm (14.4 × 11.0 × 8.1 in)

Antenna Gain

23 dBi

Antenna Beamwidth

9° (Azimuth) / 7° (Elevation)

Protection

• 15 kV ESD Protection
• 6 kV Lightning Protection

Enclosure

Material: Outdoor PC‑stabilized plastic
Weatherproof: IP65

Wireless Standards

IEEE 802.11a/n

Proprietary Protocol

TDMA Mode (Pharos MAXtream)

Wireless Speeds

• Up to 300 Mbps (40 MHz, dynamic)
• Up to 144.4 Mbps (20 MHz, dynamic)
• Up to 72.2 Mbps (10 MHz, dynamic)
• Up to 36.1 Mbps (5 MHz, dynamic)

Frequency

5.15–5.85 GHz
^{*Country/region restrictions may apply.}

Transmission Power

Max. 25 dBm (adjustable by 1 dBm)

Network Configuration

WAN: Static/Dynamic/PPPoE/L2TP/PPTP
LAN: Static/Dynamic/DHCP
Forwarding: ALG/UPnP/Virtual Server/Port Trigger
Security: SPI Firewall, Ping Forbidden, DoS Protection
Access Control, Static Routing, Bandwidth Control, IP & MAC Binding

Wireless Configuration

Pharos MAXtream TDMA
Channel Width: 5/10/20/40 MHz selectable
Auto Channel Selection, Transmit Power Control, DFS, WDS enable/disable
Security: WPA/WPA2, WPA‑PSK/WPA2‑PSK (AES/TKIP), 64/128/152‑bit WEP
SSID Broadcast enable/disable, Multi‑SSID with VLAN tagging (AP mode only)
Distance/ACK Timeout
MAC Address Filter
Advanced: Beacon Interval, RTS Threshold, Fragmentation Threshold, DTIM Interval, AP Isolation, Short GI, Wi‑Fi Multimedia
Long‑range PtP

Management Features

Discovery & remote management via Pharos Control app
HTTP/HTTPS web management
System log, SNMP agent (v2c), Ping watchdog, Dynamic DDNS, SSH server

System Tools

Indicators: Signal Strength, Noise, Transmit CCQ, CPU, Memory
Monitors: Throughput, Stations, Interfaces, ARP, Routes, WAN, DHCP
Spectrum Analyzer, Speed Test, Ping, Traceroute

System‑level Optimizations

Optimized IGMP snooping/proxy for multicast, Hardware watchdog

PoE Adapter Dimensions

85.8 × 43.9 × 29.7 mm

PoE Adapter Interfaces

1 AC jack with earth ground
1 × 10/100 Mbps shielded Ethernet (power + data)
1 × 10/100 Mbps shielded Ethernet (data)
Remote Reset Button, Green status LEDs

PoE Adapter Power

Input: 100–240 VAC, 50/60 Hz
Output: 24 V DC, 0.5 A max (+4,5; –7,8 pins; supports up to 60 m PoE)
Efficiency: > 84.29%

PoE Adapter Certifications

CE, FCC, UL, IC, GS, PSB, C‑tick, SAA, S‑Mark, KC

Others

Certification: CE, FCC, IC, RoHS, IP65
Package: Outdoor Wireless CPE; 24 V 0.5 A Passive PoE adapter; Pole mounting straps; AC power cord; Installation guide
System Requirements: Windows 98SE/NT/2000/XP/Vista/7/8/10; macOS; NetWare; UNIX; Linux (Chrome, Safari, Firefox recommended; IE not recommended)
Environment: Operating –40 ℃ to 70 ℃; Storage –40 ℃ to 70 ℃; Humidity operating 10–90% RH; storage 5–95% RH (non‑condensing)
