ASUS ROG STRIX 1200W 80+ Platinum Fully Modular Power Supply
- Read our FAQs before ordering
- Need Help? Chat with us.
SPECIFICATION
Model |
ROG STRIX 1200W Platinum |
Intel Form Factor |
ATX12V |
PFC Type |
Active PFC |
ATX Standard |
ATX 3.1 |
Dimensions (L x W x H) |
160 x 150 x 86 mm |
Efficiency |
80Plus Platinum |
MTBF |
>120,000 hrs @ 25°C |
Protection Features |
OPP, OVP, UVP, SCP, OCP, OTP |
Hazardous Materials |
RoHS Compliant |
AC Input Range |
100–240Vac |
DC Output Voltage |
+3.3V, +5V, +12V, -12V, +5Vsb |
Maximum Load |
25A / 25A / 100A / 0.3A / 3A |
Combined Load |
130W / 130W / 1200W / 3.6W / 15W |
Total Output Power |
1200W |

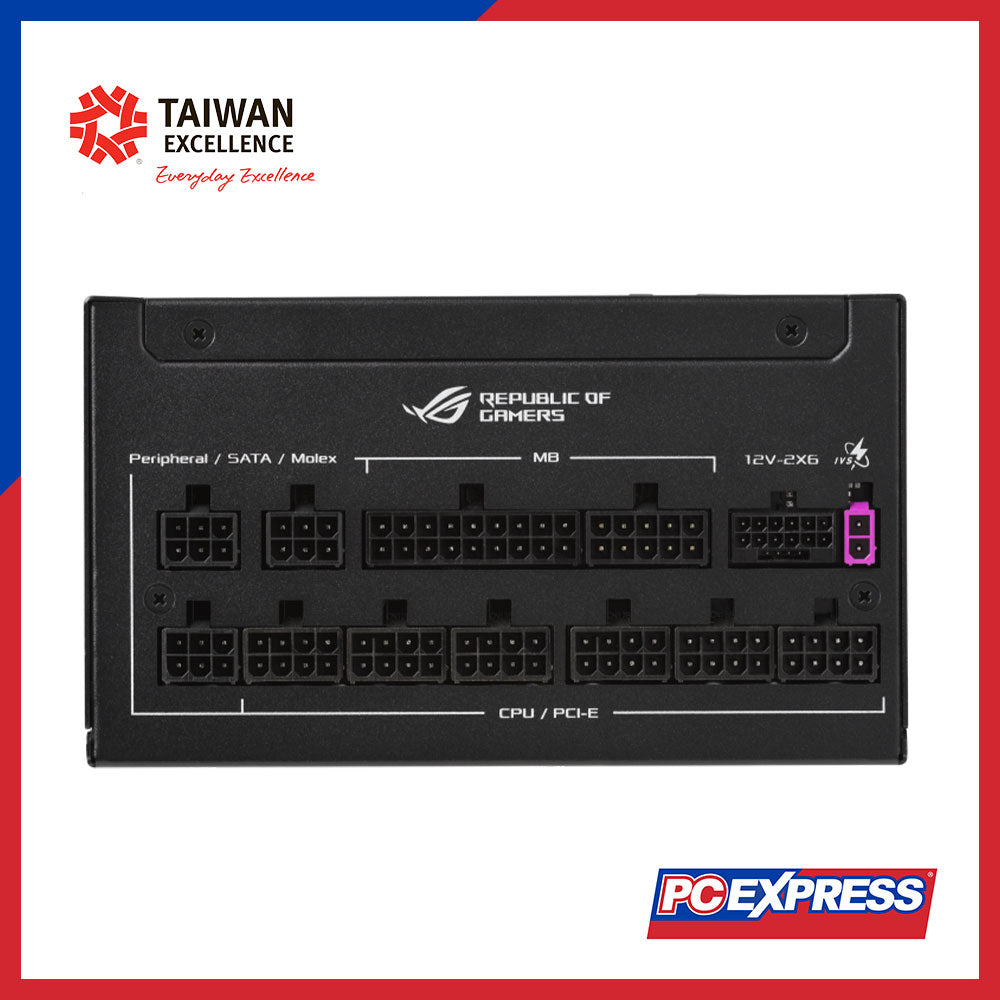

Cable Connectors |
- MB 24/20-pin x1 |
Package Contents |
- Power Cord x1 |
Weight |
1.84 kg (single PSU) |
Cybenetics Noise Level |
A |
0dB Technology |
Supported (Fan shuts off entirely at low load) |

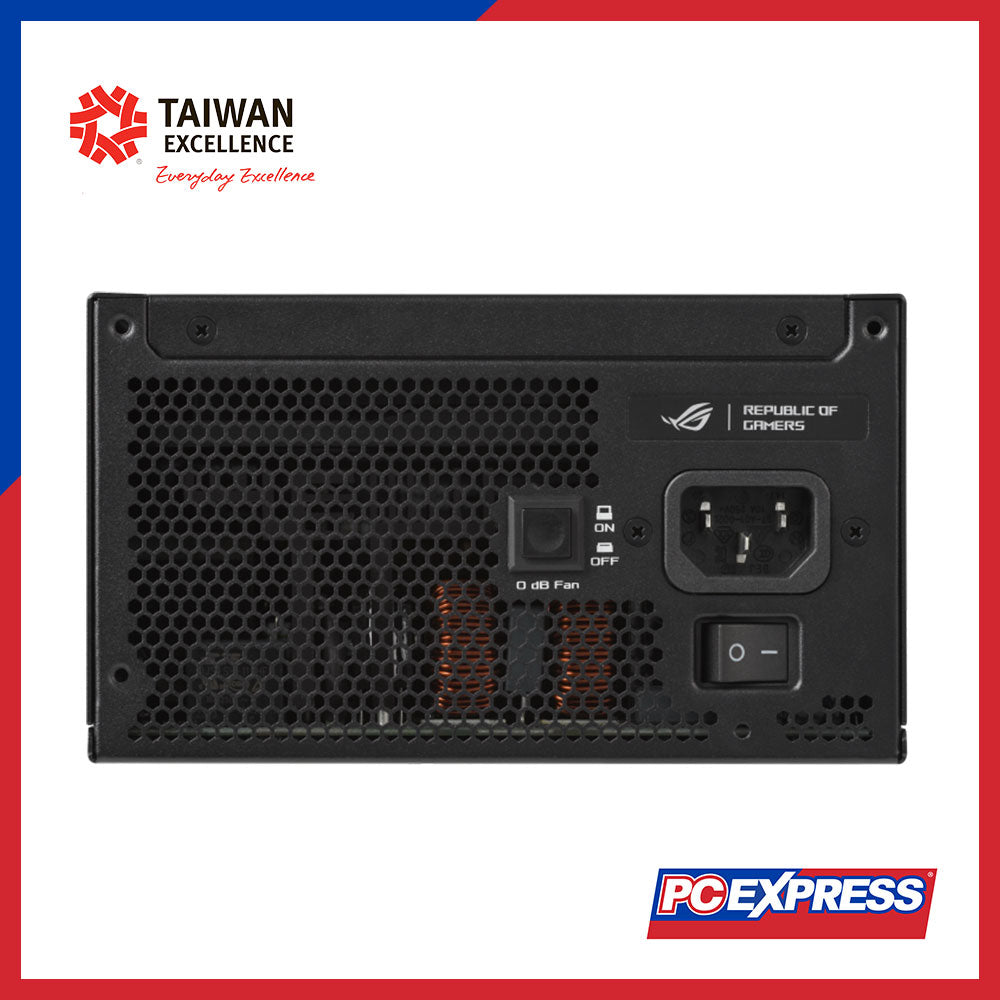

0dB Fan Button |
Yes (Toggle between silent and always-on fan mode) |
