ASUS Dual Radeon™ RX 6500 XT V2 OC Edition 4GB GDDR6 64-bit Graphics Card
- Read our FAQs before ordering
- Need Help? Chat with us.
SPECIFICATION
Model |
DUAL-RX6500XT-O4G-V2 |
Graphic Engine |
Radeon RX 6500 XT |
Bus Standard |
PCI Express 4.0 |
OpenGL |
OpenGL® 4.6 |
Video Memory |
4 GB GDDR6 |
Engine Clock |
• OC mode: up to 2820 MHz (Boost Clock) / up to 2670 MHz (Game Clock) |
Stream Processors |
1024 |
Memory Speed |
18 Gbps |
Memory Interface |
64-bit |
Maximum Resolution |
7680 × 4320 (Digital Max) |

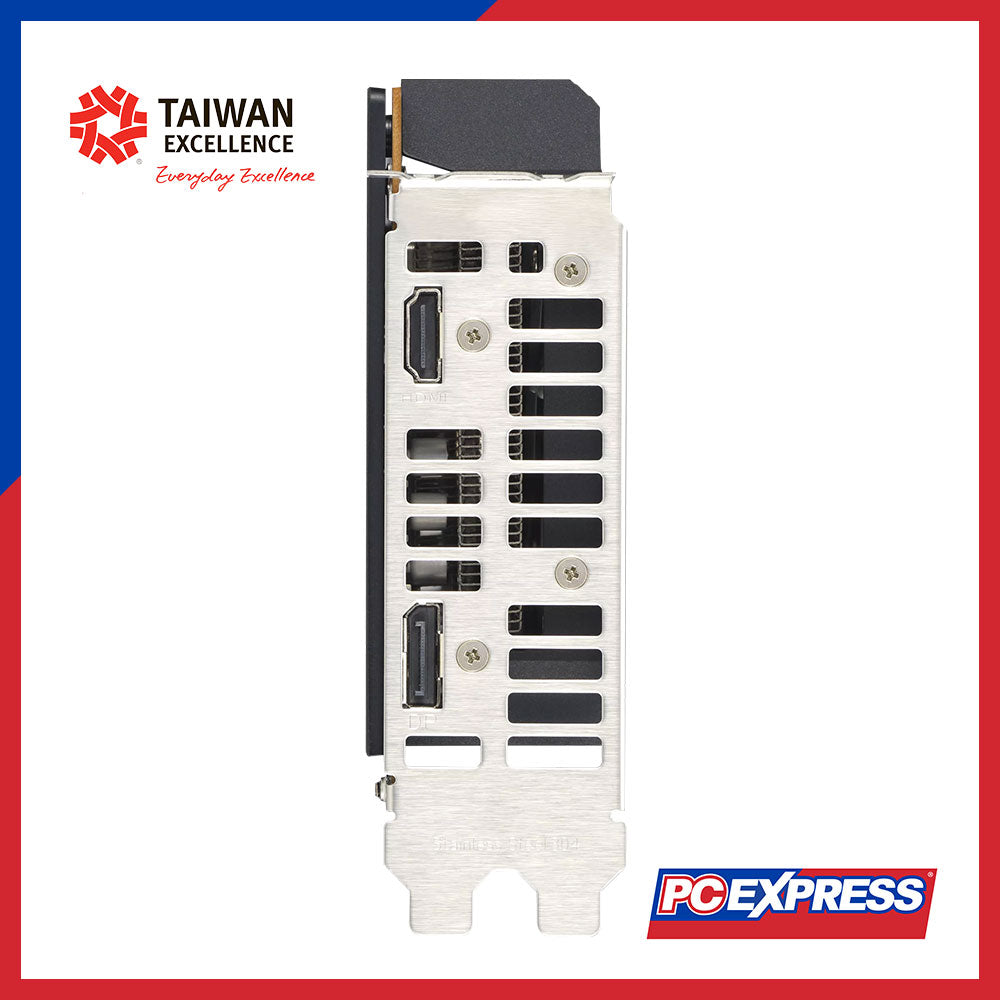

Display Outputs |
• 1 × HDMI 2.1 (native) |
HDCP Support |
Yes (2.3) |
Maximum Displays Supported |
2 |
NVLink / CrossFire Support |
No († CrossFire support available under DirectX® 12 and Vulkan®) |
Accessories Included |
1 × Speedsetup Manual |
Software |
ASUS GPU Tweak III & drivers (download from ASUS support site) |
Dimensions (L × W × H) |
201 × 128 × 40 mm |
Recommended PSU |
500 W (based on a fully overclocked GPU + CPU) |

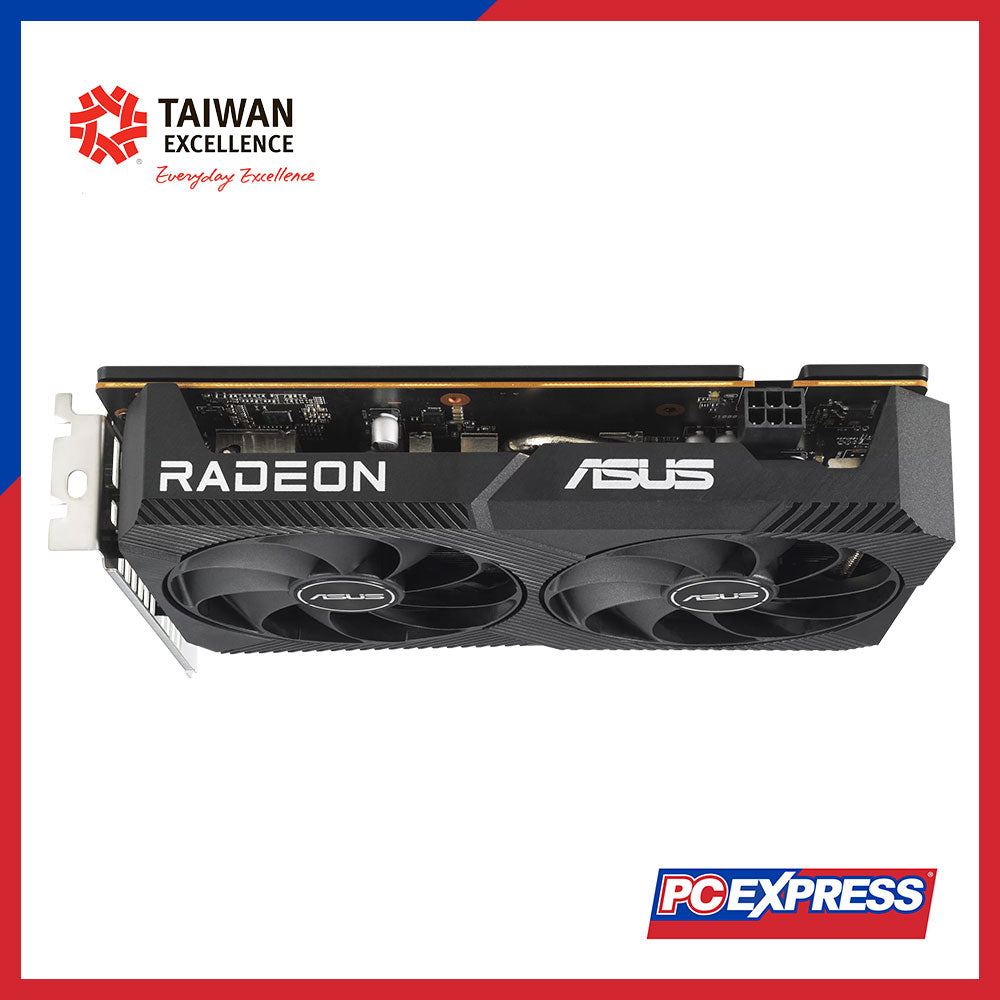

Power Connector |
1 × 6-pin PCIe |
Slot Width |
2 slots |
Notes |
• Wattage recommendation considers a fully overclocked system—use “Choose By Wattage” on ASUS PSU page for tailored advice |
