ASUS Dual GeForce RTX™ 5060 Ti OC Edition 16GB GDDR7 128-bit Graphics Card
- Read our FAQs before ordering
- Need Help? Chat with us.
SPECIFICATION
Graphics Engine |
NVIDIA® GeForce RTX™ 5060 Ti |
Model Name |
DUAL-RTX5060TI-O16G |
AI Performance |
767 TOPs |
Bus Standard |
PCI Express 5.0 |
OpenGL Version |
OpenGL® 4.6 |
Video Memory |
16 GB GDDR7 |
Engine Clock |
• OC Mode: 2632 MHz |
CUDA Cores |
4608 |
Memory Speed |
28 Gbps |
Memory Interface |
128-bit |
Max Digital Resolution |
7680 × 4320 |

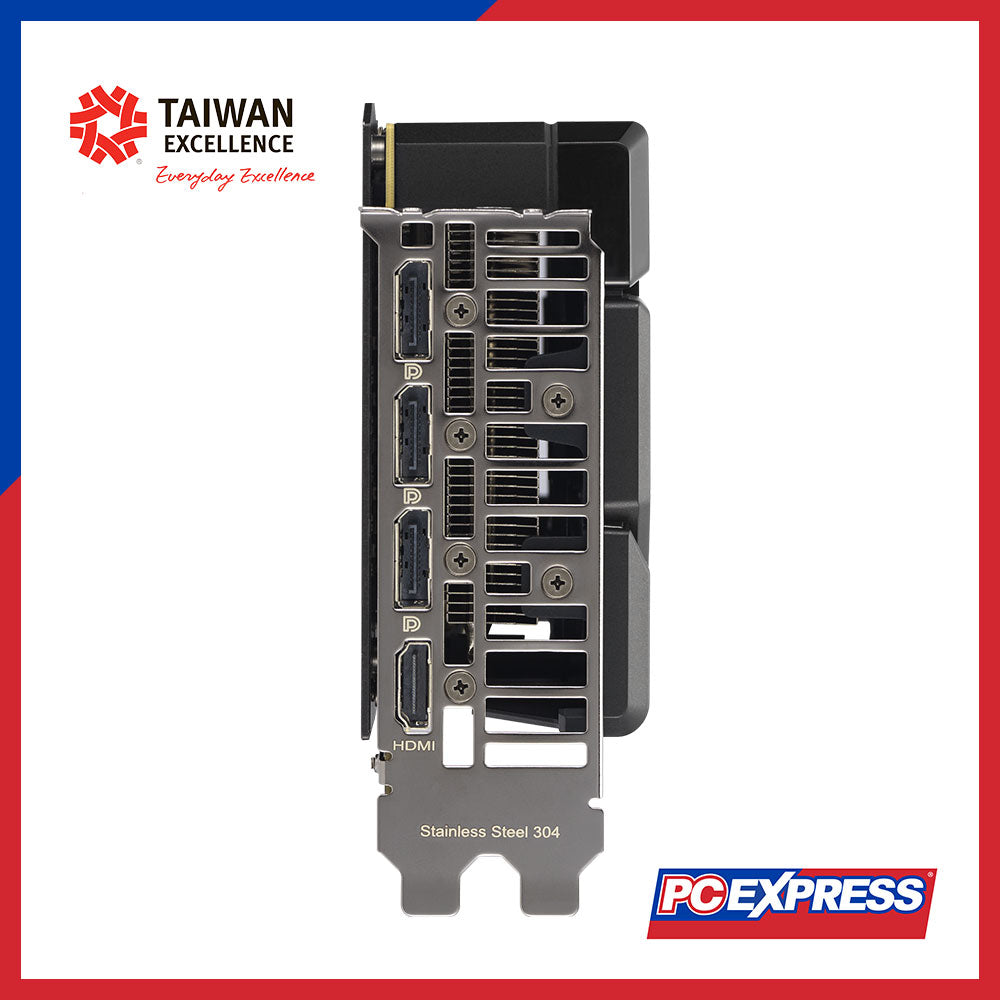

Display Outputs |
• 1× Native HDMI 2.1b |
HDCP Support |
Yes (2.3) |
Max Displays Supported |
4 |
NVLink/CrossFire |
No |
Accessories |
• Speedsetup Manual |
Software Bundle |
ASUS GPU Tweak III, MuseTree, GeForce Game Ready & Studio Drivers (download from support site) |
Dimensions (L×W×H) |
229 × 120 × 50 mm |
Recommended PSU |
550 W |

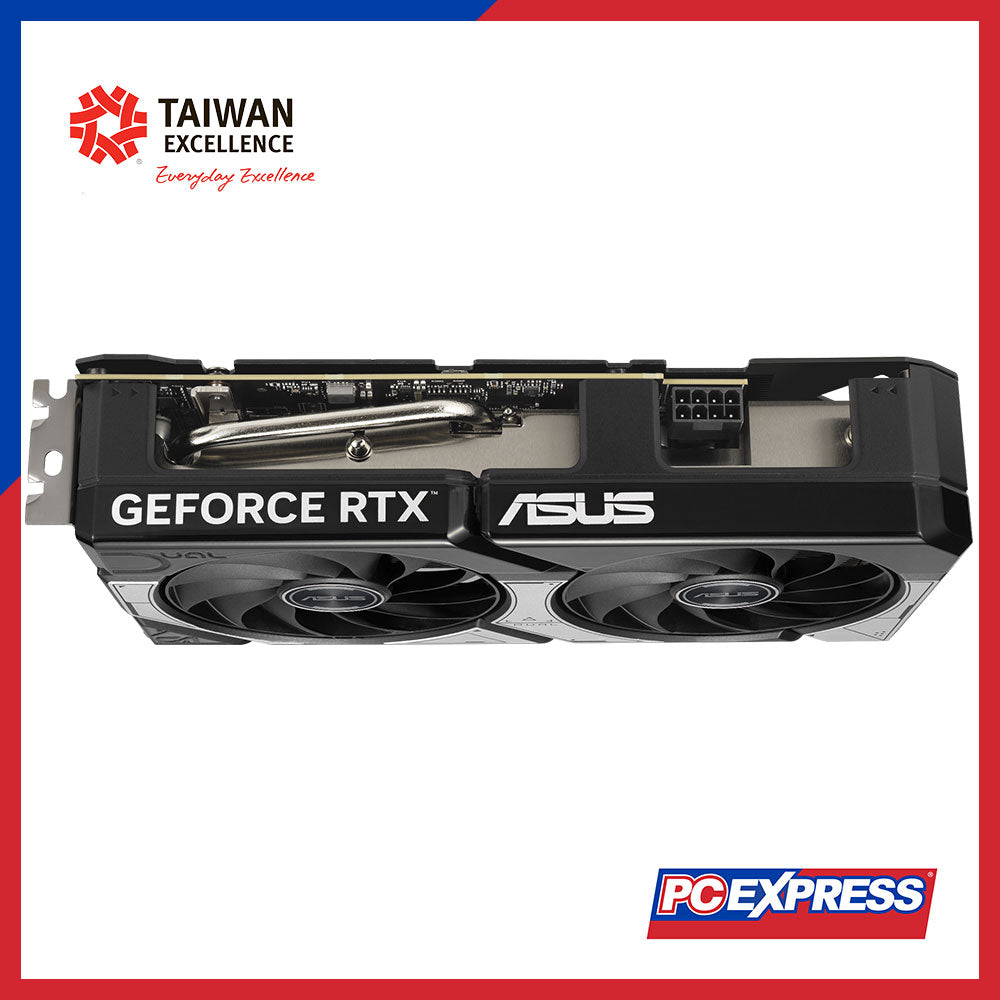

Power Connector |
1× 8-pin |
Slot Width |
2.5 slots |
Small-Form-Factor Ready |
Yes |
Notes |
• Wattage rec. based on fully OC’d GPU+CPU; use “Choose By Wattage” PSU tool for tailored advice |
