HIKVISION TVI Lite-8CH4D4B-2MP ColorVu KIT

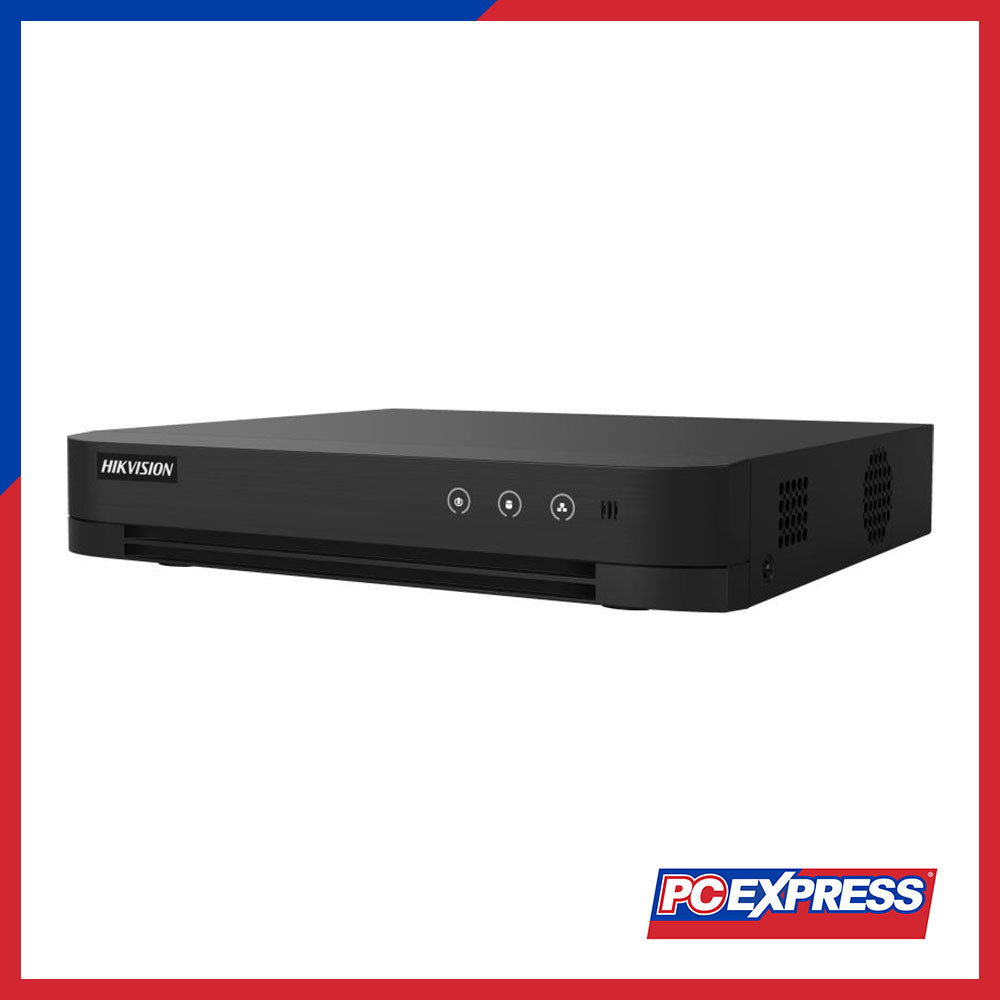

1U H.265 DVR (DS-7204HGHI-M1)

Motion Detection 2.0

Deep learning-based detection classifies human and vehicle, reducing false alarms. Quick search by object or event type supported.

Video and Audio

IP Video Input

1-ch (up to 5-ch), supports H.265+/H.265/H.264+/H.264 IP cameras, up to 1080p.

Analog Video Input

4-ch, BNC interface, supports coaxitron connection.

HDMI Output

1-ch, up to 1920 × 1080/60Hz.

VGA Output

1-ch, up to 1920 × 1080/60Hz.

HDTVI/AHD/HDCVI Input

1080p25, 1080p30, 720p25, 720p30.

CVBS Input

Supported.

Synchronous Playback

4-ch.

Audio Input/Output

1-ch RCA, 4-ch via coaxial cable, 1-ch RCA output.

Two-Way Audio

Reuses the first audio input.

Recording

Video Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264.

Encoding Resolution

1080p Lite, 720p Lite, WD1, VGA, CIF.

Frame Rate

Main: up to 25 fps (P)/30 fps (N). Sub-stream: up to 15 fps.

Network

Total Bandwidth

64 Mbps.

Remote Connection

32.

Network Interface

1 RJ45 10/100 Mbps Ethernet.

Auxiliary Interface

SATA

1 SATA interface, up to 4 TB.

USB Interface

2 × USB 2.0.

General

Power Supply

12 VDC, 1.5 A.

Consumption

≤16 W (without HDD).

Dimensions (W × D × H)

260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inches).

Weight

≤0.8 kg (1.8 lbs).

2 MP ColorVu Indoor Audio Fixed Turret Camera

Image Sensor

3K CMOS.

Max. Resolution

2960 (H) × 1665 (V).

Min. Illumination

0.001 Lux (F1.0, AGC ON), 0 Lux with white light.

Day/Night Mode

24/7 Color Imaging.

Lens Type

Fixed focal (2.8 mm, 3.6 mm).

Focal Length & FOV

2.8 mm: Horizontal FOV 102°, Diagonal FOV 122°; 3.6 mm: Horizontal FOV 80°, Diagonal FOV 96°.

Supplement Light

White light, up to 20 m.

Frame Rate

TVI: 3K@20fps, AHD: 5 MP@20fps.

Noise Reduction

2D DNR.

Dimensions

Φ85.02 × 81.25 mm (3.35" × 3.2").

Weight

Approx. 165.5 g (0.36 lb).

Power

12 VDC ± 25%, Max. 2.5 W.

2 MP ColorVu Audio Fixed Mini Bullet Camera

Image Sensor

2 MP CMOS.

Max. Resolution

1920 (H) × 1080 (V).

Min. Illumination

0.0005 Lux (F1.0, AGC ON), 0 Lux with white light.

Lens Type

Fixed focal (2.8 mm, 3.6 mm).

Focal Length & FOV

2.8 mm: Horizontal FOV 98°, Diagonal FOV 116°; 3.6 mm: Horizontal FOV 77°, Diagonal FOV 91°.

Supplement Light

White light, up to 20 m, with smart feature.

Frame Rate

TVI: 1080p @ 25/30 fps, CVI/AHD: 1080p @ 25/30 fps.

Wide Dynamic Range (WDR)

≥130 dB.

Dimensions

Compact.

Power

12 VDC ± 25%.
