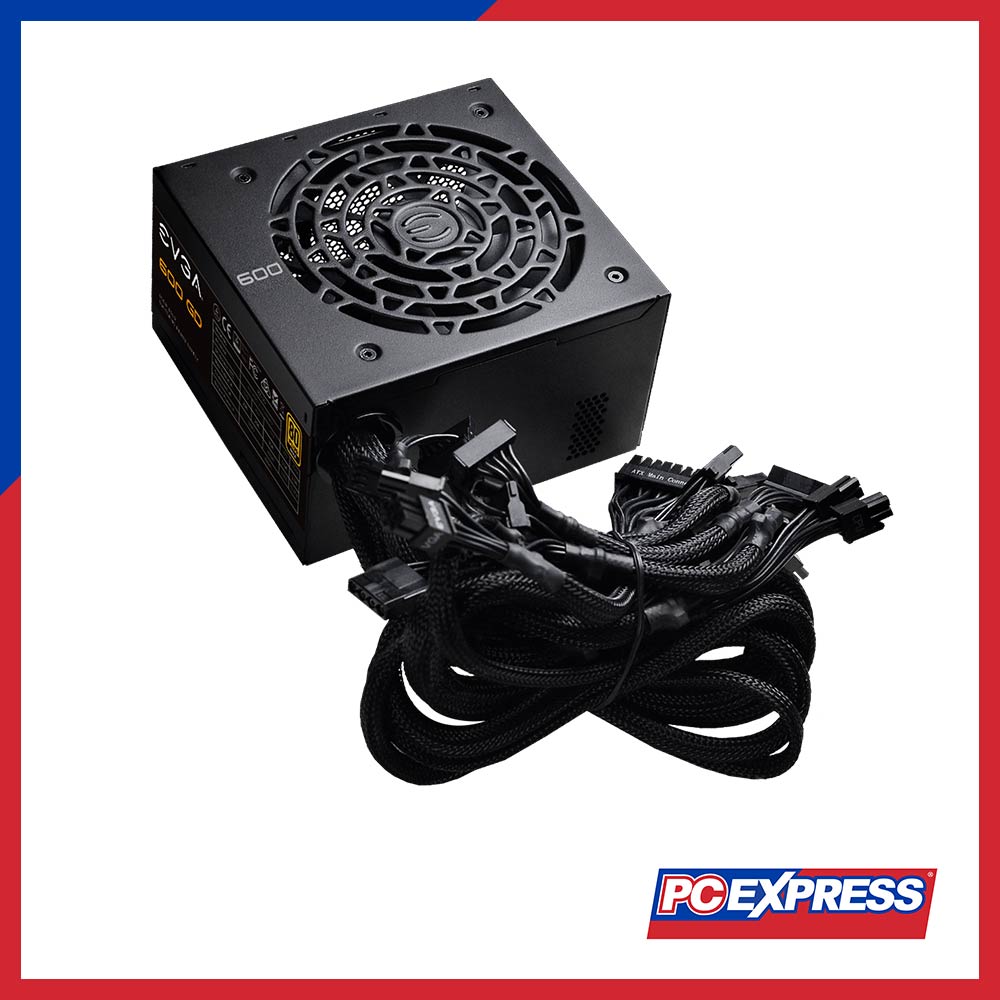

EVGA 600W (100-GD-0600-V1) 80+ Gold Non-Modular Power Supply
Tax included.
Shipping calculated at checkout.
Description
SPECIFICATIONS
CABLE LENGTH |
|
| ATX Cable | 1x 600mm |
| EPS Cable | 1x 600mm |
| PCIe Cable | 2x 550mm |
| SATA / Four-Pin Peripheral Cable | 1x 450mm(s), 600mm(s), 750mm(s), 900mm(m), 1050mm(m) |
| AC Power | 1x 1500mm (m) |
| Modular Cable Type | No |
CONNECTOR QUANTITY |
|
| 24 Pin ATX | 1x |
| EPS (CPU) | 1x8pin(4+4) |
| PCIe | 2x8pin(6+2) |
| SATA | 6x |
| Four-Pin Peripheral | 3x |
| Floppy | 1x |
ADDITIONAL DETAILS |
|
| Operating Temperature | 0° to 40° C |
| Japanese Capacitors | Main |
| ECO Mode | No |
| MTBF | 100,000 Hours |
| Gross Weight | 4.41 lbs |
| Size | 86mm (H) x 150mm (W) x 140mm (L) |
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement |
| Fan Size / Bearing | 120mm Sleeve Bearing |

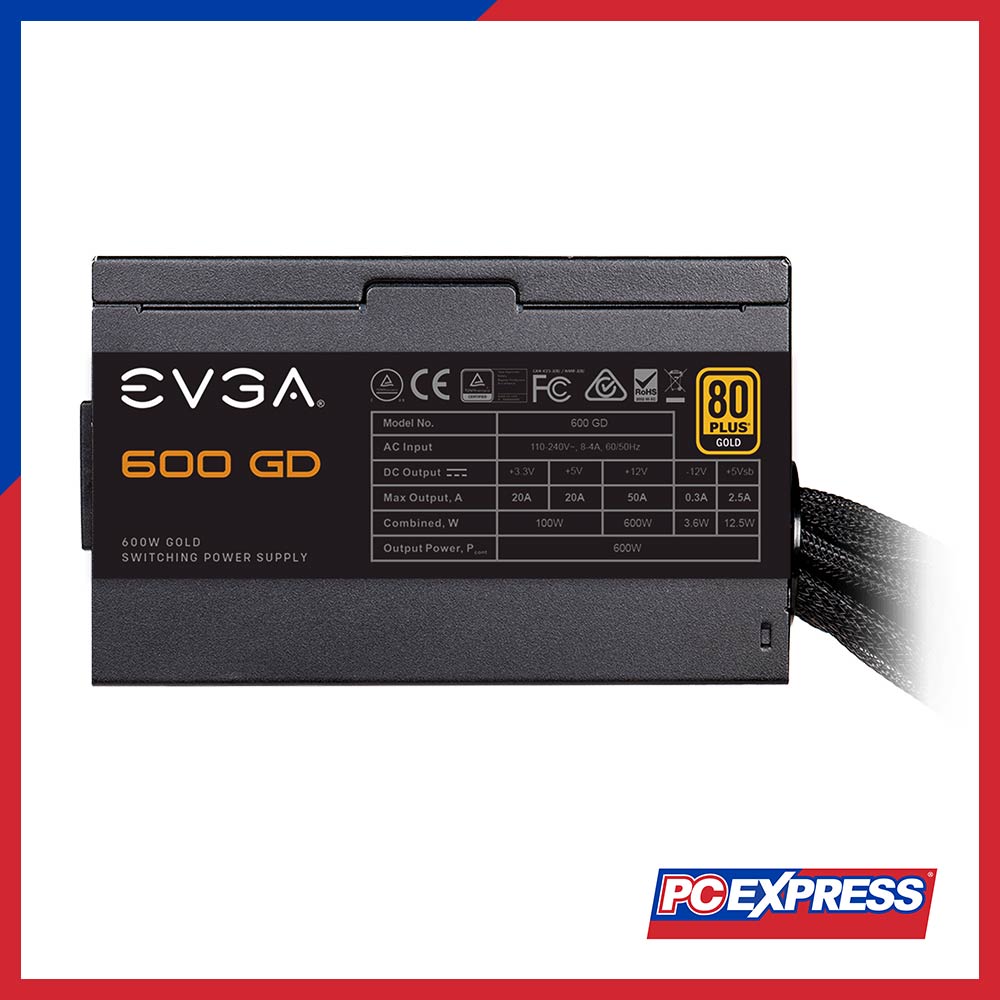

POWER SPECS
| AC Input | 110-240 VAC, 8-4A, 60/50 Hz | ||||
| Rail | +3.3V | +5V | +12V | +5Vsb | -12V |
| Max Output | 20A | 20A | 50A | 2.5A | 0.3A |
| 600W | |||||
| 100W | 600W | 3.6W | 12.5W | ||
| Total | 600W | ||||
EVGA 600W (100-GD-0600-V1) 80+ Gold Non-Modular Power Supply
₱3,800.00
